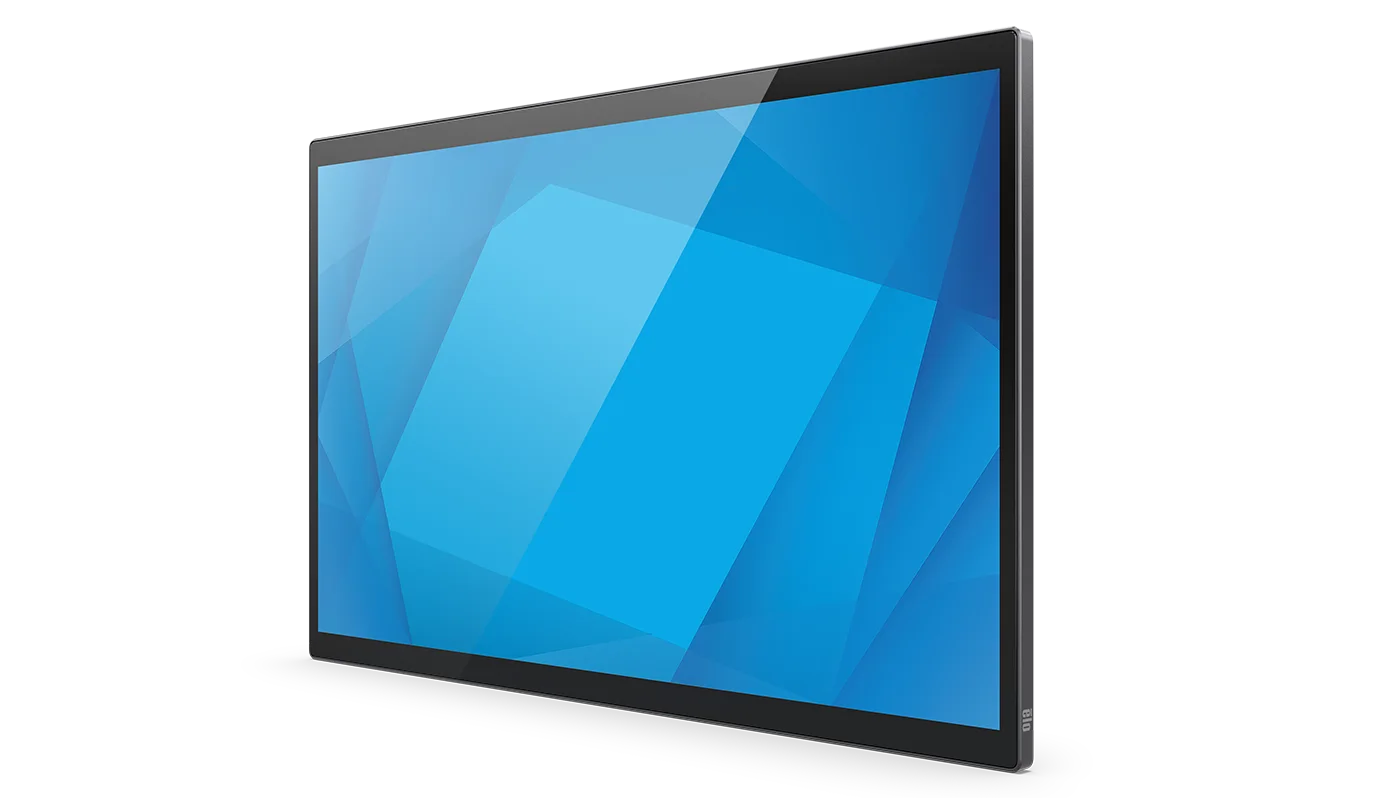

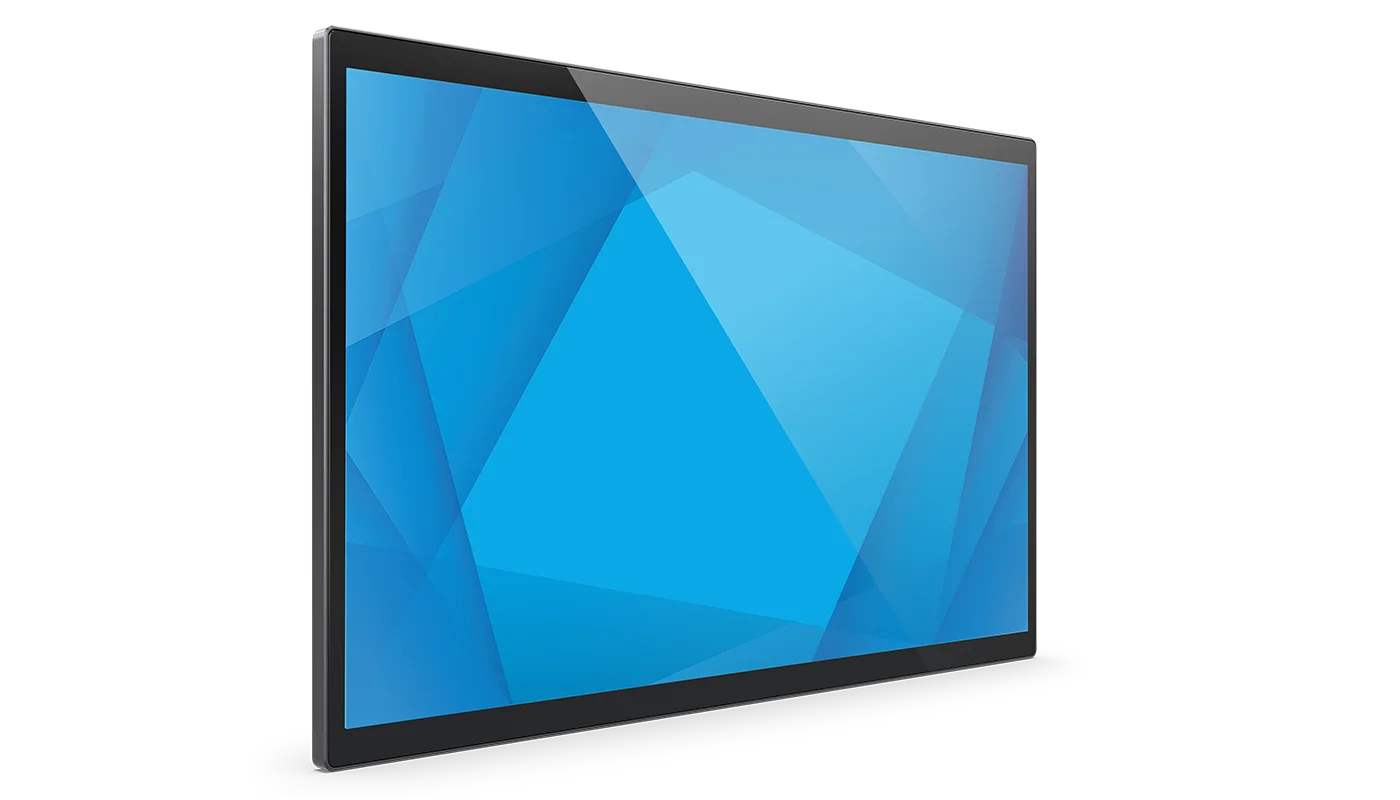

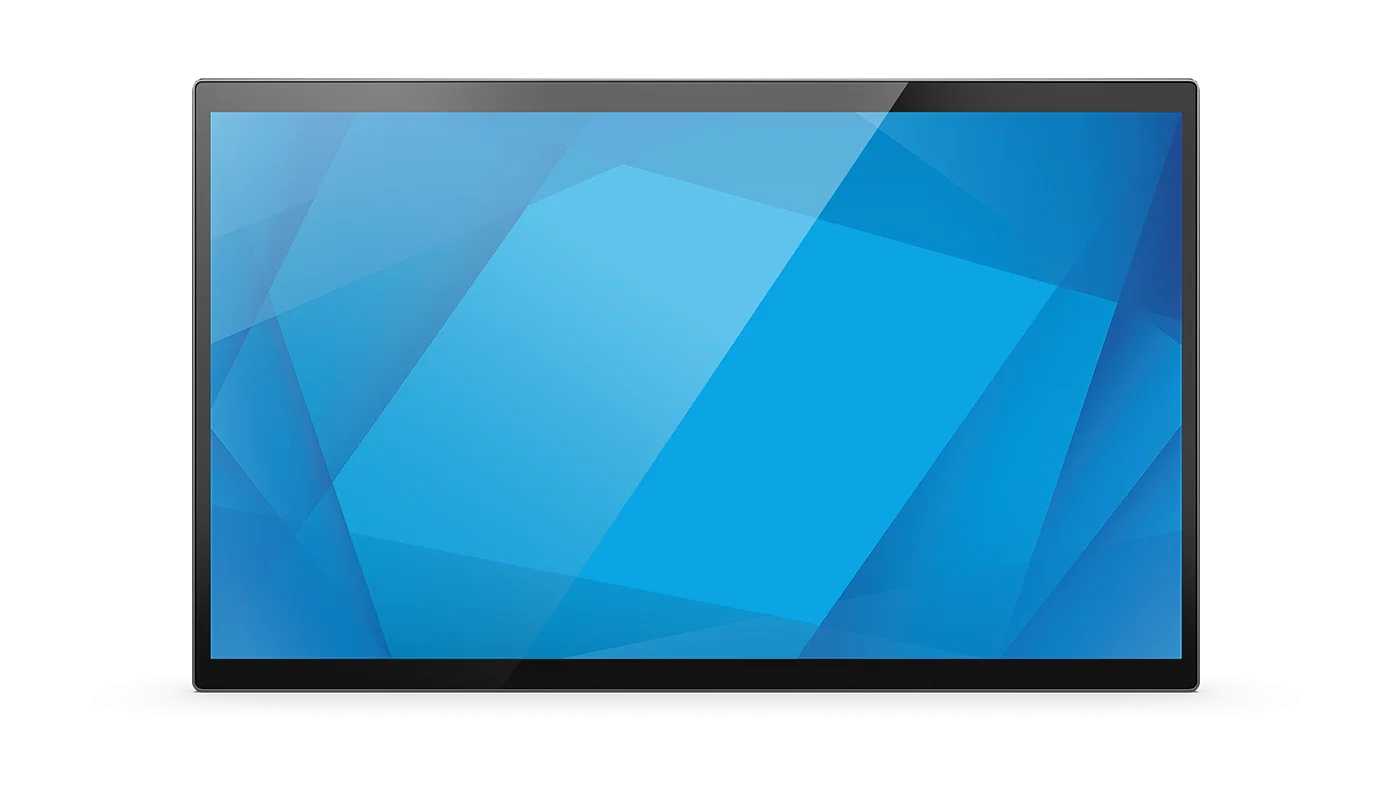

Elo Touch 1504LS 15" Monitor

Display15.6'' diagonal, Active matrix TFT LCD (LED)

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

The 1504LS non-touch monitor brings sleek, commercial-grade design to a wide range of applications. Available in 7", 10", 13" and 15", these slim displays feature narrow borders, enhanced durability and optical bonding for brilliant clarity. From customer-facing displays and retail media signage to industrial HMI, queue management and point-of-information systems, the 04LS product line offers a clean, flexible form factor built to fit almost any environment.

Streamline setup with USB‑C to enable power and video integration all in a single cable.
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.
Designed to integrate seamlessly across environments, the 04LS monitors deliver the clarity, durability, and form factor needed to support a wide range of display applications—without adding complexity.
Whether you want to pair the 1504LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offer the perfect compact display with the sleekness you desire at the point of sale.
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.

Specifications

Technical

Part Number(s): E737067
Enclosure Color: Dark Gray Metallic
Touch Technology & Capacity: Non-Touch
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 13.55'' x 7.62'' / 344.16 mm x 193.59 mm
Resolution: 1920 x 1080
Other Supported Resolutions: 640x480 60Hz; 800x600 60Hz; 1024x768 60Hz; 1280x800 60Hz; 1280x720 60Hz; 1280x1024 60Hz; 1366x768 60Hz, 60Hz RB; 1440x900 60Hz, 60Hz RB; 1680x1050 60Hz, 60Hz RB; 1920x1080 60Hz
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors: 16.2 million
Brightness (typical): Panel: 350 nits
Response Time-total (typical): 30 msec
Contrast Ratio: 1000:1
Touch Interfaces: USB
Surface Treatment: Anti-glare
On Screen Display: Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.; Controls: Menu, Power; Settings: Brightness, Contrast, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Touch Through, Recall Defaults; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,; Lockouts: OSD, Power
I/O Ports: USB Type-C connector (for power, video and touch)
Speakers: 2 x 2W internal speakers
Video: USB Type-C connector; Input Video Horizontal Sync frequency range: 30 – 82KHz; Input Video Vertical Sync (frame rate) frequency range: 60Hz
Power: Power Delivery compatible via USB Type-C connector
Power Consumption (Typical): ON (Default - 100% Brightness): 8W; SLEEP: 0.3 W; OFF: 0.15 W

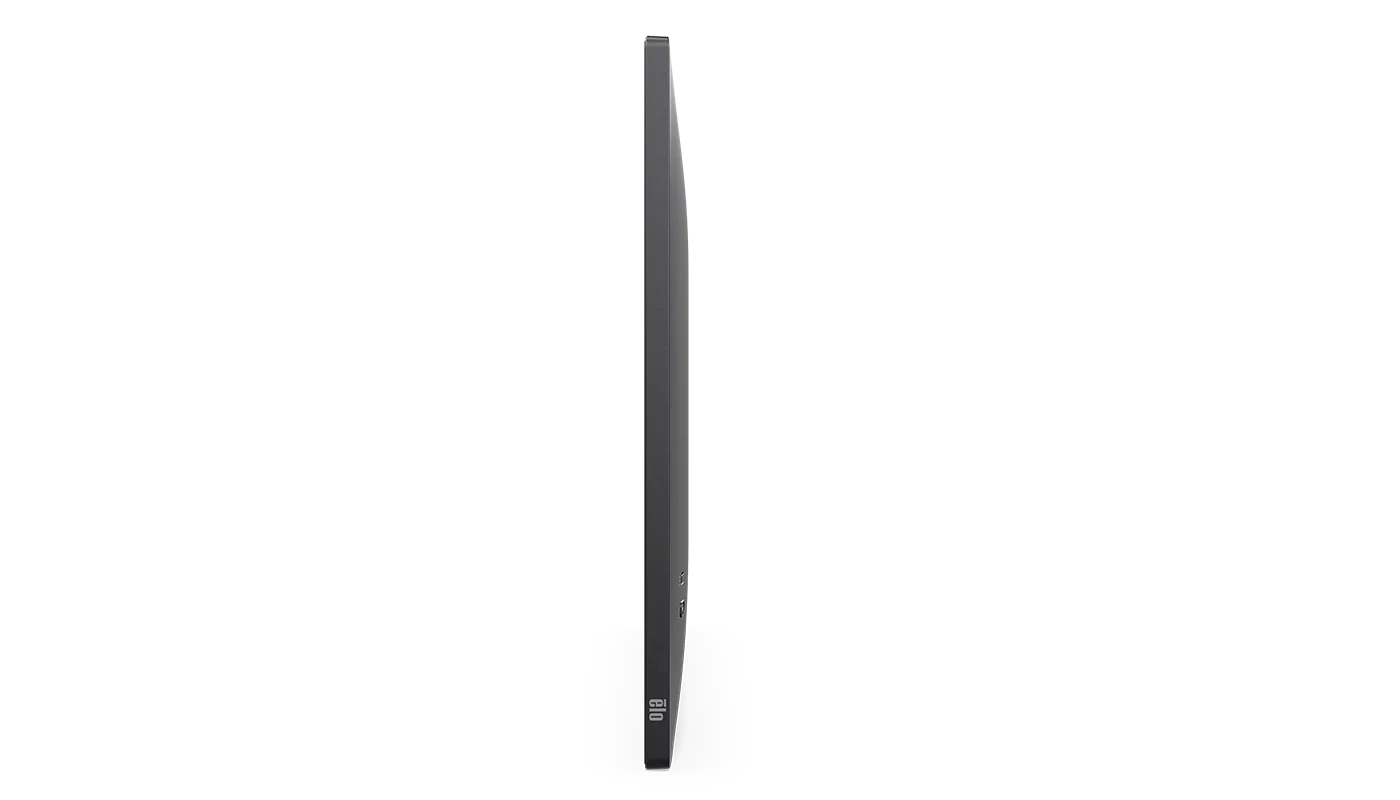

Monitor Dimensions (without Stand): Without VESA Adapter: 14.16" x 8.61" x 0.59" / 359.73 mm x 218.82 mm x 14.97 mm; With VESA Adapter: 14.16" x 8.61" x 0.79" / 359.73 mm x 218.82 mm x 19.97 mm
Shipping Box Dimensions: 17.01" x 3.66" x 11.61" / 432 mm x 93 mm x 295 mm
Weight (Unpackaged): 2.45 lbs / 1.11 kg
Weight (Packaged): 4.21 lbs / 1.91 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)
MTBF: 50,000 hours demonstrated

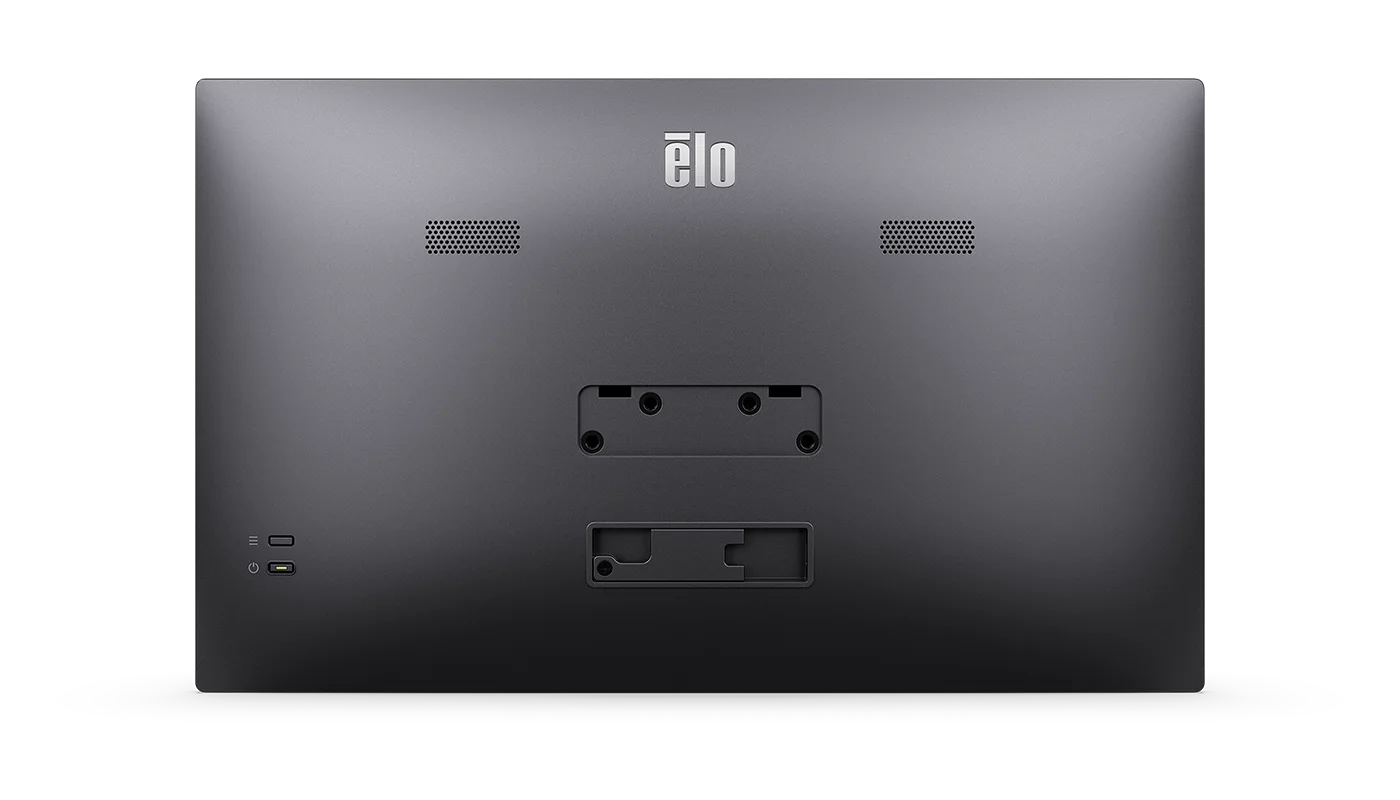

Mounting Options: VESA via 4-hole 75mm mounting adapter on rear of unit.
Other Features: Energy Star 8.0; TUV Rhineland (Low Blue Light); Power collection function via DDCCI
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations: Argentina AR certificate; Canada CUL, IC; Europe CE; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI; International CB; Australia RCM; RoHS, China RoHS, WEEE, REACH; United Kingdom UKCA
Impact Protection: IK06
What's in the Box: Touchmonitor; Quick Install Guide; USB Type-C cable; 75mm VESA adapter (assembled)
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Rear Facing display Pole Mount Kit – Elo P/N: E038989; Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104; Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Wallaby™ POS Stand (Black) - Elo P/N: E949536; USB-C to USB-C Cable Kit – Elo P/N: E129019; Z10 POS Stand (75mm VESA) - Elo P/N: E767159; Wallaby Pro Merchant-facing Display Kit – Elo P/N: E801367

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
