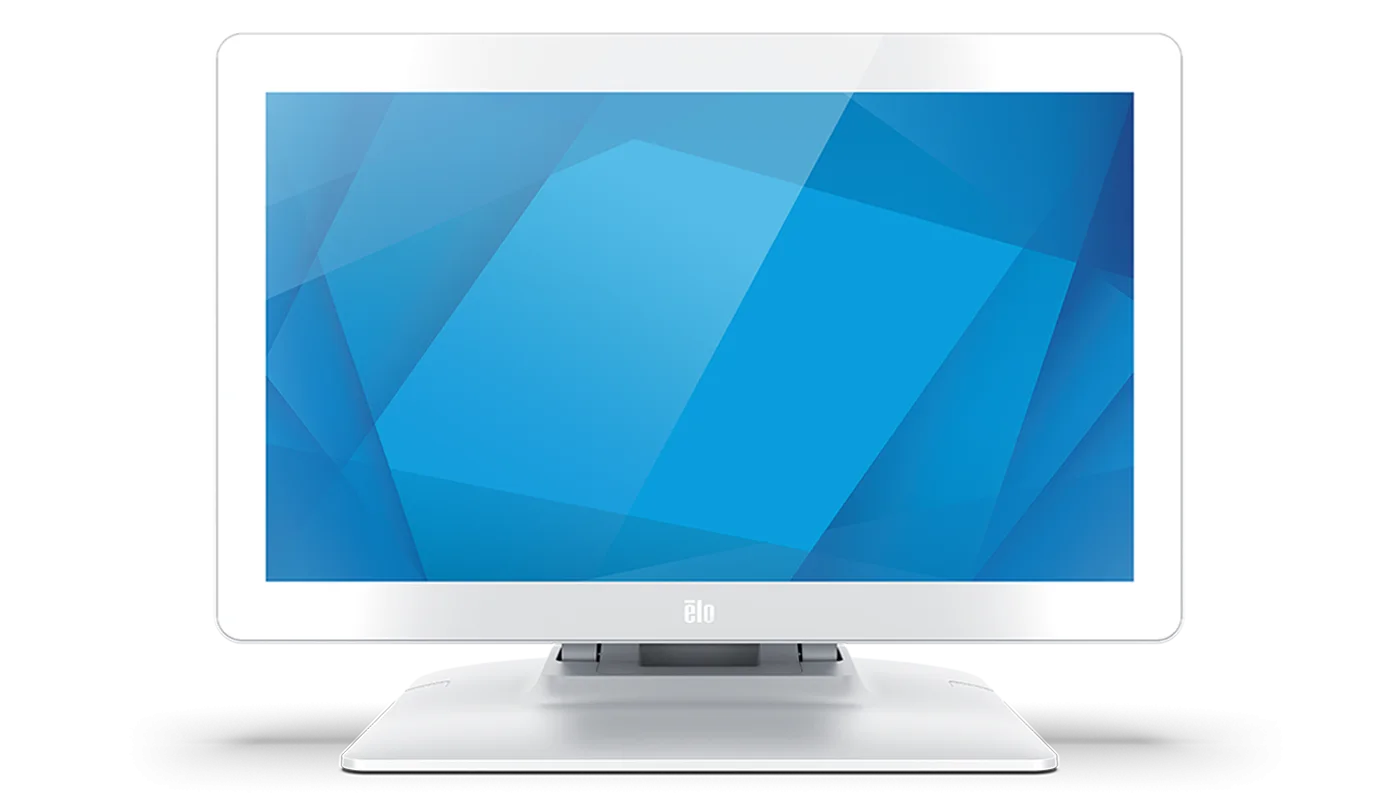

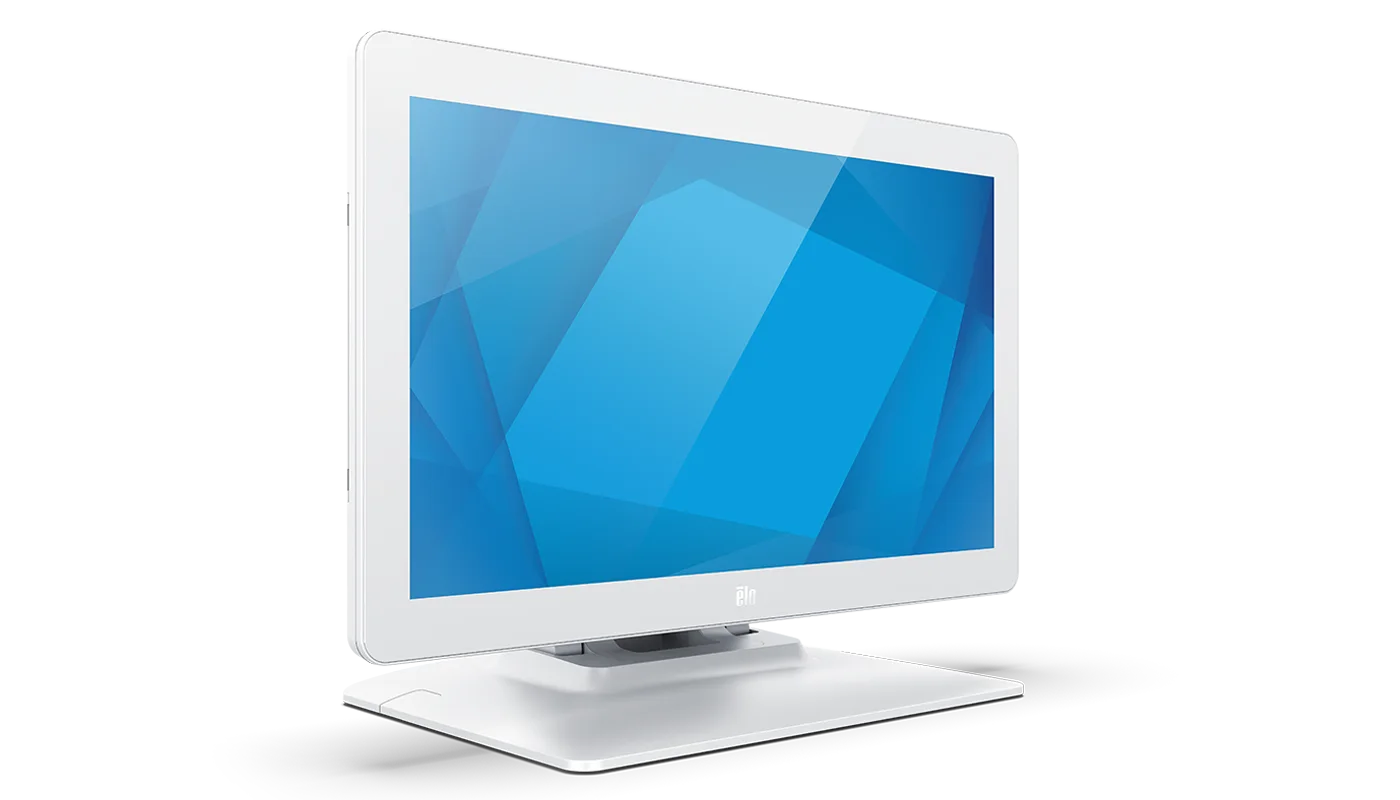

Elo Touch 1502LM 15" Medical Grade Touchscreen Monitor

Medical Grade Touchscreen Monitors

Display15.6'' diagonal, Active matrix TFT LCD (LED)
SealingIP22 entire enclosure

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

The 1502LM Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with critical healthcare features, including adherence to IP-22 and IEC 60601-1 standards. Its compact form factor and sleek design make it ideal for patient entertainment, virtual health, patient monitoring, respiratory and medication dispensing devices, and laboratories.

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.
TouchPro™ PCAP offers a 10-touch, tablet-like experience with capability for use with wet or dry gloves.
Backed by Elo’s 3-year standard warranty with optional EloCare service offerings.
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.
Enhance the patient’s experience with the 1502LM medical grade touch screen monitor at the bedside for entertainment applications or educational content keeping them informed during the course of their treatment.

Specifications

Technical

Part Number(s): White With Stand - E542808; Black With Stand - E542617; White Without Stand - E967255; Black Without Stand - E967064

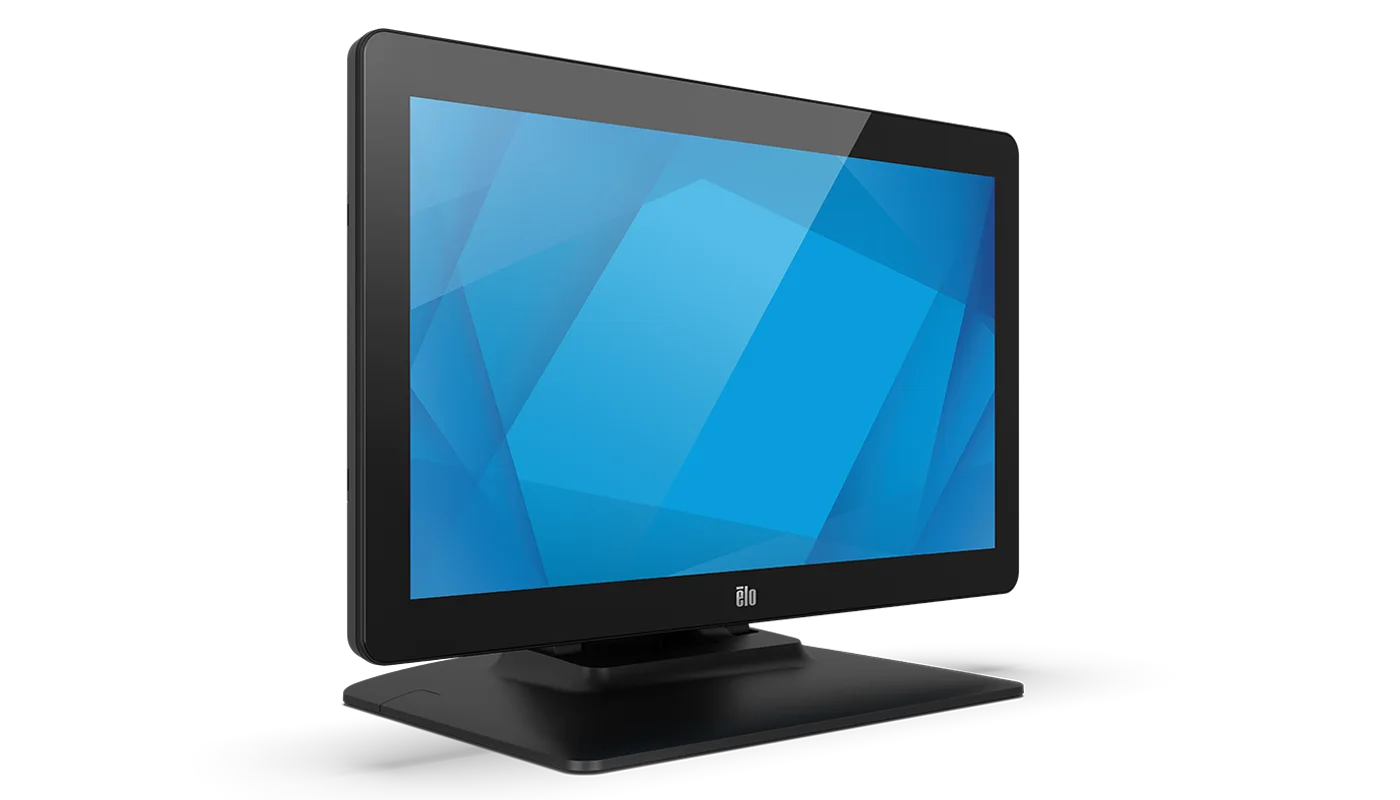

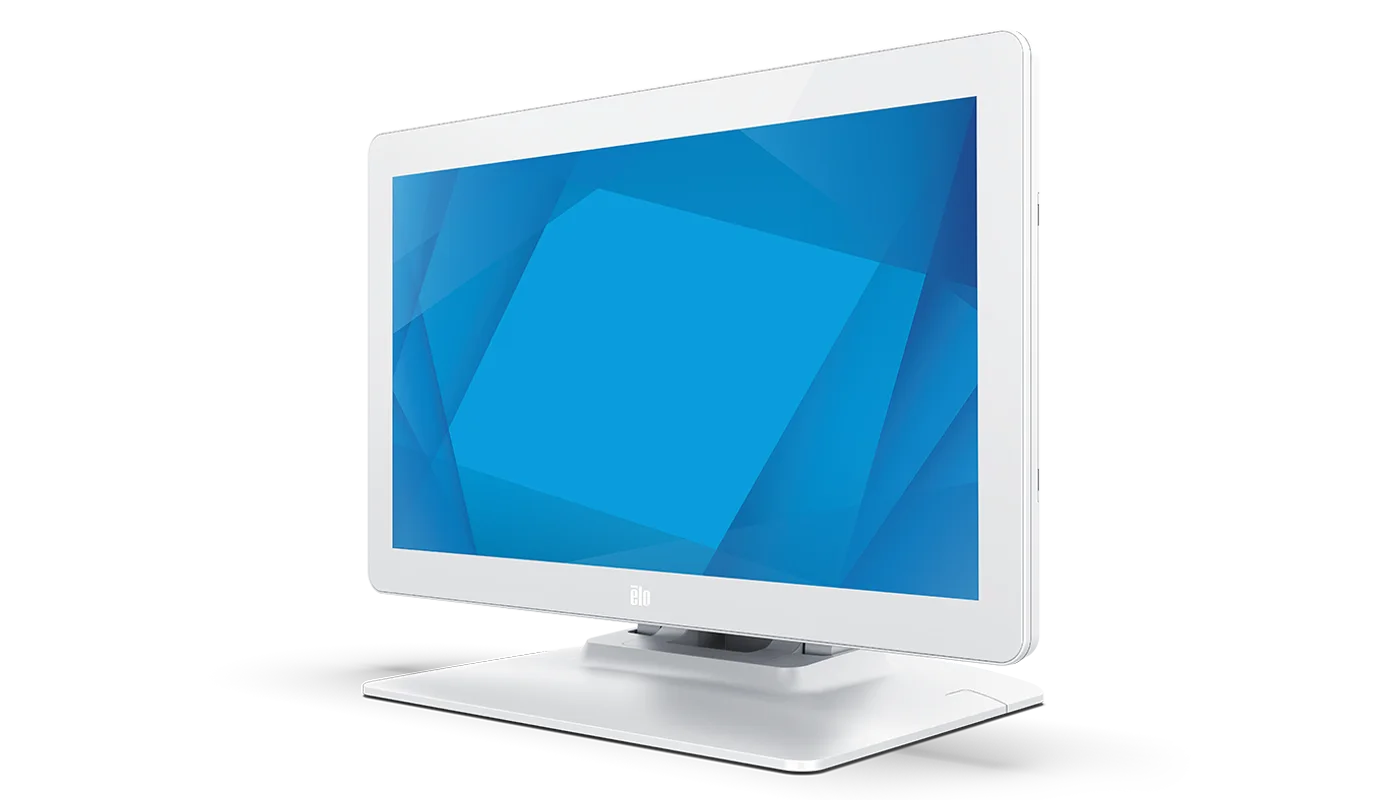

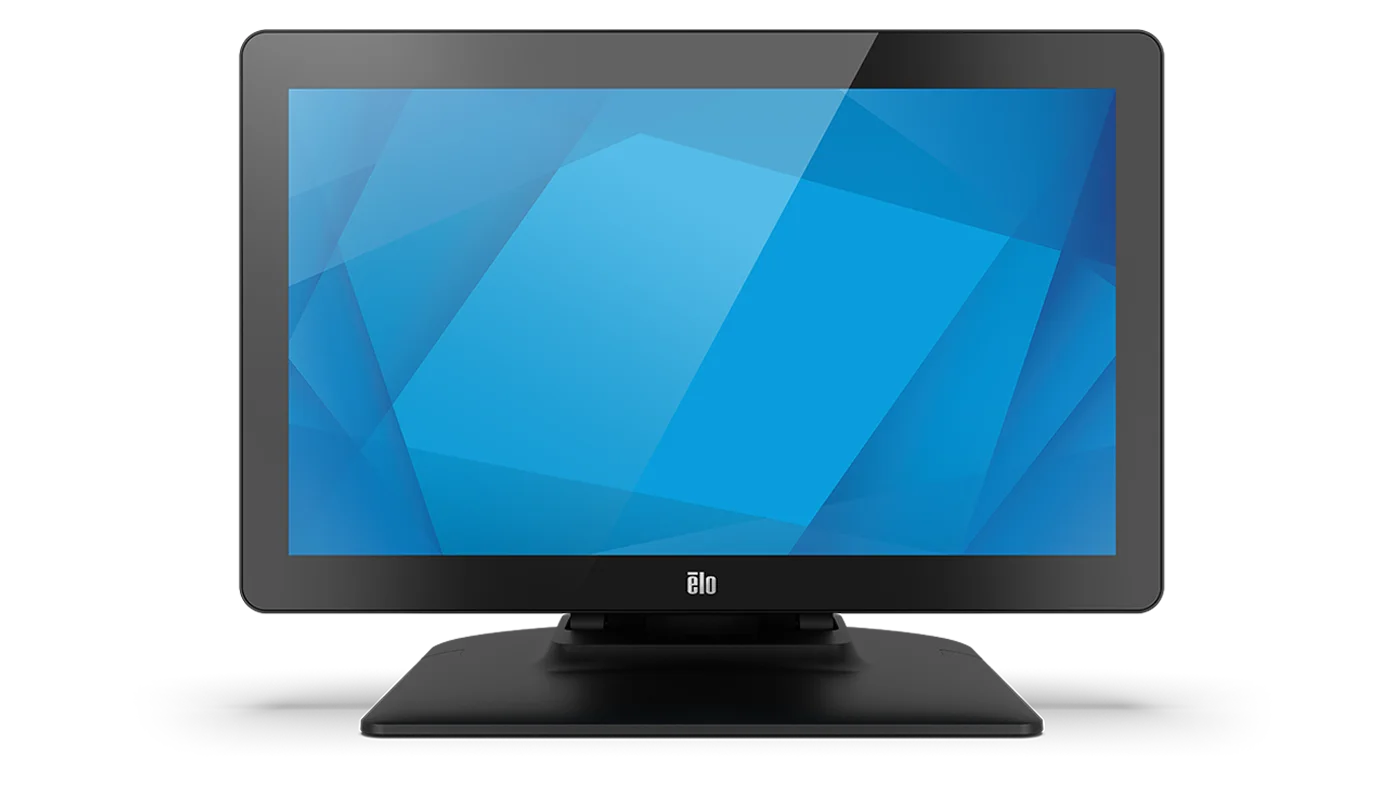

Enclosure Color: White or Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 13.55" x 7.62" / 344.16 mm x 193.5 mm
Resolution: 1920 x 1080
Other Supported Resolutions: 640 x 480 @ 60Hz; 640 x 400 @ 70Hz; 720 x 400 @ 70Hz; 800 x 600 @ 56, 60Hz; 1024 x 768 @ 60Hz; 1280 x 720 @ 50, 60Hz; 1280 x 800 @ 60Hz, 60HzRB; 1280 x 960 @ 60Hz; 1280 x 1024 @ 60Hz; 1360 x 768 @ 60Hz; 1366 x 768 @ 60Hz, 60Hz RB; 1440 x 900 @ 60Hz, 60Hz RB; 1680 x 1050 @ 60Hz, 60Hz RB; 1920 x 1080 @ 50, 60Hz
Viewing Angle: Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Number of Colors: 16.7 million
Brightness (typical): LCD Panel: 250 nits; With PCAP: 225 nits
Response Time-total (typical): 30 msec
Contrast Ratio: 700:1
Touch Interface: USB
Surface Treatment: Anti-glare
On Screen Display: Accessible through switches along the bottom:; Controls: Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
I/O Ports: USB Type-C; Audio jack (Line-in); VGA (Micro-HDMI female connecter); HDMI; 12V D/C input; 3 x Micro-USB ports (Top, Left, Right)
Speakers: 2 x 2W internal speakers
Video: Analog VGA; HDMI; USB Type-C (support DP Alt mode); (Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues); Input Video Horizontal Sync frequency range: 31.5 – 82KHz; Input Video Vertical Sync (frame rate) frequency range: 50 – 75Hz
Power: Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth); Monitor input voltage range: 12VDC +/- 5%; Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length); Adapter input voltage range: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): Monitor + adapter; ON: 9.5 W; SLEEP: 1.27 W; OFF: 0.2 W
Monitor Dimensions (without Stand): 9.62'' x 15.23'' x 1.28'' / 244.39 mm x 386.96 mm x 32.4 mm
Monitor Dimensions (with Stand): 11.21'' x 15.23'' x 7.84'' / 284.65 mm x 386.96 mm x 199.12 mm
Shipping Box Dimensions: With Stand: 8.03'' x 17.76'' x 13.54''/ 204 mm x 451 mm x 344 mm; Without Stand: 6.89" x 17.76" x 12.60" / 175 mm x 451 mm x 320 mm
Weight (Unpackaged): With Stand: 6.79 lbs / 3.08 kg; Without Stand: 3.62 lbs / 1.64 kg
Weight (Packaged): With Stand: 11.24 lbs / 5.1 kg; Without Stand: 7.47 lbs / 3.39 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
MTBF: 50,000 hours demonstrated

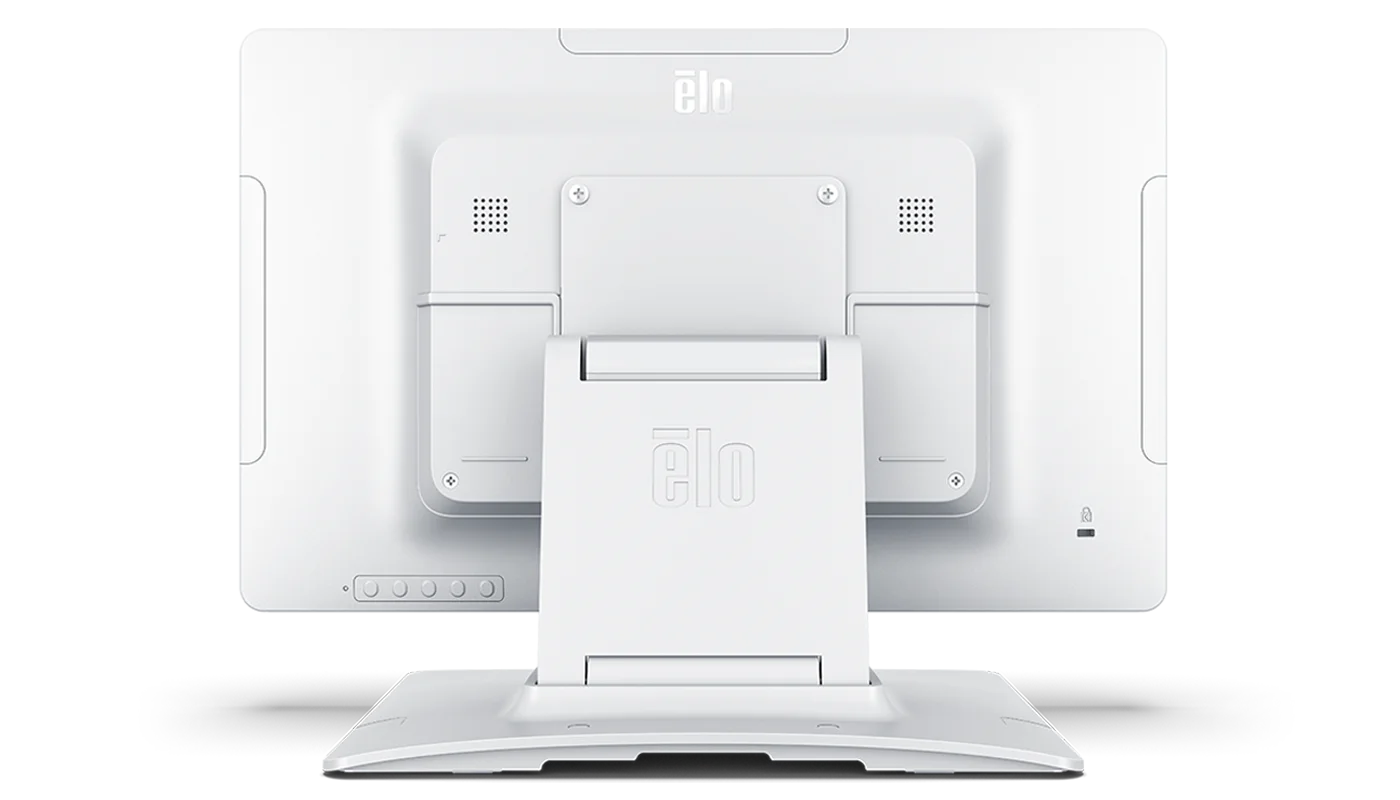

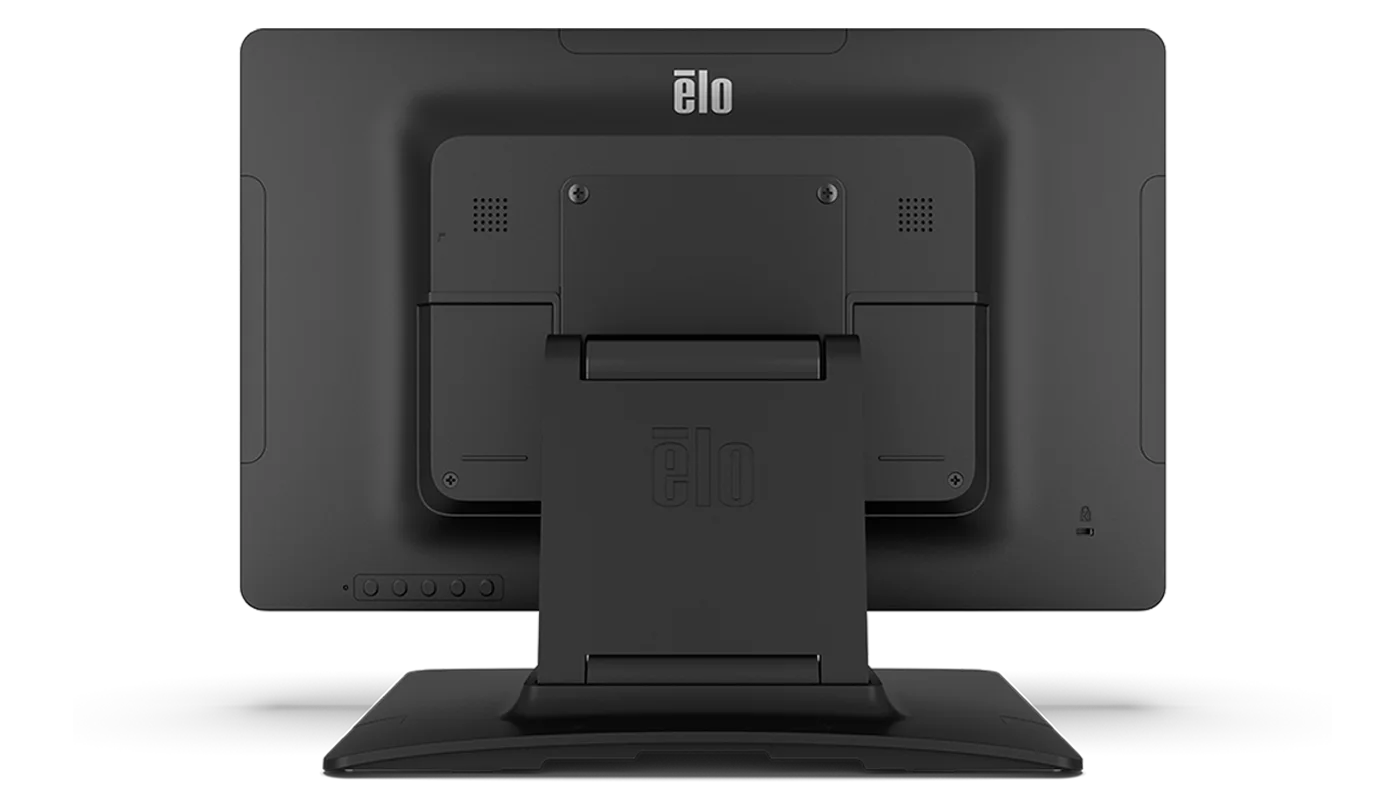

Mounting Options: VESA 4-hole 75mm and 100mm mounting interface on rear of unit
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations: Canada cUL, IC; China CCC; Europe CE; United Kingdom UKCA; Taiwan BSMI; Korea, KCC, e-standby; United States UL, FCC; Japan VCCI; International CB; Australia RCM; Russia EAC; Mexico NOM; India BIS; RoHS, China RoHS, WEEE, REACH; ANSI/AAMI ES60601-1 (2005/(R)2012 + A1:2012, C1:2009/(R)2012 + A2:2010/(R)2012) - Amendment 1 - Revision Date 2012/08/21; CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 - Revision Date 2014/03; CB: IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD:2020 (Ed 3.2); CE: IEC 60601-1-2:2014 (Ed. 4); Risk Management: ISO 14971:2019; Usability: IEC 60601-1-6:2010/AMD2:2020, IEC 62366:2017
Ingress Protection: IP22 entire enclosure
Impact Protection: IK07
What's in the Box: Touchmonitor; Quick Install Guide; HDMI cable; Power brick (E128201); 2x cable clamps; 2x Tie wraps; EEI Label; USB Cable (USB Type-A to Type-C); NA Power cable; EU Power cable; 3x screws (M3x8mm) for cable clamps; 2x screws (M3x10mm) for cable doors; 4x screws (M4x10mm) for E967064 and E967255 only
Optional Peripherals: PCAP Stylus Pen - Elo P/N: E066148
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Tabletop Stand for 15-inch Display (Black) - Elo P/N: E044162; Tabletop Stand for 15'' Display (White) - Elo P/N: E765019; Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Power USB to USB-C/DC-IN (2.1 mm) cable – 1.8 m - Elo P/N: E214097; Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m - Elo P/N: E214282; VGA-DB15 to Micro Cable Kit – Elo P/N: E710549; DVI-D to HDMI Cable Kit – Elo P/N: E538507; Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693; Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260; 1.8 m USB-C Cable Kit - includes VGA, USB, HDMI and audio cables - Elo P/N: E408388; North America Power Cable – C13 - Elo P/N: E593865; Australia Power Cable – C13 - Elo P/N: E594067; Europe Power Cable – C13 - Elo P/N: E594264; Korea Power Cable – C13 - Elo P/N: E594466; China Power Cable – C13 - Elo P/N: E594670; Taiwan Power Cable – C13 - Elo P/N: E594869; Japan Power Cable – C13 - Elo P/N: E793799; Power Brick – 60W – 1502LM - Elo P/N: E181106

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Discontinued
Replacement: 1504L
Status basis: elotouch.com lists it as replaced by 1504L
