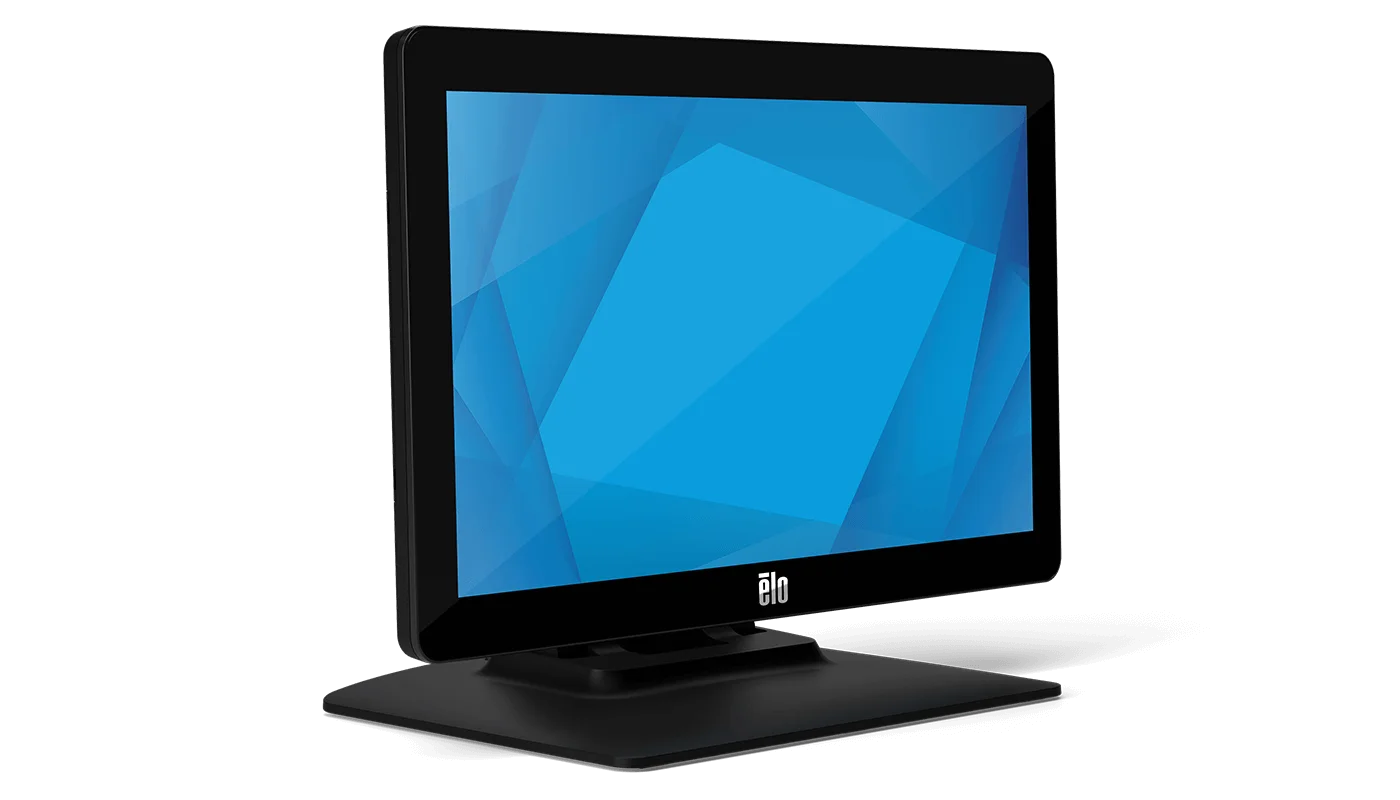

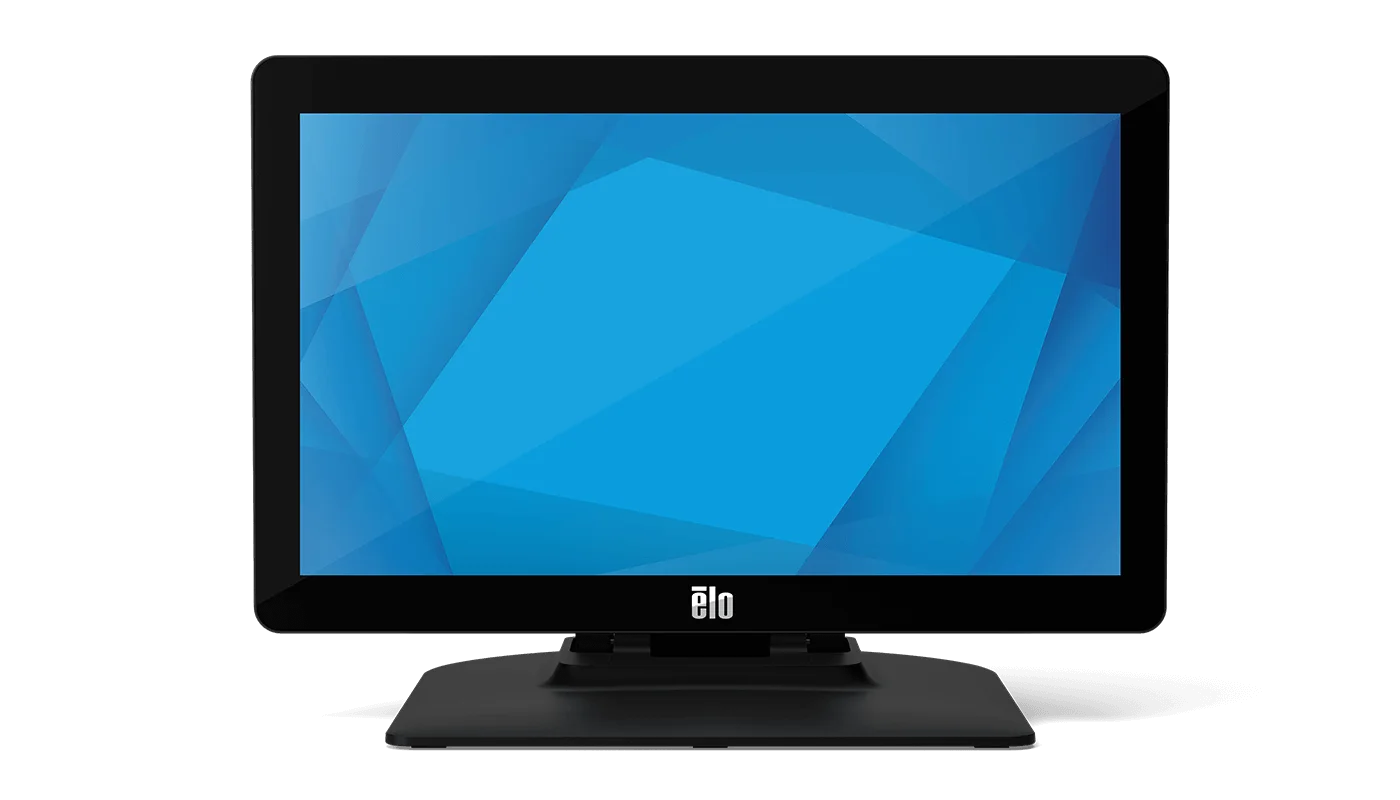

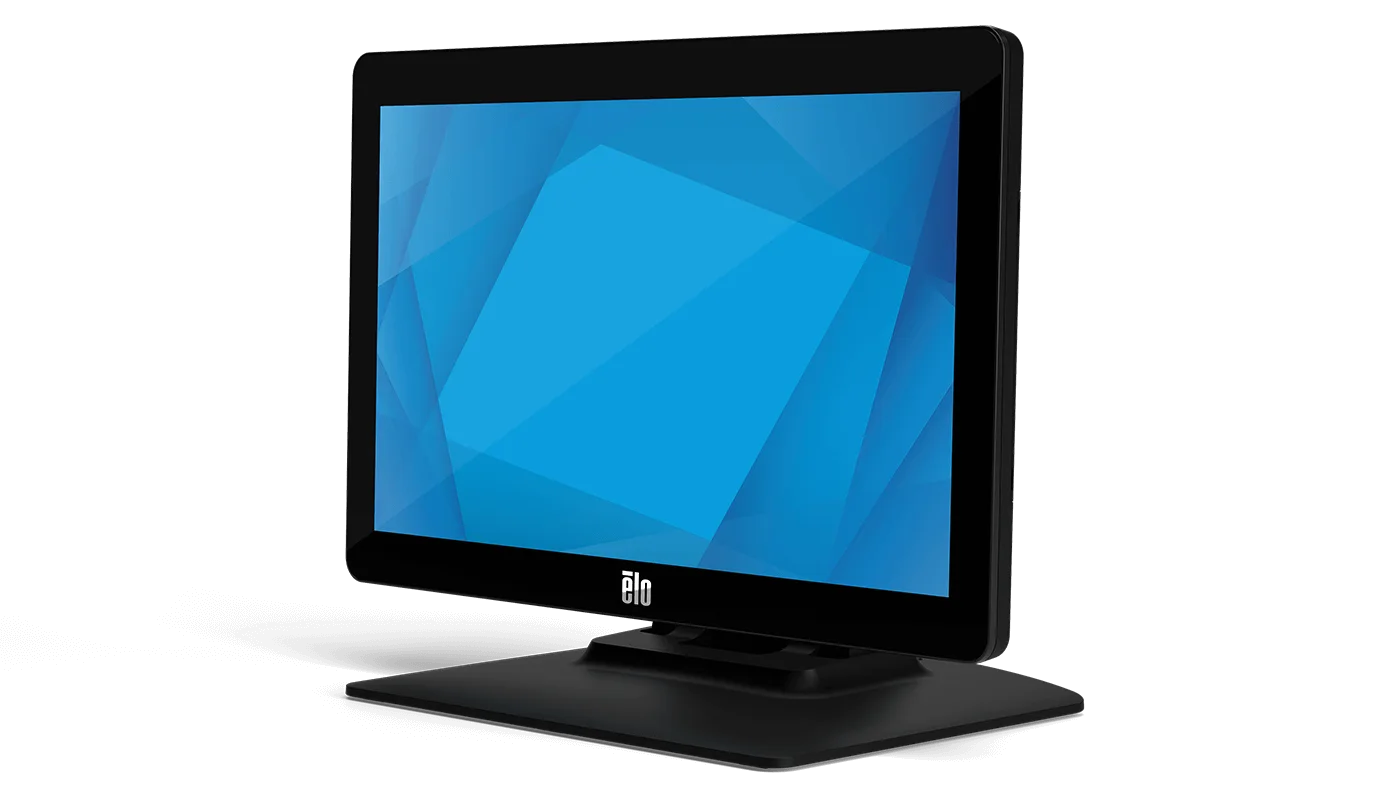

Elo Touch 1502L 15" Touchscreen Monitor

Display15.6'' diagonal, Active matrix TFT LCD (LED)
SealingIPX1 for front side

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.
The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
The ability to take payment is essential to complete a transaction. The 1502L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.

Best for: Kitchen Display Systems · Price Checkers · Interactive Price Check Displays

Specifications

Technical

Part Number(s): PCAP FHD USB-C With Stand (Worldwide) - E155645; PCAP FHD USB-C Without Stand (Worldwide) - E125496; PCAP HD With Stand (Worldwide) - E318746
Enclosure Color: Black
Touch Technology & Capacity: PCAP (Projected Capacitive) - 10 Touch
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Monitor Thickness: 1.28" / 32.4 mm panel depth
Aspect Ratio: 16:9
Active Area: 13.55" x 7.62" / 344.16 mm x 193.5 mm
Resolution: FHD model: 1920 x 1080; HD model: 1366 x 768
Other Supported Resolutions: FHD model:; 640 x 480 60Hz; 640 x 400 70Hz; 720 x 400 70Hz; 800 x 600 56, 60Hz; 1024 x 768 60Hz; 1280 x 720 50, 60Hz; 1280 x 800 60Hz, 60Hz RB; 1280 x 960 60Hz; 1280 x 1024 60Hz; 1360 x 768 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB; 1920 x 1080 50, 60Hz; HD model:; 640 x 480 60Hz; 640 x 400 70Hz; 720 x 400 70Hz; 800 x 600 56, 60Hz; 1024 x 768 60Hz; 1280 x 720 50, 60Hz; 1360 x 768 60Hz
Viewing Angle: FHD Model:; Horizontal: ±80° / 160° total; Vertical: ±80° / 160° total; HD Model:; Horizontal: ±45° / 90° total; Vertical: -35°/ +15° / 50° total
Number of Colors: 16.7 million
Brightness (typical): FHD model; LCD Panel: 250 nits; PCAP + DC power: 225 nits; PCAP + USB-C 5V power: 180 nits; HD model; LCD Panel: 220 nits; PCAP + DC power: 198 nits
Response Time-total (typical): FHD model: 30 ms; HD model: 10 ms
Contrast Ratio: FHD Models: 700:1 / HD Models: 400:1
Touch Interface: USB
Surface Treatment: Anti-glare
On Screen Display: Accessible through switches along the bottom:; Controls: Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port (FHD Model only); Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese; Lockouts: OSD, Power
I/O Ports: FHD Model:; 1 x USB Type-C; 1 x Audio jack (Line-in); 1 x VGA (Micro-HDMI female connecter); 1 x HDMI; 1 x 12V D/C input; 3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals; HD Model:; 1 x USB Type-B; 1 x Audio jack (Line-in); 1 x VGA (Mini-VGA female connecter); 1 x HDMI; 1 x 12V D/C input; 3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals
Speakers: 2 x 2W internal speakers
Video: FHD Model:; Analog VGA; HDMI; USB Type-C (support DP Alt mode); *Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues; HD Model:; Analog VGA; HDMI
Input Video Format: Horizontal: 31.5 - 82 KHz; Vertical: 50 - 75 Hz
Power: FHD Model:; Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A; Option 2: External DC Adapter 12V/36W in box; Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth); Monitor input voltage range: 12VDC +/- 5%; Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length); Adapter input voltage range: 100-240 VAC; Input frequency: 50-60 Hz; HD Model:; External DC Adapter 12V/40W in box; Monitor input power connector: Coaxial power jack (2.5mm pin outer diameter, 6.4mm barrel inner diameter); Monitor input voltage range: 12VDC +/- 5%; Adapter output power connector: DC barrel plug (2.5mm (+0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length); Adapter input voltage range: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): FHD Model (monitor + adapter):; ON: 9.5 W; SLEEP: 1.87 W; OFF: 0.2 W; HD Model (monitor + adapter):; ON: 10.2 W; SLEEP: 0.4 W; OFF: 0.2 W

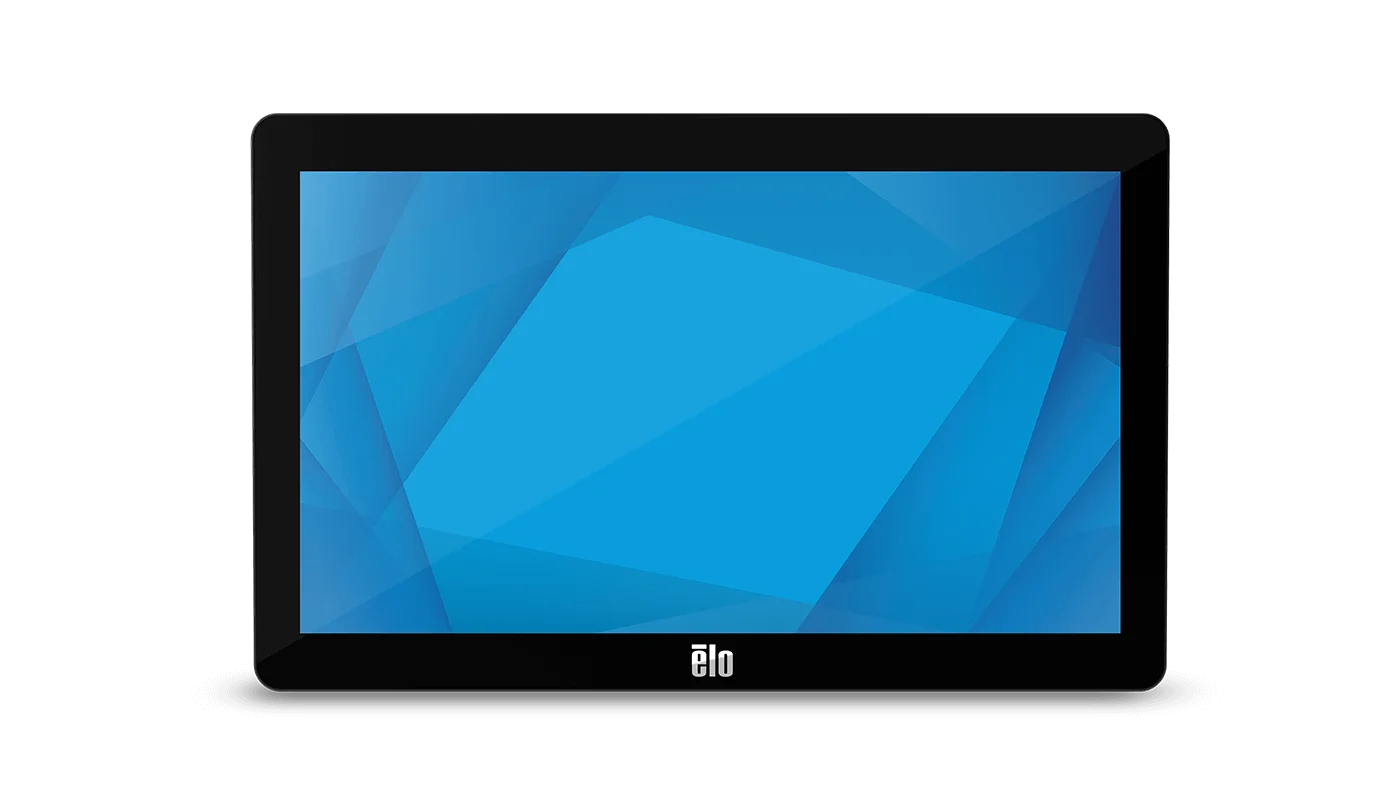

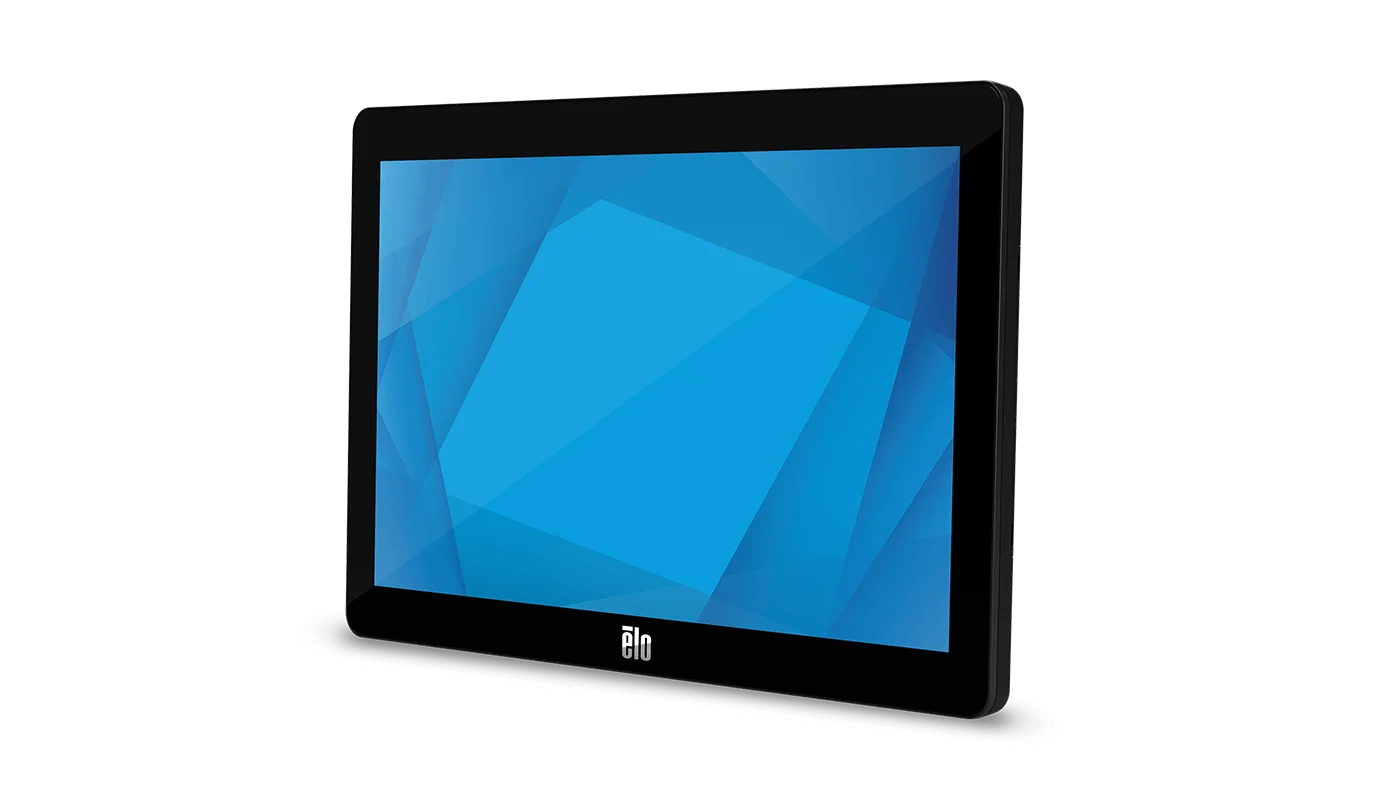

Monitor Dimensions (without Stand): 9.62" x 15.23" x 1.28" / 244.39 mm x 386.96 mm x 32.4 mm

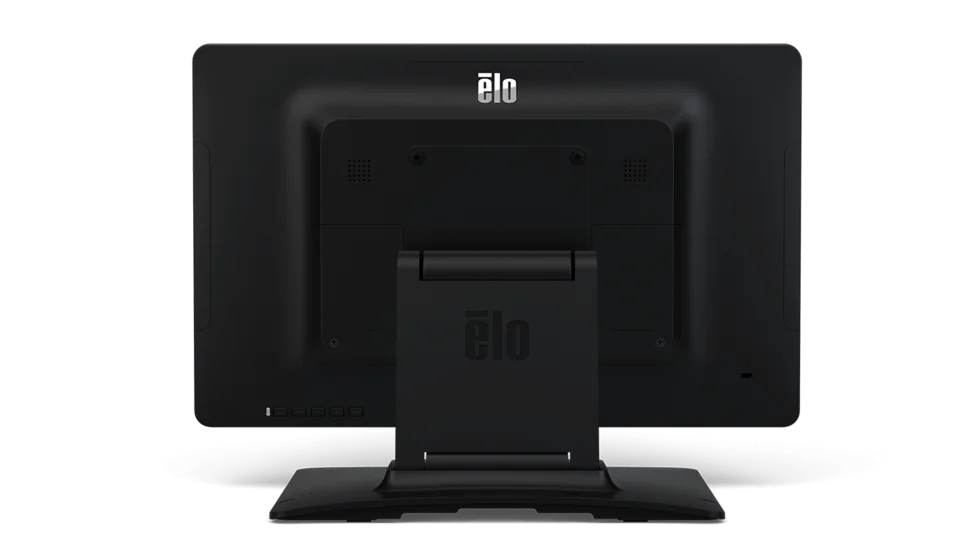

Monitor Dimensions (with Stand): 11.21" x 15.23" x 7.84" / 284.65 mm x 386.96 mm x 199.12 mm
Shipping Box Dimensions: With Stand: 8.03" x 17.76" x 13.54" / 204 mm x 451 mm x 344 mm; Without Stand: 6.89" x 17.76" x 12.60" / 175 mm x 451 mm x 320 mm
Weight (Unpackaged): With Stand: 6.72 lbs / 3.05 kg; Without Stand: 3.62 lbs / 1.64 kg
Weight (Packaged): With Stand: 11.05 lbs / 5.01 kg; Without Stand: 7.47 lbs / 3.39 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
MTBF: 50,000 hours demonstrated

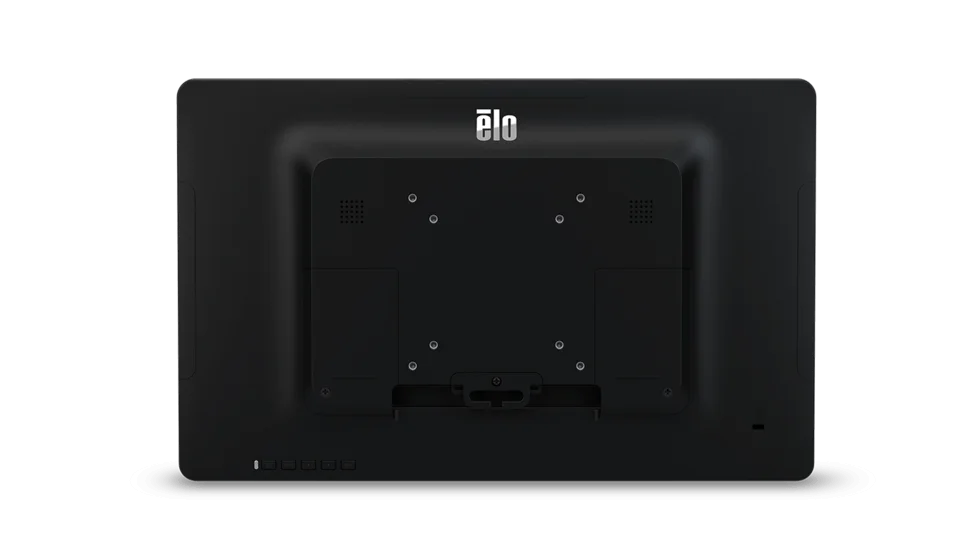

Mounting Options: VESA 4-hole 75mm and 100mm mounting interface on rear of unit
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations: Canada cUL, IC; Europe CE; United Kingdom UKCA; Japan VCCI; United States UL, FCC; China CCC; Korea, KCC, e-standby; Australia RCM; Mexico NOM; Taiwan BSMI; International CB; RoHS, China RoHS, WEEE, REACH; India BIS; Russia EAC
Ingress Protection: IPX1 for front side
Impact Protection: FHD Model: IK07
What's in the Box: FHD Model:; Touchmonitor; Quick Install Guide; HDMI cable; Power brick; 2x cable clamps; 2x tie wraps; EEI Label; USB Cable (USB Type-A to Type-C); NA Power cable; EU Power cable; 3x screws (M3x8mm) for cable clamps; 2x screws (M3x10mm) for cable doors; 4x screws (M4x10mm) for E125496 only; HD Model:; Touchmonitor; Quick Install Guide; HDMI cable; Power brick; 2x cable clamps; 2x tie wraps; Mini-VGA to VGA cable (mini-VGA to DE-15 (DB-15) male); USB cable (USB Type A plug to USB Type B plug); Audio cable; EEI Label
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; PCAP Stylus Pen - Elo P/N: E066148; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; Webcam - Elo P/N: E201494; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719; Speaker Bar (White) - Elo P/N: E133780
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Tabletop Stand for 15-inch Display (Black) - Elo P/N: E044162; Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; 1.8m Cable Kit (HD Model only) - Elo P/N: E210789; 3m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210606; Power Brick Kit – 1.8m Power Cable - Elo P/N: E211174; Power USB to USB-C/DC-IN (2.1 mm) cable - 1.8 m (FHD model only) - Elo P/N: E214097; Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m (FHD model only) - Elo P/N: E214282; Wallaby™ POS Stand (Black) - Elo P/N: E949536; VGA-DB15 to Micro Cable Kit – Elo P/N: E710549; DVI-D to HDMI Cable Kit – Elo P/N: E538507; Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693; Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260; 1.8 m USB-C Cable Kit - includes VGA, USB, HDMI and audio cables (FHD Model only) - Elo P/N: E408388; Elo Backpack® 4 (Value Model) - Elo P/N: E393754; Elo Backpack® 4 (Standard Model) - Elo P/N: E393359; North America Power Cable C5 (FHD model only) - Elo P/N: E793990; Australia Power Cable C5 (FHD model only) - Elo P/N: E794186; Europe Power Cable C5 (FHD model only) - Elo P/N: E794376; Korea Power Cable C5 (FHD model only) - Elo P/N: E794574; China Power Cable C5 (FHD model only) - Elo P/N: E794756; Taiwan Power Cable C5 (FHD model only) - Elo P/N: E794957; Japan Power Cable C5 (FHD model only) - Elo P/N: E795147; Power Brick – 36W (FHD model only) - Elo P/N: E593458; Power USB to USB-B/DC-IN (2.5 mm) cable – 1.8 m - Elo P/N: E752302; Power USB to USB-B/DC-IN (2.5 mm) cable – 3 m - Elo P/N: E763022

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
