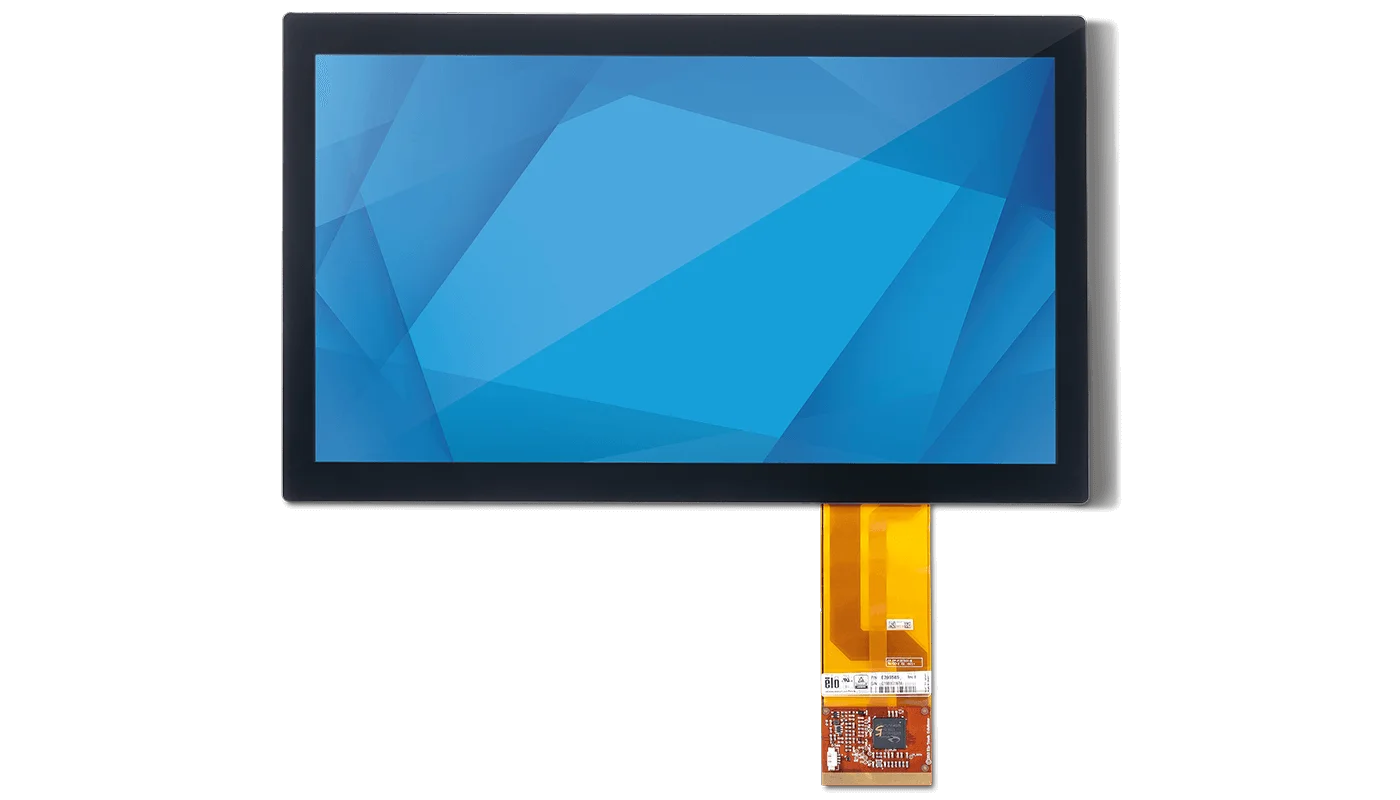

Elo Touch 15.6-inch TouchPro Display Module (Gen 1)
Elo's Touchscreen Display Modules combine industry-leading touch screens with liquid crystal displays (LCDs) - all in one embedded solution to help streamline your supply chain and simplify assembly.
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
Elo's Touchscreen Display Modules combine industry-leading touch screens with liquid crystal displays (LCDs) - all in one embedded solution to help streamline your supply chain and simplify assembly.
- The robust chemically strengthened cover glass with anti-glare treatment makes them well suited for deployment in a wide variety of commercial and industrial environments - from factory automation and medical displays to commercial kitchen equipment.
- Available in standard sizes ranging from 7 to 15.6-inches and custom options up to 32-inches, Elo’s touchscreen display modules offer superior touch performance in harsh environments, excellent optical clarity, and robust EMI performance.
- With a TouchPro Pro-F PCAP touch screen and chip-on-flex (COF) touch controller bonded to a commercial grade LCD, Elo’s Touchscreen Display Modules deliver reliability that is ready for integration.
- From design and engineering to prototyping and production, partner with Elo to create your touchscreen display module. By leveraging our premium PCAP touch screens, display expertise and LCD buying power, Elo can help you develop the perfect touch enabled display for your application.
- ChooseCustom sizes, shapes, edge treatments, holes and cut-outs, Materials (strengthened glass, safety glass, PMMA) Surface treatments, Border (colors, logos, icons, IR transmissive windows)
Specifications
Technical
- Part Number(s)
- E270963
- Construction
- Glass-Film-Film
- Touch Outline Dimensions
- 374 mm x 233 mm
- Cover Glass
- 1.8mm chemically strengthened soda lime glass
- Surface Treatment
- Anti-Glare 80 ± 10GU
- Light Transmittance
- 88 ± 3%
- Touch Controller Form Factor
- COF
- Touch Interface
- USB
- Touch Accuracy
- +/- 2.5mm
- Streaming Report Rate
- >100Hz
- Number of Touches
- Multi Touch (Up to 10)
- Touch Screen Operating Temp Range
- -20°C to +70°C
- LCD Diagonal
- 15.6”
- LCD Resolution
- 1366 x 768
- LCD Viewing Area
- 345.9 mm x 195.2 mm
- LCD Brightness
- 300 nits
- LCD Backlight Life
- 50,000 hours
- LCD Viewing Angle
- 160 degree typical, horizontal and vertical
- LCD Operating Temp Range
- -20°C to +60°C
- LCD Interface
- LVDS
- Warranty
- 2-year
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
