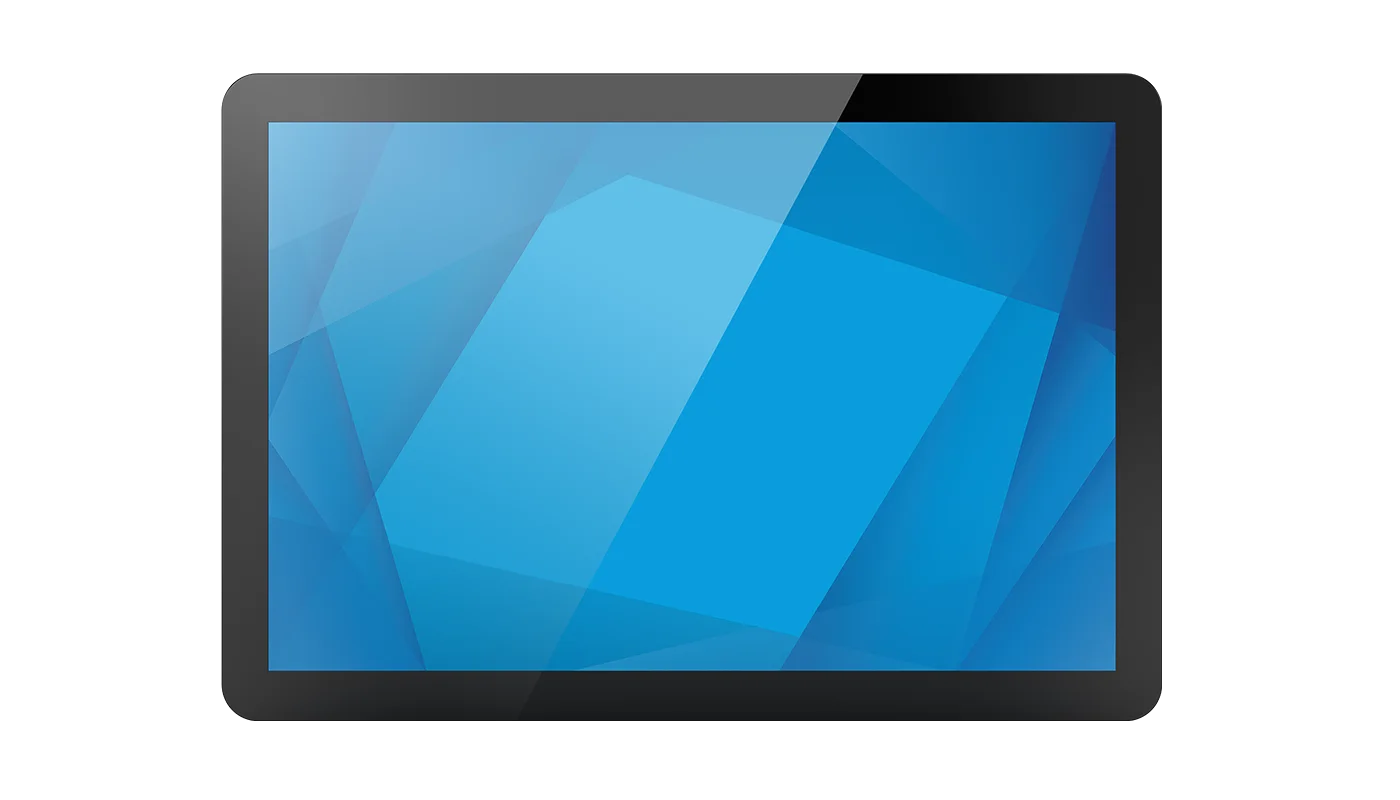

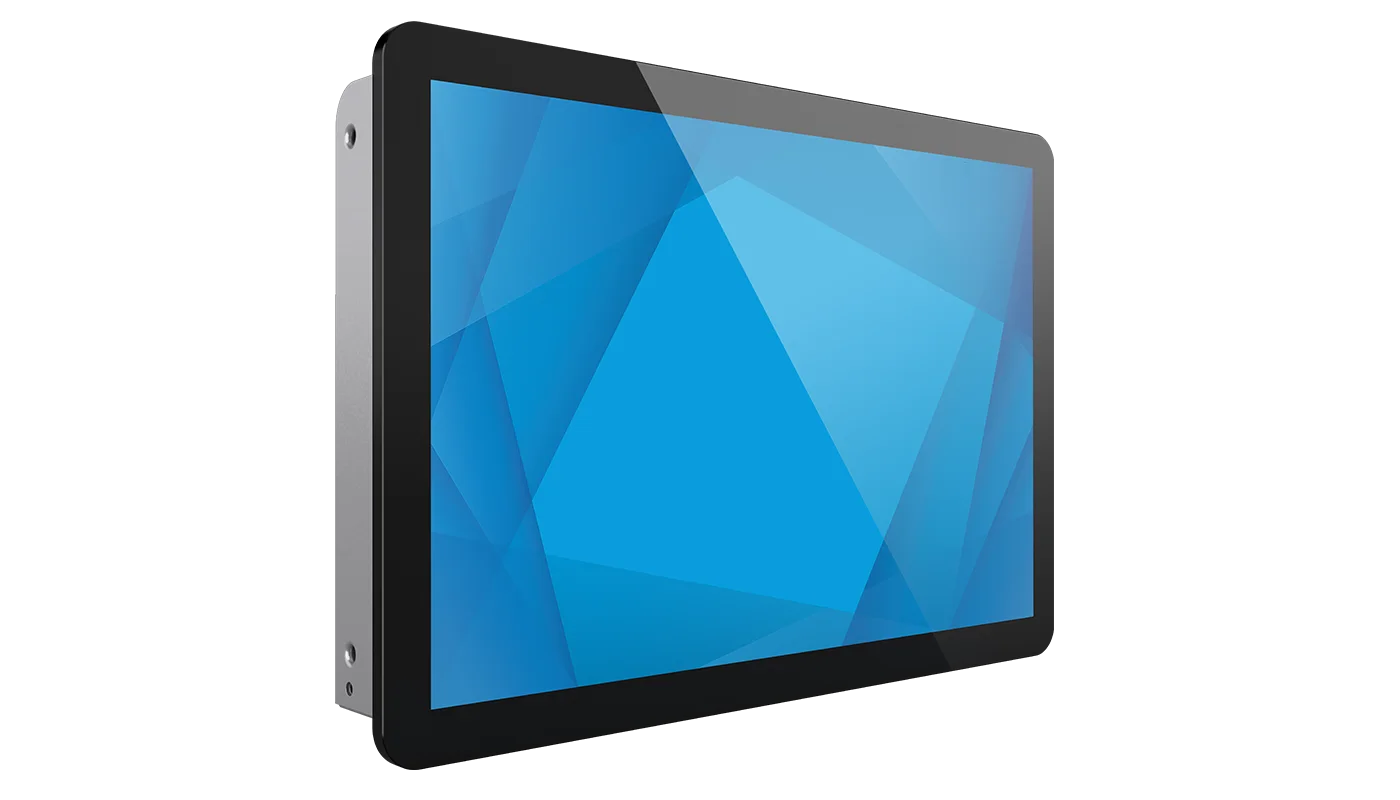

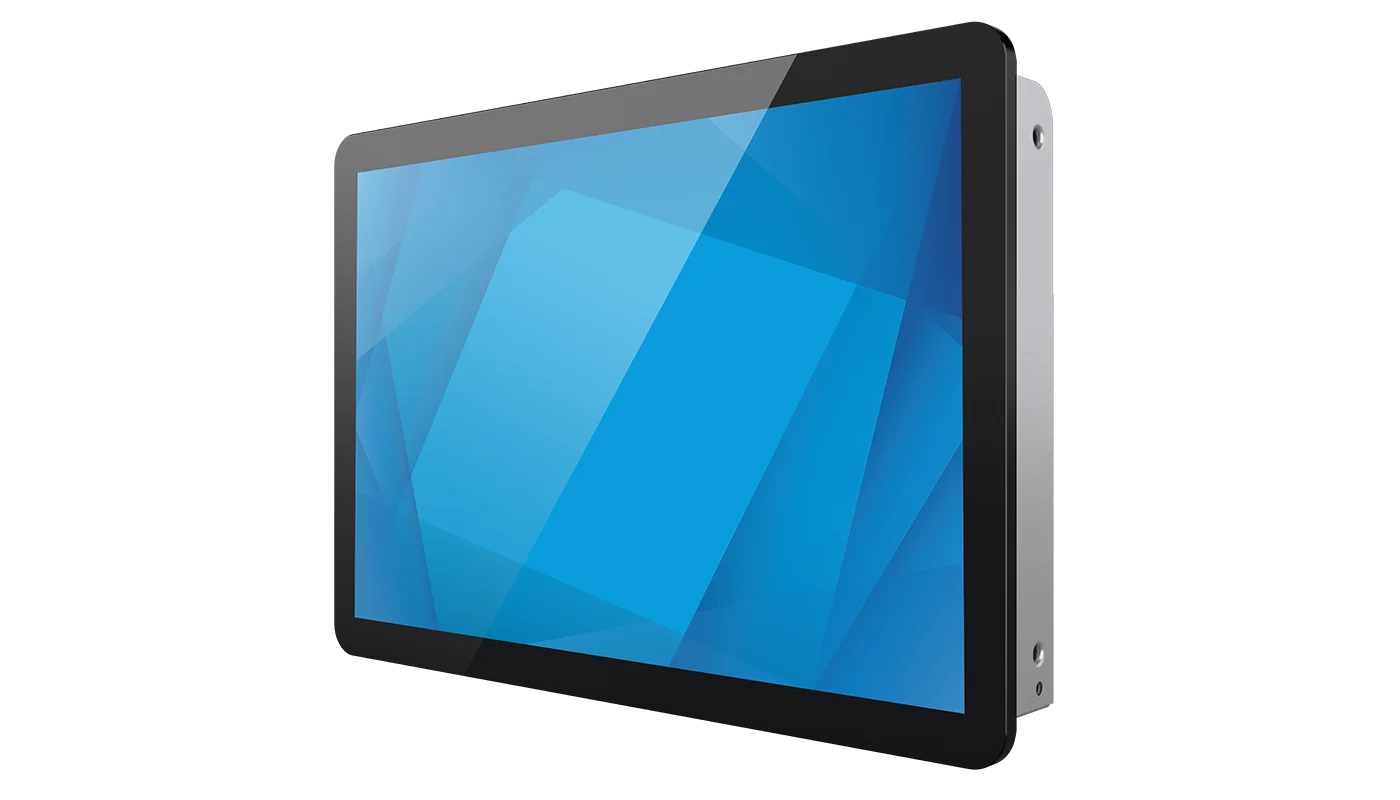

Elo Touch 1099L 10" Outdoor Open Frame Touchscreen
Outdoor kiosk ready.
- Display10.1'' diagonal, Active matrix TFT LCD (LED)
- SealingSealable to IP66 / NEMA 4x
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
Elo's 10-inch outdoor monitor, boasting 1000 NITs brightness, IK09 vandal-resistance, and is ready for 24/7 use, even in direct sunlight. Readable with polarized sunglasses, it thrives in extended temperatures. Ideal for payment systems, signage, and charging stations, this brilliant, optically bonded weatherproof monitor features edge-to-edge glass for seamless outdoor enclosure integration.
- Built to perform outdoors, Elo’s 1099 weatherproof monitor offers IP66 and NEMA 4X when integrated into an enclosure as well as IK09 impact protection. With extended operating temperatures from -20 to 60 degrees Celsius, the integrated outdoor digital signage display can withstand harsh physical and thermal requirements.
- To provide unmitigated performance from day to night, the ambient light sensor automatically adjusts the display’s brightness to optimize power consumption, extend the life of the display and enhance the viewing experience.
- Elo’s 1099L outdoor monitor enables you to create reliable outdoor kiosks that will capture audiences and differentiate your sunlight readable outdoor display.
- Transform Elo touchscreens into an affordable, scalable, single-architecture media platform with EloView™ and the Android Backpack. With simplified content-delivery and remote-management capabilities, managing isolated outdoor kiosks out-of-the-box is simplified.
- The Elo Backpack delivers a powerful, commercial- grade Android 10 compute engine designed to simplify the deployment of content, websites and Android- based apps across your interactive experiences. Purpose-built to fit in compact spaces, the Elo Backpack boasts a small footprint in both size and weight to secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.
Specifications
Technical
- Part Number(s)
- TouchPro PCAP with anti-glare - E354792
- Enclosure Color
- Black
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - up to 5 touches
- Touch Thru
- Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
- Touch Interface
- USB 2.0
- Diagonal Size
- 10.1'' diagonal, Active matrix TFT LCD (LED)
- On Screen Display
- Accessible through switches on the unit’s tethered OSD Control box.; Controls: Menu, Up, Down, Select, Power; Settings: Brightness, Contrast, Light sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Rotation, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight Saving Time; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,; Lockouts: OSD, Power
- Aspect Ratio
- 16:10
- Active Area
- 8.54" x 5.33" / 216.96 mm x 135.60 mm
- Resolution
- 1280 x 800
- Other Supported Resolutions
- 640 x 480 60Hz; 720 x 400 70Hz; 800 x 600 60Hz; 1024 x 768 60Hz; 1280 x 800 60Hz
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD Panel: 1000 nits; TouchPro PCAP: 900 nits
- Response Time-total (typical)
- 25 msec
- Contrast Ratio
- 700:1
- I/O Ports
- Locking for all ports, including USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort
- Video
- HDMI V1.3 Type A receptacle for HDMI input; Analog VGA on Female DE-15 (DB-15) connector; DisplayPort V1.1a - Supports later versions of DisplayPort video input; Input Video Horizontal Sync frequency range: 31.5 – 80K KHz; Input Video Vertical Sync (frame rate) frequency range: 60-75Hz
- Power
- External DC - Optional power brick (sold separately); Monitor input power connector: Coaxial power jack (2.5mm (+0.0 -0.1mm) pin outer diameter, 5.7mm (+/- 0.1mm) barrel inner diameter, 7.8mm (+/- 0.2mm) Barrel depth); Monitor input voltage range: 12VDC +/- 5%; Adapter output power connector: DC barrel plug (2.5mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 7.5mm (+/- 0.5mm) Barrel length); Adapter input voltage range: 100-240 VAC; Input frequency: 50-60 Hz
- Power Consumption (Typical)
- Monitor + adapter; ON: 23W; SLEEP from PC: 1.5W; OFF: 1.5W
- Dimensions
- 10.08" x 6.93" x 1.61" / 256 mm x 176 mm x 41 mm
- Shipping Box Dimensions
- 13.58" x 10.94" x 6.89" / 345 mm x 278 mm x 175 mm
- Weight (Unpackaged)
- 4.85 lbs / 2.2 kg
- Weight (Packaged)
- 7.28 lbs / 3.3 kg
- Operating Temperature
- -20°C to 60°C / -4°F to 140°F
- Storage Temperature
- -30°C to 80°C / -22°F to 176°F
- Humidity
- Operating: 10% to 90%; Storage: 10% to 95% (38.7° maximum wet bulb temperature)
- Sealability
- Sealable to IP66 / NEMA 4x
- MTBF
- 50,000 hours demonstrated
- Warranty
- 2-year
- Regulatory approvals and declarations
- Australia RCM; Canada cUL, IC; China CCC; Europe CE, TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NoM; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
- Compliance
- GLI 27 kV air / 8 kV contact ESD compliance; UL ball-drop compliance; IK09 impact compliance
- Mounting Options

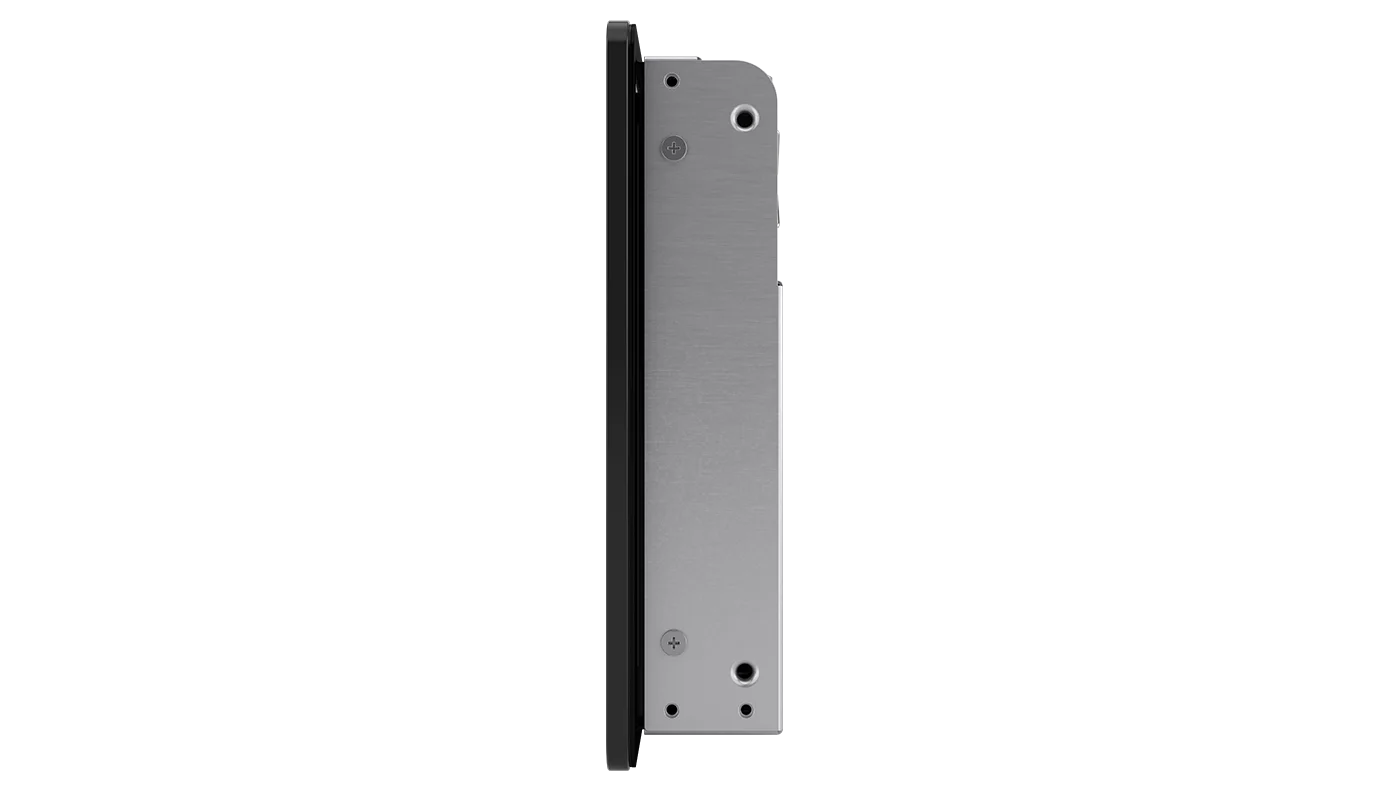

- 200x100mm VESA mount on rear of unit; 4 Hole mounting interface on all four sides.; Flush mount with included brackets
- Other Features

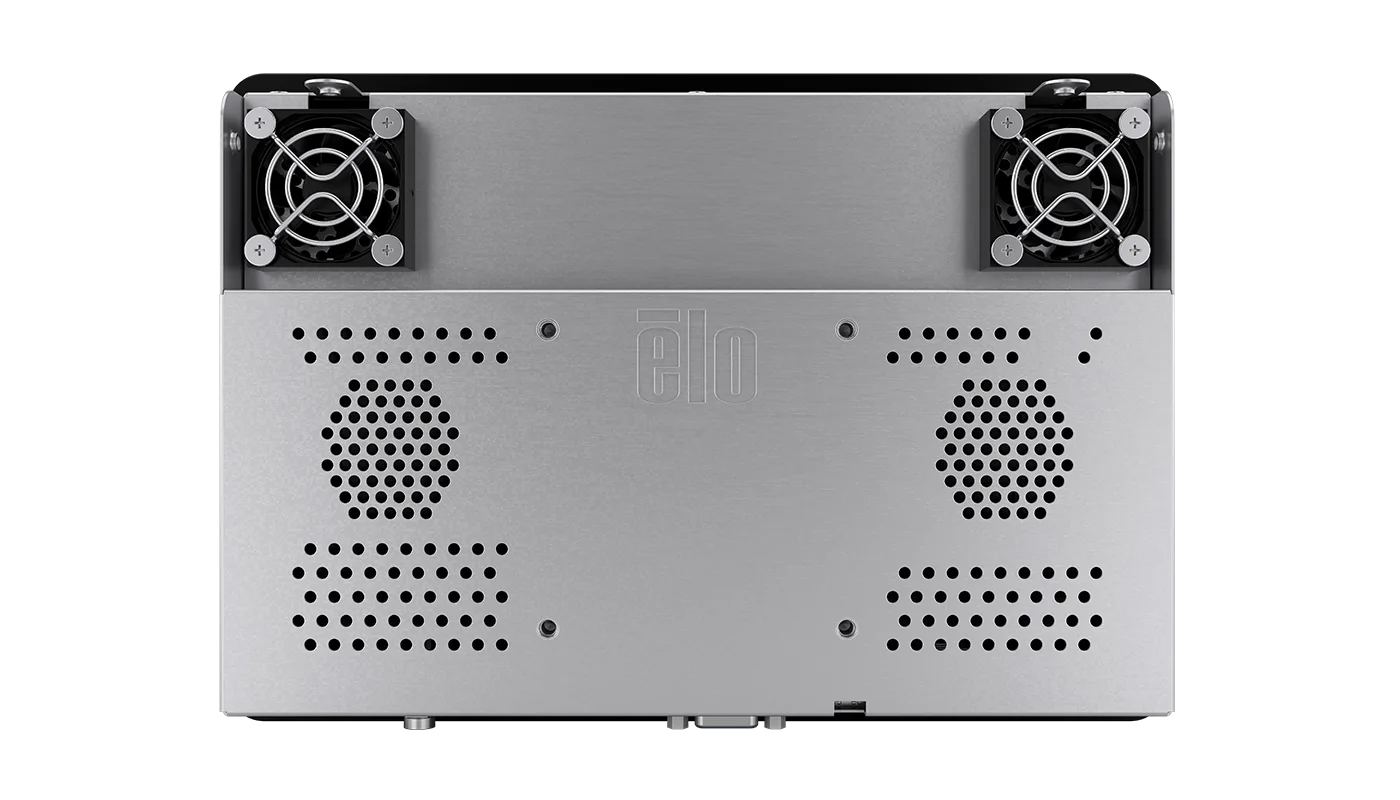

- Viewable with polarized sunglasses in portrait and landscape orientations.; Ambient light sensor; Thermal sensor; External fans (Automatically controlled)
- What's in the Box
- 1099L; HDMI cable with screw-locked type; VGA Cable; Remote OSD; Touch USB Cable with screw-locked type; Quick Install Guide; Flush Mount Brackets w/Screws; EEI Label
- Options / Peripherals / Upgrades
- Remote OSD (RJ45) - Elo P/N: E483757; Cable Kit DVI-D to HDMI – Elo P/N: E538507; Cable Kit DP to DP – Elo P/N: E582895; Elo 1099L Flush mount Bracket - Elo P/N: E777499; External 80W power brick and cable, LVL6 America – Elo P/N: E596619; External 80W power brick and cable, LVL6 Europe – Elo P/N: E596821; External 80W power brick and cable, LVL6 UK – Elo P/N: E597014; External 80W power brick and cable, LVL6 China – Elo P/N: E597205; External 80W power brick and cable, LVL6 Taiwan – Elo P/N: E597410; External 80W power brick and cable, LVL6 Japan – Elo P/N: E597608; External 80W power brick and cable, LVL6 Argentina – Elo P/N: E597792; External 80W power brick and cable, LVL6 Australia – Elo P/N: E597994; HDMI to HDMI Locking Cable – Elo P/N: E503967; DC locking power cable 1.8 m – Elo P/N: E162782
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
