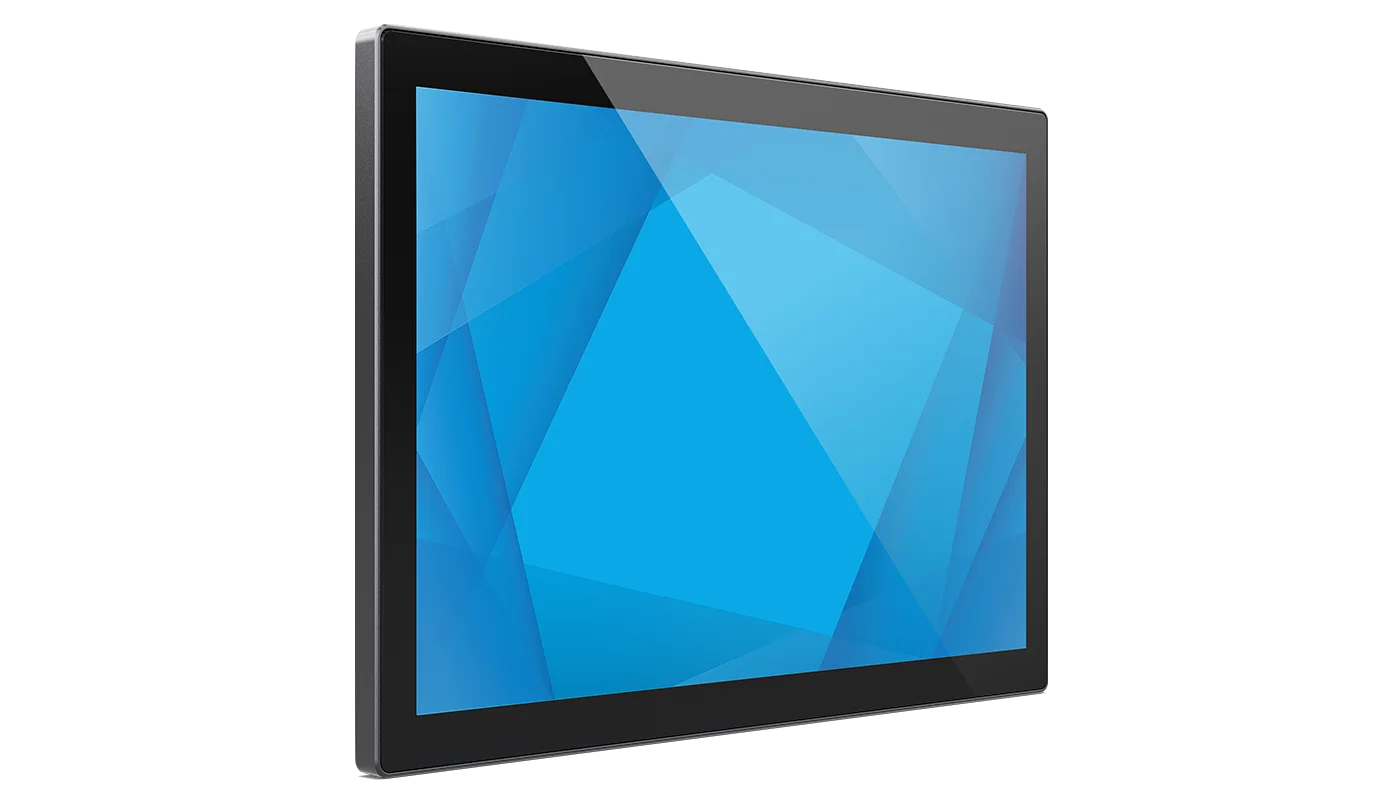

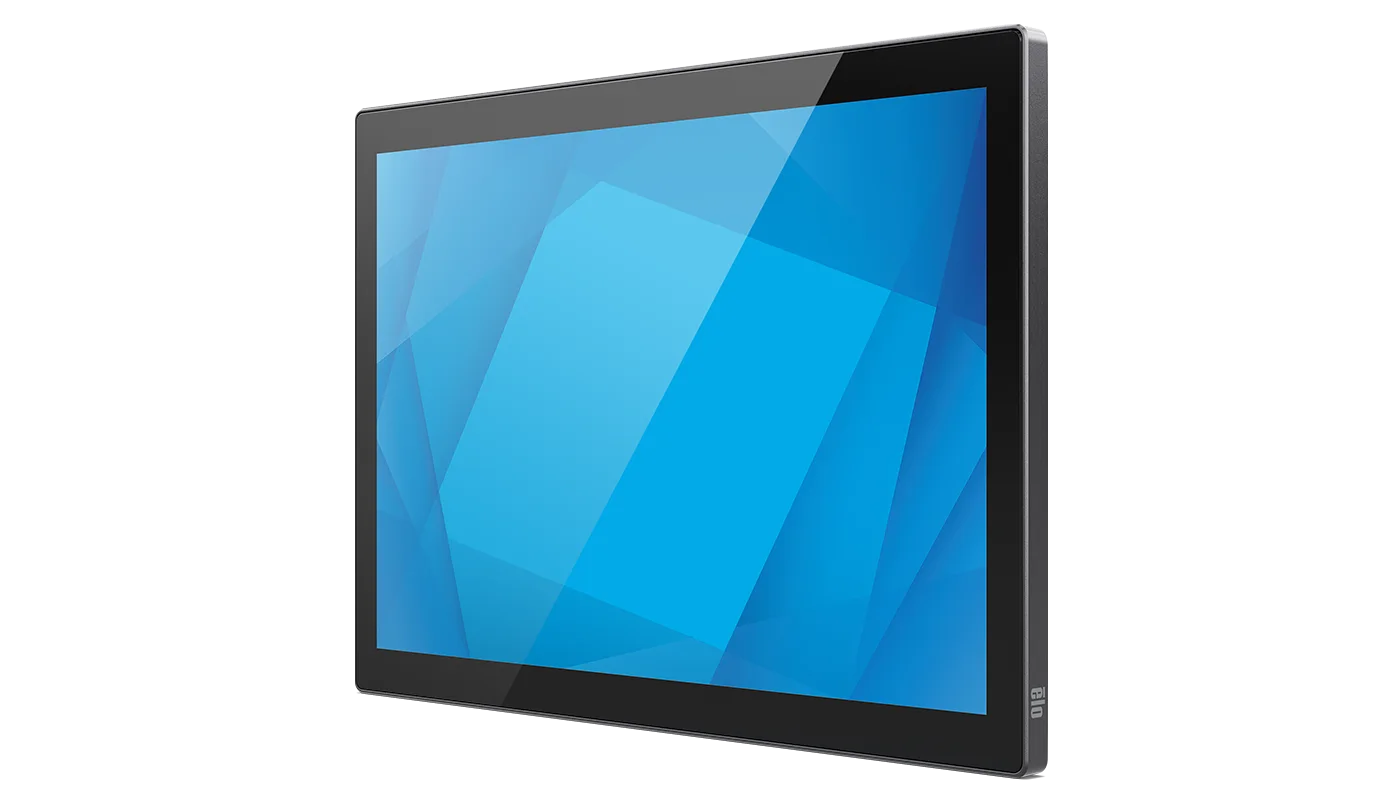

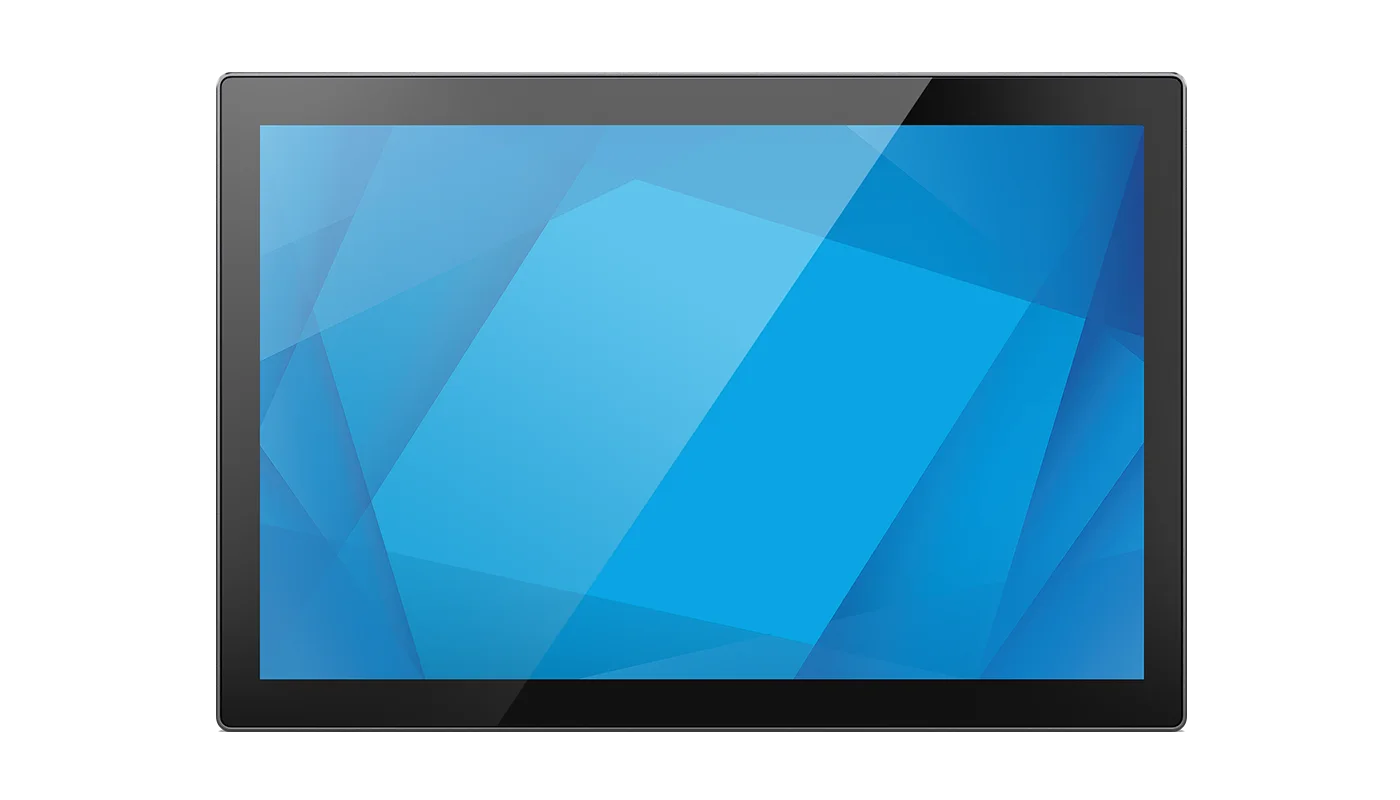

Elo Touch 1004LS 10" Monitor
The 1004LS non-touch monitor brings sleek, commercial-grade design to a wide range of applications. Available in 7", 10", 13" and 15", these slim displays feature narrow borders, enhanced durability a
- Display10.1'' diagonal, Active matrix TFT LCD (LED)
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
The 1004LS non-touch monitor brings sleek, commercial-grade design to a wide range of applications. Available in 7", 10", 13" and 15", these slim displays feature narrow borders, enhanced durability and optical bonding for brilliant clarity. From customer-facing displays and retail media signage to industrial HMI, queue management and point-of-information systems, the 04LS product line offers a clean, flexible form factor built to fit almost any environment.
- Streamline setup with USB‑C to enable power and video integration all in a single cable.
- With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.
- Designed to integrate seamlessly across environments, the 04LS monitors deliver the clarity, durability, and form factor needed to support a wide range of display applications—without adding complexity.
- Whether you want to pair the 1004LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offer the perfect compact display with the sleekness you desire at the point of sale.
- From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.
Specifications
Technical
- Part Number(s)
- E624103
- Enclosure Color
- Dark Gray Metallic
- Touch Technology & Capacity
- Non-Touch
- Diagonal Size
- 10.1'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:10
- Active Area
- 8.54" x 5.34" / 216.96 mm x 135.60 mm
- Resolution
- 1280 x 800
- Other Supported Resolutions
- 1280 x 800 60Hz; 1280 x 800 60Hz RB; 1280 x 720 60hz; 1024 x 768 60Hz; 800 x 600 60Hz; 800 x 500 60Hz; 640 x 480 60Hz
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- Panel: 400 nits
- Response Time-total (typical)
- 30 msec
- Contrast Ratio
- 800:1
- Touch Interfaces
- USB
- Surface Treatment
- Anti-glare
- On Screen Display
- Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.; Controls: Menu, Power; Settings: Brightness, Contrast, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,; Lockouts: OSD, Power
- I/O Ports
- USB Type-C connector
- Speakers
- 2 x 2W internal speakers
- Video
- USB Type-C connector; Input Video Horizontal Sync frequency range: 30 – 60KHz; Input Video Vertical Sync (frame rate) frequency range: 60Hz
- Power
- Power Delivery compatible via USB Type-C connector; (Input range:( 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A)
- Power Consumption (Typical)
- ON (Default - 100% Brightness): 6.6W; SLEEP: 0.3 W; OFF: 0.15 W
- Monitor Dimensions (without Stand)
- Without VESA Adapter: 9.45" x 6.42" x 0.59" / 239.94 mm x 163 mm x 15 mm; With VESA Adapter: 9.45" x 6.42" x 0.79" / 239.94 mm x 163 mm x 20 mm
- Shipping Box Dimensions
- 12.28" x 8.74" x 3.03" / 312 mm x 222 mm x 77 mm
- Weight (Unpackaged)
- 1.32 lbs / 0.6 kg
- Weight (Packaged)
- 2.45 lbs / 1.11kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)
- MTBF
- 50,000 hours demonstrated

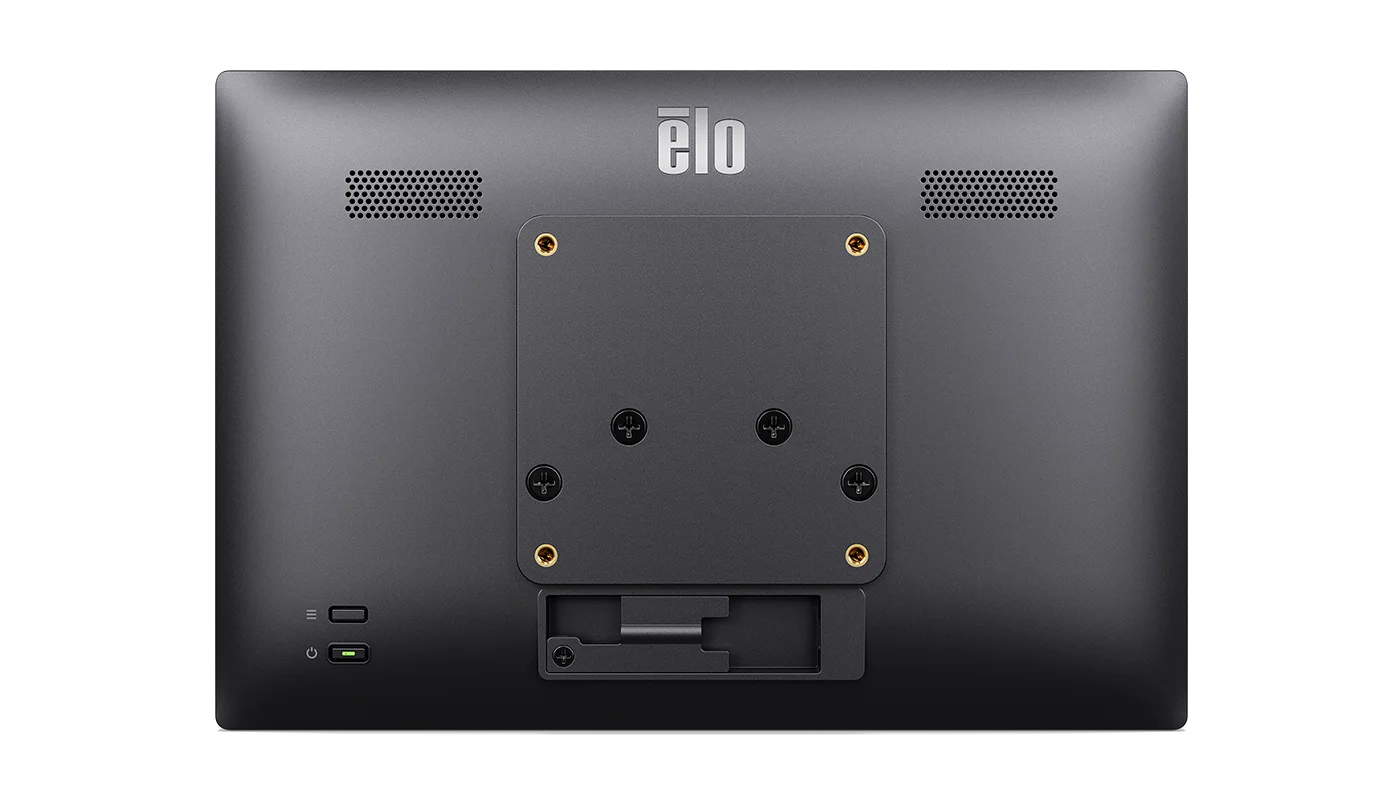

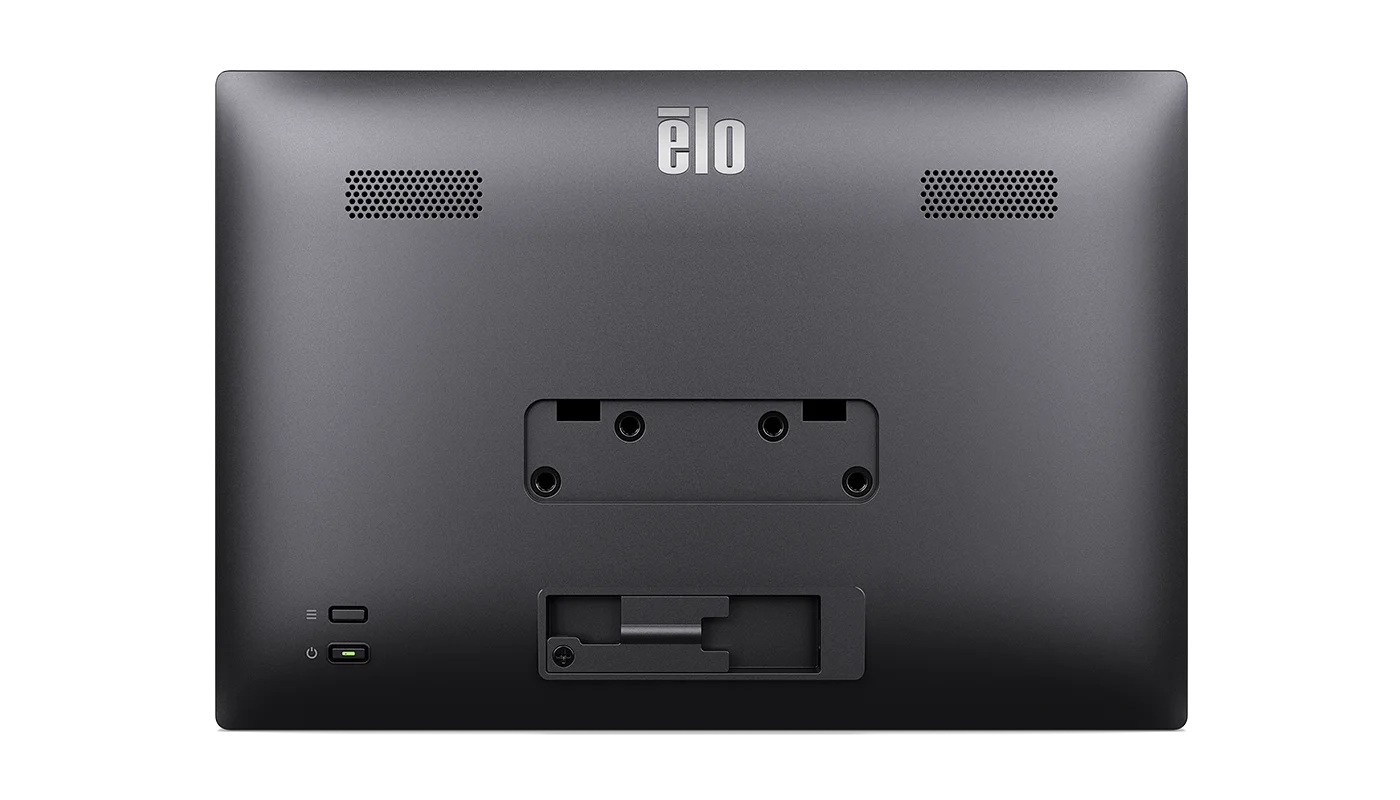

- Mounting Options
- VESA via 4-hole 75mm mounting adapter on rear of unit.
- Other Features
- TUV Rhineland (Low Blue Light); Power collection function via DDCCI
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Canada CUL, IC; Europe CE; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI; International CB; Australia RCM; Mexico NOM; RoHS, China RoHS, WEEE, REACH; United Kingdom UKCA
- Impact Protection
- IK07
- What's in the Box
- Touchmonitor; Quick Install Guide; USB Type-C cable; 75mm VESA adapter (assembled)
- Stands, Mounts & Kits
- Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Rear Facing display Pole Mount Kit – Elo P/N: E038989; Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104; Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Wallaby™ POS Stand (Black) - Elo P/N: E949536; USB-C to USB-C Cable Kit – Elo P/N: E129019; Z10 POS Stand (75mm VESA) - Elo P/N: E767159; Wallaby Pro Merchant-facing Display Kit – Elo P/N: E801367
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
