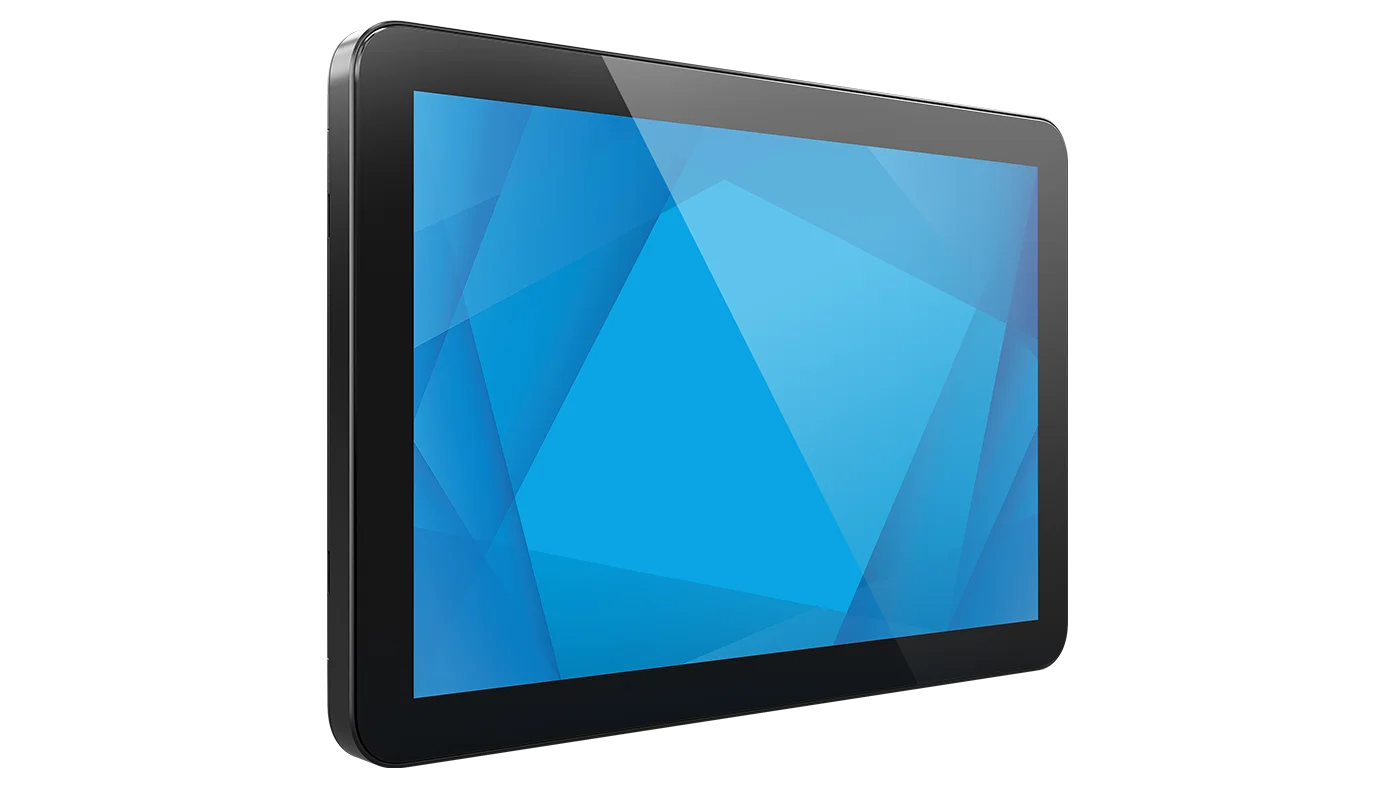

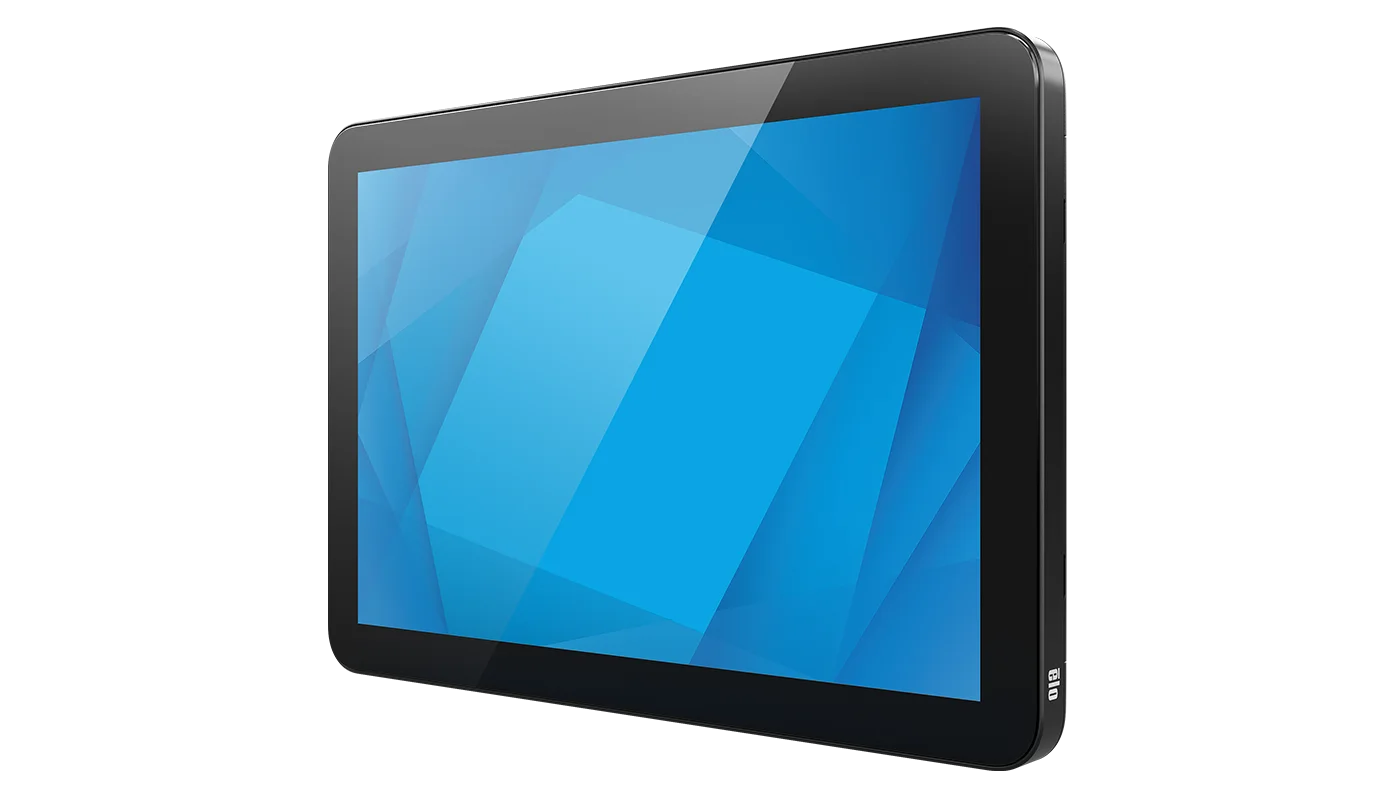

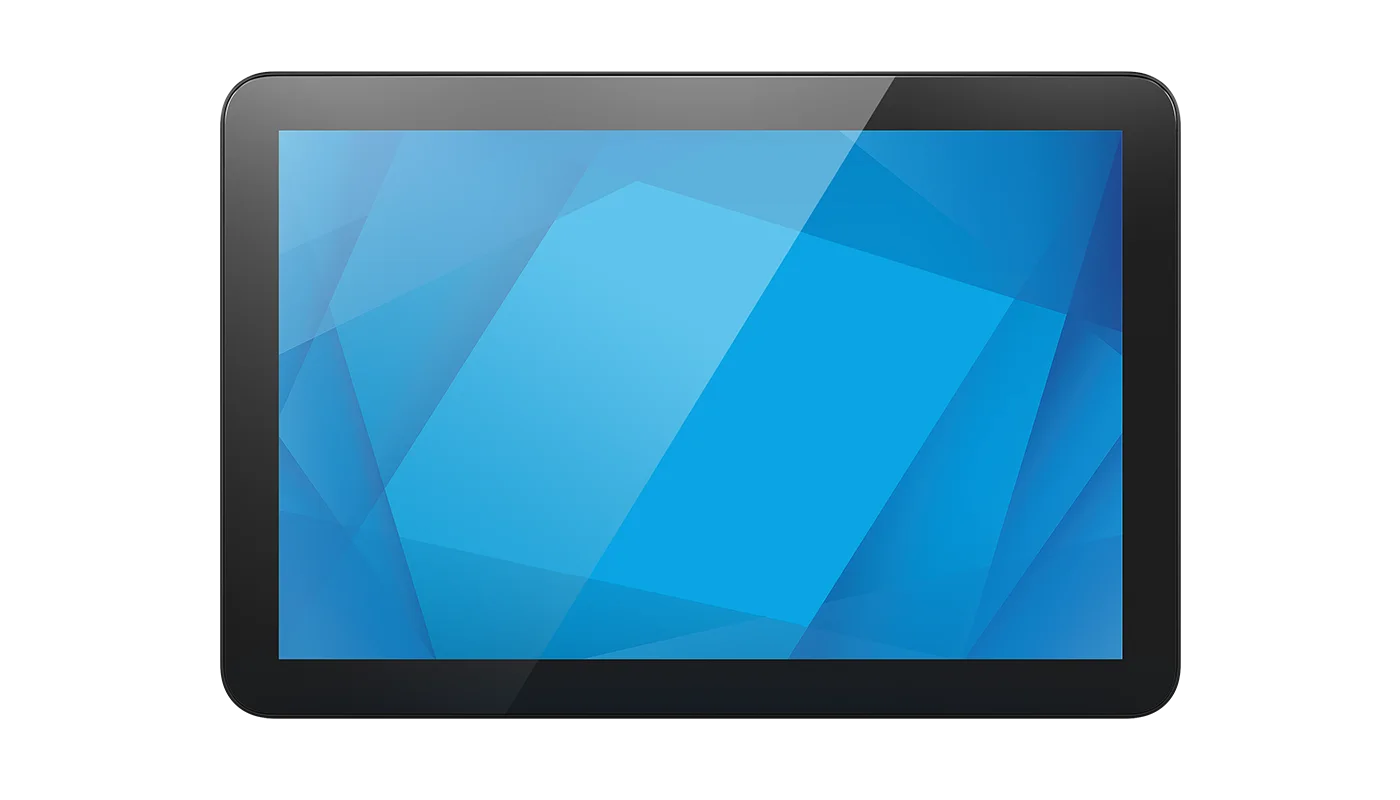

Elo Touch 1004L 10" Touchscreen Monitor
The 1004L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 10” to
- Display10.1'' diagonal, Active matrix TFT LCD (LED)
- SealingIP54
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
The 1004L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 10” touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.
- Easily pair the 10-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7", the 1004L offers the perfect compact touch display with the connectivity you need at the point of sale.
- Designed with high quality optical bonding, anti- glare coverglass and low-blue light settings - the 1004L 10-inch touchscreen monitor brings the best-in-class solution for viewing comfort and clarity.
- Never lose your port covers and screws with the security of the captive design. With a port cover that locks into place, cables are less prone to becoming disconnected, resulting in minimal disruptions to the device.
- Elo Edge Connect™ offers an expansive lineup of accessories that seamlessly attach to the edge of the display including - EMVs, barcode scanners, status lights, cameras, RFID, MSR, fingerprint scanner and more.
- The on-screen display (OSD) controls are now directly on the touchscreen - making navigation easier while still offering OSD lock security.
Best for: Kitchen Display Systems · Conference Room Technology · Conference Room Scheduler Touch Monitors · Price Checkers · Interactive Price Check Displays
Specifications
Technical
- Part Number(s)
- Black PCAP - E968703; Black Non-Touch - E315290; White PCAP - E616491; White Non-Touch - E616302
- Enclosure Color
- White or Black
- Touch Technology & Capacity
- Non-Touch; PCAP (Projected Capacitive) - 10 Touch
- Diagonal Size
- 10.1'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:10
- Active Area
- 8.54" x 5.34" / 216.96 mm x 135.6 mm
- Resolution
- 1280 x 800
- Other Supported Resolutions
- 640x480 60Hz; 800x500 60Hz; 800x600 60Hz; 1024x768 60Hz; 1280x720 60Hz; 1280x800 60Hz, 60Hz RB; 1920x1080 60Hz; 1920x1200 60Hz
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD panel: 400 nits; PCAP: 360 nits
- Response Time-total (typical)
- 30 msec
- Contrast Ratio
- 800:1
- Touch Interface
- USB
- Surface Treatment
- Anti-glare
- On Screen Display
- Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.; Controls (Touch Model): Menu, Power; Controls (Non-touch Model): Two keys (one power key + 5 directional key); Settings: Brightness, Contrast, Aspect Ratio, Auto Scan, Sharpness, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults, Peripheral Port; Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese; Lockouts: OSD, Power
- I/O Ports
- 1x USB Type-C; 1x Mini-Displayport; 1x HDMI; 1x DC jack; 4x Micro-USB Elo Edge Connect ports
- Speakers
- 2 x 2W (+/-10%) internal speakers
- Video
- USB Type-C; Mini-Displayport; HDMI; Input Video Horizontal Sync frequency range: 30 – 80KHz; Input Video Vertical Sync (frame rate) frequency range: 60Hz; Suggest using Elo USB Type C (Elo P/N: E129019) to prevent any compatibility issues
- Power
- Power Delivery compatible via USB Type-C connector or DC Jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)
- Power Consumption (Typical)
- ON (Default - 100% Brightness): 6.5W; SLEEP (Touch Model): 1.0 W; SLEEP (Non-touch Model): 0.5 W; OFF: 0.25 W
- Monitor Dimensions (without Stand)
- 9.80" x 6.61" x 0.98" / 249 mm x 168 mm x 25 mm
- Shipping Box Dimensions
- 12.13" x 5.63" x 8.78" / 308 mm x 143 mm x 223 mm
- Weight (Unpackaged)
- 1.98 lbs / 0.90 kg
- Weight (Packaged)
- 4.84 lbs / 2.2 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
- MTBF
- 50,000 hours demonstrated

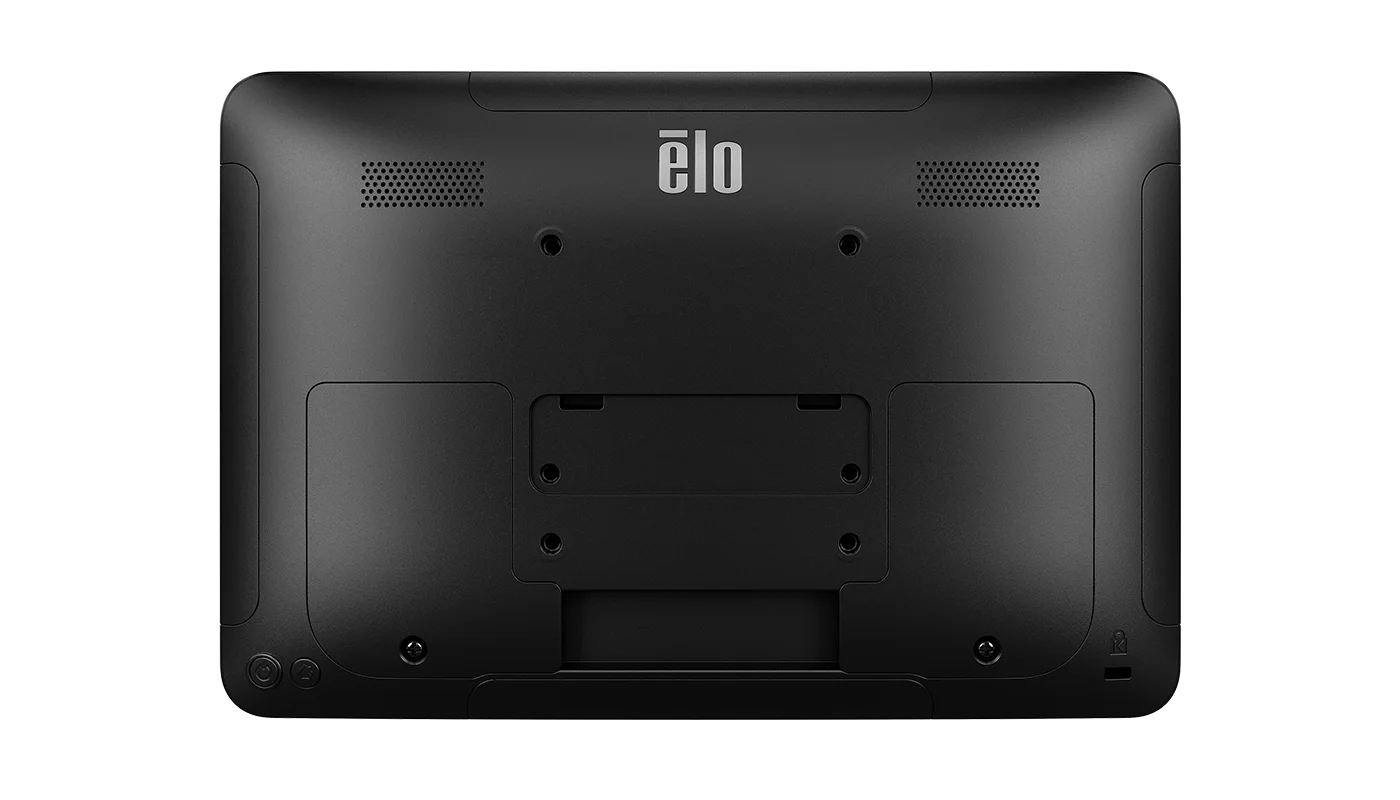

- Mounting Options
- 75mm X 75mm rear-mount mounting interface; See dimensional drawings for details.
- Other Features
- TUV Rhineland (Low Blue Light); Power collection function via DDCCI; PD (power delivery) out via USB-C (18W Max) for 7” pay
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Argentina AR certificate; Canada cUL, IC; China CCC; Europe CE; Korea, KCC; Taiwan BSMI; United Kingdom UKCA; United States UL, FCC; Japan VCCI, PSE; International CB; Australia RCM; Mexico NOM; RoHS, China RoHS, WEEE, REACH; India BIS; IEC60601 (with E181106 optional medical power brick kit); AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021;; EN 60601-1:2006, EN 60601-1:2006/A1:2013, EN 60601-1:2006/A12:2014, EN 60601-1:2006/A2:2021; CAN/CSA-C22.2 No. 60601-1:14 (Reaffirmed 2022)
- Ingress Protection
- IP54
- Impact Protection
- IK07
- What's in the Box
- Touchmonitor; Quick Install Guide; EU EEI Label; 2x UK EEI Label; 1.8m HDMI cable; 1.8m USB-A to C cable; Power brick; 1.8m NA Power cable; 1.8m EU Power cable; 2x Cable tie
- Optional Peripherals
- Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; Customer Display (2x20 VFD) – Elo P/N: E001003; 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; PCAP Stylus Pen - Elo P/N: E066148; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; 3D Camera - Elo P/N: E134699; Webcam - Elo P/N: E201494; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719
- Stands, Mounts & Kits
- Rear Facing display Pole Mount Kit – Elo P/N: E038989; Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077; Z20 Stand for 10'' & 15'' I-Series - Elo P/N: E809321; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Power USB to USB-C/DC-IN (2.1 mm) cable – 1.8 m - Elo P/N: E214097; Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m - Elo P/N: E214282; mPOS Printer Stand (White) - Elo P/N: E353758; Wallaby™ POS Stand (Black) - Elo P/N: E949536; USB-C to USB-C Cable Kit – Elo P/N: E129019; DVI-D to HDMI Cable Kit – Elo P/N: E538507; North America Power Cable – C13 - Elo P/N: E593865; Australia Power Cable – C13 - Elo P/N: E594067; Europe Power Cable – C13 - Elo P/N: E594264; Korea Power Cable – C13 - Elo P/N: E594466; China Power Cable – C13 - Elo P/N: E594670; Taiwan Power Cable – C13 - Elo P/N: E594869; Japan Power Cable – C13 - Elo P/N: E793799; Elo Backpack® 4 (Value Model) - Elo P/N: E393754; Elo Backpack® 4 (Standard Model) - Elo P/N: E393359; Z10 POS Stand (75mm VESA) - Elo P/N: E767159; Wallaby Pro Merchant-facing Display Kit – Elo P/N: E801367; Small I/O Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-C – Elo P/N: E815044; 60W Power Brick Kit - Elo P/N: E435091; Elo Power Brick Kit, 60W Adapter Only - Elo P/N: E181106; Elo 1.8m Mini DisplayPort to DisplayPort Video Cable - Elo P/N: E441116; Elo 1.8m Cable Kit for 04-Series Monitors with HDMI, USB-A to USB-C - Elo P/N: E441304; Elo 1.8m DisplayPort to DisplayPort video cable - Elo P/N: E582895
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
