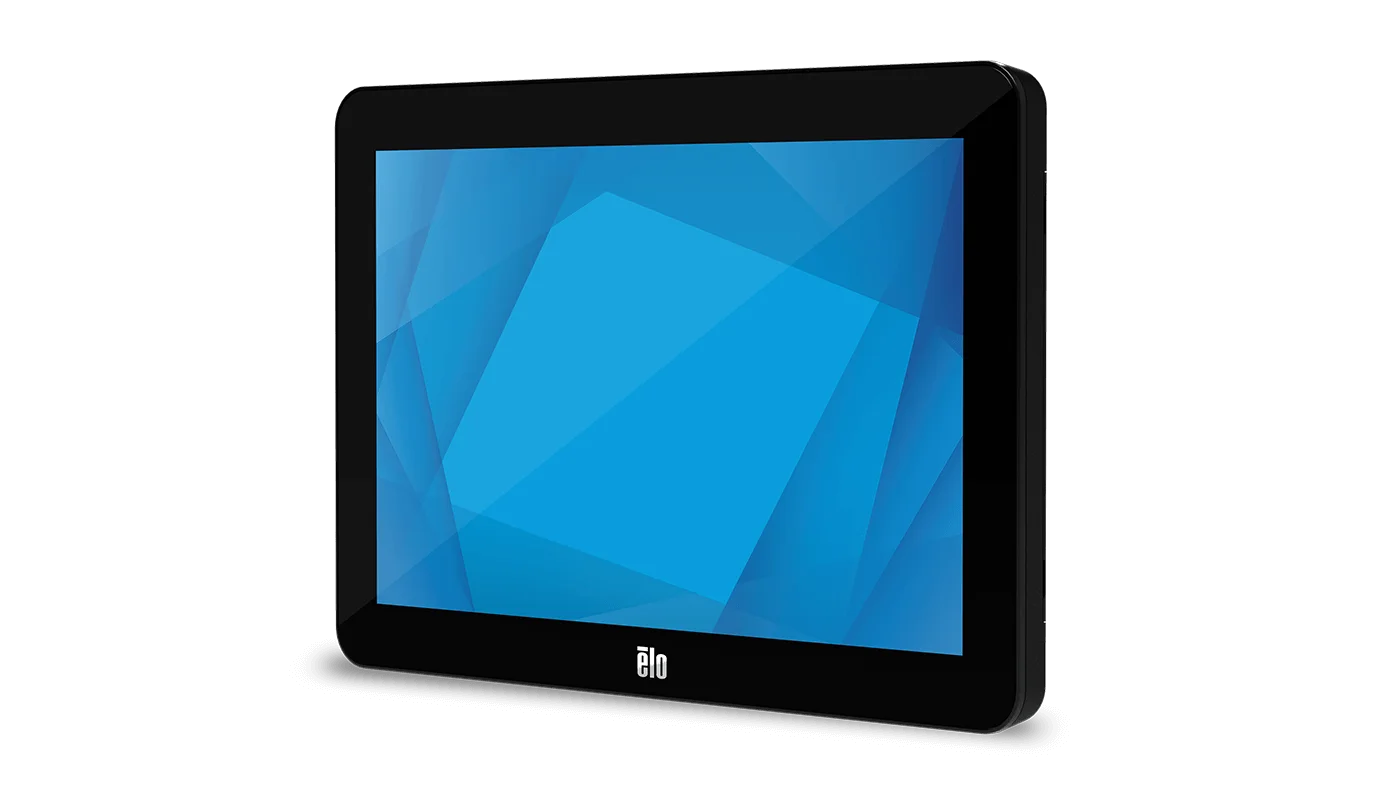

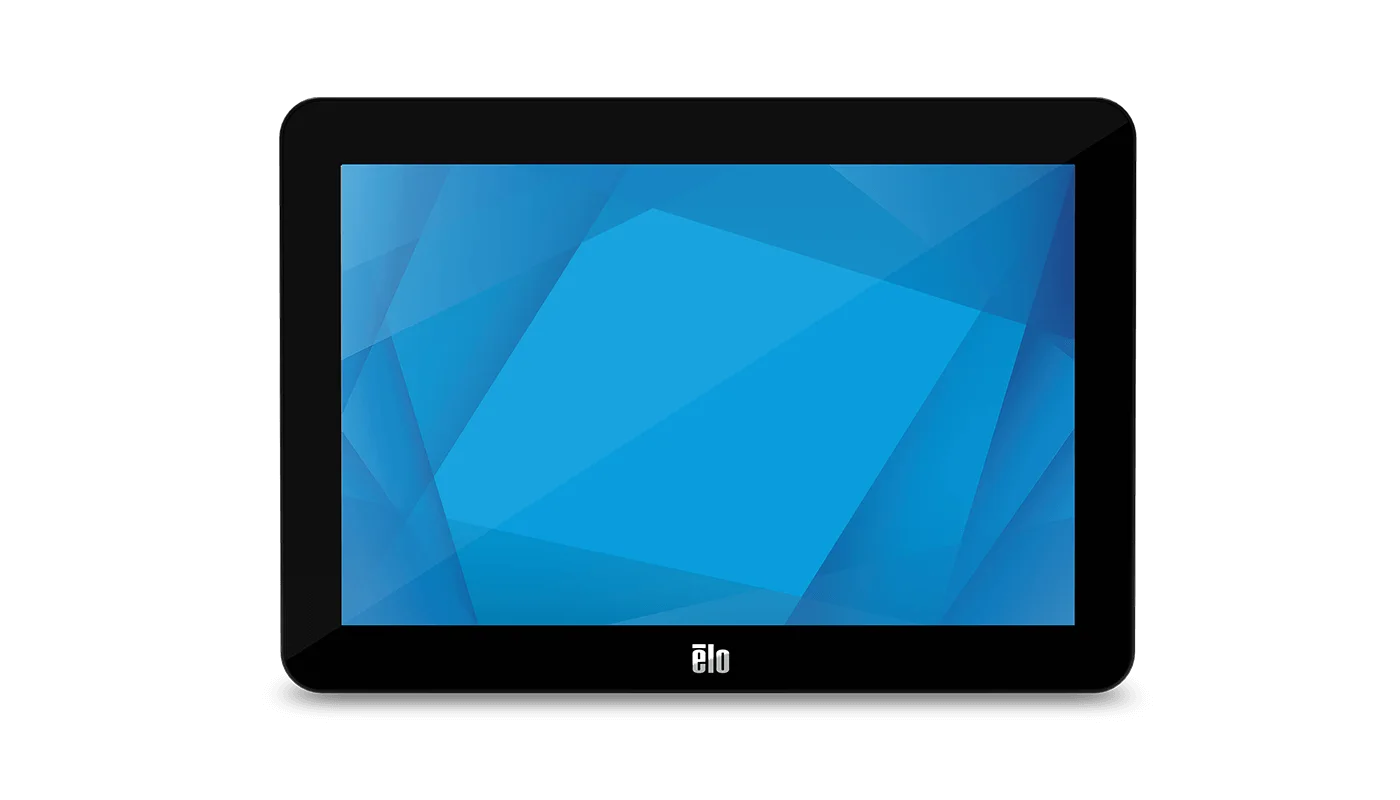

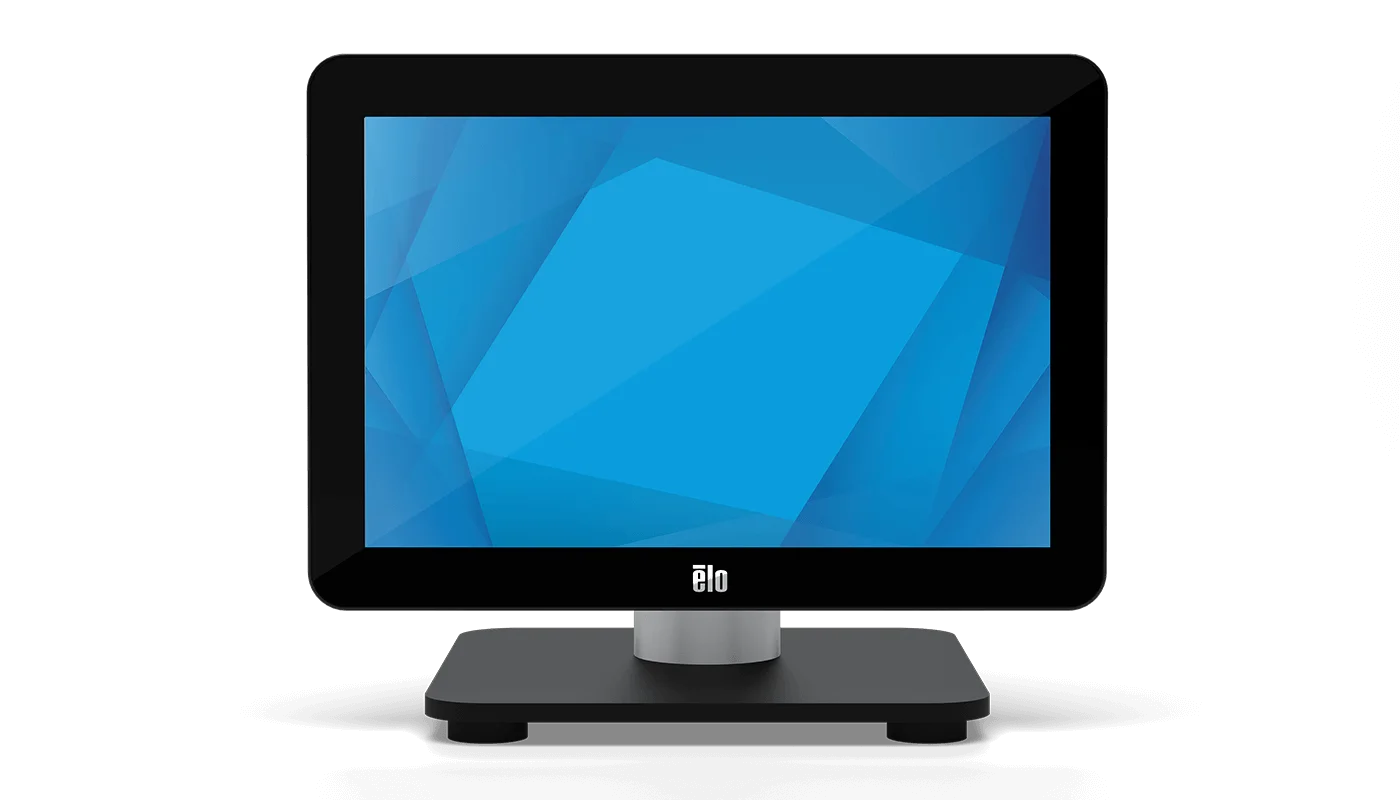

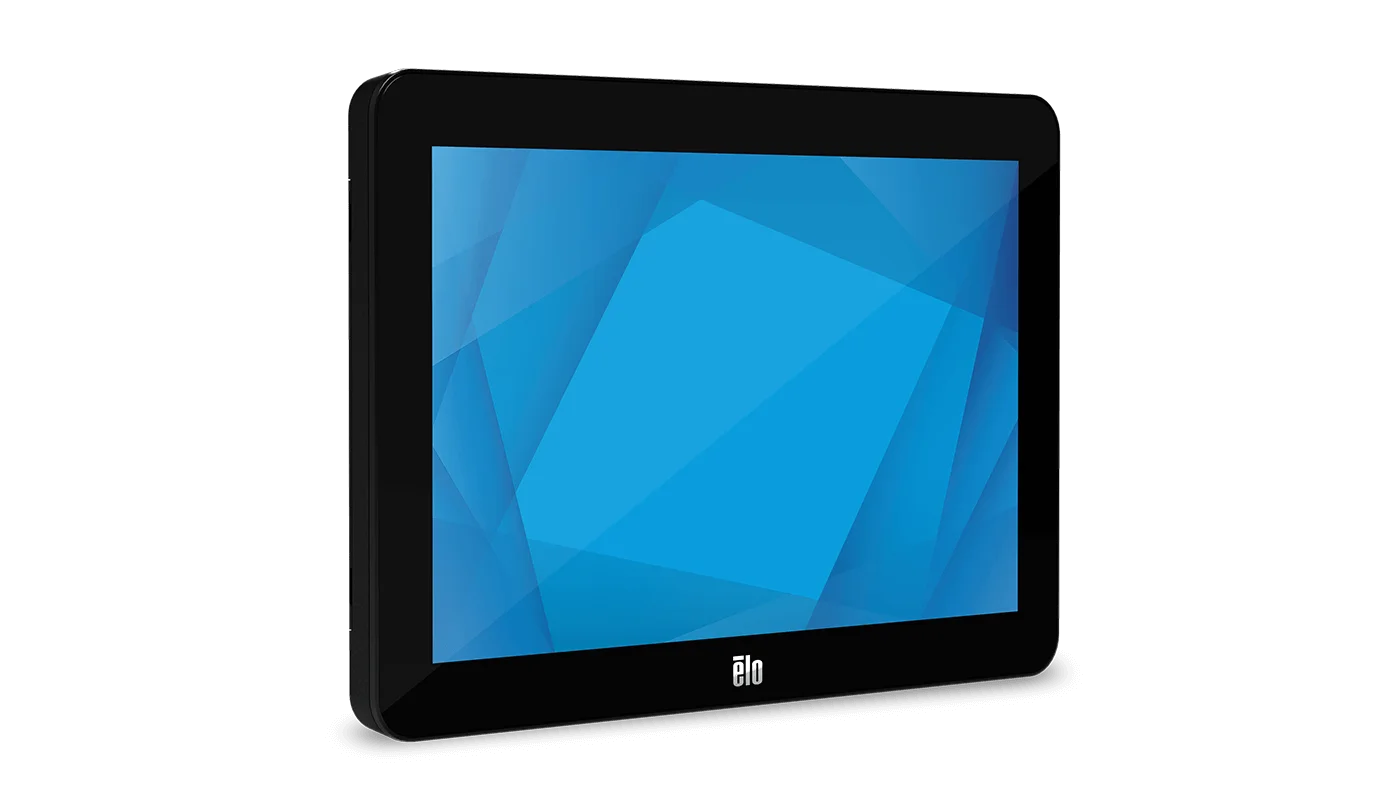

Elo Touch 1002L 10" Touchscreen Monitor

Display10.1'' diagonal, Active matrix TFT LCD (LED)
SealingIPX1 for front side

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.
The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
The ability to take payment is essential to complete a transaction. The 1002L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.

Best for: Kitchen Display Systems · Price Checkers · Interactive Price Check Displays

Specifications

Technical

Part Number(s): PCAP (Worldwide) - E155834; Non-Touch (Worldwide) - E324341
Enclosure Color: Black
Touch Technology & Capacity: Non-Touch; PCAP (Projected Capacitive) - 10 Touch
Diagonal Size: 10.1'' diagonal, Active matrix TFT LCD (LED)
Monitor Thickness: 1.12" / 28.45 mm panel depth
Aspect Ratio: 16:10
Active Area: 8.54" x 5.34" / 216.96 mm x 135.6 mm
Resolution: 1280 x 800
Other Supported Resolutions: 640 x 480 @ 60Hz; 800 x 600 @ 60Hz; 1024 x 768 @ 60Hz; 1280 x 800 @ 60Hz; 1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors: 262,000
Brightness (typical): LCD panel: 350 nits; PCAP + DC Power: 315 nits; PCAP + USB-C 5V power: 200 nits
Response Time-total (typical): 29 msec
Contrast Ratio: 800:1
Touch Interface: USB
Surface Treatment: Anti-glare
On Screen Display: Accessible through switches along the bottom:; Controls: Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port; Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese; Lockouts: OSD, Power
I/O Ports: 1 x USB Type-C; 1 x Audio jack (Line-in); 1 x VGA (Micro-HDMI female connecter); 1 x HDMI; 1 x 12V D/C input; 3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals
Speakers: 2 x 2W internal speakers
Video: Analog VGA; HDMI; USB Type-C (support DP Alt mode); Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues
Input Video Frequency: Horizontal: 31.5 - 80 KHz; Vertical: 60 Hz
Power: Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A; Option 2: External DC Adapter 12V/36W in box; Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth); Monitor input voltage range: 12VDC +/- 5%; Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length); Adapter input voltage range: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): Monitor + AC/DC adapter; ON: 7.43 W; SLEEP: 1.26 W; OFF: 0.2 W
Monitor Dimensions (without Stand): 10.03" x 6.99" x 1.14" / 254.80 mm x 177.50 mm x 29.00 mm
Shipping Box Dimensions: 12.4" x 9.57" x 5.67" / 315 mm x 243 mm x 144 mm
Weight (Unpackaged): 1.95 lbs / 0.8842 kg
Weight (Packaged): 4.02 lbs / 1.8266 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
MTBF: 50,000 hours demonstrated

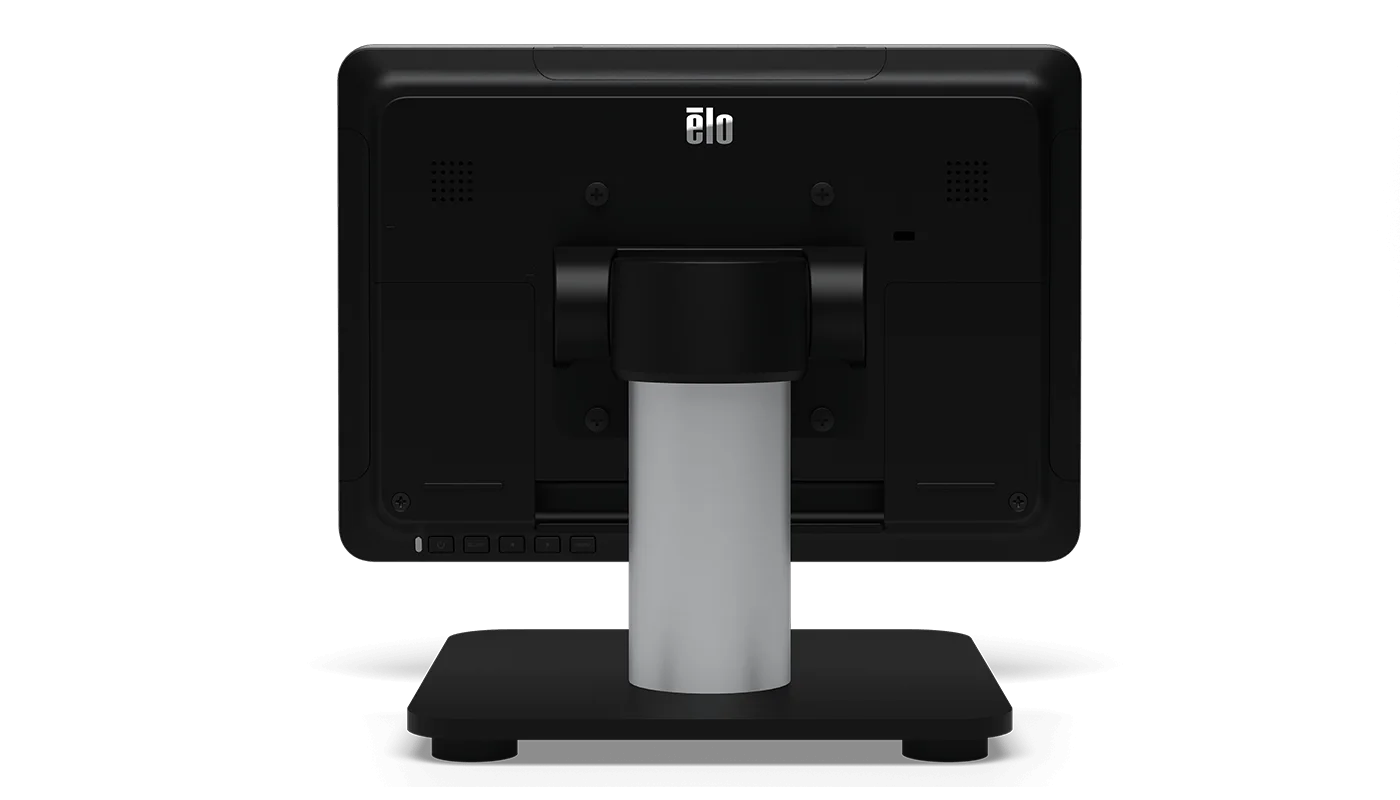

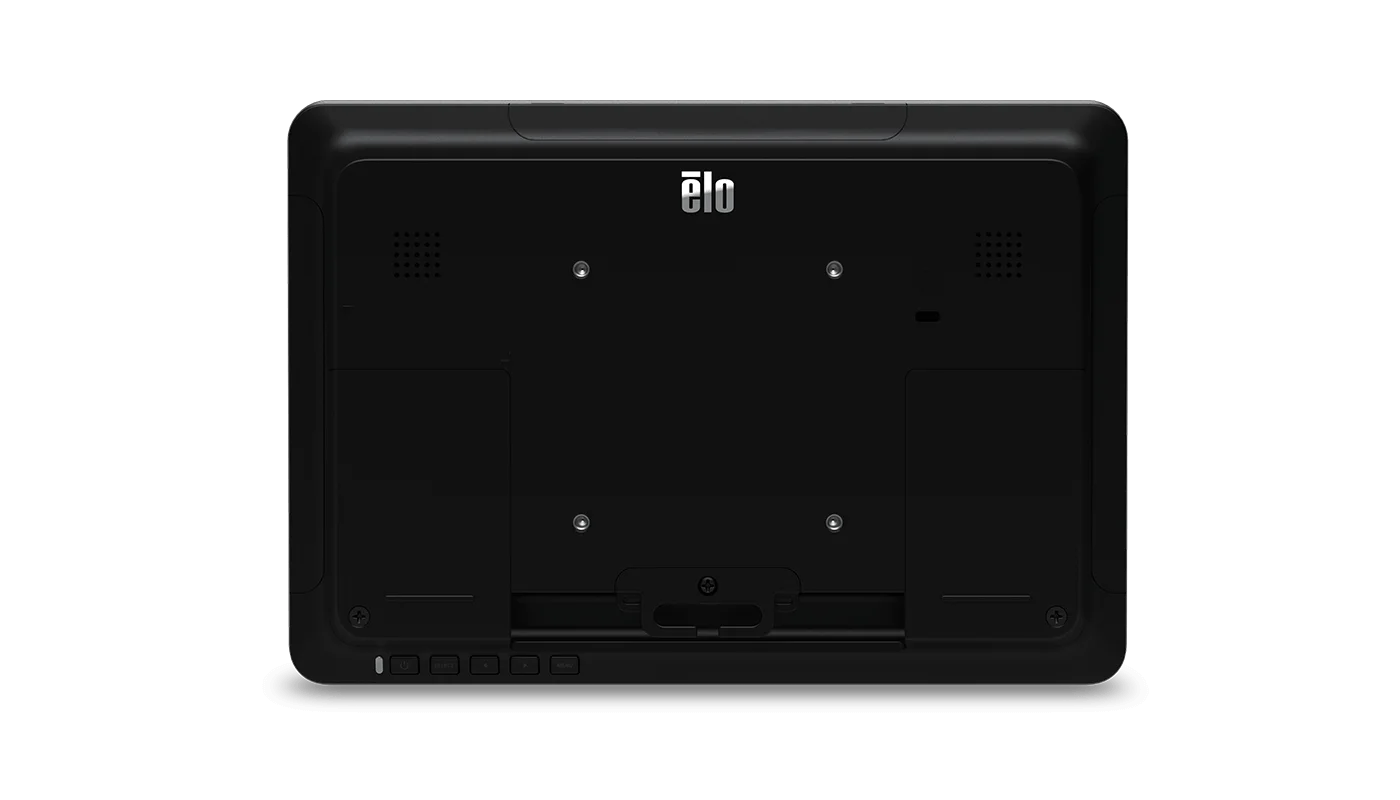

Mounting Options: VESA 4-hole 75mm mounting interface on rear of unit
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations: Canada cUL, IC; Europe CE; United Kingdom UKCA; Japan VCCI; United States UL, FCC; China CCC; Korea, KCC, e-standby; Australia RCM; Mexico NOM; Taiwan BSMI; International CB; RoHS, China RoHS, WEEE, REACH; India BIS; Russia EAC
Ingress Protection: IPX1 for front side
Impact Protection: IK05
What's in the Box: Touchmonitor; HDMI cable; USB Cable (USB Type-A to Type-C); Quick Install Guide; EEI Label; Power brick; NA Power cable; EU Power cable; 2 x cable clamps; 2 x tie wraps; 3 x screws (M3x8mm) for cable clamps; 2 x screws (M3x10mm) for cable doors
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; PCAP Stylus Pen - Elo P/N: E066148; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; Webcam - Elo P/N: E201494; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719; Speaker Bar (White) - Elo P/N: E133780
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Mounting Bracket for 0700L as Rear-Facing Display - Elo p/n: E332358; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Power USB to USB-C/DC-IN (2.1 mm) cable – 1.8 m - Elo P/N: E214097; Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m - Elo P/N: E214282; Wallaby™ POS Stand (Black) - Elo P/N: E949536; VGA-DB15 to Micro Cable Kit – Elo P/N: E710549; DVI-D to HDMI Cable Kit – Elo P/N: E538507; 1.8 m USB-C Cable Kit - includes VGA, USB, HDMI and audio cables - Elo P/N: E408388; Power Brick – 36W - Elo P/N: E593458; Elo Backpack® 4 (Value Model) - Elo P/N: E393754; Elo Backpack® 4 (Standard Model) - Elo P/N: E393359; North America Power Cable C5 - Elo P/N: E793990; Australia Power Cable C5 - Elo P/N: E794186; Europe Power Cable C5 - Elo P/N: E794376; Korea Power Cable C5 - Elo P/N: E794574; China Power Cable C5 - Elo P/N: E794756; Taiwan Power Cable C5 - Elo P/N: E794957; Japan Power Cable C5 - Elo P/N: E795147; Power USB to USB-B/DC-IN (2.5 mm) cable – 1.8 m - Elo P/N: E752302; Power USB to USB-B/DC-IN (2.5 mm) cable – 3 m - Elo P/N: E763022

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
