Datalogic · Handheld computer

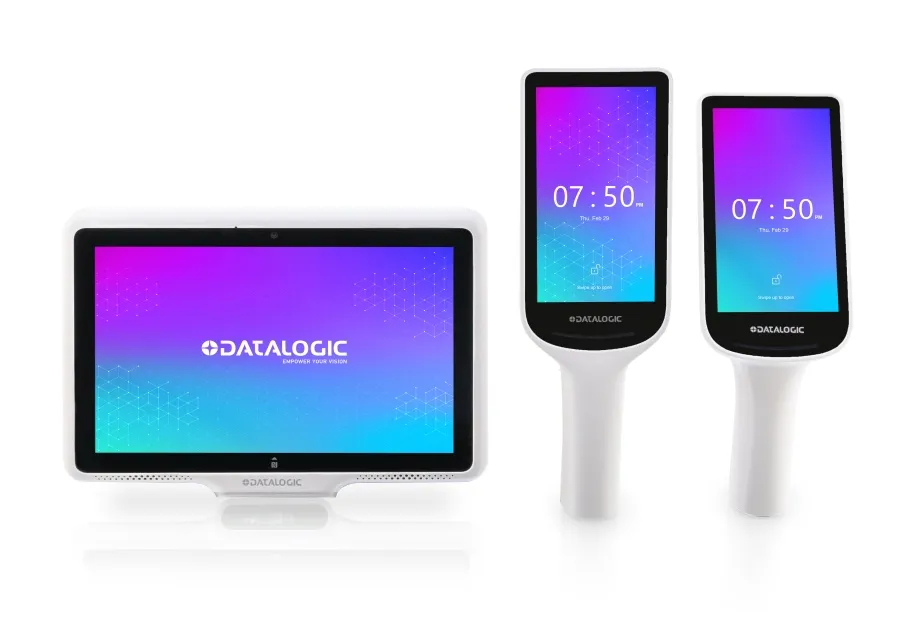

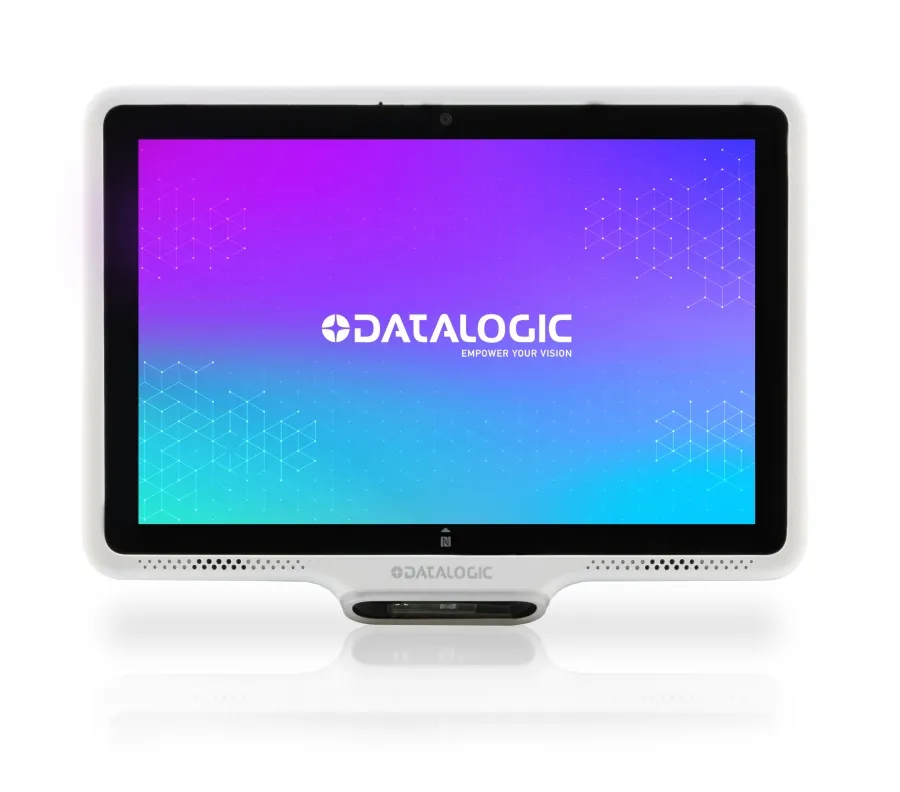

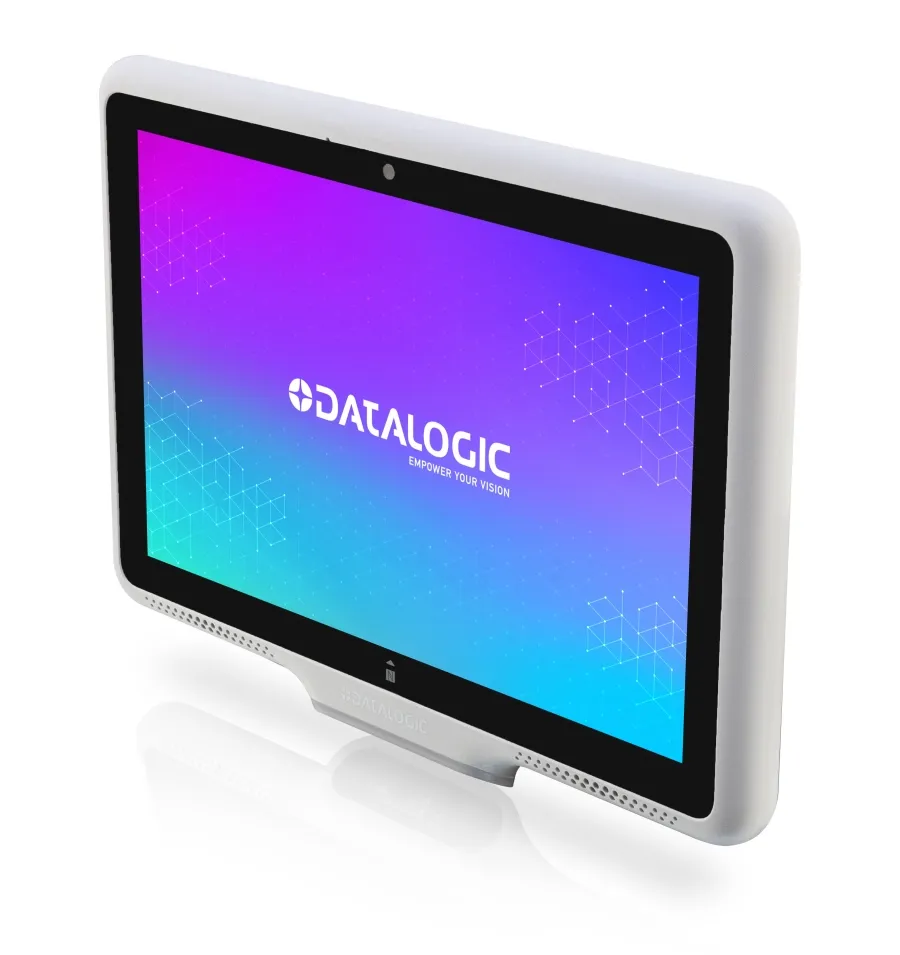

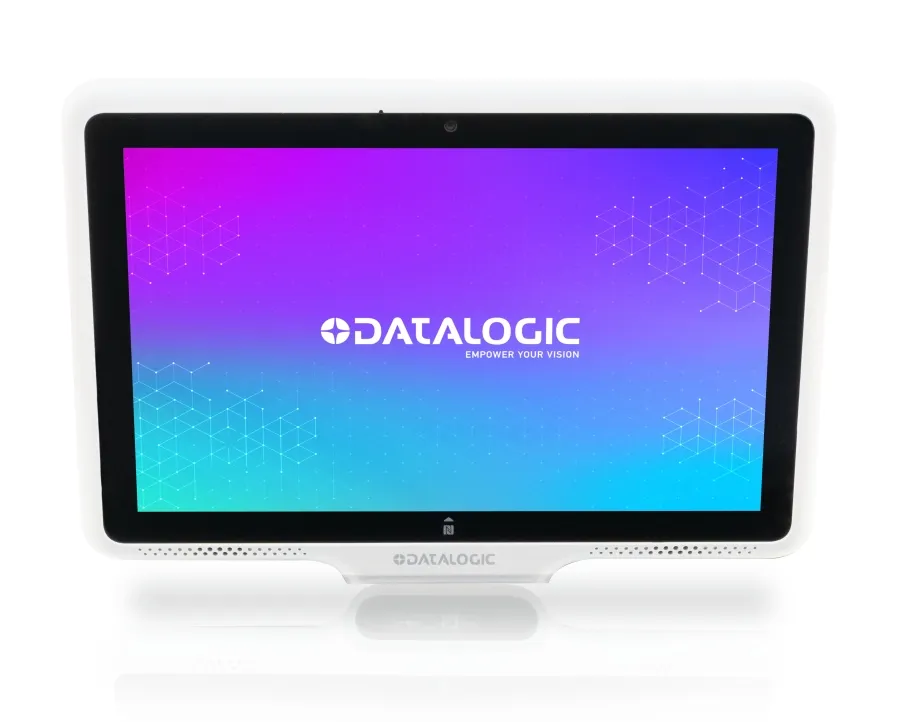

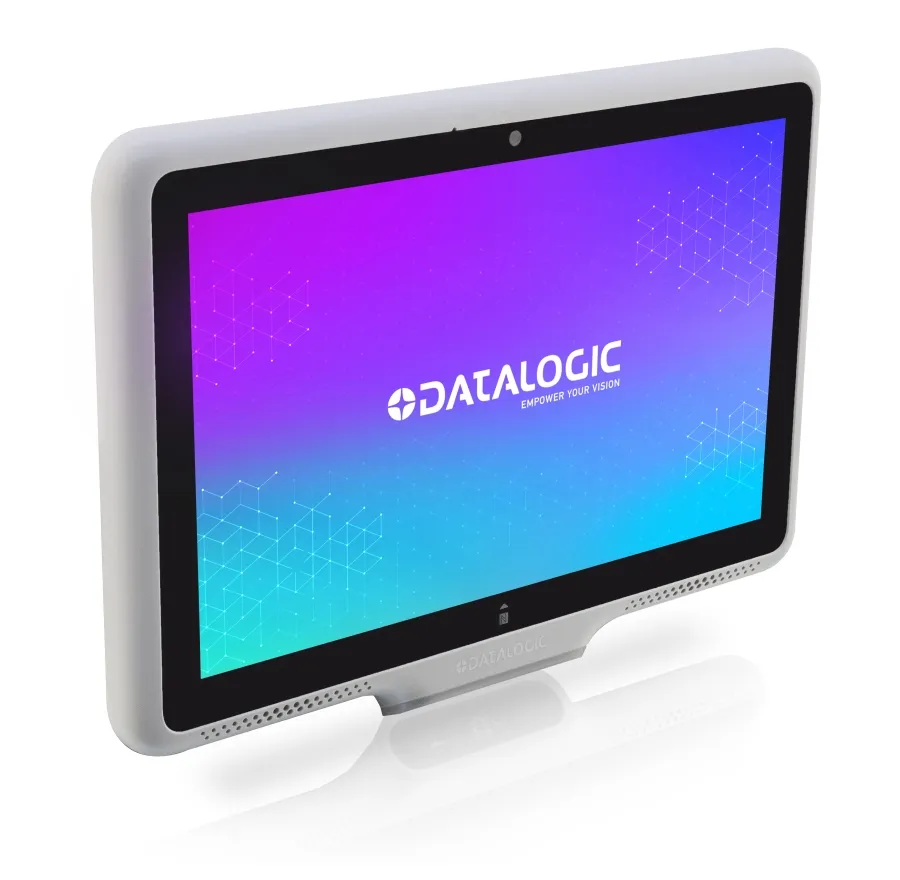

Datalogic Smart Portal
The Smart Portal is a versatile, interactive solution designed to transform self-service experiences. Smart Portal - Wall Mount Computers
- Operating systemAndroid 15, upgradeable to Android 19
- ScanningHalogen™ DE2121-DL 1D/2D scan engine; Datalogic’s ‘Green Spot’ for good-read feedback
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Local Area Network (WLAN)
- Local Area Network (WLAN) Wi-Fi 6e IEEE 802.11 a/b/g/n/ac/ax and 802.11 d/e/h/i/k/ r/v/w/mc; Frequency range: Country dependent, typically 2.4 GHz,5 GHz and 6 GHz bands; 2x2 MIMO; WPA3 Enterprise 192-bit mode supported
- Charging / power
- PoE power source that supports EEE 802.3at (PoE+/Type 2); DC port with Power Supply
- Temperature
- Operating: 0 to 40 ºC / 32 to 104 ºF Storage/Transport: -30 to 70 ºC / -22 to 158 ºF
- Humidity
- 5% to 95% non-condensing, across the operating temperature range
- Dimensions
- 227 mm x 164,5 mm x 32 mm / 8.93 in. x 6.47 in. x 1.26 in.
- Weight
- 638g/ 22.5 oz.
- Primary Display
- 8,6 inch color HD (1340x800); 16:10; 450 NITS
- Keyboard / keys
- Physical Keys: 1 power ON/OFF, volume physical keys (up/down), Reset button
- Touch panel
- Touch Screen: 5 points multi-touch capacitive panel and optical bonding; Support for gloves and stylus; water drops rejection and antifingerprint surface finishing
- Cameras
- Front Camera: Resolution: 5 megapixel
- Scan engines / capture options
- Halogen™ DE2121-DL 1D/2D scan engine; Datalogic’s ‘Green Spot’ for good-read feedback
- Ports / interfaces
- USB host: 1 USB-C and 1 USB-A ports (both USB 2.0) for accessory USB OTG: 1 USB-C OTG Ethernet Gigabit compatible: RJ45
- Empower
- SoftSpot - draggable touch scanner trigger. QuickBoard – customizable on-screen virtual keyboard.
- RAM / storage options
- 6 GB RAM / 128 GB Flash Storage
- Microprocessor
- Qualcomm QCx4490 Octa-core 2.4 GHz
- Operating system
- Android 15, upgradeable to Android 19
- Warranty
- 1-Year Factory Warranty
Send a request
Get a quote for the Smart Portal
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
