Datalogic · Handheld computer

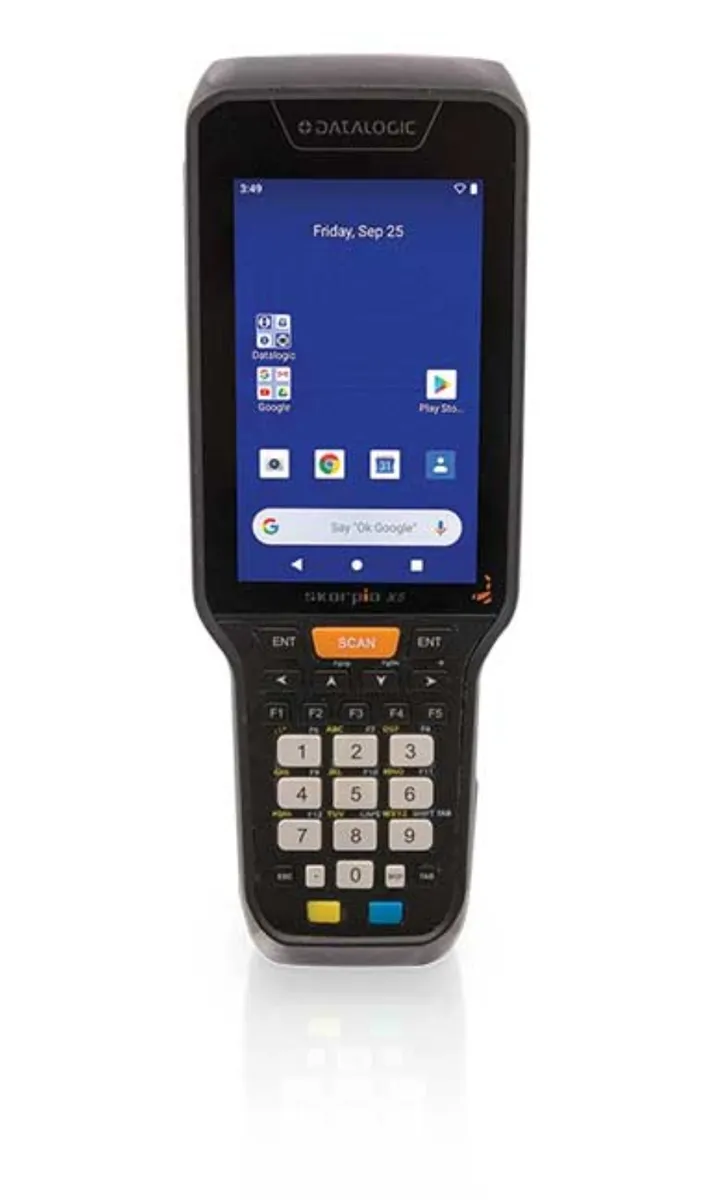

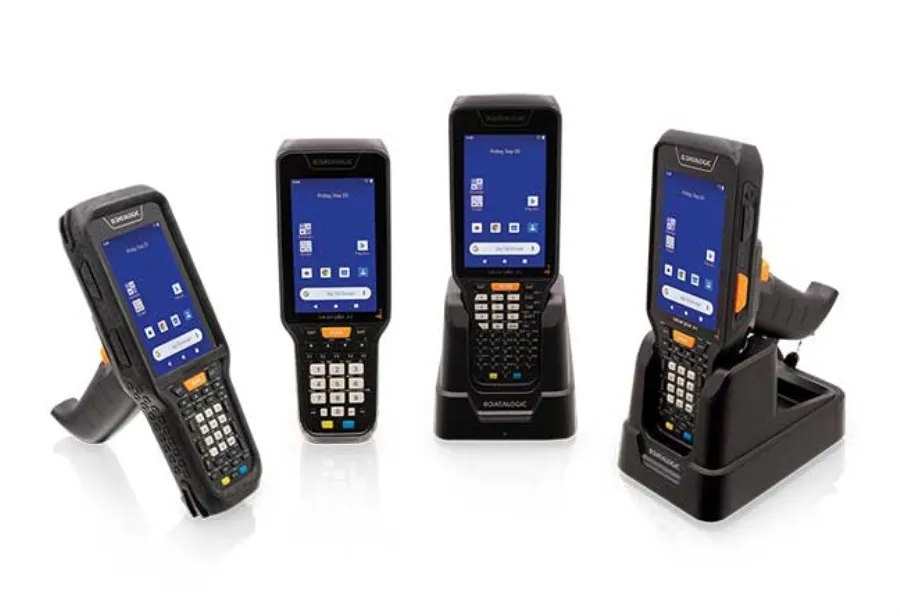

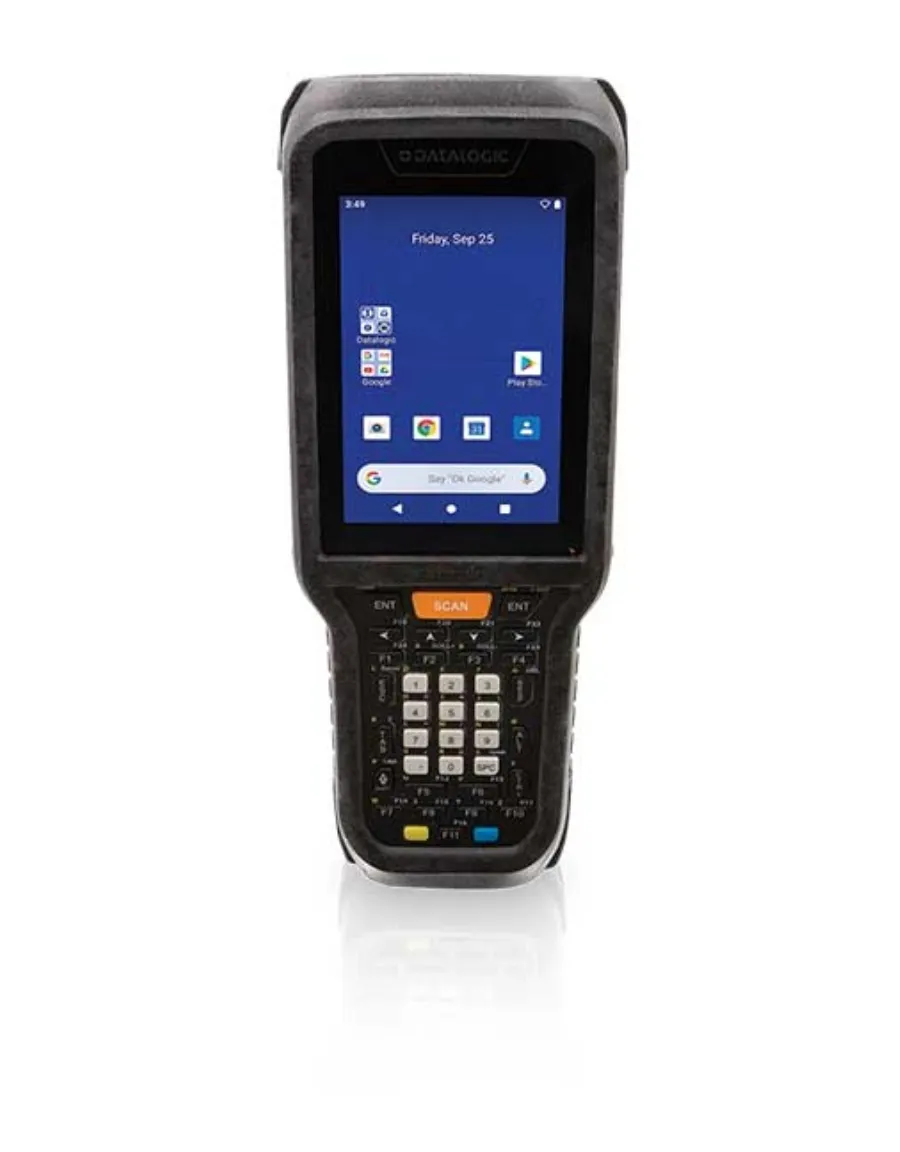

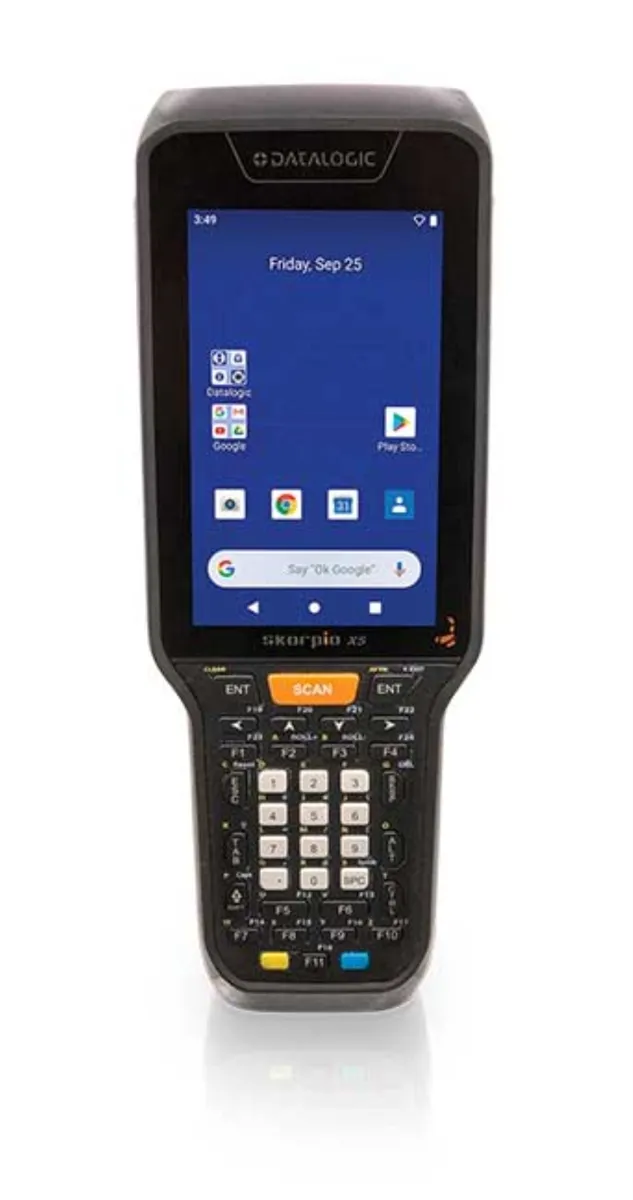

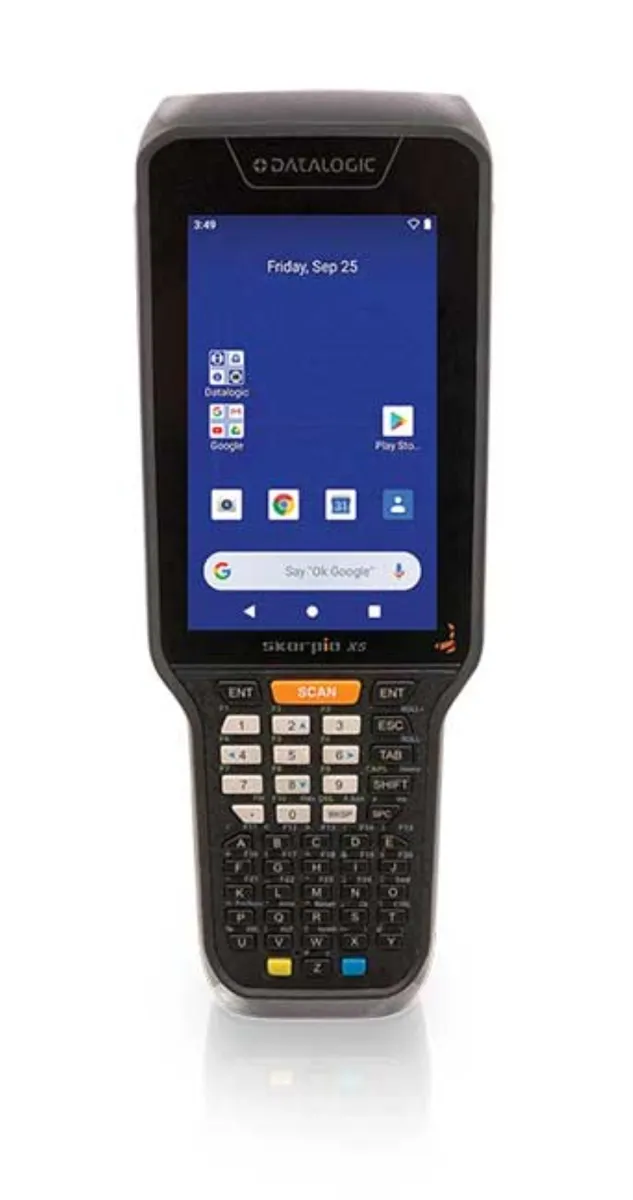

Datalogic Skorpio X5
The Skorpio X5 is an ultra-fast, high-performing key-based mobile computer, with the largest multi-touch display in the Portable Data Terminal (PDT) market. Skorpio X5 - Handheld Computers.
- Operating systemAndroid 10 with GMS – 2 Main OS Upgrade Support
- Scanning1D Imager: Linear CCD 2500 pixels; Sharp green LED scan line. Print contrast minimum: 15%. Depth of Field…
- BatteryRemovable battery pack with rechargeable Li-Ion batteries; MicroUSB type-C for fast battery charging…
- DropWithstands multiple drops from 1.8 m / 6.0 ft onto steel or concrete according to IEC 60068-2-32 procedure…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Local Area Network (WLAN)
- IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc (for indoor localization); IPv4, IPv6, 2x2 MU-MIMO for higher throughput and coverage Frequency range: Country dependent, typically 2.4 GHz and 5 GHz bands
- Battery / runtime
- Removable battery pack with rechargeable Li-Ion batteries; MicroUSB type-C for fast battery charging. Standard: 3.7 V; Rated 3460mAh typical 3500mAh (12.8 Watt-hours); standard on all handheld models Extended: Rated 6080 mAh typical 6200mAh (22.1 Watt- hours); standard on all Pistol Grip models
- Drop specification
- Withstands multiple drops from 1.8 m / 6.0 ft onto steel or concrete according to IEC 60068-2-32 procedure 1. Skorpio X5 XLR with the Rubber Boot applied withstands multiple drops from 2.0 m / 6.6 ft onto steel or concrete according to IEC 60068-2-32 procedure 1.
- Particulate and Water Sealing
- IP65
- Temperature
- Operating: -20 to 50 ºC / -4 to 122 ºF Storage/Transport: -30 to 70 ºC / -22 to 158 ºF
- Ports / interfaces
- USB Type-C: USB 3.1 gen 1 (3.2 gen 1x1), host and device; Gigabit Ethernet connectivity (via 3-slot dock)
- Dimensions
- Front size: 218 x 78.5 mm / 8.58 x 3.09 in Thickness Max 31,3 Head; Max 35,6 WLC coil area and hand strap area; XLR front size: 220.3 x 89.2 mm / 8.67 x 3.51 in, thickness max 52.6 mm
- Primary Display
- 4.3 inch TFT / Transflective LCD with 800x480 WVGA pixel resolution; LED backlight and integrated touch screen, High brightness for Indoor and Outdoor High Visibility
- Keyboard / keys
- 47-key alphanumeric, 38-key function numeric, 28-key numeric; Keyboard with backlight
- Touch panel
- Touch Screen: 6 points multi-touch capacitive panel with hardened Gorilla Glass 3; Support for gloves and stylus
- Weight
- Handheld: with Std. battery 488 g, with high capacity battery 514 g; Pistol-grip: with Std. battery 600 g, with high capacity battery 626 g; XLR with pistol grip and high capacity battery 665 g
- Cameras
- Rear Camera: Resolution: 13 MP; Illumination: User controllable LED flash Not available on XLR version*
- Scan engines / capture options
- 1D Imager: Linear CCD 2500 pixels; Sharp green LED scan line. Print contrast minimum: 15%. Depth of Field (typical): 4.0 to 74 cm / 1.5 to 29.1 in (13 mil/EAN) 2D Imager Standard Range (supports 1D / 2D codes): White LED Illumination, laser aim 650nm; Print contrast minimum: 25%; Depth of Field (typical): 4.5 to 74 cm / 1.7 to 29.1 in (13 mil/EAN); 6.5 to 40 cm / 2.5 to 15.7 in (15 mil/DM) 2D Imager Mid-Range: White LED Illumination; Print contrast minimum: 25%; Depth of Field (typical): 8.0 to
- RAM / storage options
- RAM Memory: 3 / 4 GB; Flash Memory: 32/64 GB (partially used for firmware and reserved data)
- Microprocessor
- Qualcomm® SDA660 System-on-Chip 2.3 GHz
- Operating system
- Android 10 with GMS – 2 Main OS Upgrade Support
- Warranty
- 1-Year Factory Warranty
