Datalogic · Vehicle-mounted computer

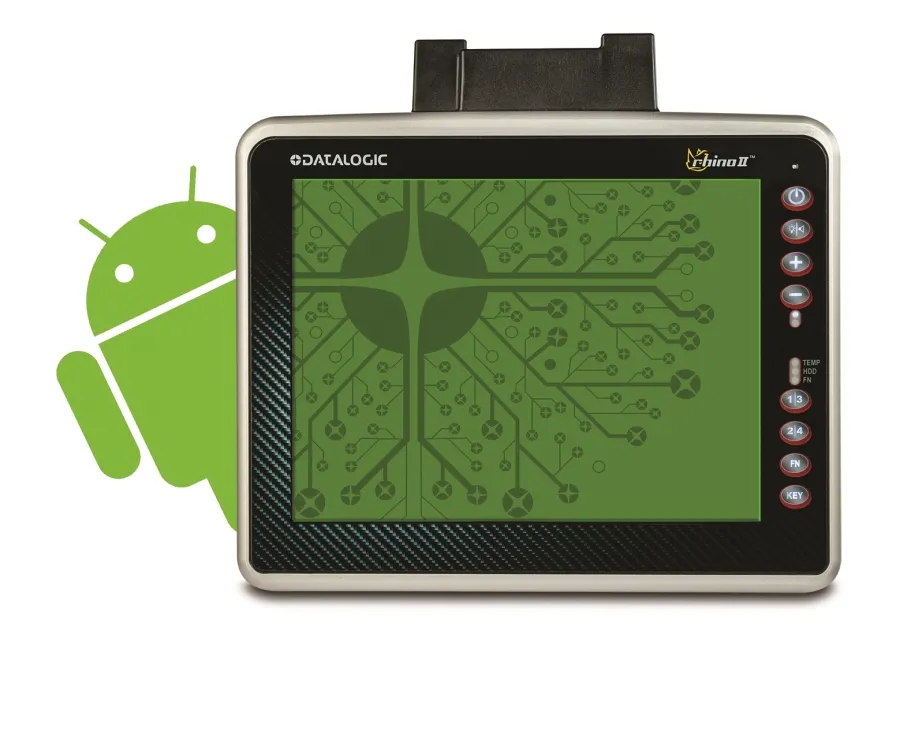

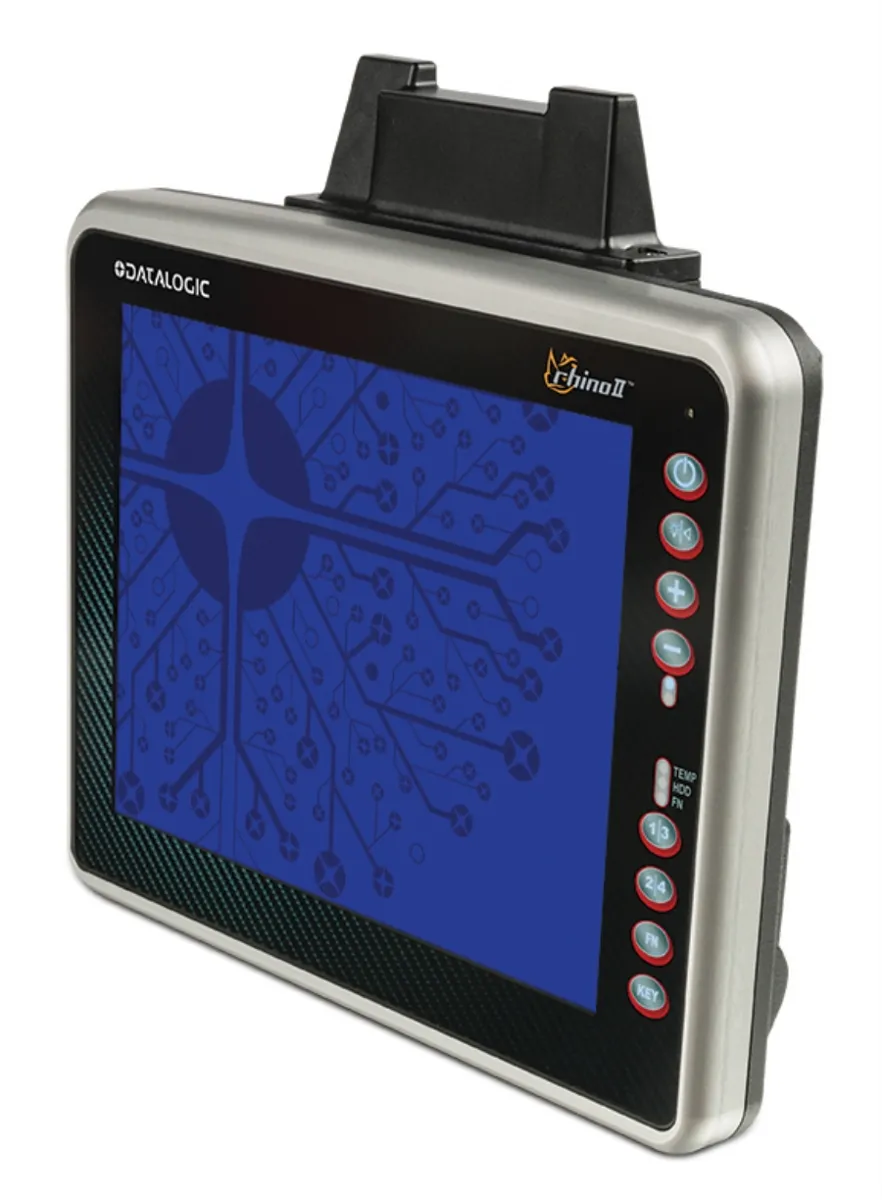

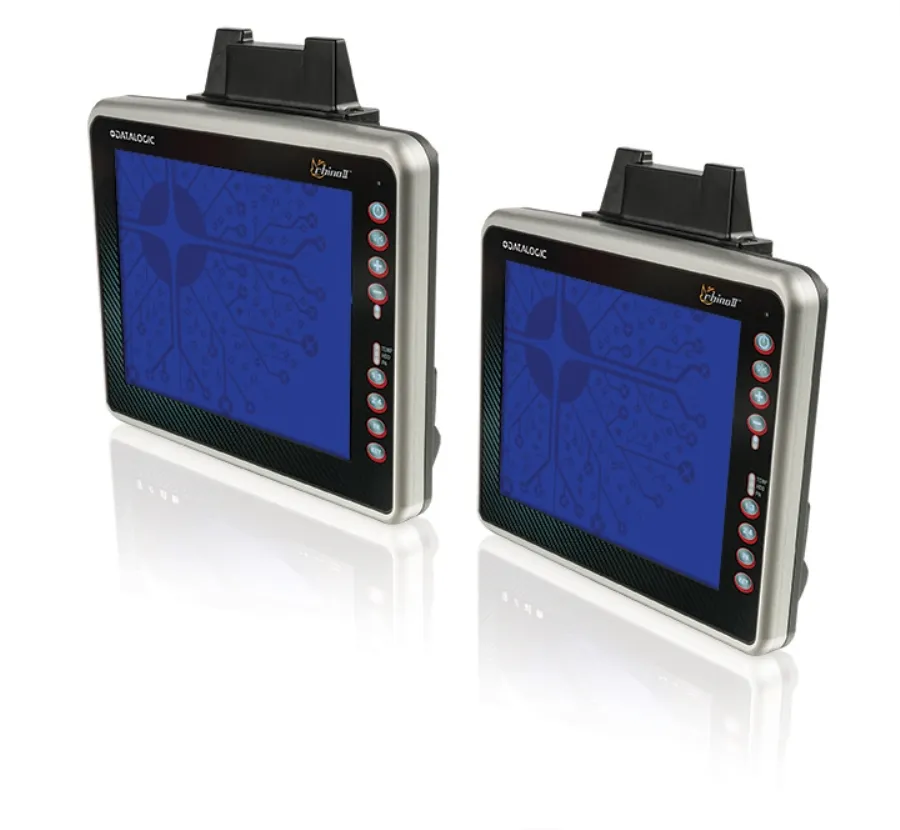

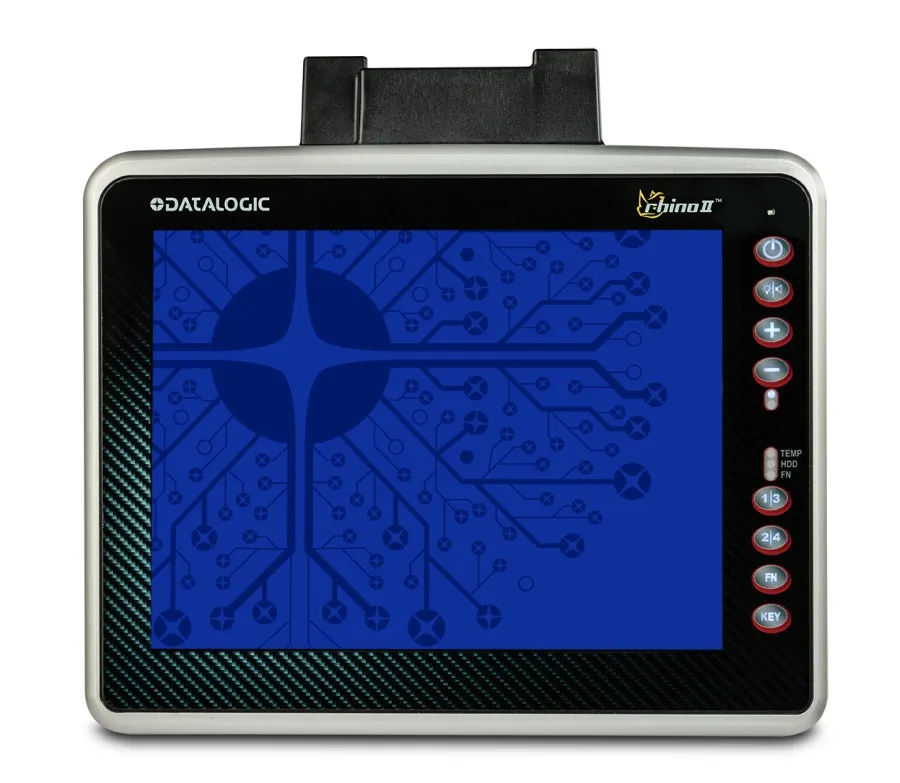

Datalogic Rhino II

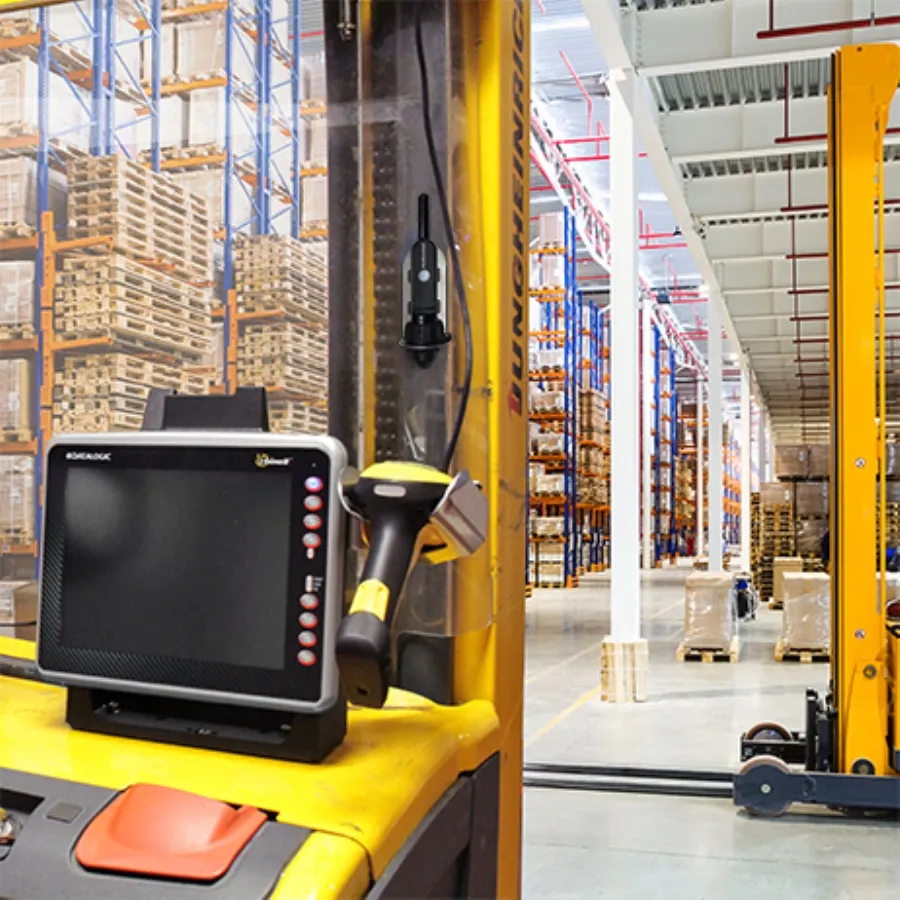

Discover in Datalogic Rhino II: vehicle computers ensure operation in the harshest environments.
- Operating systemWindows Embedded Compact 7, Windows Embedded Standard 7 or Windows 10 IoT Enterprise 64 bit; Android 7.1…
- DisplayResistive/Freezer Model: 10.4 inch SVGA 800x600, 400 NITS; Capacitive/Standard Models: 10.4 inch XGA 1024 x…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Local Area Network (WLAN)
- Wi-Fi: 802.11a/b/g/n (2.4 GHz and 5 GHz); Cisco CCX v4; Wired Ethernet: 1 x GbE, RJ-45 (bottom)
- Antennas
- Diversity antennas under top cap; Optional cab mount antenna
- Backup Battery
- Optional backup battery for up to 30 min. runtime; 2,500 mAh @ 10.8 VDC; 27 Wh; Battery charging: 0 to 50 ºC / 32 to 122 ºF Battery operating: -20 to 50 ºC / -4 to 122 ºF
- Charging / power
- Choice of 12 VDC; 24/48 VDC isolated internal power supplies; Android models use 12-48 VDC
- Humidity
- 10 to 90% at 40 ºC / 104 ºF; non-condensing
- Temperature
- Operating: -20 to 55 ºC / -4 to 131 ºF (without heater, Capacitive models); -30 to 55 ºC / -22 to 131 ºF (with heater, minimal condensation using freezer-rated model - 10” only)
- Shock & Vibration
- Class 5M3 at EN 60721-3-5: 1998 (landcrafts)
- Particulate and Water Sealing
- IP65/IP67
- Ports / interfaces
- 1 x Ethernet 10/100/1000 Mbps; RJ45; USB: 2 x USB 2.0 Type A (bottom) 1 x USB 3.0 Type A (bottom) [Win7/10 only] 1 x USB 2.0 Type A (top) Serial: 2 x RS-232 (bottom); COM1: 5 V on pin 9; COM2: 5/12 V on pin 9
- Interface Slots
- 1x Mini-PCIe, half or full size slot (full size used for Wi-Fi) 1x CFast for SSD (Win 7/Win 10) 1x SD Card slot for SDHC card (WEC7)
- Warranty
- 1-Year Factory Warranty
- Dimensions
- 10 inch: 27.8 x 22.3 x 6.4 cm / 10.9 x 8.8 x 2.5 in 12 inch: 32.4 x 25.1 x 7.1 cm / 12.7 x 9.9 x 2.8 in
- Display
- Resistive/Freezer Model: 10.4 inch SVGA 800x600, 400 NITS; Capacitive/Standard Models: 10.4 inch XGA 1024 x 768, 350 NITS 12.1 inch XGA, 1024 x 768, 500 NITS
- Touch panel
- Resistive, 4 Wire (WEC7/Freezer model only); Capacitive (all OS); 3 mm, non-reflecting, hardened glass; Gloves support
- Weight
- 3.4 Kg / 7.5 lb (10 inch Freezer Models); 3.6 Kg / 7.9 lb (10 inch Standard Models); 4.7 Kg / 10.4 lb (12 inch Standard Models)
- Soft Keyboards
- Includes QWERTY layouts for English, German, Italian, Spanish, Polish; Azerty French layout; Function Key layout (F1-F12)
- Operating system
- Windows Embedded Compact 7, Windows Embedded Standard 7 or Windows 10 IoT Enterprise 64 bit; Android 7.1 Nougat
- Processor
- Freescale NXP ARM Quad Core: 1 GHz (WEC7 Standard models/Android 7.1); 800 MHz (WEC7 Freezer models); Intel Atom E3826 Dual Core 1.46 GHz (Win7/10)
- RAM / storage options
- WEC7: 1 GB RAM; Win7/10: 4 GB RAM; Android 7.1: 2 GB RAM
- RAM / storage options
- WEC7: 32 GB SDHC; Android 7.1: 8 GB eMMc; Win7/10: 32 GB CFast SSD; SD Slot: used for WEC7 OS; other OS can use for additional storage.
