Datalogic · Handheld computer

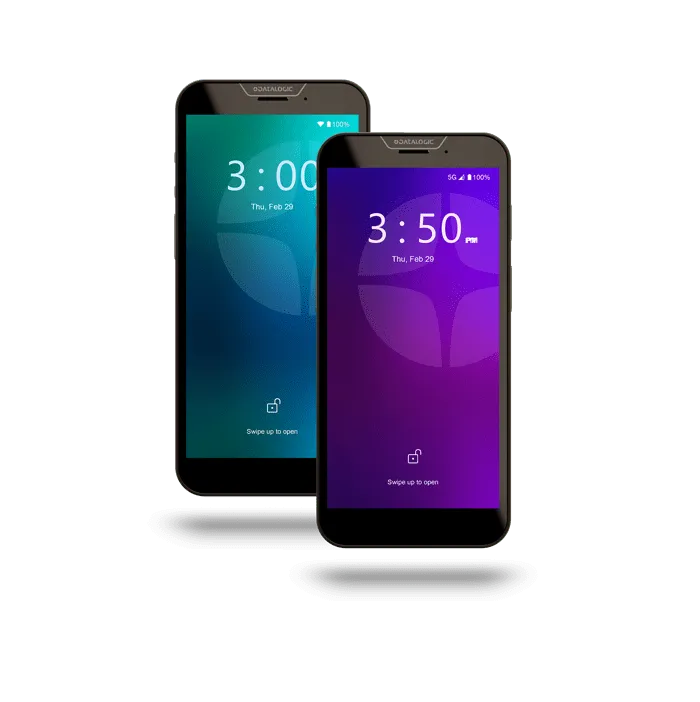

Datalogic Memor 30-35
The Memor 30-35 mobile device is ready to revolutionize the Retail, Transportation & Logistics, and Manufacturing industries. Memor 30-35 - Handheld Computers.
- Operating systemAndroid v13 & v15 GMS options (platform upgradeable to Android 19)
- ScanningHalogen™ DE2121-DL 1D/2D scan engine; Halogen™ DE2121-ER Extended Range 1D/2D scan engine; Datalogic’s…
- Battery1-piece swappable wireless charging battery pack with rechargeable Li-Ion batteries; 3.86 V; 4,680 mAh…
- DropMultiple 2.4m/7.8ft drops to concrete at ambient temperature with rubber boot per MIL STD 810H; Multiple…
Datasheet at Datalogic Product page at Datalogic
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Local Area Network (WLAN)

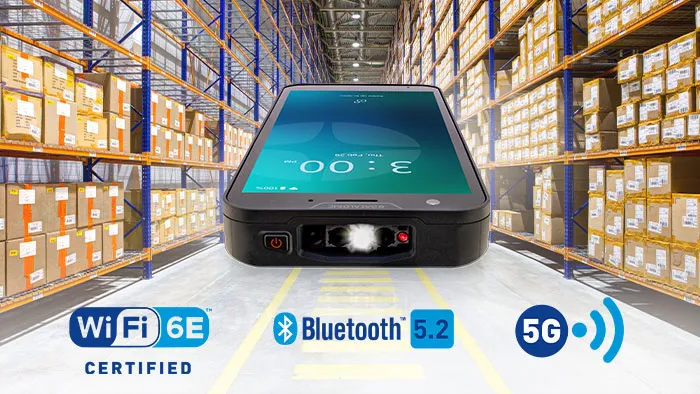

- Wi-Fi 6/6E IEEE 802.11 a/b/g/n/ac/ax and 802.11 d/h/i/k/r/ v/w/mc; Frequency range: Country dependent, typically 2.4 GHz,5 GHz and 6 GHz bands; 2 x 2 MU-MIMO; WPA3 Enterprise 192-bit mode supported
- Battery / runtime
- 1-piece swappable wireless charging battery pack with rechargeable Li-Ion batteries; 3.86 V; 4,680 mAh typical (18.0 Watt-hours); extended wireless charging battery pack option – 6,800 mAh typical (26,3 Watt-hours) Optional: Extended wireless charging battery accessory 6,800 mAh typical (26,3 Watt-Hours); ‘Safe Swap’ for application data protection
- Drop specification
- Multiple 2.4m/7.8ft drops to concrete at ambient temperature with rubber boot per MIL STD 810H; Multiple 1.8m/6ft drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) with rubber boot per MIL STD 810H; Multiple 1.5m/4.9ft m drops to concrete at ambient temperature per MIL STD 810H; Multiple 1.2/4ft m drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) per MIL STD 810H; Specs refer to device with battery pack 4,680 mAh
- Particulate and Water Sealing
- IP65 and IP68 with battery, per IEC60529 specification
- Temperature
- Operating: -20 to 50 ºC / -4 to 122 ºF Storage/Transport: -30 to 70 ºC / -22 to 158 ºF
- Dimensions
- 167.6 x 78.6 x 17.7 mm / 6.61 x 3.09 x 0.70 in
- Primary Display
- 6 in LTPS in 18:9 format – FHD+ resolution 2160 x 1080; LED backlight; 500 NITS typical
- Keyboard / keys

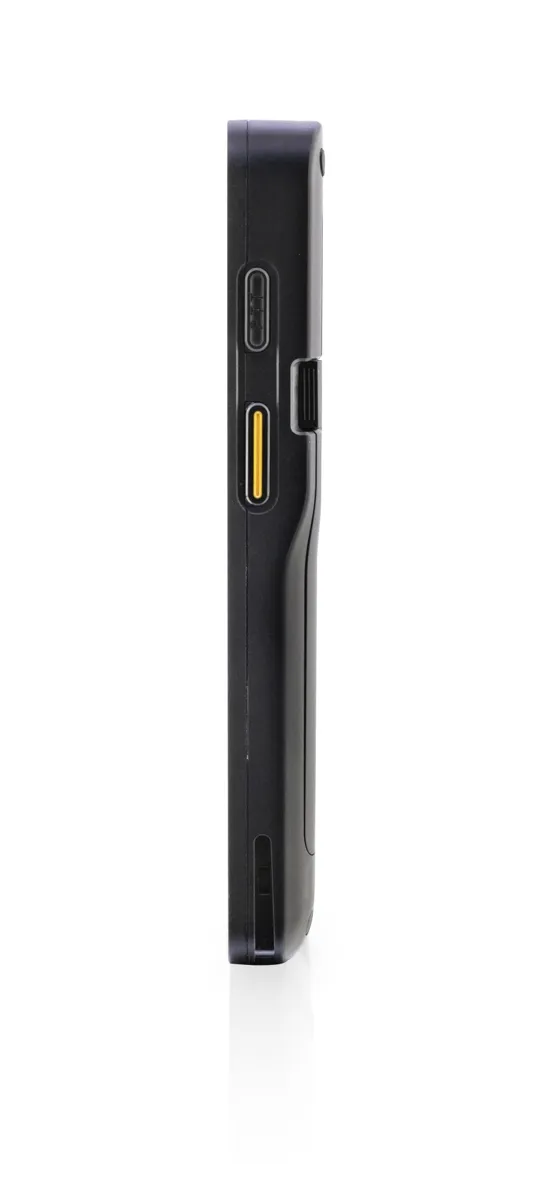

- Physical Keys: 2 side scan keys; PTT key; Power On/Off; Volume Up/ Down; 3 Android soft keys
- Touch panel
- Touch Screen: 5 points multi-touch capacitive panel with hardened Gorilla Glass 5 and optical bonding; Support for gloves and stylus; water drops rejection and anti-fingerprint surface finishing
- Weight
- With battery: 314 gm / 11 oz
- Cameras
- Rear Camera: Resolution: 13 megapixel; Auto focus Illumination: User controllable LED flash (torch mode); Front Camera: Resolution: 8 megapixel; Fixed focus
- Scan engines / capture options
- Halogen™ DE2121-DL 1D/2D scan engine; Halogen™ DE2121-ER Extended Range 1D/2D scan engine; Datalogic’s ‘Green Spot’ for good-read feedback;
- Vibration
- Software programmable for duration and intensity
- Ports / interfaces
- Super Speed USB 3.2 gen1 Host and Client (Type-C); High Speed USB 2.0 (Type-C, Bottom I/O)
- RAM / storage options
- System RAM: 6GB or 8GB on-chip, plus an optional 2GB Swap Memory (using flash storage as extra RAM, activated through a setting); UFS Flash storage: 128 GB
- Microprocessor
- Qualcomm QCx4490 Octa-core 2.4 GHz
- Operating system
- Android v13 & v15 GMS options (platform upgradeable to Android 19)
- Warranty
- 1-Year Factory Warranty
