Datalogic · Handheld computer

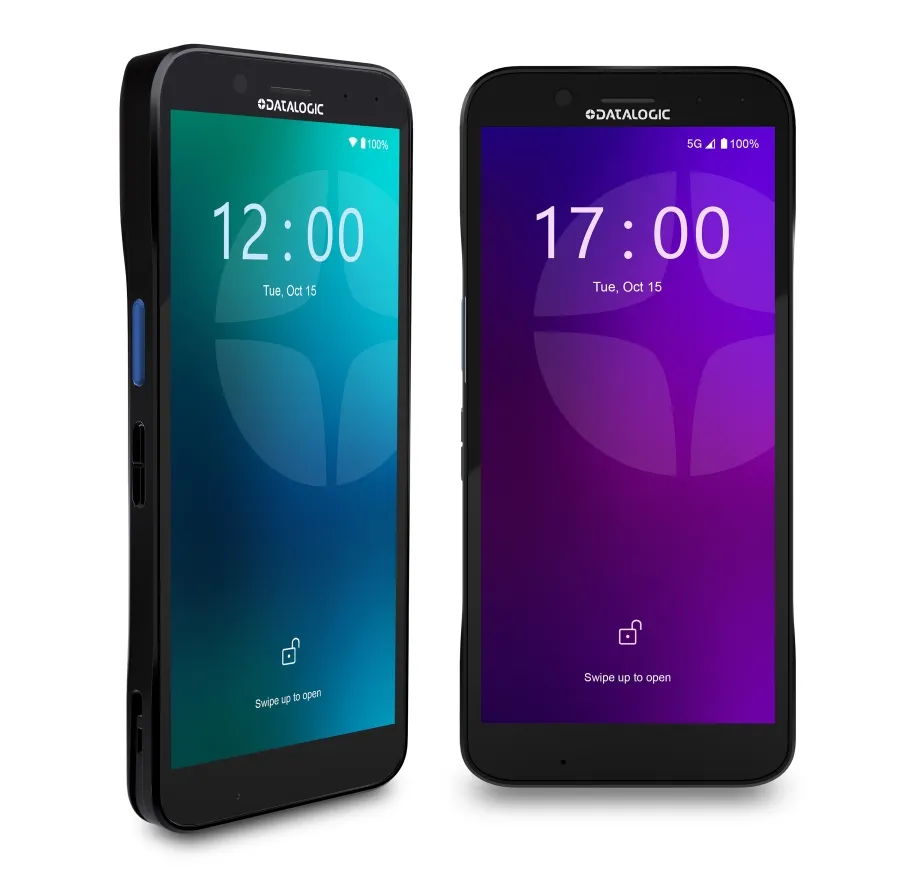

Datalogic Memor 12-17
The Memor 12-17 family is a powerful new line of full-touch Android devices specifically designed for front-facing applications in Retail, Transportation & Logistics, and Healthcare. Memor 12-17 - Handheld Computers.
- Operating systemAndroid v13 & v15 GMS options (platform upgradeable to Android 19)
- ScanningHalogen™ DE2121-DL 1D/2D scan engine; Datalogic’s ‘Green Spot’ for good-read feedback;
- Battery1-piece swappable wireless charging battery pack with rechargeable Li-Ion batteries; 3.87V; 4,000 mAh…
- SealingIP65 and IP68 with battery, per IEC60529 specification
- DropMultiple 1.3/4ft drops to concrete across operative temperature without rubber boot per enterprise standard…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Local Area Network (WLAN)
- Wi-Fi 6e IEEE 802.11 a/b/g/n/ac/ax and 802.11 d/e/h/i/k/r/ v/w/mc; Frequency range: Country dependent, typically 2.4 GHz,5 GHz and 6 GHz bands; 2x2 MIMO; WPA3 Enterprise 192-bit mode supported
- Battery / runtime
- 1-piece swappable wireless charging battery pack with rechargeable Li-Ion batteries; 3.87V; 4,000 mAh typical (14.98 Watt-hours); ‘Safe Swap’ for application data protection available on Memor 17 only
- Drop specification
- Multiple 1.3/4ft drops to concrete across operative temperature without rubber boot per enterprise standard according to MIL STD 810H. Multiple 1.5m/6ft drops to concrete over operating temp (-10°C to 50°C/14°F to 122°F) with rubber boot according to MIL STD 810H.
- IP / sealing
- IP65 and IP68 with battery, per IEC60529 specification
- Temperature
- Operating: -10 to 50 ºC / 14 to 122 ºF Storage/Transport: -40 to 70 ºC / -40 to 158 ºF
- Dimensions
- 165 x 76.7 x 13.5 mm / 6.49 x 3.0 x 0.53 in
- Primary Display
- 6.0 inch LTPS in 18:9 format - FHD+ resolution 1080x2160; LED backlight; 450 NITS
- Keyboard / keys
- Physical Keys: 2 side scan keys; PTT; Power On/Off; Volume Up/ Down; 3 Android soft keys
- Touch panel
- Touch Screen: 5 points multi-touch capacitive panel with hardened Gorilla Glass 7 and optical bonding; Support for gloves and stylus; water drops rejection and anti- fingerprint surface finishing
- Weight
- With Battery: 245 g/8.6 oz
- Cameras
- Rear Camera: Resolution: 13 megapixel; Auto focus Illumination: User controllable LED flash (torch mode); Front Camera: Resolution: 8 megapixel; Fixed focus
- Scan engines / capture options
- Halogen™ DE2121-DL 1D/2D scan engine; Datalogic’s ‘Green Spot’ for good-read feedback;
- Vibration
- Software programmable for duration and intensity
- Ports / interfaces
- High Speed USB 3.2 gen1 Host and Client (Type-C); Super Speed USB 2.0 (Type-C, Bottom I/O)
- RAM / storage options
- System RAM: 6GB (on-chip) or 8GB (6GB on chip plus optional 2GB Swap Memory using flash storage as extra RAM, activated through a setting; 8GB on chip optional) UFS Flash Storage: 64 GB or 128 GB
- Microprocessor
- Qualcomm QCx4490 Octa-core 2.4 GHz
- Operating system
- Android v13 & v15 GMS options (platform upgradeable to Android 19)
- Warranty
- 1-Year Factory Warranty
