Datalogic · Handheld computer

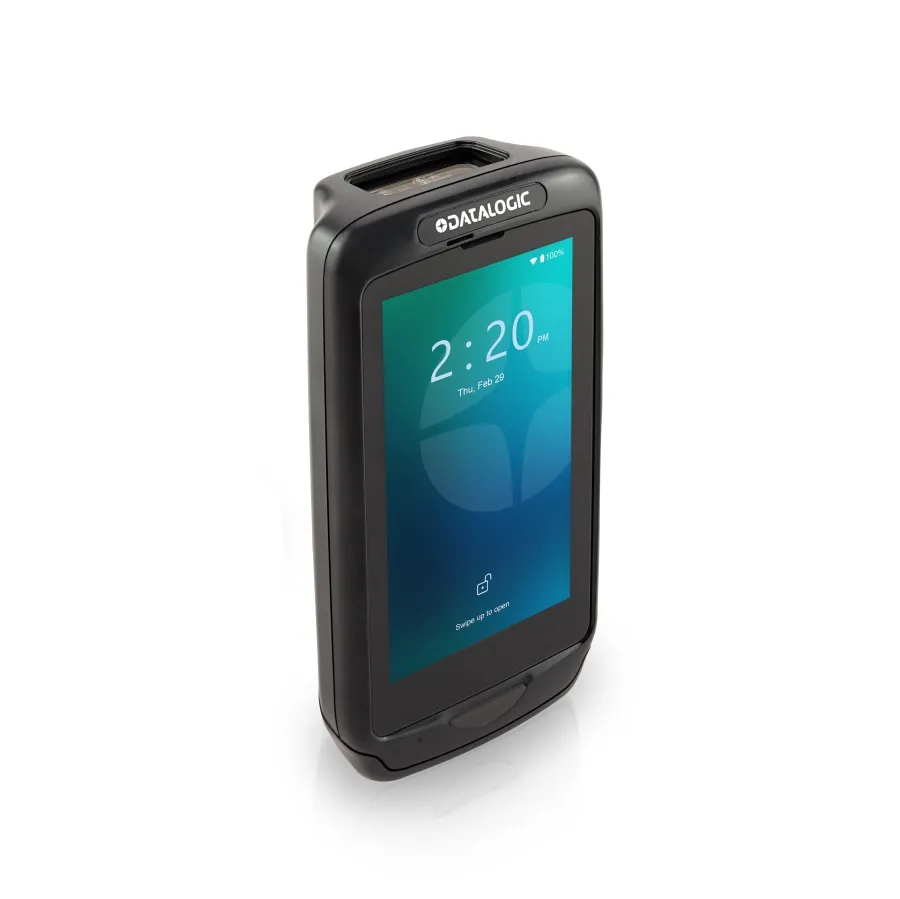

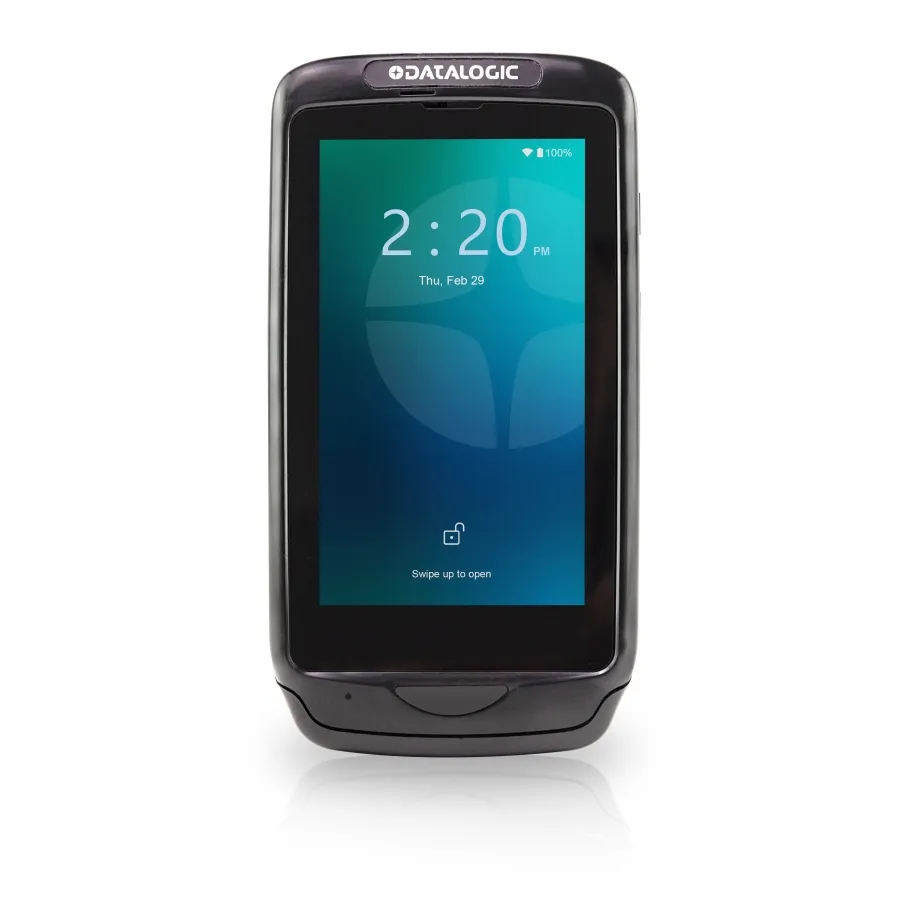

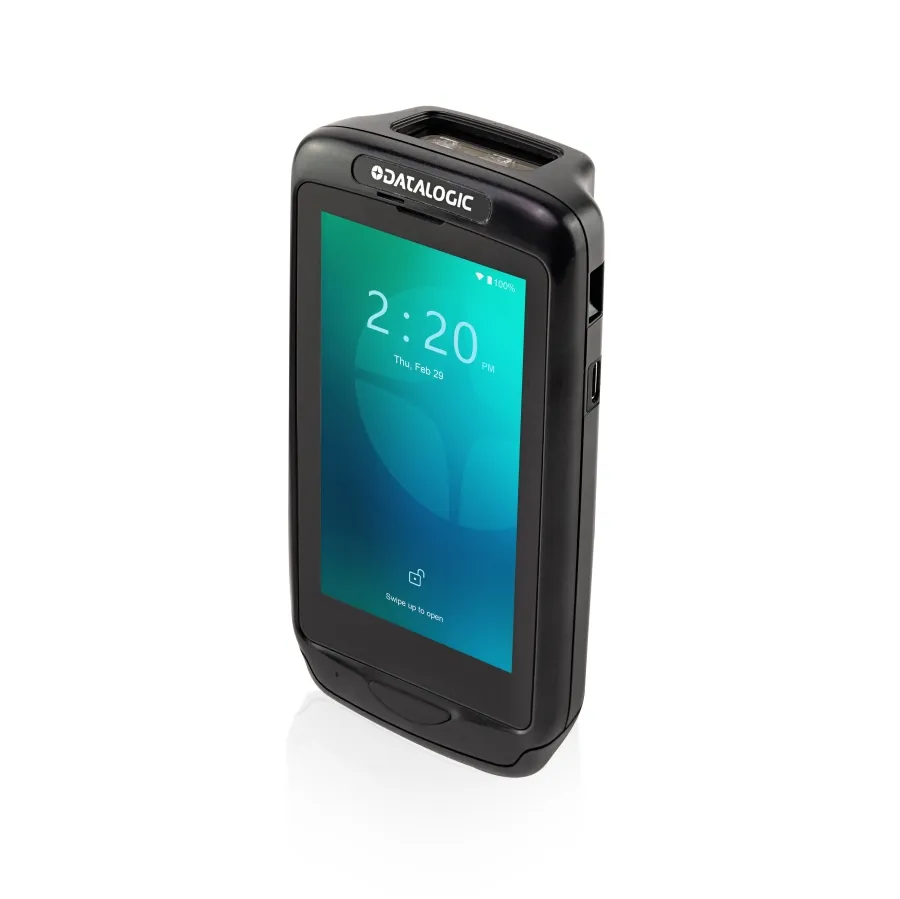

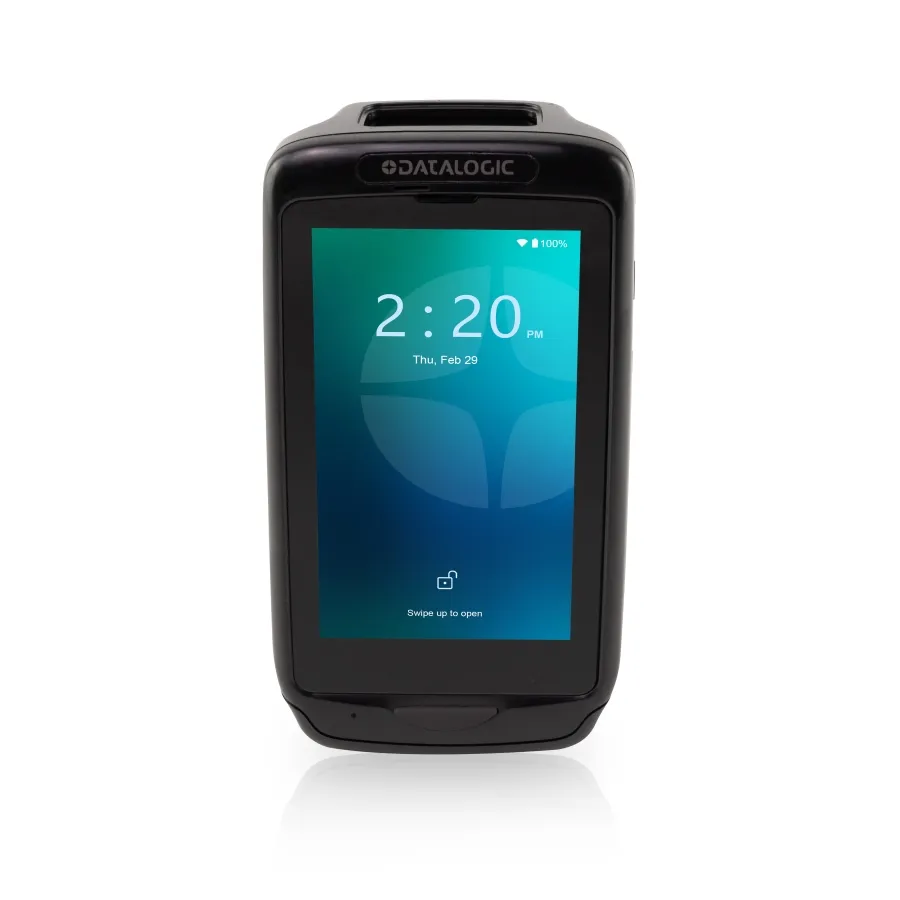

Datalogic Joya Touch 22
Joya Touch 22 is an Android™ handheld computer to fulfill all your retail needs, optimizing your ROI. Joya Touch22 Mobile Computer Scanner for Self-Shopping Handheld Computers.
- Operating systemAndroid 11 (Upgradeable to Android 13)
- Display4.3 inch full touch TFT-LCD color display; FWVGA: 854 x 480 pixels; 16M colors, LED backlight
- BatteryReplaceable battery pack with rechargeable Li-Ion batteries; 3.6 V; 3,300 mAh (12 Watt-hours)
- DropWithstands repeated drops from 1.2 m / 4.0 ft onto steel or concrete according to IEC 60068-2-32 method 1
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Local Area Network (WLAN)
- IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc (for indoor localization); IPv4, IPv6 2x2 MU-MIMO for higher throughput and coverage Frequency range: country dependent, typically 2.4 GHz and 5 GHz bands Security standards: WPA/WPA2/WPA3 Personal and Enterprise 802.1x EAP: PEAP/MSCHAPv2, PEAP/GTC, TLS, TTLS/PAP, TTLS/MSCHAP, TTLS/MSCHAPv2, TTLS/ GTC, PWD, TLS (WPA3 SuiteB/192-bit)
- Battery / runtime
- Replaceable battery pack with rechargeable Li-Ion batteries; 3.6 V; 3,300 mAh (12 Watt-hours)
- Drop specification
- Withstands repeated drops from 1.2 m / 4.0 ft onto steel or concrete according to IEC 60068-2-32 method 1
- Temperature
- Operating: -10 to 50 ºC / 14 to 122 ºF
- Tumble specification
- 1,000 0.5 m / 1.64 ft tumbles at room temperature according to IEC 60068-2-232 method 2
- Ports / interfaces
- USB-C: High Speed USB 2.0 Host and Client
- Vibration
- Software programmable
- Display
- 4.3 inch full touch TFT-LCD color display; FWVGA: 854 x 480 pixels; 16M colors, LED backlight
- Touch panel
- Capacitive, multi-touch, Gorilla® Glass 3 with air gap
- Dimensions

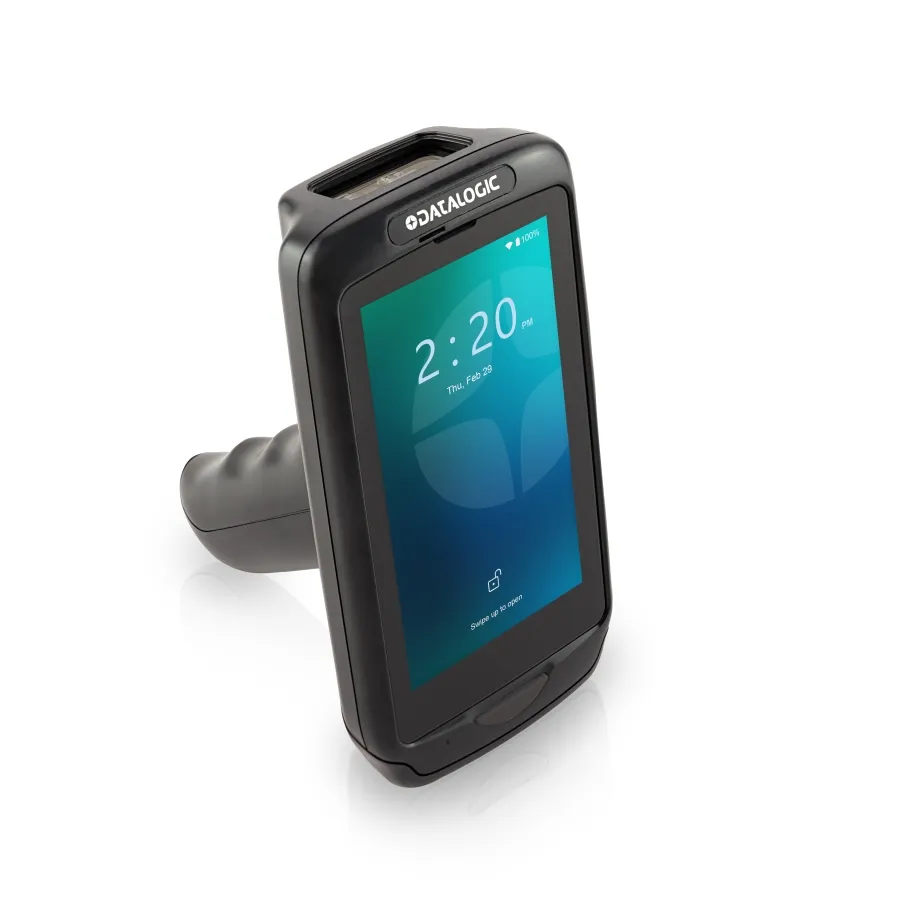

- Handheld: 14.5 x 7.7 x 3.4 cm / 5.7 x 3.0 x 1.3 in Pistol-Grip: 14.5 x 7.7 x 11.6 cm / 5.7 x 3.0 x 4.5 in
- Weight
- Handheld: 285 g / 10.1 oz; Pistol-Grip: 317 g / 11.2 oz
- Print Contrast (Minimum)
- 25%
- Field of View
- 42°H x 32°V
- Scan range / decode distances
- 4.5 to 42.0 cm / 1.7 to 16.5 in on UPC/EAN 13
- Resolution (Maximum)
- 1D Linear: 2.5 mils; Data Matrix: 6 mils; PDF417: 3 mils
- RAM / storage options
- System RAM: 4 GB; System Flash: 32 GB
- Processor
- Qualcomm® SDA660 System-on-Chip 2.2 GHz
- Operating system
- Android 11 (Upgradeable to Android 13)
- Warranty
- 1-Year Factory Warranty
