Datalogic · Handheld computer
Datalogic Falcon X60/65
The Falcon X60/65 is built for high intensity workflows across retail distribution, manufacturing, and transportation & logistics. Falcon X60/65 - Handheld Computers.
- Operating systemAndroid v15 GMS and AOSP (platform upgradeable to A19)
- ScanningHalogen™ DE2121-DL 1D/2D scan engine; Halogen™ DE2121-ER Extended Range 1D/2D scan engine; Halogen™ DE2172…
- BatteryRemovable extended battery pack with rechargeable Li- Ion batteries; MicroUSB type-C for fast battery…
- DropMultiple 2.8m/9.2ft drops to concrete at ambient temperature per MIL STD 810H; Multiple 2.4m/7.9ft drops to…
Datasheet at Datalogic Product page at Datalogic
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Local Area Network (WLAN)
- Wi-Fi 6/6E IEEE 802.11 a/b/g/n/ac/ax and 802.11 d/h/i/k/r/ v/w/mc; Frequency range: Country dependent, typically 2.4 GHz, 5 GHz and 6 GHz bands; 2 x 2 MU-MIMO; WPA3 Enterprise 192-bit mode supported
- Battery / runtime
- Removable extended battery pack with rechargeable Li- Ion batteries; MicroUSB type-C for fast battery charging. 3.63 V; Rated 7,000 mAh typical (25.445 Watt-hours); Hot Swap for application data protection
- Drop specification
- Multiple 2.8m/9.2ft drops to concrete at ambient temperature per MIL STD 810H; Multiple 2.4m/7.9ft drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) per MIL STD 810H
- Particulate and Water Sealing
- IP65 and IP68 with battery, per IEC60529 specification
- Temperature
- Operating: -20 to 50 ºC / -4 to 122 ºF Storage/Transport: -30 to 70 ºC / -22 to 158 ºF
- Dimensions
- Handheld: 232 x 80 x 42 mm / 9.13 x 3.15 x 1.65 in Pistol Grip: 232 x 80 x 165 mm / 9.13 x 3.15 x 6.50 in
- Weight
- Handheld: with battery: 550 g / 19.4 oz Pistol Grip, XLR: with battery 700 g / 24.7 oz
- Primary Display
- 4.3-inch LCD A-Si IPS - WVGA 480 x 800 resolution; LED backlight and integrated touch screen; High brightness for Indoor and Outdoor High Visibility - 600 NITS typical
- Touch panel
- Touch Screen: 5 points multi-touch capacitive panel with hardened Corning® Gorilla® Glass Victus® and optical bonding; Support for gloves and stylus; water drops rejection and anti-fingerprint surface finishing
- Keyboard / keys

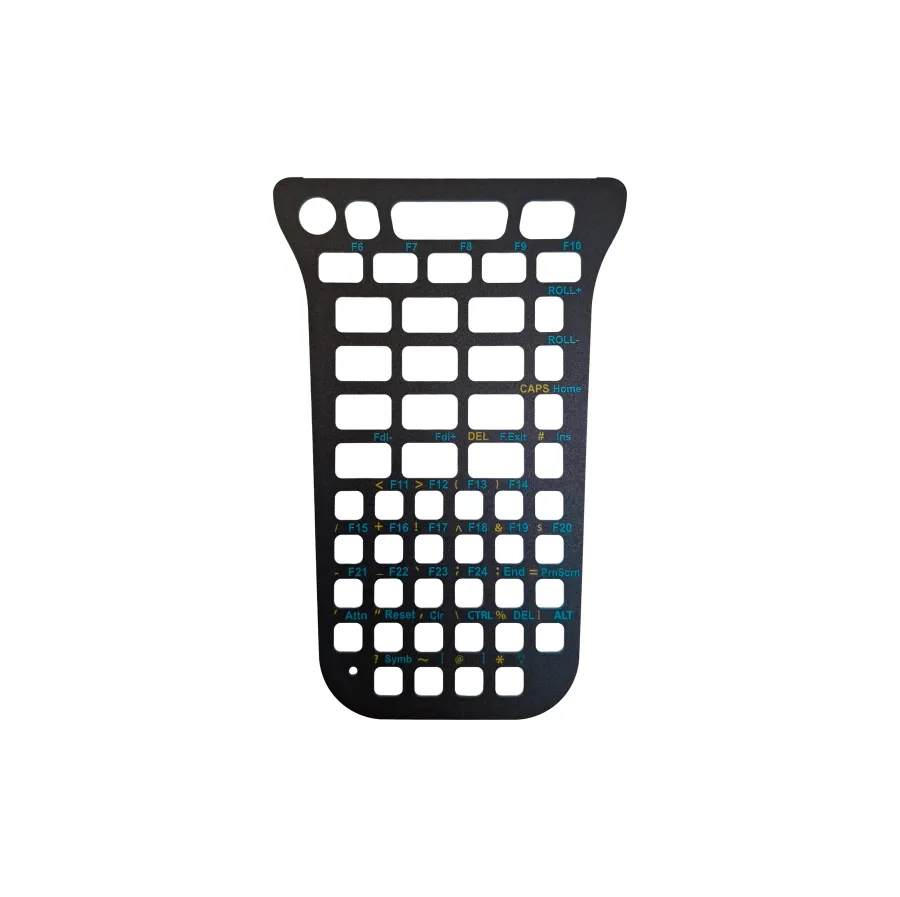

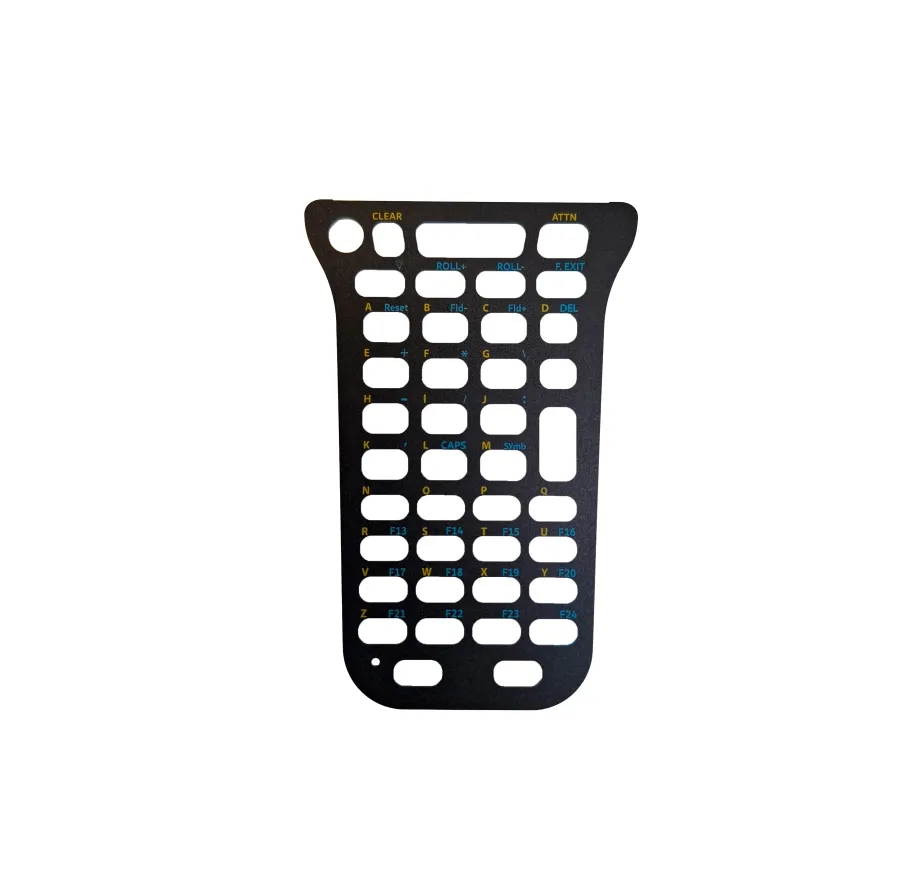

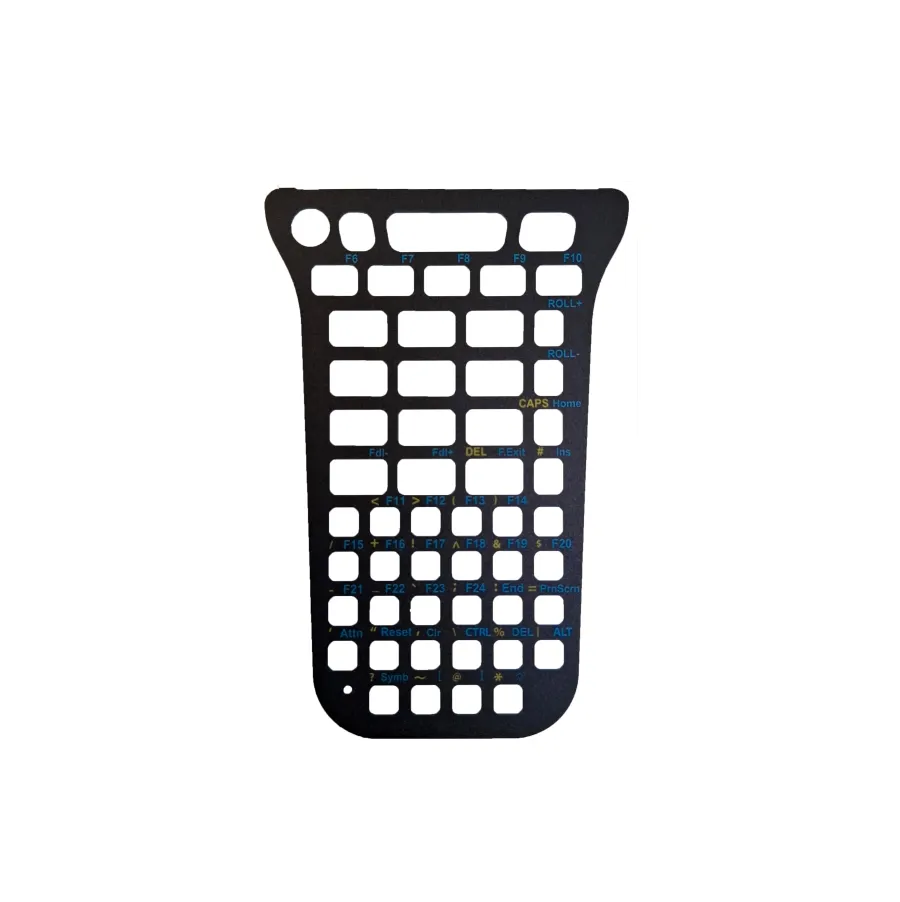

- Physical Keyboards: 31-key Numeric; 41-key Functional Numeric; 53-key Alphanumeric; Keyboard with backlight Physical Keys: 2 side scan keys; Power On/Off Software keys: 3 Android soft keys
- Cameras
- Rear Camera: 13-megapixel resolution; Auto focus Illumination: user controllable LED flash (torch mode); Front Camera: 8-megapixel resolution; Fixed focus
- Scan engines / capture options
- Halogen™ DE2121-DL 1D/2D scan engine; Halogen™ DE2121-ER Extended Range 1D/2D scan engine; Halogen™ DE2172 Extra-long Range 1D/2D scan engine; Datalogic’s ‘Green Spot’ for good-read feedback on all scan engines; visible up to 10m for Extra-long Range
- Vibration
- Software programmable for duration and intensity
- Ports / interfaces
- High Speed USB 3.2 gen1 Host and Client (Type-C); Super Speed USB 2.0 (Type-C, Bottom I/O); Gigabit Ethernet connectivity (via multi-slot dock)
- Empower
- SoftSpot - draggable touch scanner trigger; QuickBoard – customizable on-screen virtual keyboard
- RAM / storage options
- System RAM: 8 GB; UFS Flash: 128 GB
- Microprocessor
- Qualcomm® Dragonwing ™ 4490 Octa-Core · 2.4 GHz
- Operating system
- Android v15 GMS and AOSP (platform upgradeable to A19)
- Warranty
- 1-Year Factory Warranty
