Datalogic · Wearable scanner

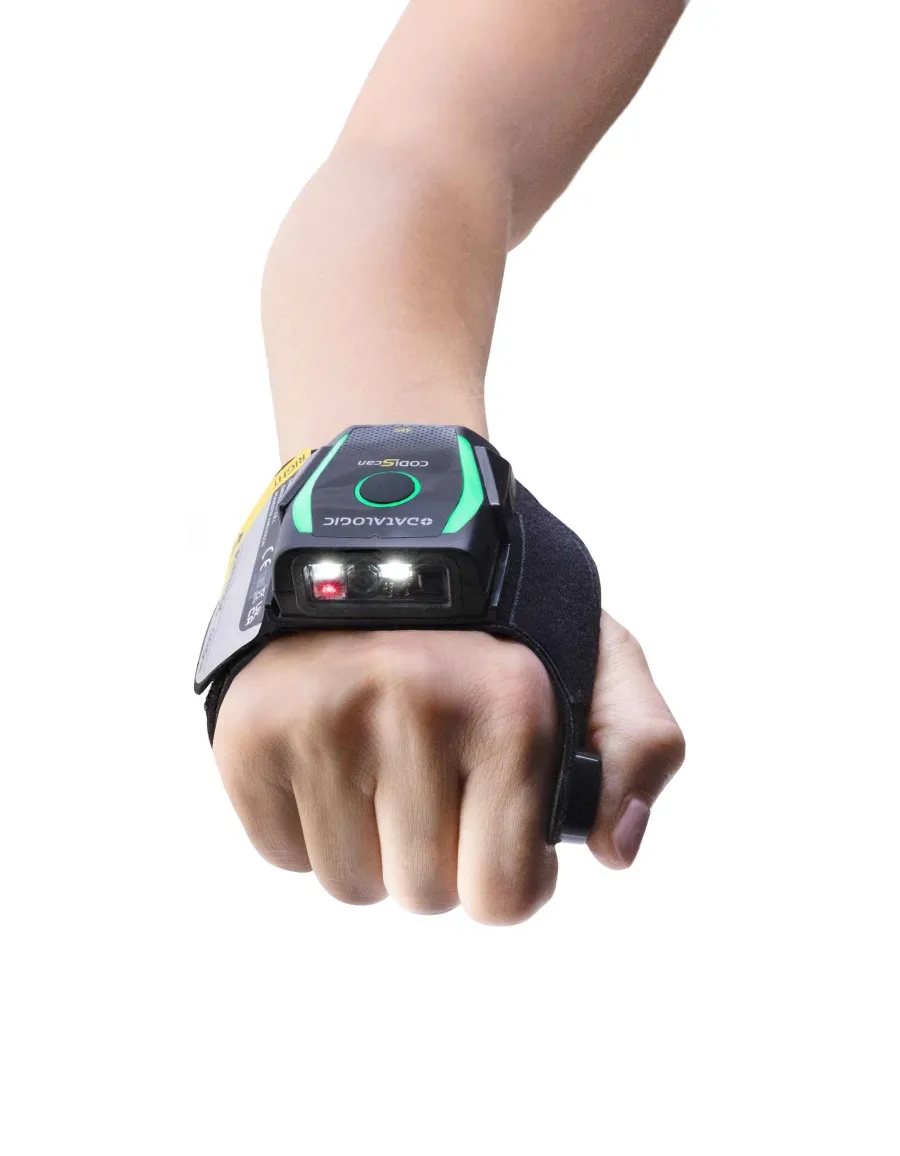

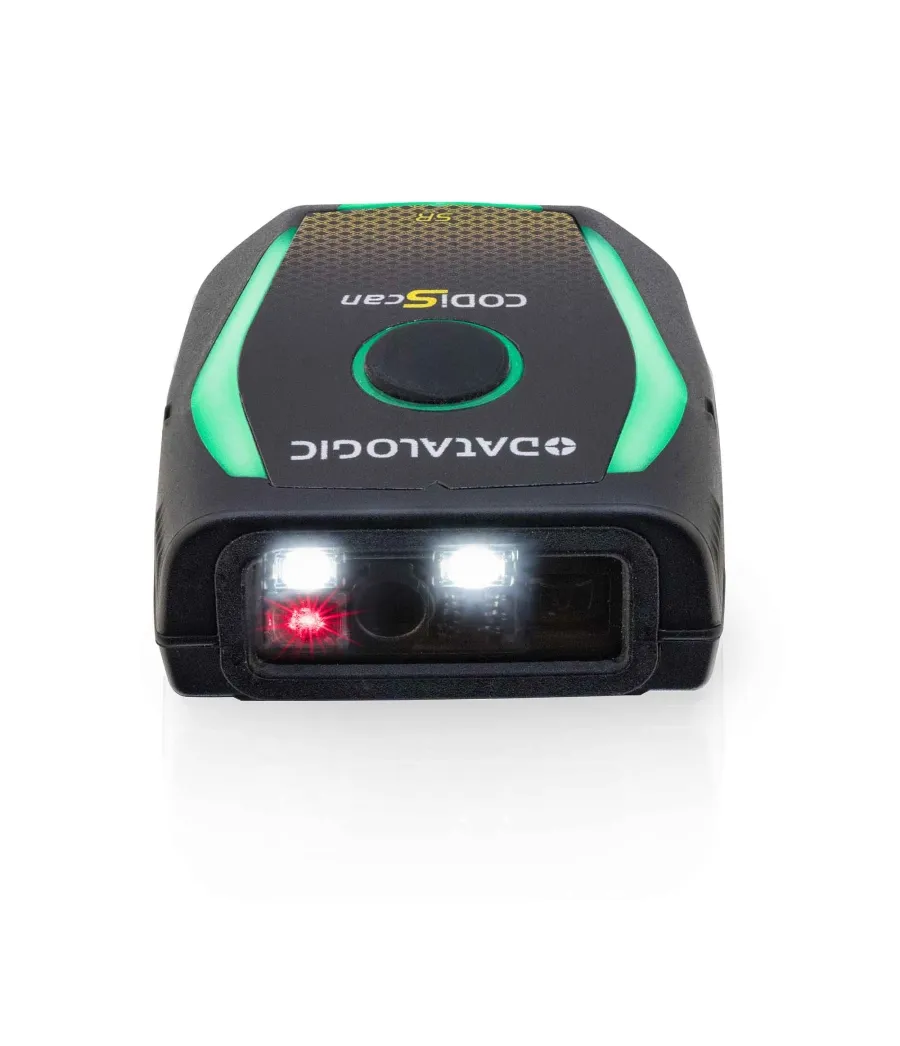

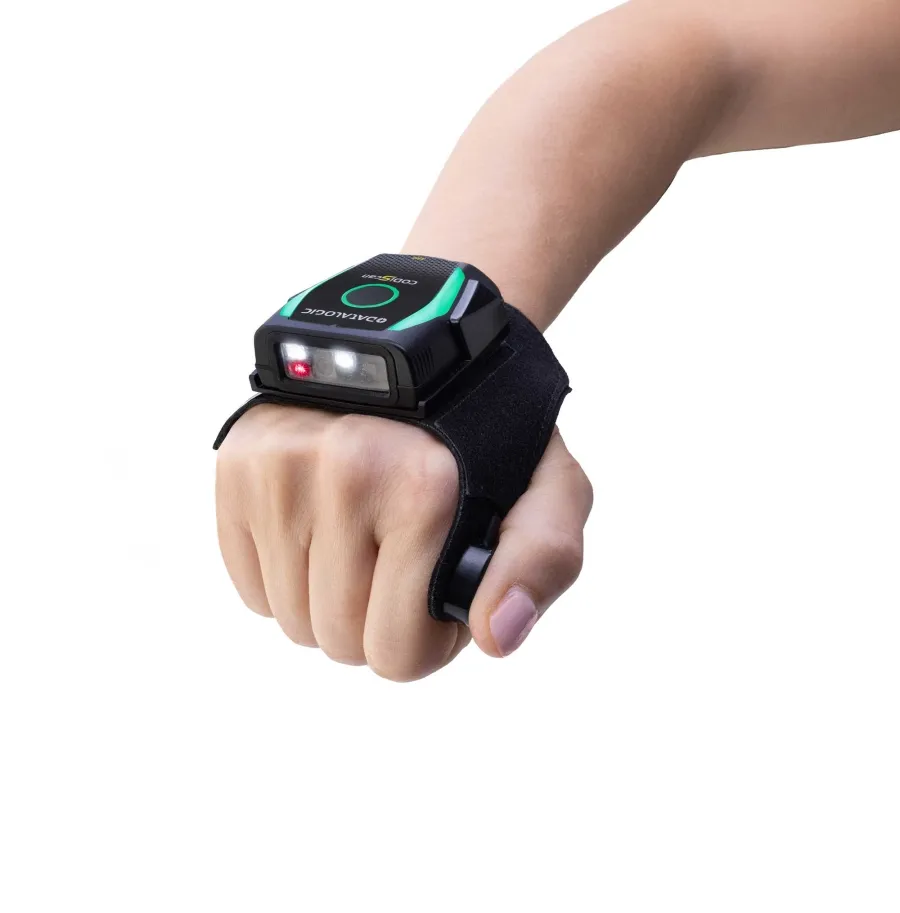

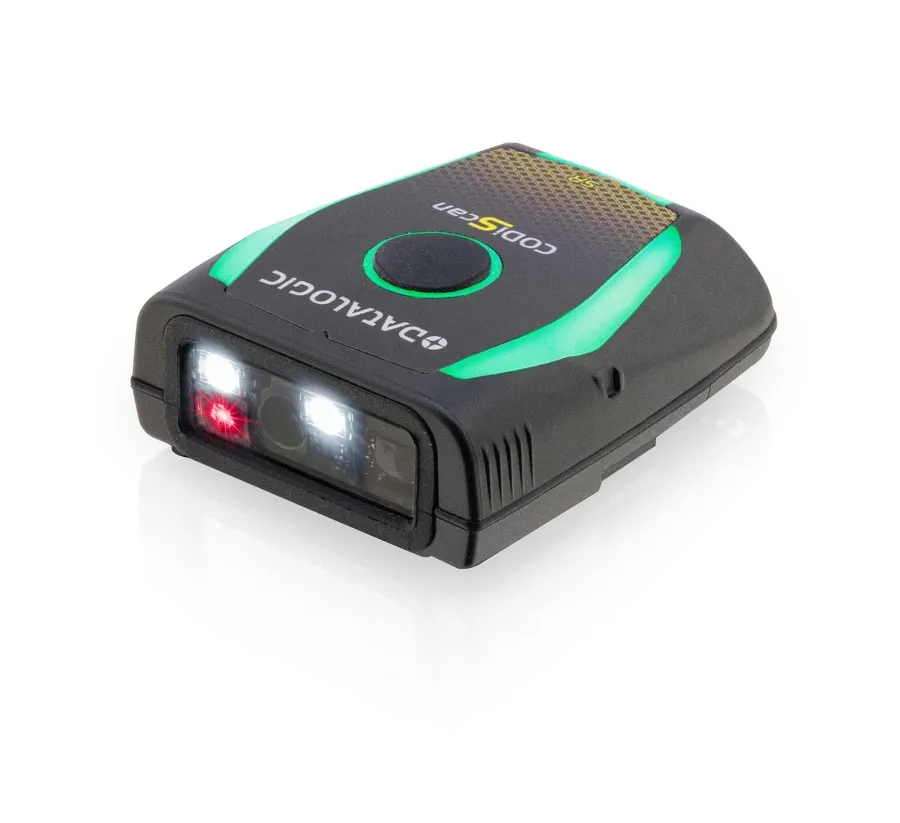

Datalogic CODiScan
Discover the ultimate wearable scanner tailored for the Transportation & Logistics, Retail, and Manufacturing industries. CODiScan - Wearable Scanners.
- Battery640 mAh, Lithium polymer (rechargeable)
- DropResists multiple drops from 1.8 m / 5.9 ft onto concrete - IEC 60068-2-31:2008 – 1
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Dimensions
- 53 x 44 x 19 mm / 2.0 x 1.7 x 0.7 in
- Weight
- 44 g / 1.5 oz
- Optical Resolution
- 1280 x 960 pixels
- Reading Field of View
- Standard range: Horizontal: 42°, Vertical: 32° Mid range: Horizontal: 30°, Vertical 23° High density short-range: Horizontal: 42°, Vertical: 32°
- Reading Angle
- Skew tolerance: ±60°; Pitch tolerance: ±60°; Roll tolerance: ±180°
- Warranty
- 1-Year Factory Warranty (covers the battery). EASEOFCARE: 3 or 5 year options (covers battery). Warranty and EASOFCARE are also available for accessories, chargers and Gateway.
- Bluetooth Wireless Technology
- BT BLE/CLASSIC 5.2 class 1,2,3 Supports Bluetooth Low Energy 4.0, 4.1, 4.2, 5.0, 5.1, 5.2
- Battery / runtime
- 640 mAh, Lithium polymer (rechargeable)
- Power Supply Charging Station
- 5 VDC (1.2A) via power supply
- Drop specification
- Resists multiple drops from 1.8 m / 5.9 ft onto concrete - IEC 60068-2-31:2008 – 1
- Particulate and Water Sealing
- IP54 - EN 60529
- Temperature
- Operating: -20 to 50 °C / -4 to 122 °F Charging: 0 to 40 °C / 32 to 104 °F Storage: -20 to 60 °C / -4 to 140 °F
