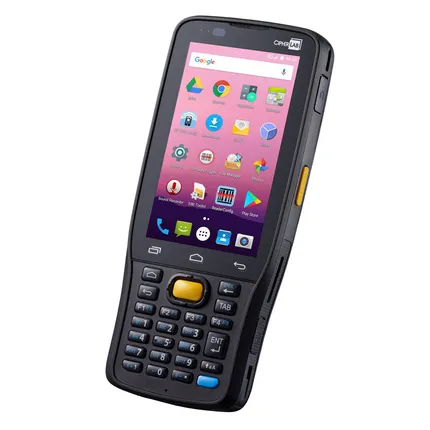

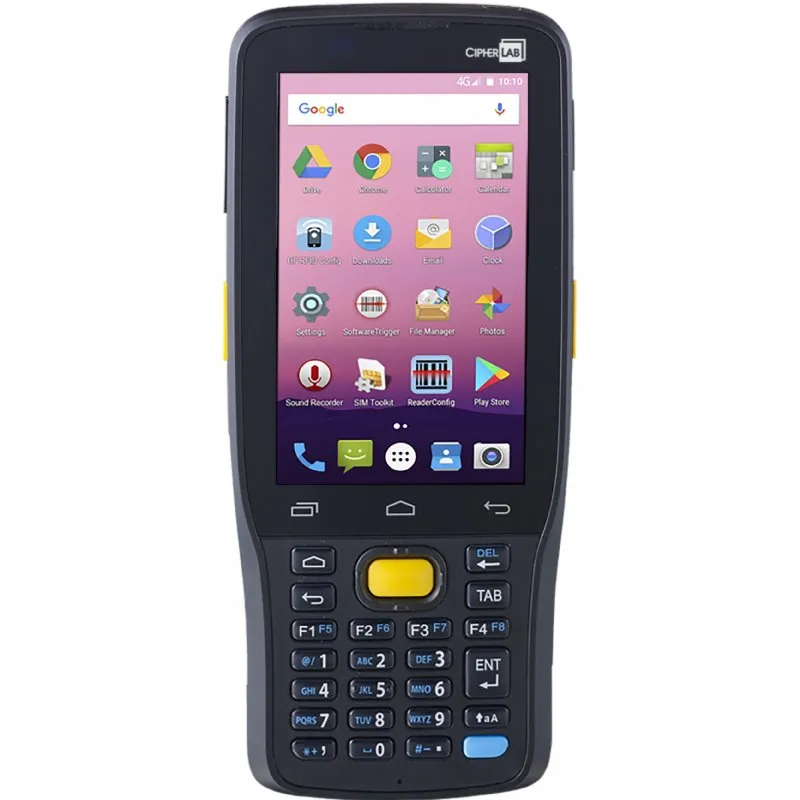

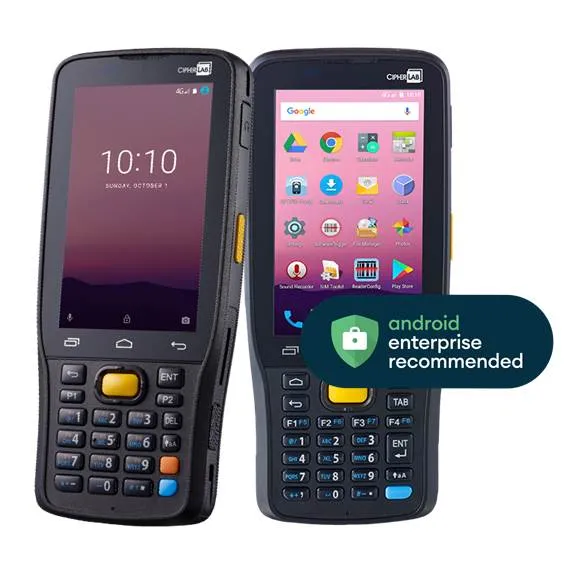

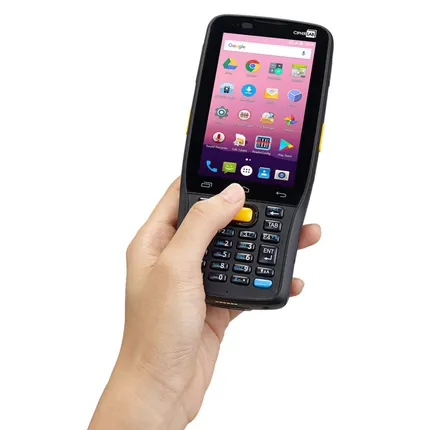

CipherLab RK25 Series
Our company provides rugged mobile computer with excellent quality and competitive price. If you are looking for suppliers and long-term mutually beneficial partnership, we are ready to offer you our services.
- Operating systemAndroid 7.0 with GMS (Upgradeable to Android 9.0 with GMS) / Android 9.0 with GMS (Upgradeable to Android…
- Display4'' WVGA 480 (W) x 800 (H), Corning Gorilla Glass, TN LCD
- Scanning2D imager / Mid-Range 2D imager
- Battery3.6v, 3000mAh Li-ion battery
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Item
- RK25
- Operating system
- Android 7.0 with GMS (Upgradeable to Android 9.0 with GMS) / Android 9.0 with GMS (Upgradeable to Android 11.0 with GMS) / Android 11.0 with GMS
- Processor
- Quad-core 1.4 GHz Cortex A53
- RAM / storage options
- 2GB RAM / 16GB Flash 3GB RAM/ 32GB Flash 1
- Expansion
- Micro SD card slot with SDHC support (up to 32GB)
- SIM / SAM
- 1 SIM slot and 1 optional SIM/SAM slot
- Operating power
- Replaceable and rechargeable 3.8V, 4000 mAh Li-Polymer battery
- Working hours 2
- Minimum 8 hours (2D imager)
- Wireless communication
- WWAN 3 : GSM: Quad Band (850/900/1800/1900Mhz) TD-SCDMA: Band34, Band39 WCDMA: Band1, Band2, Band5, Band8, TDD-LTE: Band38, Band39, Band40, Band41 FDD-LTE: Band1,Band2, Band3, Band5, Band7, Band8, Band20 WLAN: IEEE 802.11 a/b/g/n/ac/e/d/h/i/r/k/v/w dual band WPAN: Bluetooth® Class II, V4.0/V4.1/V4.2 BLE, V2.1 with Enhanced Data Rate (EDR) GPS 4 : GPS, Galileo, GLONASS, BeiDou, AGPS
- Scan engines / capture options
- 2D imager / Mid-Range 2D imager
- RFID (optional)
- HF RFID 13.56 MHz frequency which supports ISO14443 TYPE A,B, and ISO15693 Support NFC (Peer-to-Peer, Card Reader, Card Emulation)
- Camera (optional)
- Autofocus 8 megapixels with LED flash
- Display
- 4'' WVGA 480 (W) x 800 (H), Corning Gorilla Glass, TN LCD
- Size
- 168 x 73.8 x 26 mm
- Weight
- 292 g (2D imager with battery)
- Impact resistance
- Standard: 1.5 m (5 ft.) multiple drops onto concrete With rubber boot: 1.8 m (6 ft.) MIL-STD-810G IP65 / 300 tumbles at 0.5 m
- Item
- RK25 UHF RFID Reader
- Pairing
- Electrical 8-pin connection
- RFID Standard
- EPC Class1 Gen2 V2
- Antenna
- Circularly polarized
- RFID performance
- Fastest read rate: 700+ tag/sec Read range : 8+ m (26+ ft)
- Frequency range
- US: 902~928 MHz. EU: 865~868 MHz TW: 922~928MHz. JP: 916~920MHz AU: 920~924MHz. NZ: 920~924MHz IN: 856.7~866.9MHz. Morocco: 867.7~867.9MHz
- Battery / runtime
- 3.6v, 3000mAh Li-ion battery
- Size
- Without RK25: 152.4 mm x 85.3 mm x 158.8 mm With RK25: 181.4 mm x 85.3 mm x 162.9 mm
- Weight
- Without RK25: 353.4 g With RK25: 632.7 g
- Ruggedness
- 1.2m drop (With RK25). IP54
- Software
- RFID Android Software Development Kit, EZConfig, EZEdit
- OS
- Android 7.0 with GMS (Upgradeable to Android 9.0 with GMS) / ; Android 9.0 with GMS (Upgradeable to Android 11.0 with GMS) / ; Android 11.0 with GMS
- CPU
- Quad-core 1.4 GHz Cortex A53
- Memory
- 2GB RAM / 16GB Flash ; 3GB RAM/ 32GB Flash1
- Working hours2
- Minimum 8 hours (2D imager)
- Barcode scanning
- 2D imager / Mid-Range 2D imager
- Battery
- 3.6v, 3000mAh Li-ion battery
