Chainway · Vehicle-mounted computer

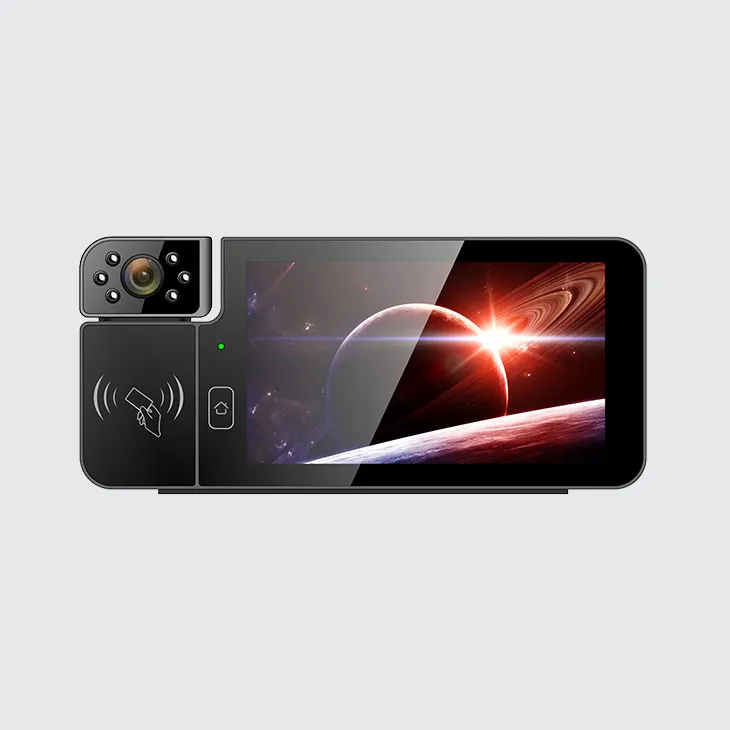

Chainway V600S Vehicle Computer
Chainway V600S is a newly-developed Android vehicle computer based on Android 5.1 OS. Configured with multi-channel external camera, OBD data collection, RFID, biometrics and GPS function, it performs efficient data transmission via Bluetooth and 4G.
- Operating systemAndroid 12
- Display5.5″ 720P TFT-LCD capacitive touch panel, 16.7M colors, adjustable backlight brightness 5.5″ 720P TFT-LCD…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 12
- Processor
- Octa-core 2.0 GHz
- RAM / storage options
- 3GB + 32GB
Display
- Display size
- 5.5″ 720P TFT-LCD capacitive touch panel, 16.7M colors, adjustable backlight brightness 5.5″ 720P TFT-LCD capacitive touch panel,
- Keyboard / keys
- 1 power key, 1 reset key
Data capture
- Cameras
- 100W, angle-adjustable, supports infrared, backlight compensation and autobalance 800W, supports photos and videos Resolution: 320 x 240, 640 x 480, 1280 x 720 FpsYUY2: 720p/15fps, VGA/30fps, CIF/30fps MJPEG: 720p/30fps, VGA/60fps, CIF/60fps 100W, angle-adjustable, supports infrared, backlight compensation and
Power
- Charging / power
- 9V-36V, supports 3-4 seconds power-off time delay
Connectivity
- Wi-Fi / WLAN
- IEEE802.11 a/b/g/n/ac, internal antenna
- Bluetooth
- Bluetooth 5.0
- Location / GPS
- GPS, A-GPS, BeiDou (optional), Supports BDS-Only Mode in Compliance with Regulations.
- Ports / interfaces
- Micro USB, 2 IO ports reserved, use for low volt. testing and ACC testing
Rugged
- Operating temperature
- -4°F to 158°F / -20℃ to 70℃
- Storage temperature
- -40°F to 176°F / -40°C to 80°C
- Humidity
- 5%RH - 95%RH non condensing
Size
- Dimensions
- 191mm x 85mm x 52mm / 7.52 x 3.35 x 2.05 in.
