Chainway · Tablet

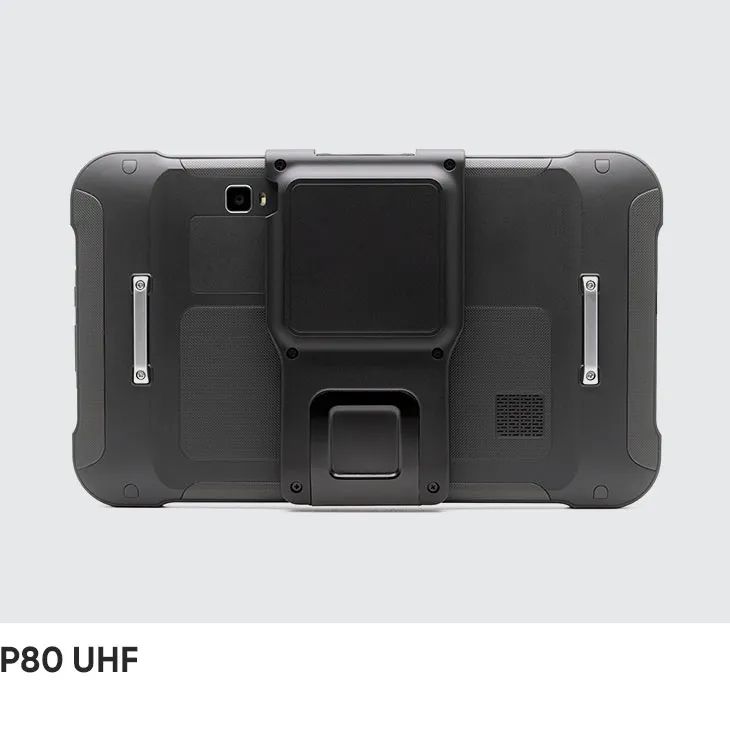

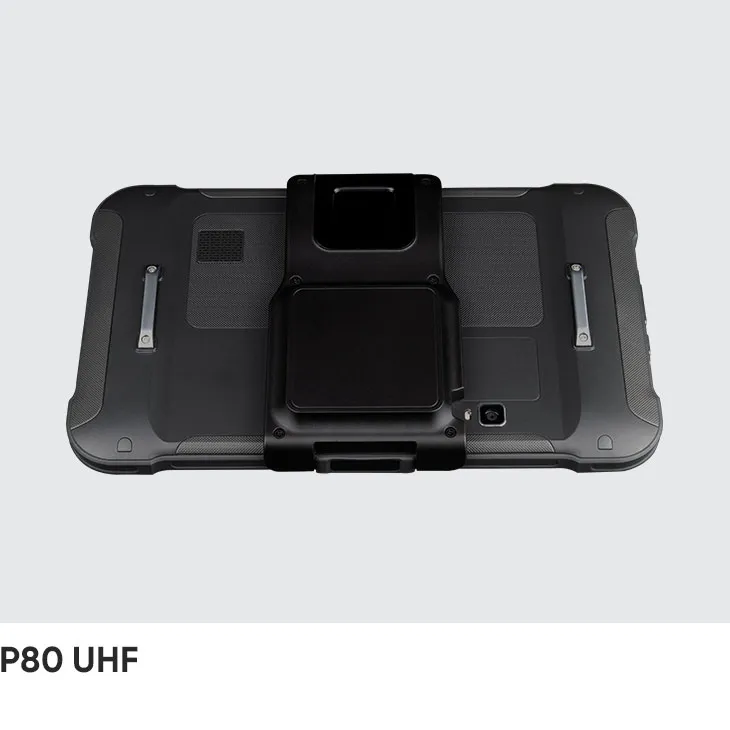

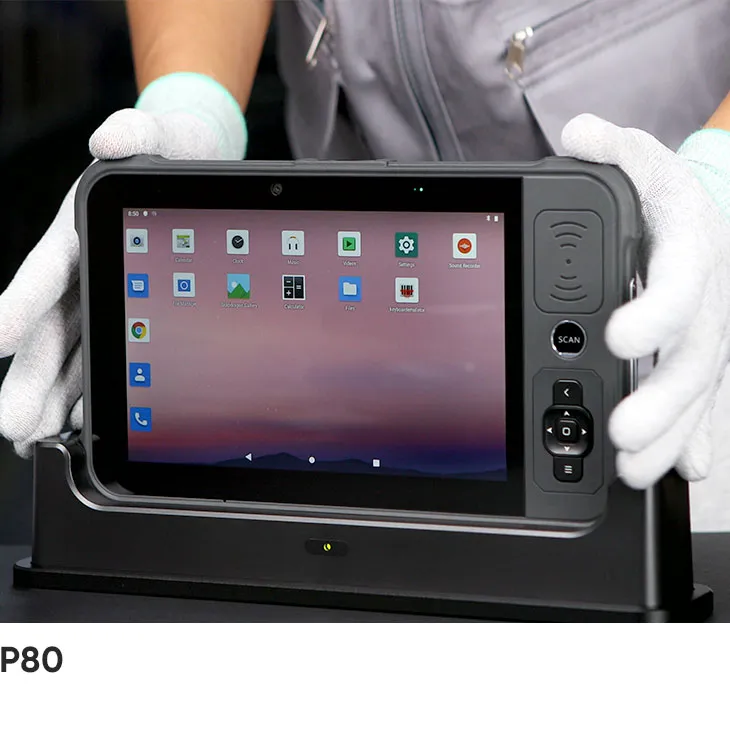

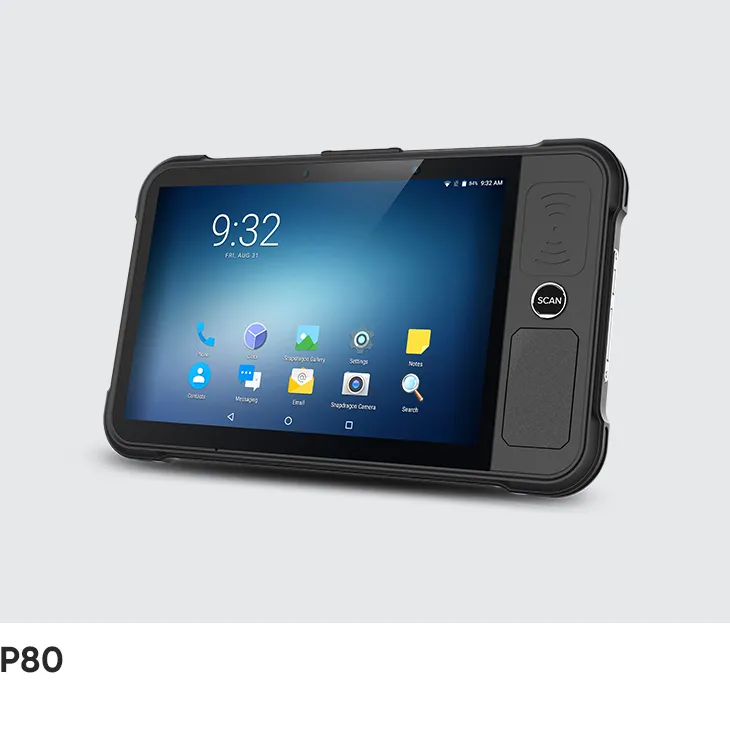

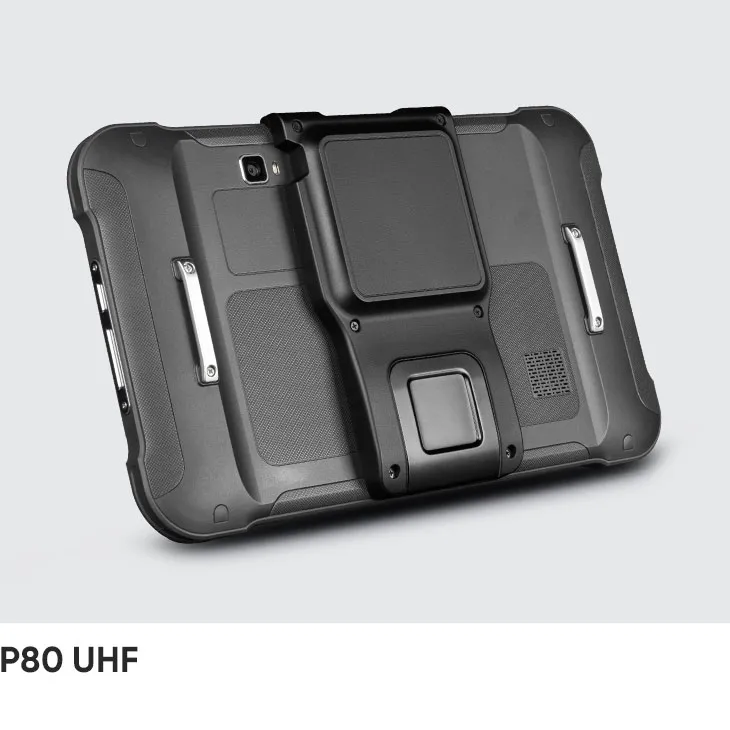

Chainway P80 RFID Tablet
A rugged RFID tablet running Android 13, the P80 features a self-developed UHF RFID module based on Impinj E Series chips with Gen2X support. It offers an octa-core 2.0GHz processor, an 8-inch IPS HD display, an 8700mAh battery, IP65 protection, and optional barcode scanning, NFC, and fingerprint recognition.
- Operating systemAndroid 13; GMS&AER, 90-day security updates, FOTA, Soti MobiControl, SafeUEM supported
- Display8'' IPS LTPS 1920 x 1200
- ScanningZebra SE4710; Honeywell HS7
- SealingIP65 per IEC sealing specifications
- DropMultiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 13; GMS&AER, 90-day security updates, FOTA, Soti MobiControl, SafeUEM supported
- Processor
- Octa-core 2.0 GHz; GMS&AER
- RAM / storage options
- 4 GB + 64 GB
Display
- Display size
- 8'' IPS LTPS 1920 x 1200
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 1 front key, 1 volume key, 1 power key, direction key (Optional)
Data capture
- Scan engines / capture options
- Zebra SE4710; Honeywell HS7
- NFC
- Frequency 13.56 MHz
- Cameras
- 5 MP 13 MP Autofocus with flash Rear Camera 13 MP Autofocus with flash
Power
- Charging / power
- Main battery: Li-ion, rechargeable, 8700 mAh Standby: over 500 hours Continuous use: over 10 hours (depending on user environment) Charging time: 5-7 hours (with standard AC adaptor and USB cable) 1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33dBm, for Latin America, etc.) R/W Main battery: Li-ion, rechargeable, 8700 mAh 1W (30 dBm, +5 dBm to +30 dBm adjustable)
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6; Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6;
- Cellular / WWAN
- 2G: 850/900/1800/1900MHz, GPRS, EDGE 3G: CDMA EVDO: BC0        WCDMA: B1/B2/B5/B8 4G: TDD-LTE: B34/B38/B39/B40/B41        FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28 2G: 850/900/1800/1900MHz, GPRS, EDGE
- Bluetooth
- Bluetooth 5.1
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
- Ports / interfaces
- USB 2.0 Type-C, OTG
Rugged
- IP / sealing
- IP65 per IEC sealing specifications
- Drop specification
- Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
- Tumble specification
- 500 x 0.5 m / 1.64 ft falls at room temperature Specification 500 x 0.5 m / 1.64 ft falls at room temperature
- Operating temperature
- -4 °F to 122 °F / -20 °C to 50 °C
- Storage temperature
- -40 °F to 158 °F / -40 °C to 70 °C
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 680 g / 23.99 oz. ( for standard version )
- Dimensions
- 250.8 x 152.0 x 15.0 mm / 9.87 x 5.98 x 0.59 in. ( for standard version )
