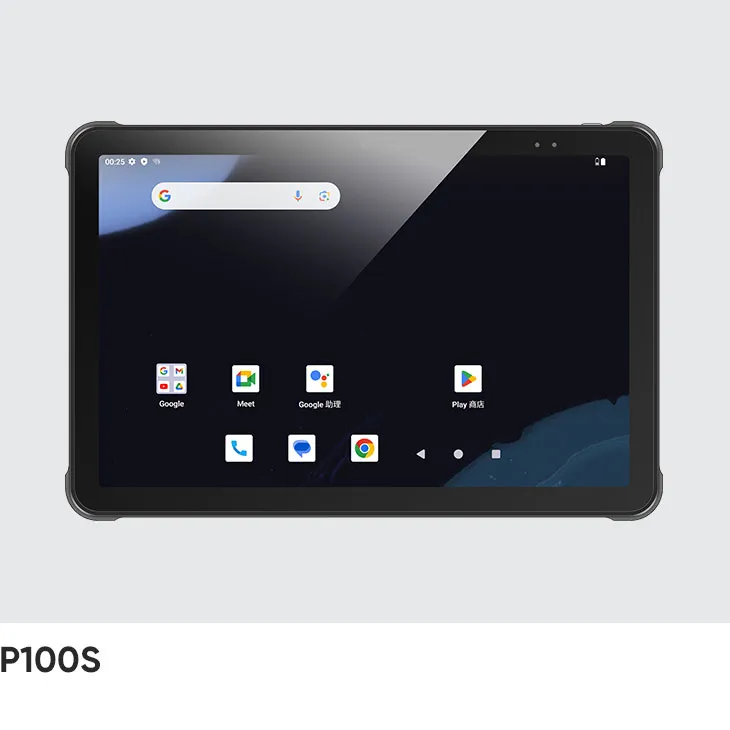

Chainway P100S Industrial Tablet
A rugged 4G industrial tablet running Android 14, the P100S features an octa-core 2.2GHz processor, a 10.95-inch HD display, and a 10000mAh removable smart battery with fast charging and hot-swapping. It also offers IP67 protection, long-range barcode scanning, NFC, PSAM, and a 13MP rear camera.
- Operating systemAndroid 14
- Display10.95", IPS, 1920x1200
- ScanningZebra SE4100, SE55; CM60
- SealingIP67 per lEC sealing specifications
- DropMIL-STD-810H (SGS Test): Multiple 1.2 m / 3.94 ft. drops to concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 14
- Processor
- Octa-core 2.2 GHz
- RAM / storage options
- 4GB + 64GB / 8GB + 256GB (optional)
Display
- Display size
- 10.95", IPS, 1920x1200
- Touch panel
- Corning Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 1 scan key, 1 power key, 1 volume keys (+/-), 2 virtual keys
Data capture
- Scan engines / capture options
- Zebra SE4100, SE55; CM60
- Barcode formats
- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5,
- Cameras
- 5 MP 13 MP Autofocus with flash
Power
- Charging / power
- 10000mAh removable main battery with meter, support fast charge 0.5W
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band; Supports fast roaming; Wi-Fi 6E (optional)
- Cellular / WWAN
- 2G: GSM:B2/B3/B5/B8 3G: WCDMA:B1/B2/B4/B5/B8 4G: TDD LTE: B34/B38/B39/B40/B41 190M        FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/        B18/B20/B28ab
- Bluetooth
- Bluetooth V5.2, support Bluetooth headset
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, Galileo
- Ports / interfaces
- USB 3.0 Type-C, OTG, support USB Type-C Digital Earphone
Rugged
- IP / sealing
- IP67 per lEC sealing specifications
- Drop specification
- MIL-STD-810H (SGS Test): Multiple 1.2 m / 3.94 ft. drops to concrete across the operating temperature range
- Operating temperature
- -4°F to 122°F / -20°C to 50°C
- Storage temperature
- -40°F to 158°F / -40°C to 70°C
- Humidity
- 5% RH-95% RH (non condensing)
Size
- Weight
- 802g / 28.29 oz. (for standard version)
- Dimensions
- 263.5 x 175.0 x 13.5 mm / 10.37 x 6.89 x 0.53 in. (for standard version)
