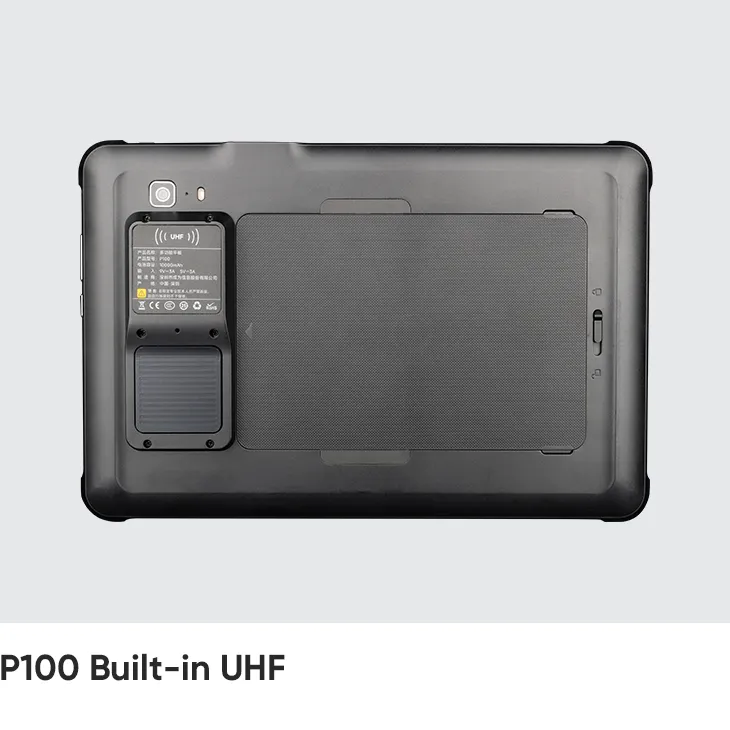

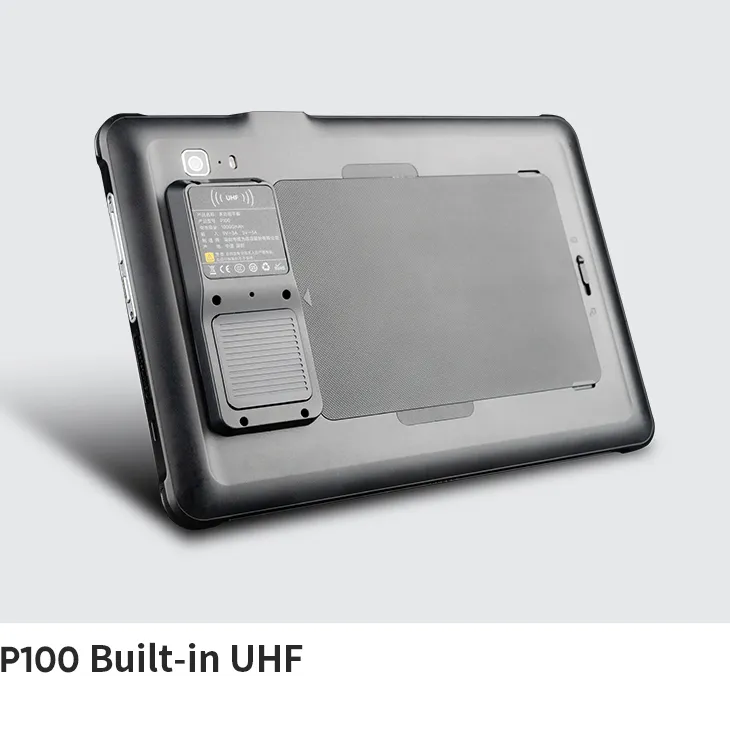

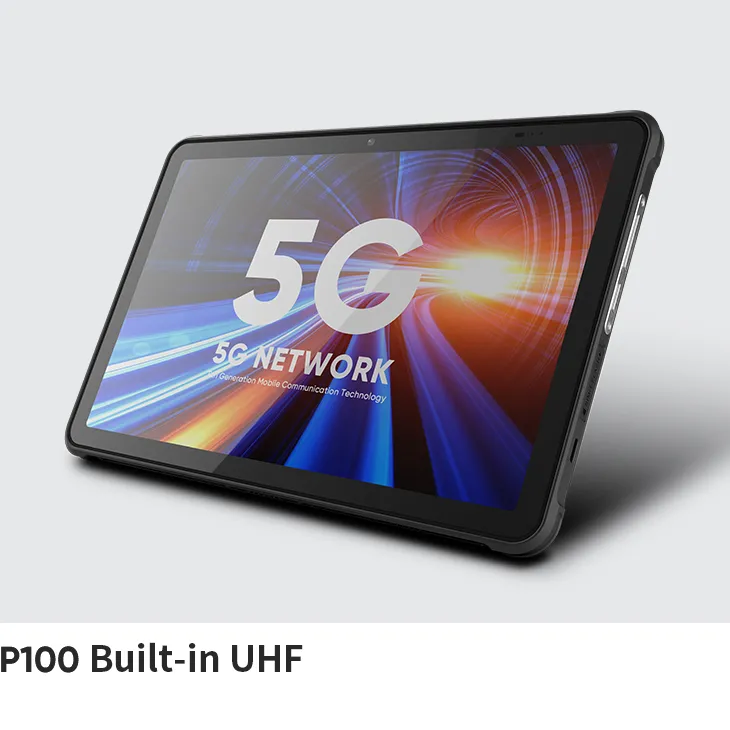

Chainway P100 5G Built-in RFID Tablet
The Chainway P100 5G Built-in RFID Tablet is built on a high-performance platform, featuring a self-developed UHF module with Impinj Gen2X support and a read range of up to 3m, enabling more efficient inventory operations. The 11-inch high-definition display delivers clear, precise information. With 5G and Wi-Fi 6, it ensures fast, stable data transmission in complex environments. A high-capacity, hot-swappable battery minimizes downtime across extended shifts. With optional long-range barcode scanning, the P100 enables fast data capture across wider areas for demanding operations.
- Operating systemAndroid 14
- Display10.95", 1920×1200, IPS
- ScanningZebra SE4100, SE55; CM60
- SealingIP67 per IEC sealing specifications
- DropPassed 1.2-meter drop test compliant with MIL-STD-810 military standard
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 14
- Processor
- Octa-core 2.4GHz; optional octa-core 2.6GHz
- RAM / storage options
- 4GB+64GB / 8GB+256GB (Optional)
Display
- Display size
- 10.95", 1920×1200, IPS
- Touch panel
- Corning Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 1 scan key, 1 power key, 1 volume key (+/-), 2 virtual keys
Data capture
- Scan engines / capture options
- Zebra SE4100, SE55; CM60
- Barcode formats
- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5,
- Cameras
- 5MP 13MP Autofocus with flash; optional 16MP
Power
- Charging / power
- 10000mAh removable main battery with battery meter; supports fast charging 0.5W
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax, 2.4G / 5G dual-band, 2×2 MIMO antennas
- Cellular / WWAN
- 2G: GSM: B2/B3/B5/B8 3G: WCDMA: B1/B2/B5/B8 4G: TDD LTE: B34/B38/B39/B40/B41 190M; FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B18/B20/B28ab
- Bluetooth
- Bluetooth V5.2, support Bluetooth headset
- Location / GPS
- GPS, BeiDou, GLONASS, Galileo; AGPS support; Dual-frequency positioning (L1+L5)
- Ports / interfaces
- USB 3.0 Type-C, OTG, Support USB Type-C Digital Earphone
Rugged
- IP / sealing
- IP67 per IEC sealing specifications
- Drop specification
- Passed 1.2-meter drop test compliant with MIL-STD-810 military standard
- Operating temperature
- -4°F to 122°F / -20℃ to 50℃
- Storage temperature
- -40°F to 158°F / -40℃ to 70℃
- Humidity
- 5%RH-95%RH (non condensing)
Size
- Weight
- 883g / 31.14oz. (with battery)
- Dimensions
- 263.5×175.0×23.0mm / 10.37×6.89×0.91in.
