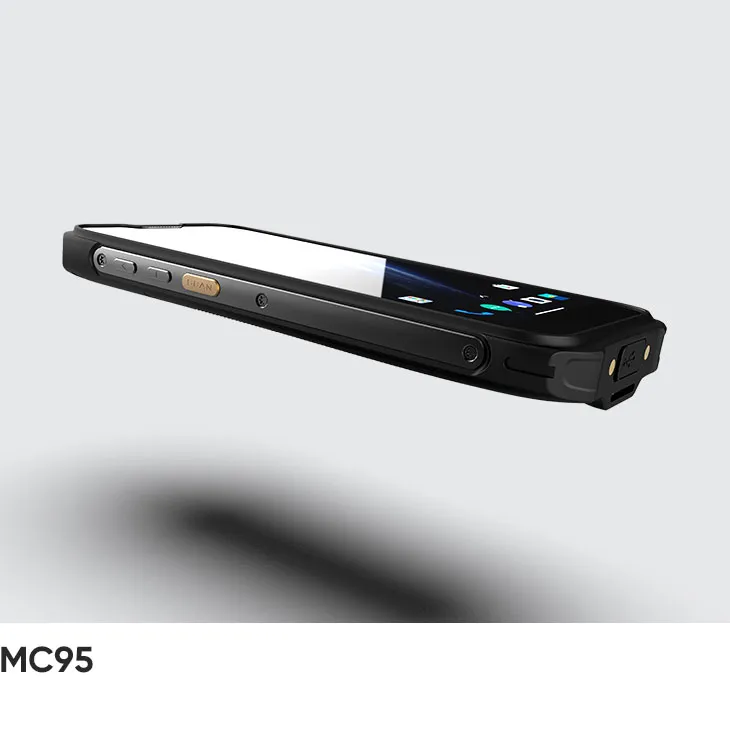

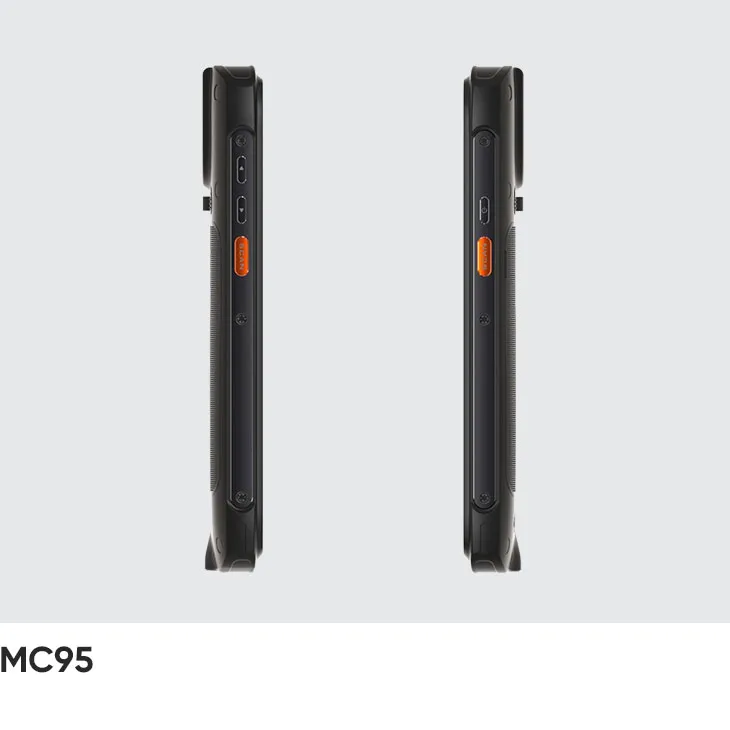

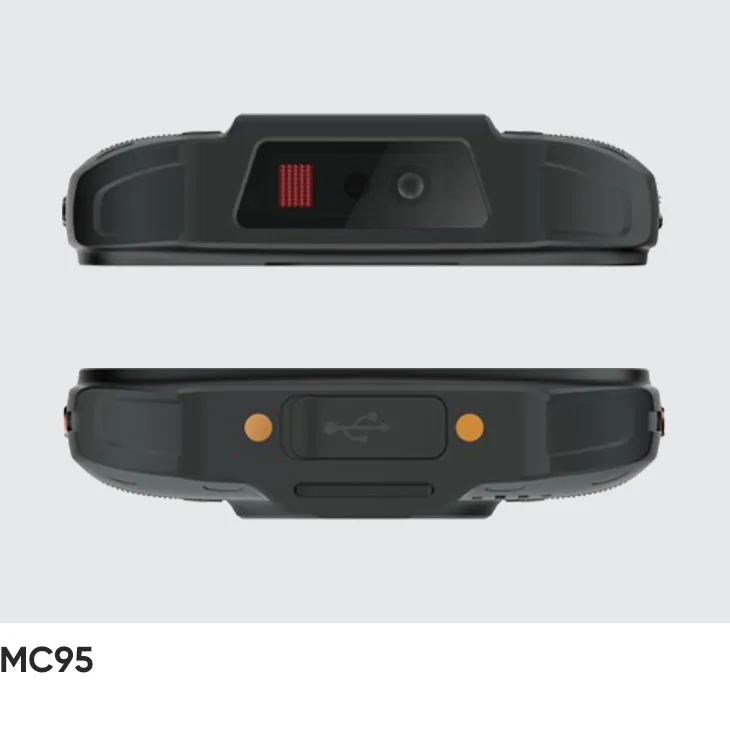

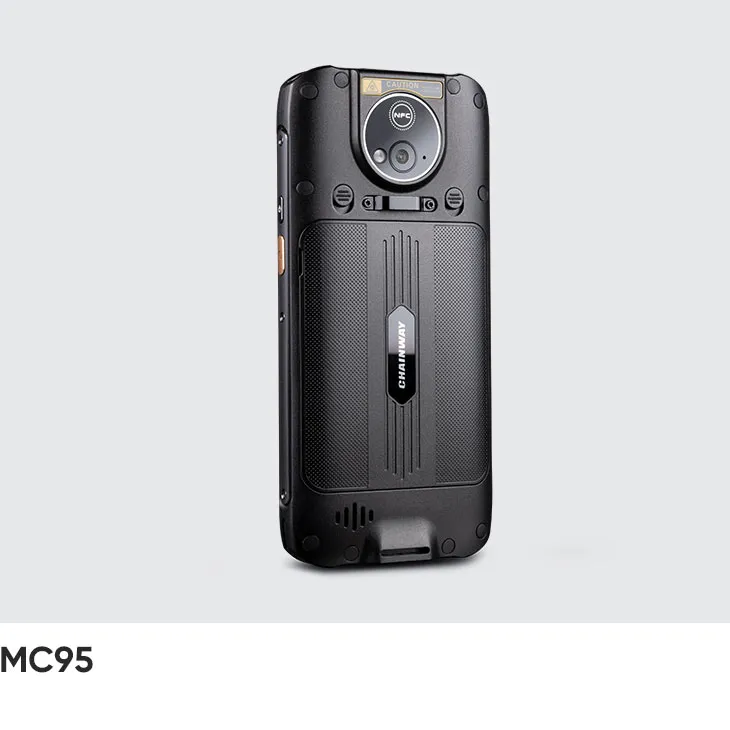

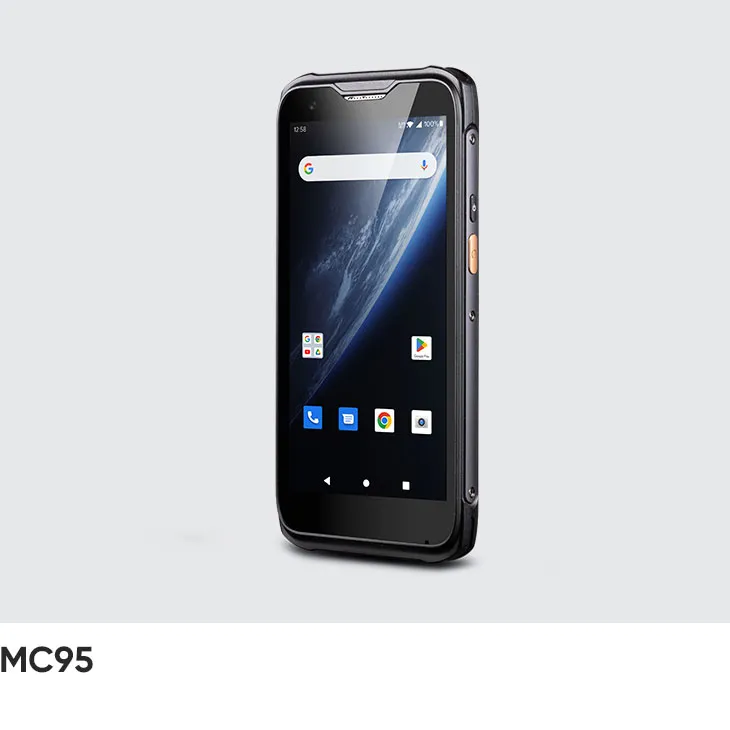

Chainway MC95 Mobile Computer
A rugged Android 12 mobile computer, the MC95 features an octa-core 2.0GHz processor, a 5.5-inch HD display, and a 5000mAh removable battery. It supports optional barcode scanning, NFC, and front and rear cameras, with IP68 protection and 1.5m drop resistance for reliable operation across various industries.
- Operating systemAndroid 12; GMS
- Display5.5'' , 1440 x 720
- SealingIP68 per IEC sealing specifications
- DropMultiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 12; GMS
- Processor
- Octa-core, 2.0GHz
- RAM / storage options
- 4GB + 64GB
Display
- Display size
- 5.5'' , 1440 x 720
- Touch panel
- Multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- Power key, 2 scan keys, volume (+/-) keys
Data capture
- NFC
- Frequency 13.56 MHz
- Cameras
- 5MP 13MP Autofocus with flash Rear Camera 13MP Autofocus with flash
Power
- Charging / power
- 5000mAh removable main battery, support quick charge
Connectivity
- Wi-Fi / WLAN
- IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, 5G PA
- Cellular / WWAN
- 2G: GSM (B2 / B3 / B5 / B8) 3G: WCDMA (B1 / B2 / B4 / B5 / B8)  TD-SCDMA (B34 / B39) 4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 /  B20 /B28A / B28B)  TDD-LTE (B38 / B39 / B40 / B41) 2G: GSM (B2 / B3 / B5 / B8)
- Bluetooth
- Bluetooth 5.0
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, Galileo
- Ports / interfaces
- USB Type-C, USB 2.0, OTG
Rugged
- IP / sealing
- IP68 per IEC sealing specifications
- Drop specification
- Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Operating temperature
- -4 °F to 122 °F / -20 °C to 50 °C
- Storage temperature
- -40 °F to 158 °F / -40 °C to 70 °C
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 288g / 10.16 oz (device with battery)
- Dimensions
- 160.0 x 75.0 x 16.4mm / 6.30 x 2.95 x 0.65in.
