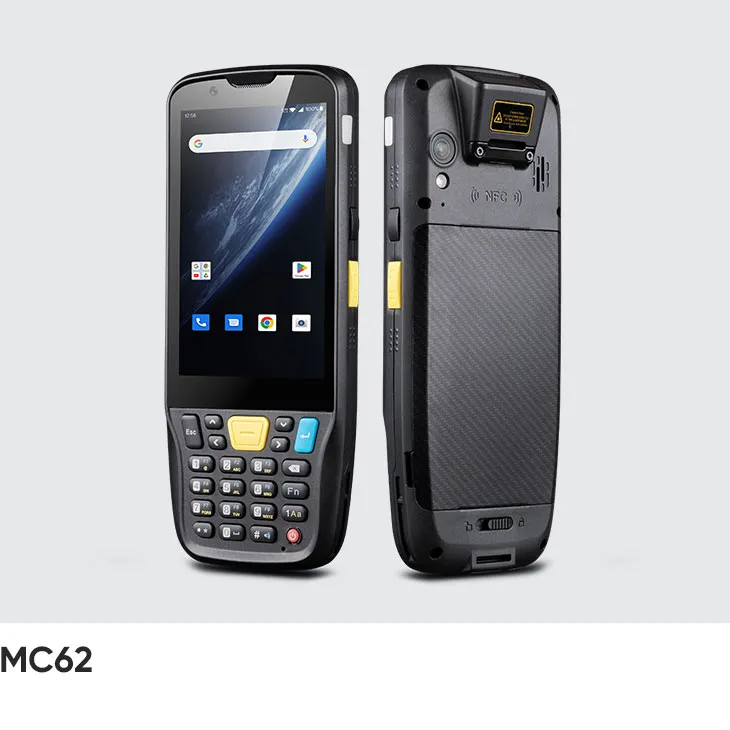

Chainway MC62 Mobile Computer
A lightweight Android 13 mobile computer, the MC62 features an ergonomic keypad and scan angle for efficient one-hand operation. It offers an octa-core 2.0GHz processor, a 4-inch touchscreen, powerful barcode scanning, NFC, a 13MP camera, a 5000mAh removable battery, IP67 protection, and 1.5m drop resistance.
- Operating systemAndroid 13; GMS
- Display4-inch, 480 x 800
- SealingIP67 per IEC sealing specifications
- DropMultiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 13; GMS
- Processor
- Octa-core, 2.0GHz
- RAM / storage options
- 4GB + 64GB
Display
- Display size
- 4-inch, 480 x 800
- Touch panel
- Multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- Main keypad , 2 scan keys, multi-function keys
Data capture
- NFC
- Frequency 13.56 MHz
- Cameras
- 5MP 13MP Autofocus with flash Rear Camera 13MP Autofocus with flash
Power
- Charging / power
- 5000mAh removable battery, support quick charge
Connectivity
- Wi-Fi / WLAN
- 802.11d/e/h/i/j/k/r/v/w with companion D-die, Dualband( 2.4GHz and 5GHz) single stream 802.11 a/b/g/n/ac RF, 20/40/80MHz bandwidth, 5G PA 802.11d/e/h/i/j/k/r/v/w with companion D-die, Dualband(2.4GHz and 5GHz) single stream 802.11 a/b/g/n/ac
- Cellular / WWAN
- 2G: GSM (B2 / B3 / B5 / B8) 3G: WCDMA (B1 / B2 / B4 / B5 / B8)  TD-SCDMA (B34 / B39) 4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 /   B28A / B28B)  TDD-LTE (B34 / B38 / B39 / B40 / B41) 2G: GSM (B2 / B3 / B5 / B8)
- Bluetooth
- Bluetooth 5.0
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, Galileo
- Ports / interfaces
- USB Type-C, USB 2.0, OTG
Rugged
- IP / sealing
- IP67 per IEC sealing specifications
- Drop specification
- Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Operating temperature
- -4 °F to 122 °F / -20 °C to 50 °C
- Storage temperature
- -40 °F to 158 °F / -40 °C to 70 °C
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 256g / 9.03oz (device with battery)
- Dimensions
- 163.5 x 67.0 x 17.1mm/6.44 x 2.64 x 0.67in
