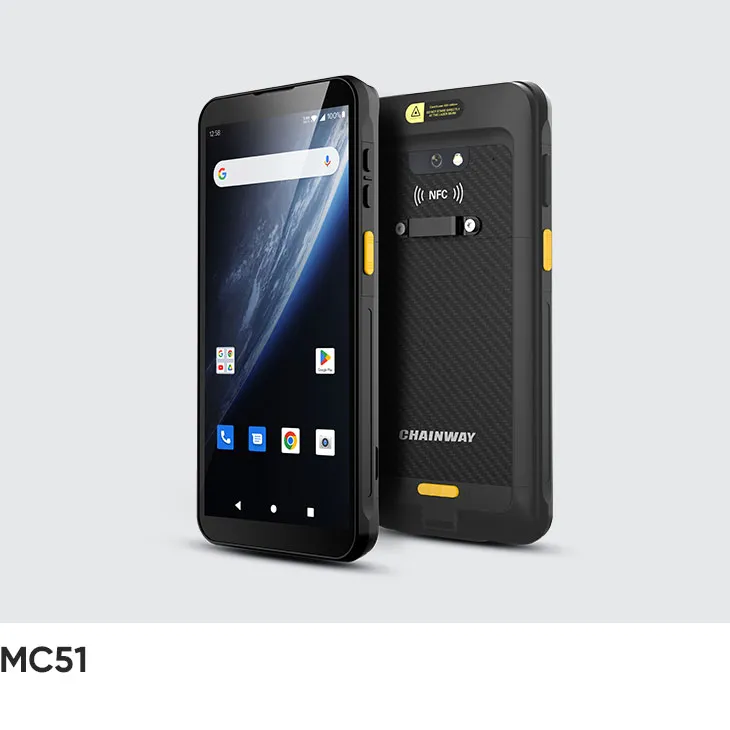

Chainway MC51 5G Mobile Computer
The Chainway MC51 redefines mobile productivity with flagship specs and long-term reliability.
- Operating systemAndroid 14
- Display6-inch high definition display (18:9), 1440 x 720
- Battery5000mAh removable main battery, support QC3.0 and RTC; Support Battery Management System; Hot swap battery…
- SealingIP67 per IEC sealing specifications
- DropMultiple 1.5m / 4.92ft. drops to the concrete across the operating temperature range MIL-STD-810H (SGS…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 14
- Processor
- Qualcomm Octa-core, 2.4GHz
- RAM / storage options
- UFS: 4GB + 64GB / 8GB + 256GB (optional)
Display
- Display size
- 6-inch high definition display (18:9), 1440 x 720
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- Power key, 2 scan keys, volume (+/-) keys, 1 multifunctional key
Data capture
- Barcode formats
- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix,
- RFID
- Built-in UHF, integrated into the chipset platform
- NFC
- Frequency 13.56 MHz
- Cameras
- 5MP 16MP Autofocus with flash Rear Camera 16MP Autofocus with flash
Power
- Battery / runtime
- 5000mAh removable main battery, support QC3.0 and RTC; Support Battery Management System; Hot swap battery backup
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax-6E, 2.4G/5G tri-band, IPV4, IPV6; 2*2 MIMO antennas Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAPLTS, PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc Support 802.11 a/b/g/n/ac/ax-6E, 2.4G/5G dual-band, IPV4, IPV6;
- Bluetooth
- Bluetooth 5.2
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
- Ports / interfaces
- USB Type-C, USB 3.1, OTG
Rugged
- IP / sealing
- IP67 per IEC sealing specifications
- Drop specification
- Multiple 1.5m / 4.92ft. drops to the concrete across the operating temperature range MIL-STD-810H (SGS Test): Multiple 1.5 m/4.92 ft. drops to concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5m / 1.64ft. falls at room temperature Specification 1000 x 0.5m / 1.64ft. falls at room temperature
- Operating temperature
- -4°F to 122°F / -20°C to +50°C
- Storage temperature
- -40°F to 158°F / -40°C to +70°C
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 297g / 10.48oz. (device with battery)
- Dimensions
- 161.0 x 77.8 x 15.5mm / 6.34 x 3.06 x 0.61 in.
