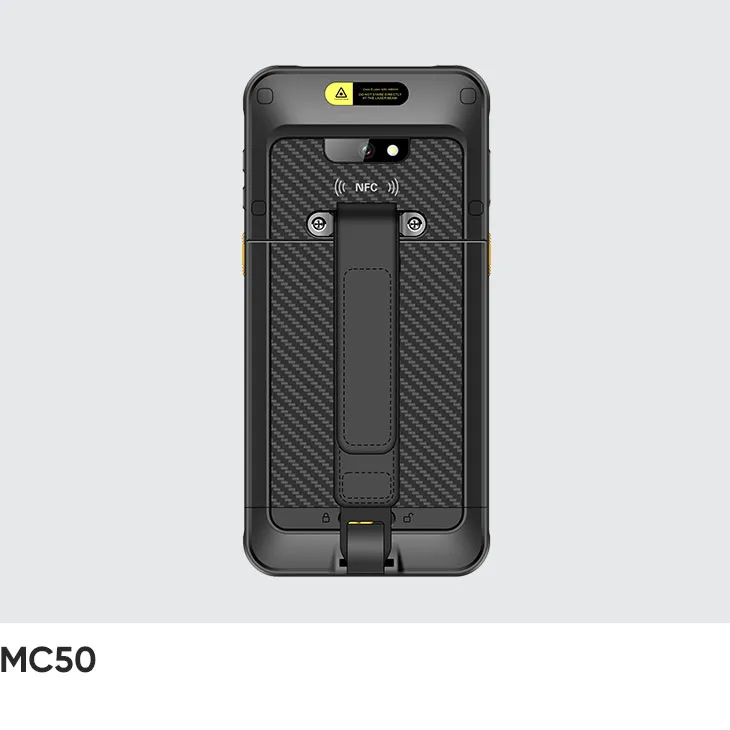

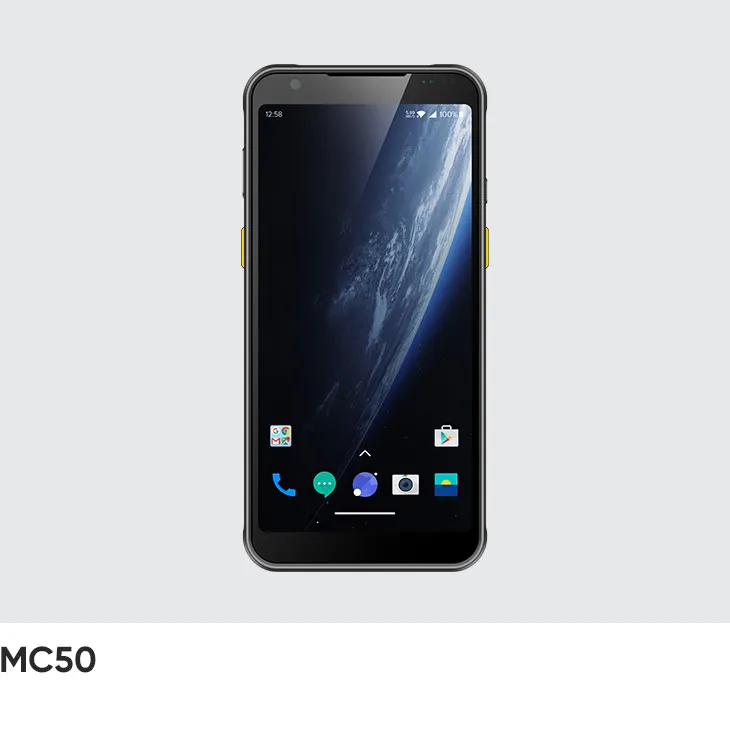

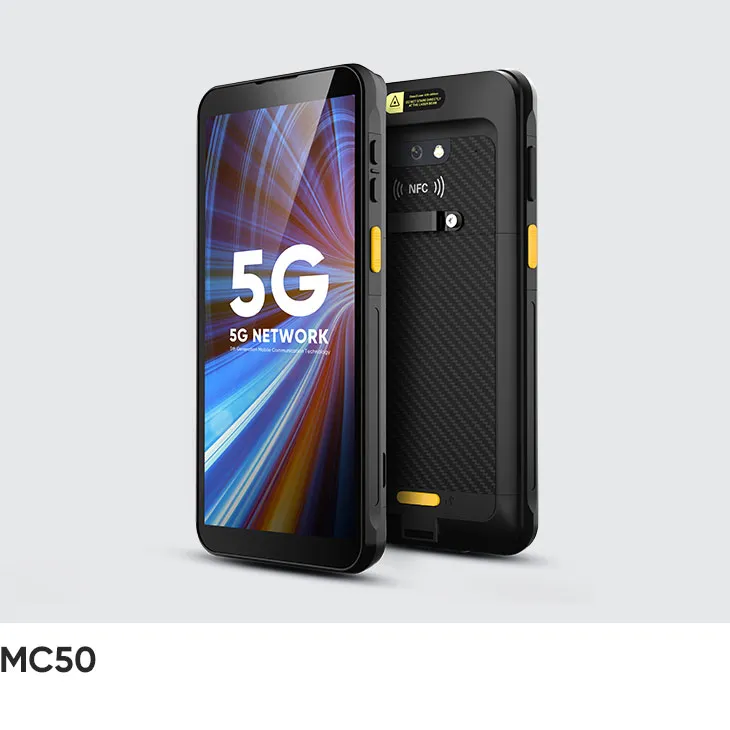

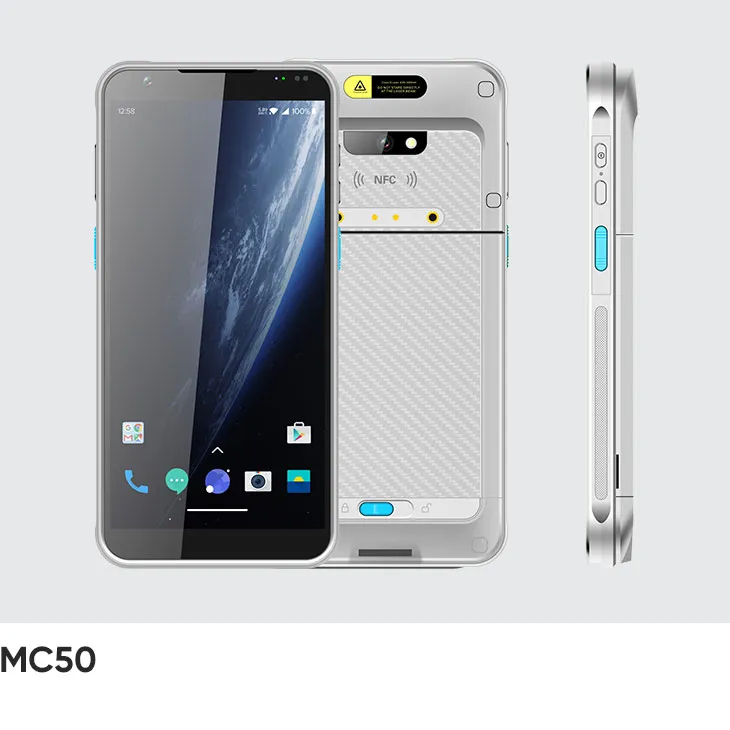

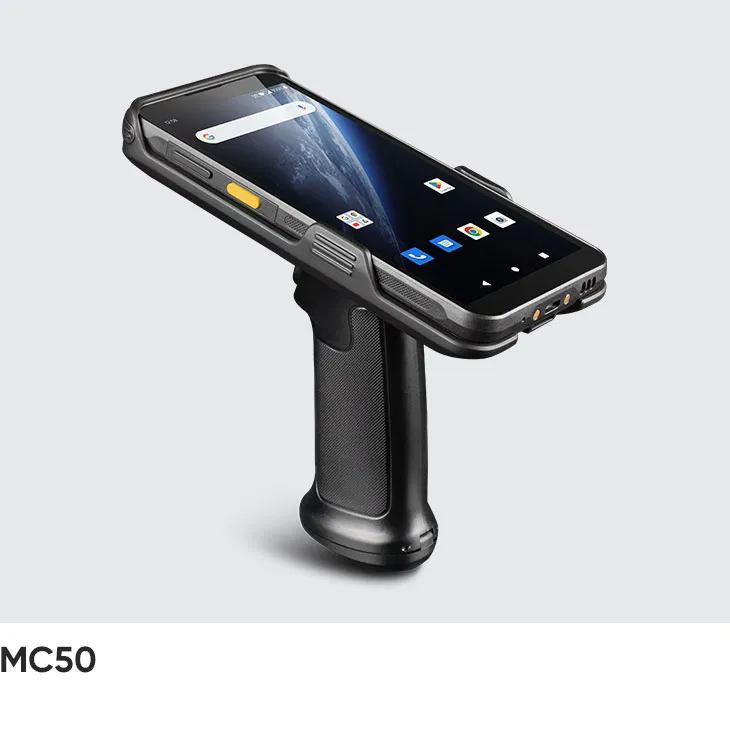

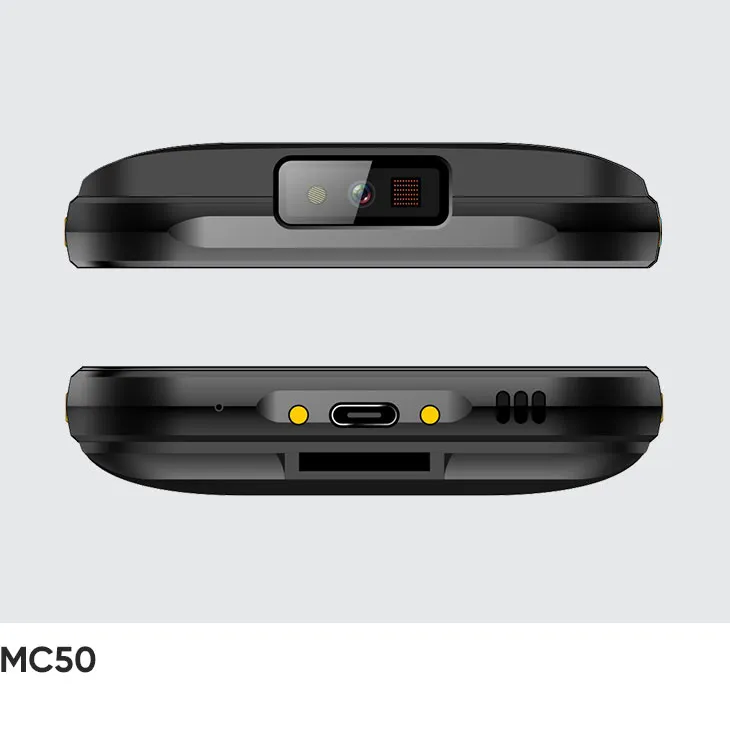

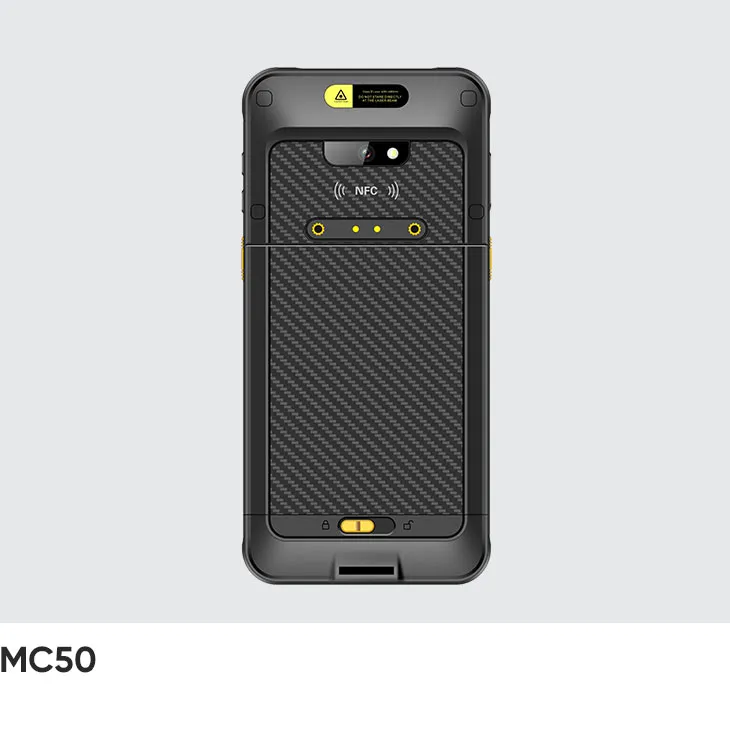

Chainway MC50 5G Mobile Computer
A high-performance 5G mobile computer running Android 12 / 14, the MC50 features a Qualcomm octa-core 2.0GHz processor, a 6-inch HD display, Wi-Fi 6-ready connectivity, barcode scanning, NFC, dual cameras, a 5000mAh removable battery, IP67 protection, and an optional UHF back clip.
- Operating systemAndroid 12/14; GMS&AER
- Display6-inch high definition display (18:9), 1440 x 720
- SealingIP67 per IEC sealing specifications
- DropMultiple 1.5m / 4.92ft. drops (at least 20 times) to the concrete across the operating temperature range…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 12/14; GMS&AER
- Processor
- Octa-core, 2.0GHz
- RAM / storage options
- 4GB + 64GB / 6GB + 128GB (Optional) / 8GB + 128GB (Optional)
Display
- Display size
- 6-inch high definition display (18:9), 1440 x 720
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- Power key, 2 scan keys, volume (+/-) keys
Data capture
- Barcode formats
- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix,
- NFC
- Frequency 13.56 MHz
- Cameras
- 5MP 16MP Autofocus with flash Rear Camera 16MP Autofocus with flash
Power
- Charging / power
- 5000mAh removable main battery, support QC3.0 and RTC
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; 2x2 MU-MIMO; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc. Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band,
- Cellular / WWAN
- 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ B41 5G: N1/N3/N8/N28/N41/N78/N79 2G: 850/900/1800/1900 MHz
- Bluetooth
- Bluetooth 5.1
- Location / GPS
- GPS / AGPS, GLONASS, BeiDou, Galileo, internal antenna
- Ports / interfaces
- USB Type-C, USB 3.1, OTG
Rugged
- IP / sealing
- IP67 per IEC sealing specifications
- Drop specification
- Multiple 1.5m / 4.92ft. drops (at least 20 times) to the concrete across the operating temperature range MIL-STD-810H(SGS Test): Multiple 1.5m drops (at least 20 times) to theplate across the operating temperature range
- Tumble specification
- 1000 x 0.5m / 1.64ft. falls at room temperature Specification 1000 x 0.5m / 1.64ft. falls at room temperature
- Operating temperature
- -4°F to 122°F / -20°C to +50°C
- Storage temperature
- -40°F to 158°F / -40°C to +70°C
- Humidity
- 5%RH - 95%RH non condensing
Size
- Weight
- 280g-288g / 9.88oz-10.16oz. (device with battery)
- Dimensions
- 161.0 x 77.8 x 15.5mm / 6.34 x 3.06 x 0.61in.
