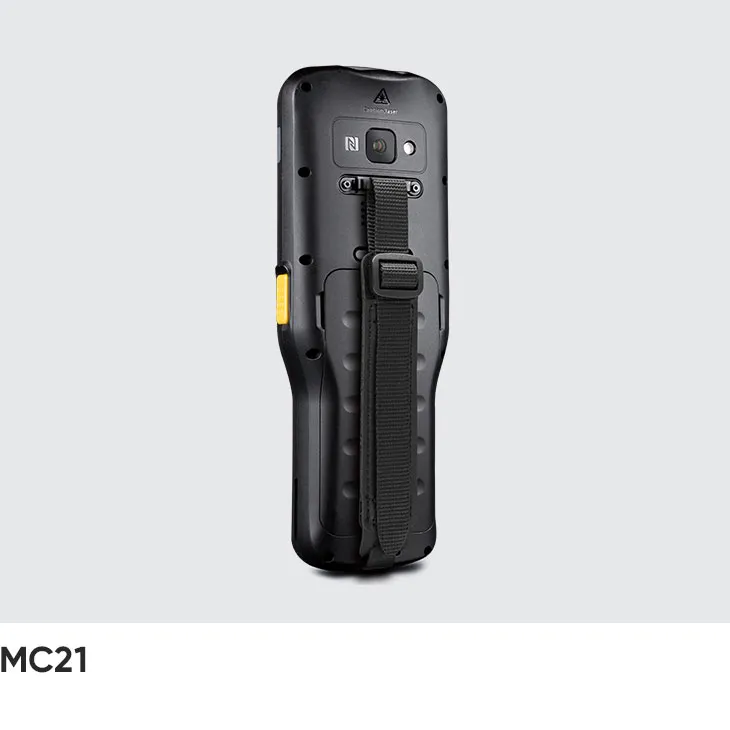

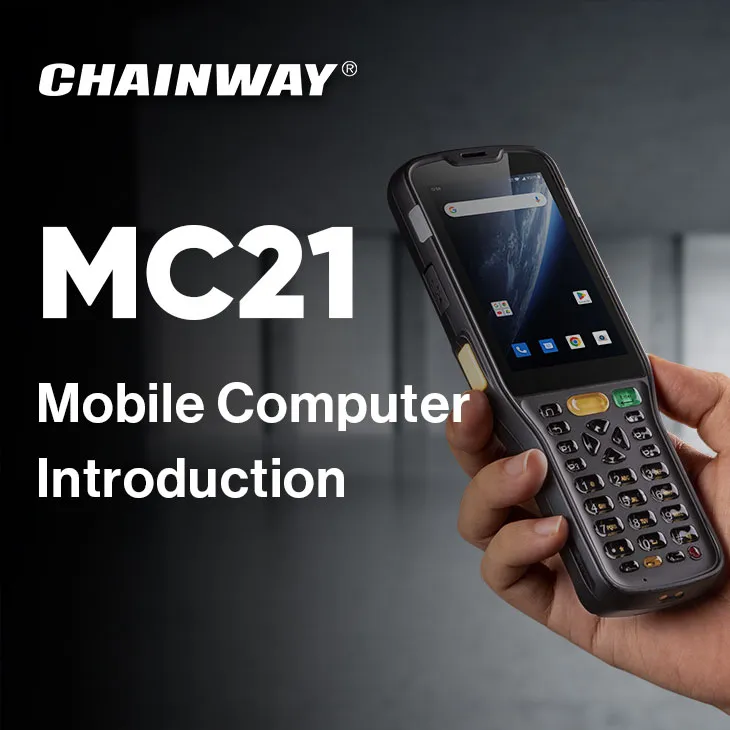

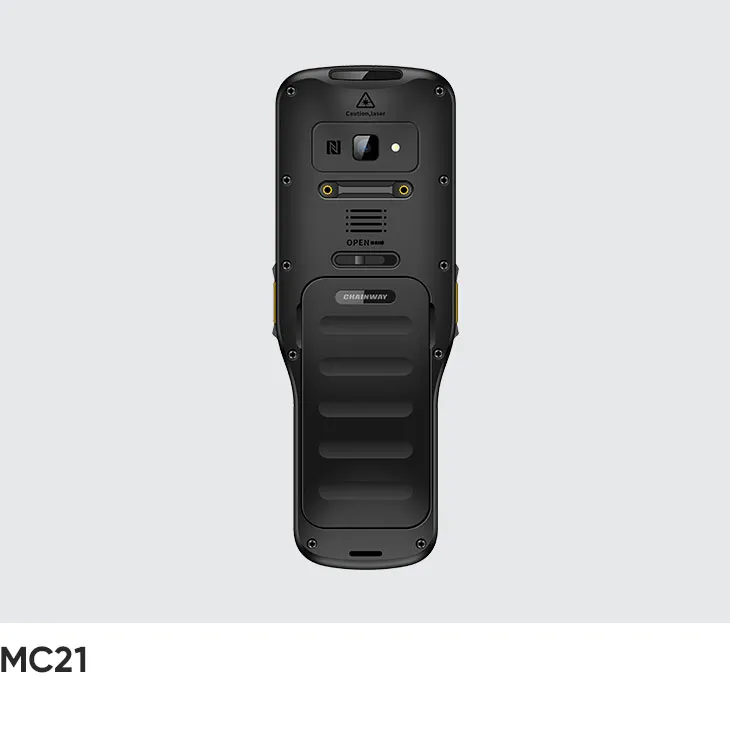

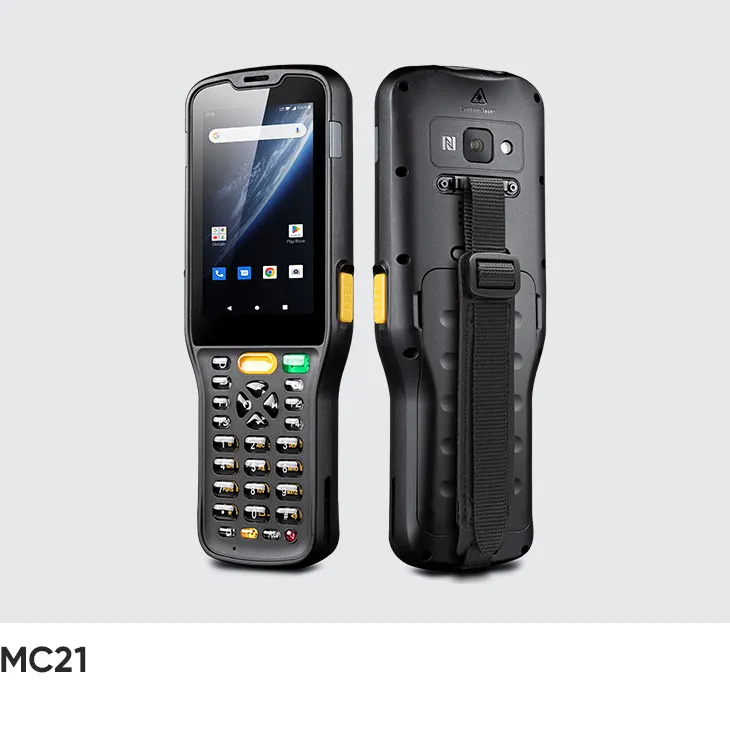

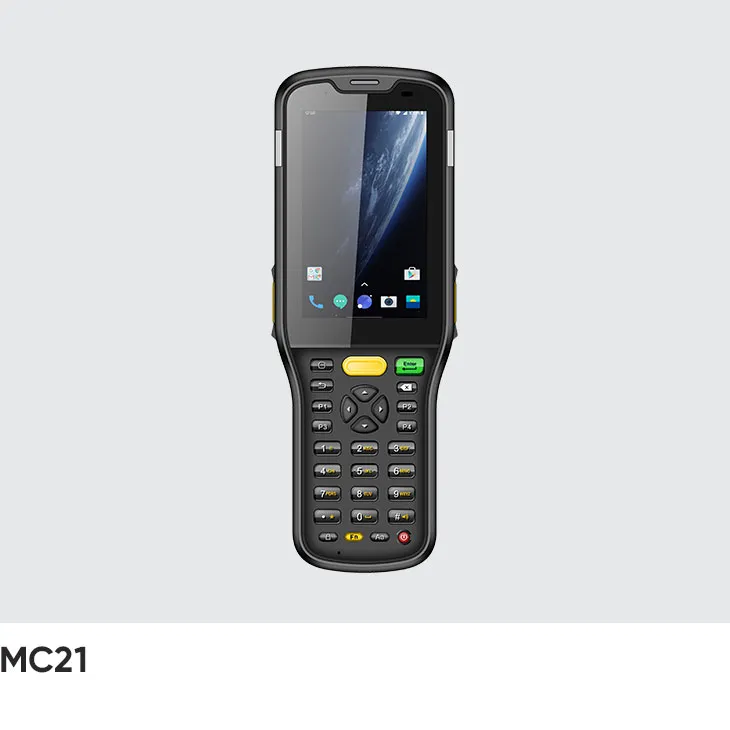

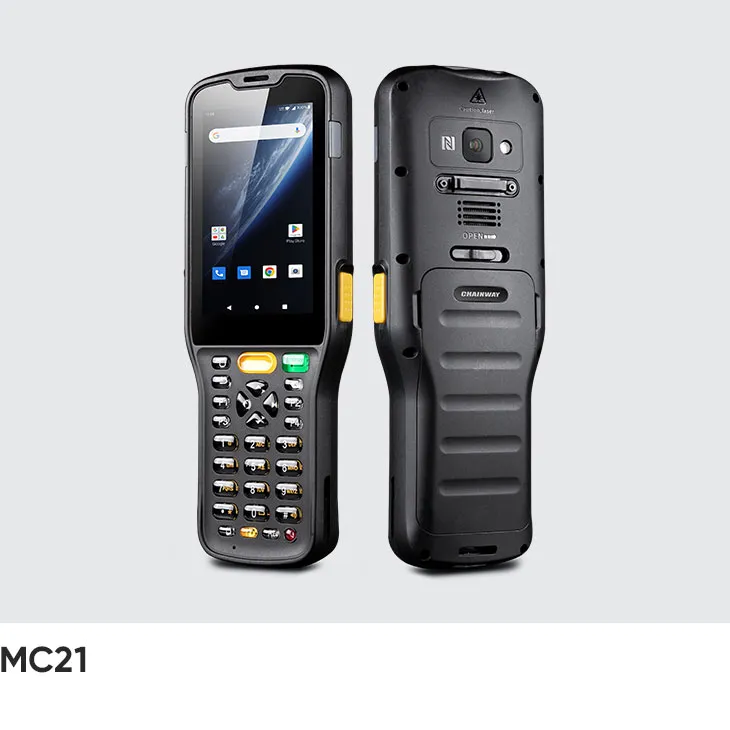

Chainway MC21 Mobile Computer
A lightweight Android 12 mobile computer with a multifunction keypad, the MC21 features a 3.5-inch touchscreen, powerful barcode scanning, NFC, a 13MP HD camera, and a 5000mAh removable battery. Its IP65 protection and 1.5m drop resistance ensure reliable operation in warehousing, logistics, retail, and asset management.
- Operating systemAndroid 12; GMS
- Display3.5-inch, 480 x 800 resolution
- Battery5000mAh removable main battery, support quick charge
- SealingIP65 per IEC sealing specifications
- DropMultiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 12; GMS
- Processor
- Quad-core, 2.0GHz
- RAM / storage options
- 3GB + 32GB
Display
- Display size
- 3.5-inch, 480 x 800 resolution
- Touch panel
- Multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- Left and Right Scan Keys + Main Keyboard
Data capture
- NFC
- Frequency 13.56MHz
- Cameras
- Rear 13 MP Autofocus with flash Rear Camera Rear 13 MP Autofocus with flash
Power
- Battery / runtime
- 5000mAh removable main battery, support quick charge
Connectivity
- Wi-Fi / WLAN
- 802.11d/e/h/i/j/k/r/v/w with companion D-die, Dualband( 2.4GHz and 5GHz) single stream 802.11 a/b/g/n/ac RF, 20/40/80MHz bandwidth, 5G PA 802.11d/e/h/i/j/k/r/v/w with companion D-die, Dual-band(2.4GHz
- Cellular / WWAN
- 2G: GSM: B2/B3/B5/B8 3G: WCDMA: (B1/B2/B4/B5/B8)  TD-SCDMA (B34 / B39) 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/B38/B39/ B40/B41 2G: GSM: B2/B3/B5/B8
- Bluetooth
- Bluetooth 5.0
- Location / GPS
- Integrate GPS, Beidou, GLONASS and Galileo, Support AGPS
- Ports / interfaces
- USB 2.0 Type-C, OTG, supports Type-C headphones
Rugged
- IP / sealing
- IP65 per IEC sealing specifications
- Drop specification
- Multiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5m / 1.64ft. falls at room temperature, meets IEC rolling specification
- Operating temperature
- -4℉ to 122℉ / -20℃ to 50℃
- Storage temperature
- -40℉ to 158℉ / -40℃ to 70℃
- Humidity
- 5%RH to 95%RH (non condensing)
Size
- Weight
- 287g / 10.05oz (device with battery)
- Dimensions
- 186.6 x 66.7 x 24.3mm / 7.35 x 2.63 x 0.96in
