Chainway · Handheld computer

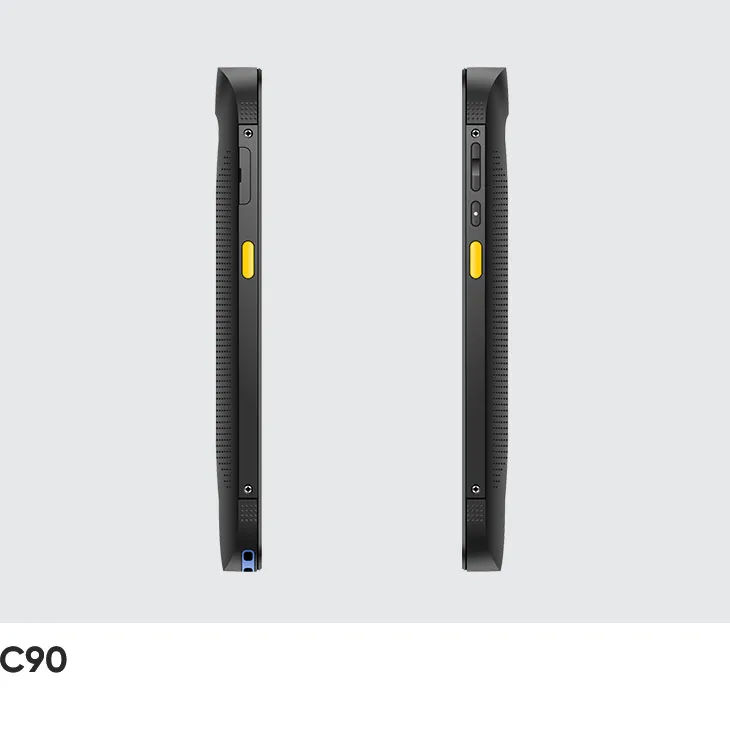

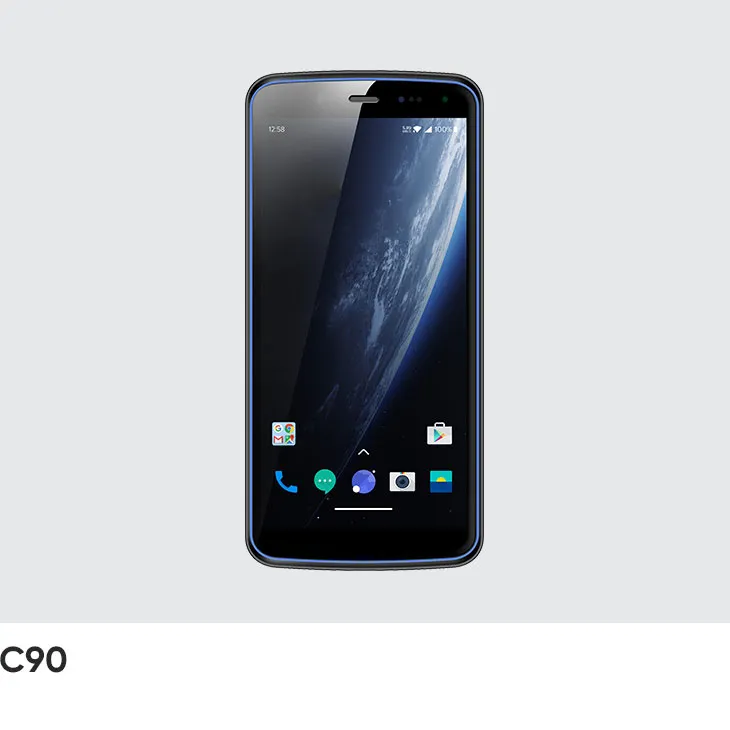

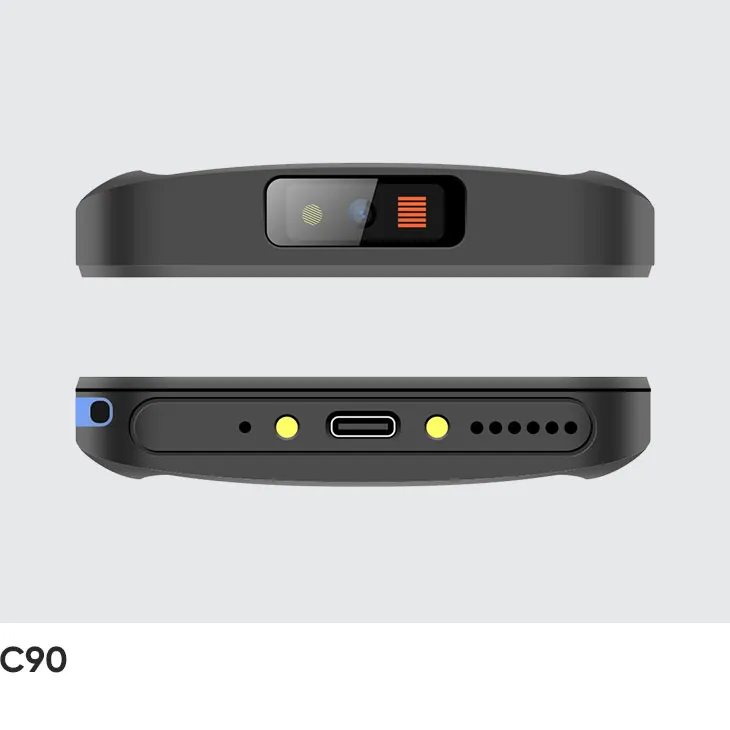

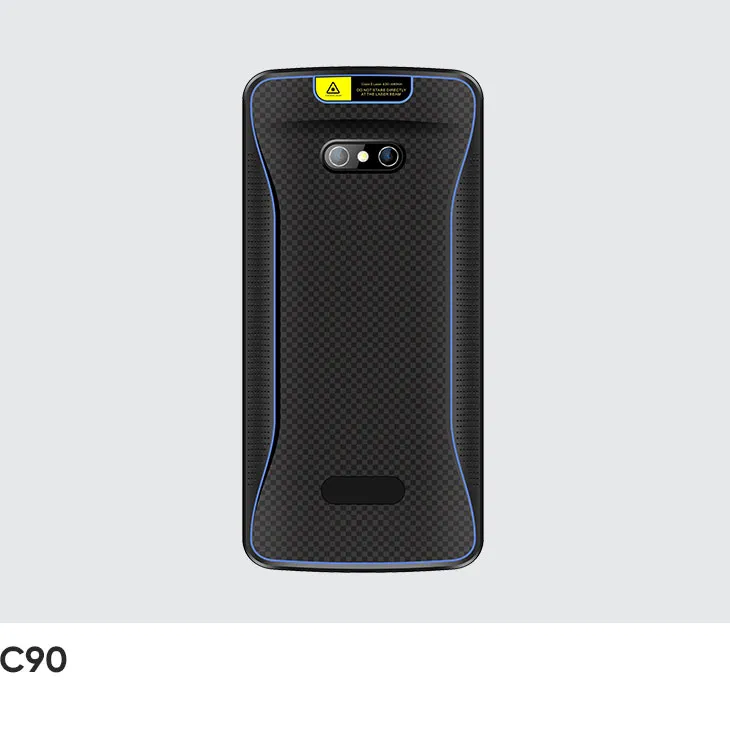

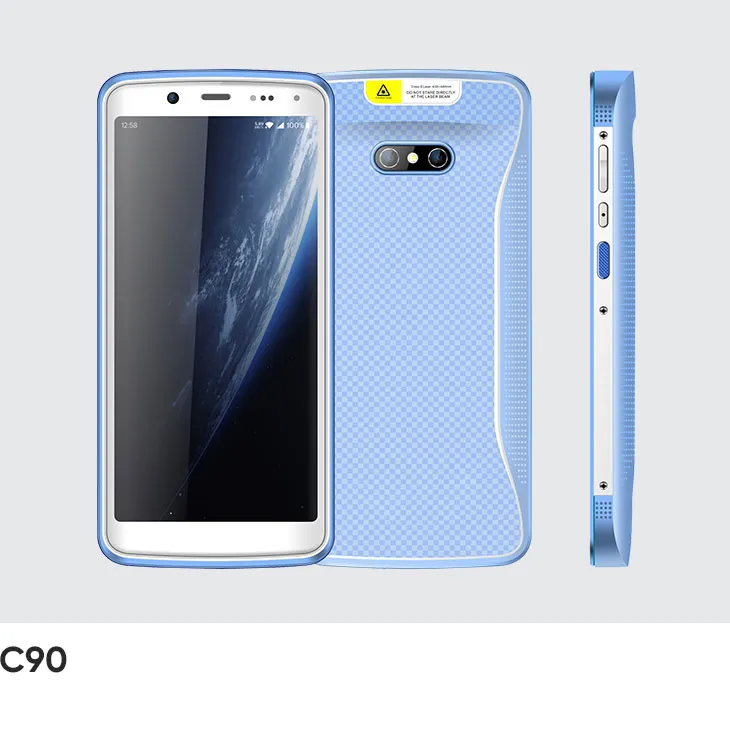

Chainway C90 Mobile Computer
A rugged mobile computer running Android 10 / 14, the C90 features an octa-core 2.0GHz processor, a 5.7-inch display, high-performance barcode scanning, NFC, and front and rear triple cameras. Weighing only 230g, it also offers a 5000mAh battery, IP67 protection, and 1.5m drop resistance.
- Operating systemAndroid 10/14, GMS, FOTA, Soti MobiControl, Android Enterprise Recommended, Zero-Touch, 90-day security…
- Display5.7-inch (18:9), IPS LTPS 1440 x 720
- BatteryMain battery: built-in 5000 mAh
- SealingIP67 per IEC sealing specifications
- DropMultiple 1.5 m / 4.92 ft. drops to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 10/14, GMS, FOTA, Soti MobiControl, Android Enterprise Recommended, Zero-Touch, 90-day security updates, SafeUEM supported Android 10 / 14, GMS, FOTA, Soti MobiControl, Android
- Processor
- Octa-core 2.0 GHz
- RAM / storage options
- 3GB + 32GB / 3GB + 64GB / 4GB + 64GB
Display
- Display size
- 5.7-inch (18:9), IPS LTPS 1440 x 720
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- Power, 2 scan keys, volume +/-
Data capture
- NFC
- Frequency 13.56 MHz
- Cameras
- 5 MP 16MP +2MP Microphotography, Autofocus with flash Front Camera 5MP
Power
- Battery / runtime
- Main battery: built-in 5000 mAh
- Charging / power
- Main battery: built-in 5000 mAh Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
Connectivity
- Wi-Fi / WLAN
- Support IEEE802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w, 2.4G/5G dual-band, IPV4, IPV6; Support 5G PA Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108,112, 116,120,1 24,128,132,136,140,149,153,157,161,165), depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC,etc. Support IEEE802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w, 2.4G/5G dual-
- Bluetooth
- V2.1+EDR,3.0+HS and V4.1+HS, BT5.0
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
- Ports / interfaces
- USB Type-C, USB 2.0, OTG
Rugged
- IP / sealing
- IP67 per IEC sealing specifications
- Drop specification
- Multiple 1.5 m / 4.92 ft. drops to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5 m/ 1.64 ft. falls at room temperature Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Operating temperature
- -20 ℃~+50 ℃
- Storage temperature
- -40 ℃~+70 ℃
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 230g / 8.11 oz. (device with battery)
- Dimensions
- 158.5 x 76.0 x 13.1 mm / 6.24 x 2.99 x 0.52 in.
