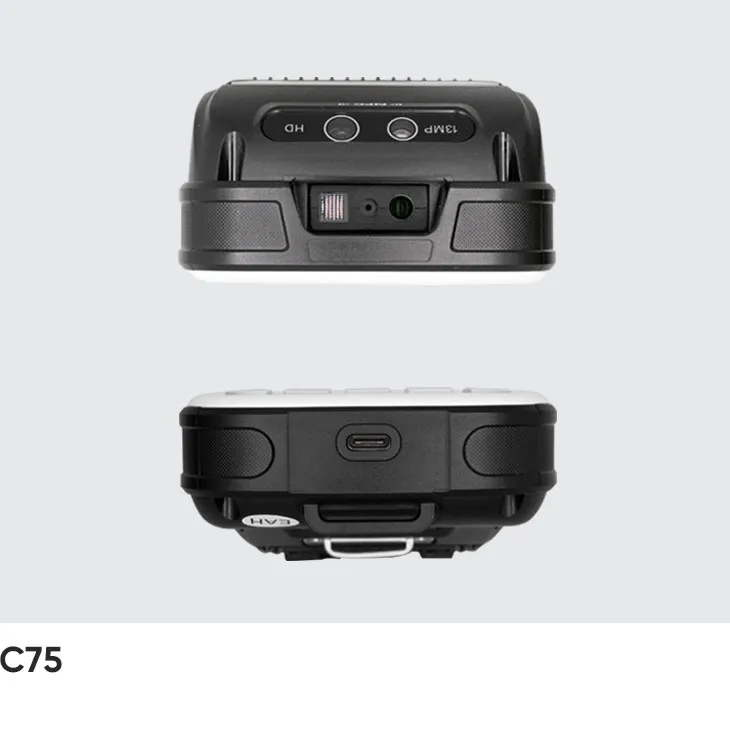

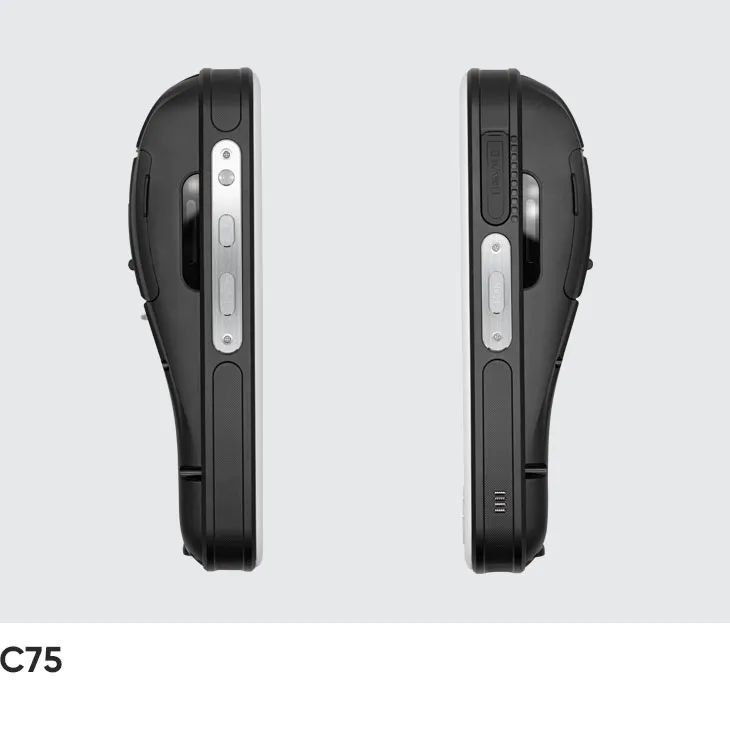

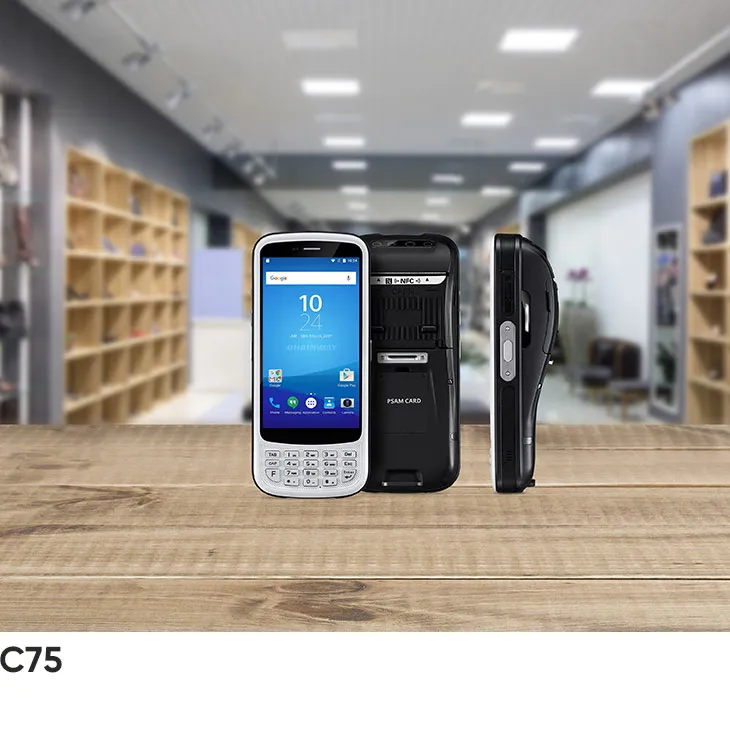

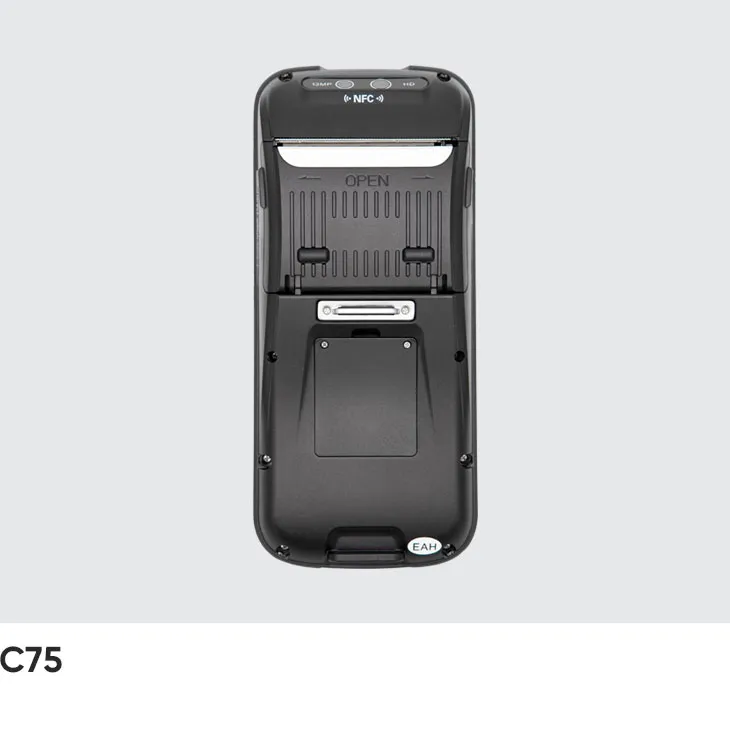

Chainway C75 Mobile Computer with Printer
C75 is a devoted handheld computer that offers mobile printing capabilities. The thermal printer supports various printer engines and receipts. Built-in dual slots are for PSAM cards to encrypt data.
- Operating systemAndroid 11.0; SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14…
- Display5.2'' IPS LTPS 1920 x 1080P
- SealingIP54
- DropMultiple 1.5 m / 4.92 ft. drops (at least 20 times) to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 11.0; SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility Android 11; SafeUEM supported. Committed support
- Processor
- Octa-core 2.3GHz
- RAM / storage options
- 4GB + 128G / 4GB + 64GB (optional)
Display
- Display size
- 5.2'' IPS LTPS 1920 x 1080P
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 1 power key, 2 scan keys, 1 multifunctional key, numeric keyboard
Data capture
- NFC
- Frequency 13.56 MHz
- Cameras
- 13MP Autofocus with flash Camera 13MP Autofocus with flash
Power
- Charging / power
- Main battery: Li-ion, rechargeable, 8000mAh
Connectivity
- Wi-Fi / WLAN
- IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
- Cellular / WWAN
- 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8        CDMA2000 EVDO: BC0        TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A        B28B/B34/B38/B39/B40/B41 2G: GSM850/GSM900/DCS1800/PCS1900
- Bluetooth
- Bluetooth 5.0
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou; internal antenna
- Ports / interfaces
- USB 2.0 Type-C, OTG
Rugged
- IP / sealing
- IP54
- Drop specification
- Multiple 1.5 m / 4.92 ft. drops (at least 20 times) to the concrete across the operating temperature range
- Operating temperature
- -4°F to 122°F / -20°C to 50°C
- Storage temperature
- -40°F to 158°F / -40°C to 70°C
- Humidity
- 5%RH - 95%RH non condensing
Size
- Weight
- 507g/17.88oz
- Dimensions
- 186.89*83.99*35.04-49.49mm
