Chainway · Handheld computer

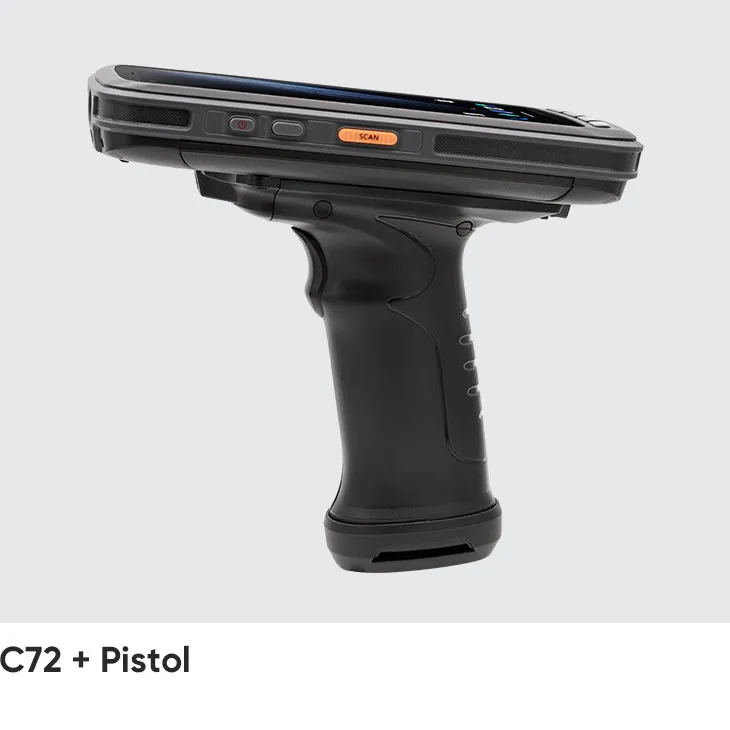

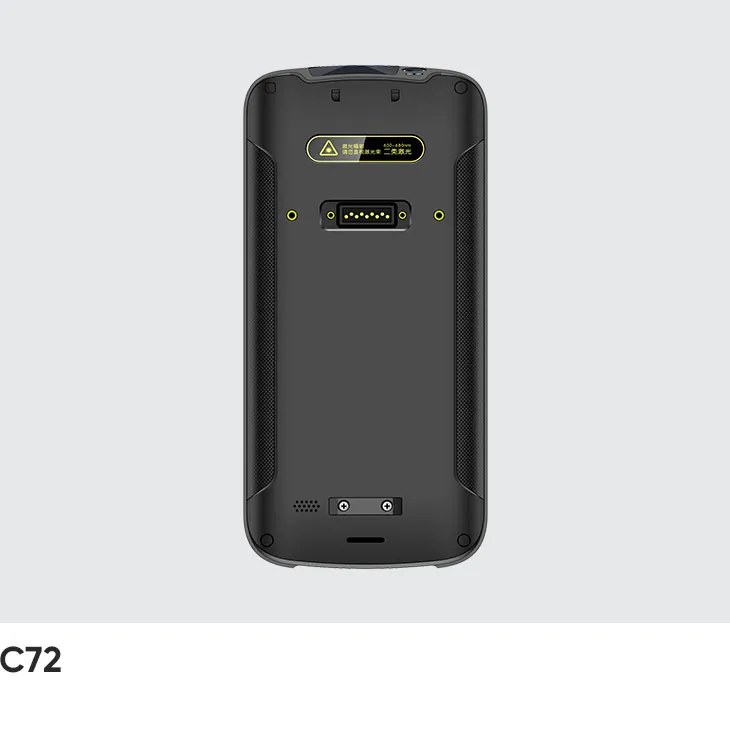

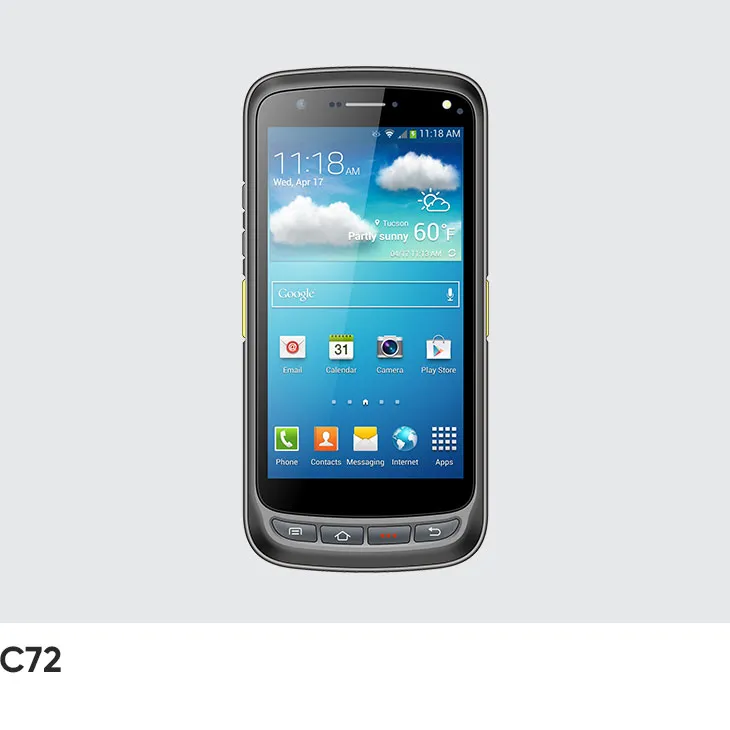

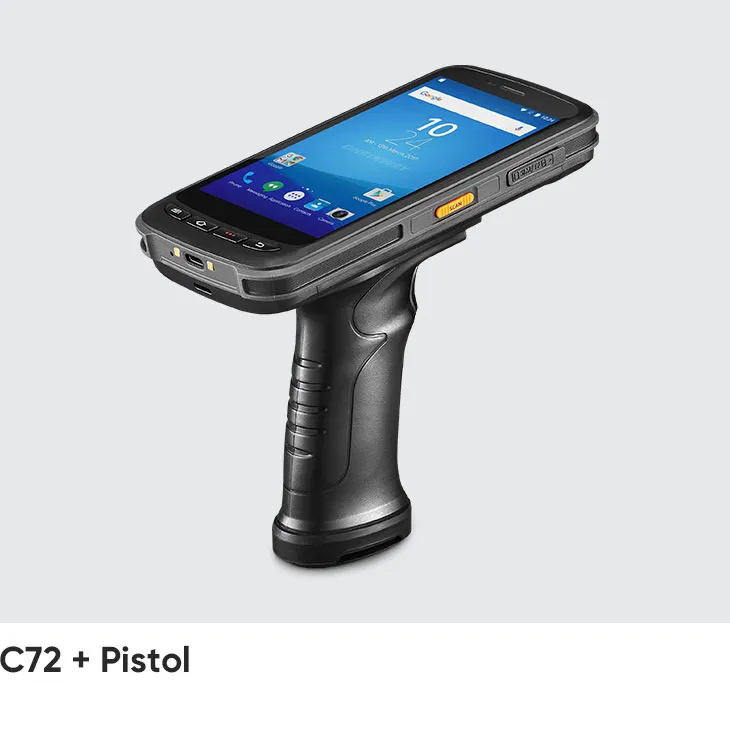

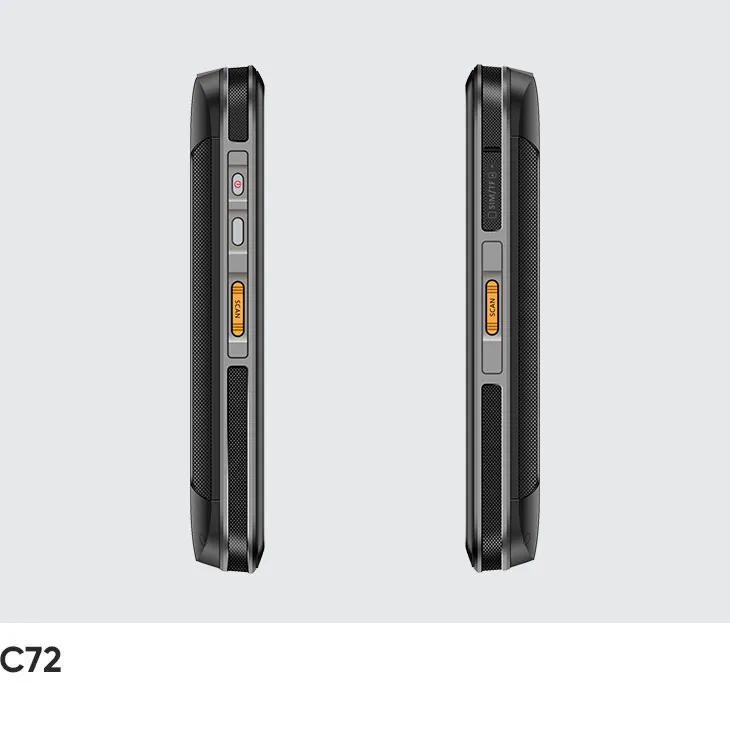

Chainway C72 Mobile Computer
Chainway C72 , Built with Zebra scan engine SE4750MR, it delivers powerful barcode scanning capability that comes with read range up to 30m.The mobile computer features Octa-Core processor and 8000mAh powerful battery to perfectly meet demands in intensive applications
- Operating systemAndroid 11/13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
- Display5.2'' IPS LTPS 1920 x 1080
- SealingHost IP65 per IEC sealing specifications
- DropMultiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 11/13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
- Processor
- Octa-core, 2.3GHz
- RAM / storage options
- 4GB + 128GB 4GB + 64GB (optional)
Display
- Display size
- 5.2'' IPS LTPS 1920 x 1080
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Data capture
- NFC
- Frequency 13.56 MHz
- Cameras
- 13 MP Autofocus with flash Camera 13 MP Autofocus with flash
Power
- Charging / power
- Main battery: Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) Li-ion, rechargeable, 8000 mAh
Connectivity
- Wi-Fi / WLAN
- IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
- Cellular / WWAN
- 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8        CDMA2000 EVDO: BC0        TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A        B28B/B34/B38/B39/B40/B41 2G: GSM850/GSM900/DCS1800/PCS1900
- Bluetooth
- Bluetooth 5.0
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou; internal antenna
- Ports / interfaces
- USB 2.0 Type-C, OTG, Type-C headphones supported
Rugged
- IP / sealing
- Host IP65 per IEC sealing specifications
- Drop specification
- Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Operating temperature
- 4 °F to 122 °F / -20 °C to 50 °C
- Storage temperature
- -40 °F to 158 °F / -40 °C to 70 °C
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 654 g / 23.07 oz.
- Dimensions
- 164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.
