Chainway · Handheld computer

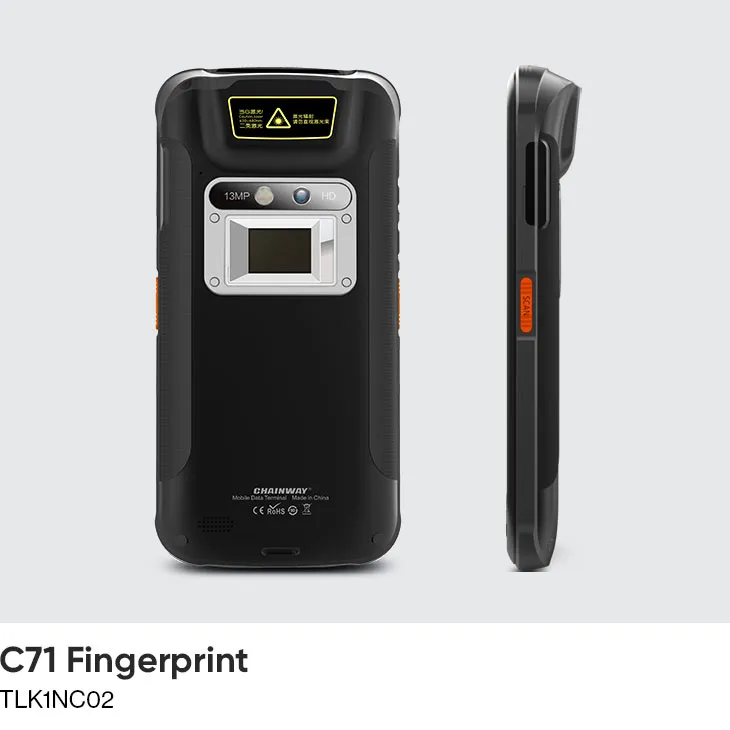

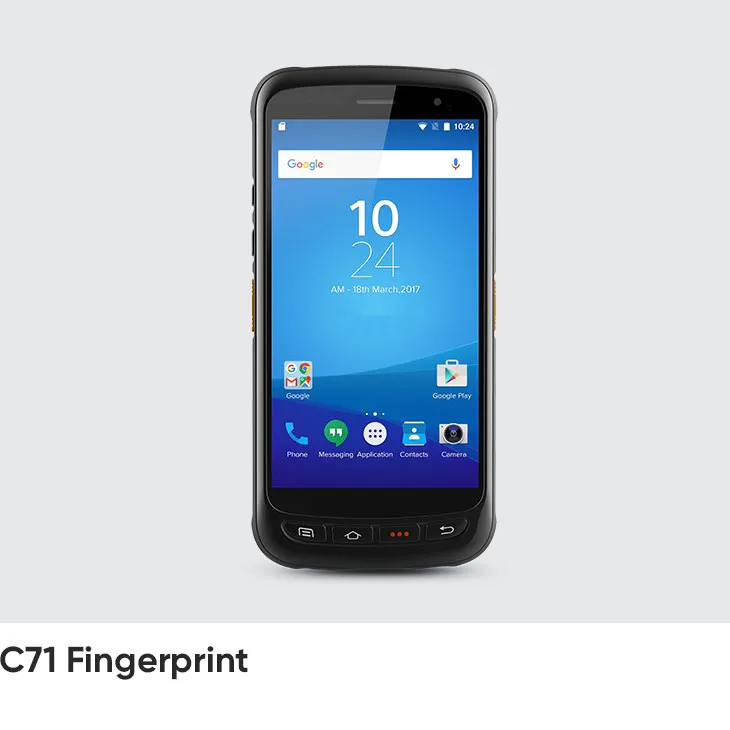

Chainway C71 Biometrics Reader
Chainway C71 is an Android rugged mobile computer. It is improved to enable capacitive fingerprint sensor TCS1. C71 is revolutionized to be FIPS 201 compliant, and enable secure data encryption and fake finger detection.
- Operating systemAndroid 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
- Display5.2'' IPS LTPS 1920 x 1080
- SealingIP65 / IP67 per IEC sealing specifications
- DropMultiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
- Processor
- Octa-core 2.3GHz
- RAM / storage options
- 4GB + 128GB 4GB + 64GB (optional)
Display
- Display size
- 5.2'' IPS LTPS 1920 x 1080
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Data capture
- NFC
- Frequency 13.56 MHz
- Cameras
- 5 MP 13 MP autofocus rear camera with flash Facial Recognition lSO19794-5 Compatible Rear Camera 13 MP Autofocus with flash (optional) 5 MP camera
Power
- Charging / power
- Main battery: Li-ion, rechargeable, 5000 mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) Main battery: Li-ion, rechargeable, 5000 mAh
Connectivity
- Wi-Fi / WLAN
- IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
- Cellular / WWAN
- 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8        CDMA2000 EVDO: BC0        TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A        B28B/B38/B39/B40/B41 2G: GSM850/GSM900/DCS1800/PCS1900
- Bluetooth
- Bluetooth 5.0
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou; internal antenna Android 4G
- Ports / interfaces
- USB 2.0 Type-C, OTG, TypeC headphones supported
Rugged
- IP / sealing
- IP65 / IP67 per IEC sealing specifications
- Drop specification
- Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Operating temperature
- -4 °F to 122 °F / -20 °C to 50 °C
- Storage temperature
- -40 °F to 158 °F / -40 °C to 70 °C
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- ＜314 g / 11.08 oz.
- Dimensions
- 164.2 x 78.8 x 17.5 mm / 6.46 x 3.10 x 0.69 in. (the thickest: 24.5mm/0.96in) 164.2 x 78.8 x 17.5 mm / 6.46 x 3.1 x 0.69 in. ;
