Chainway · Handheld computer

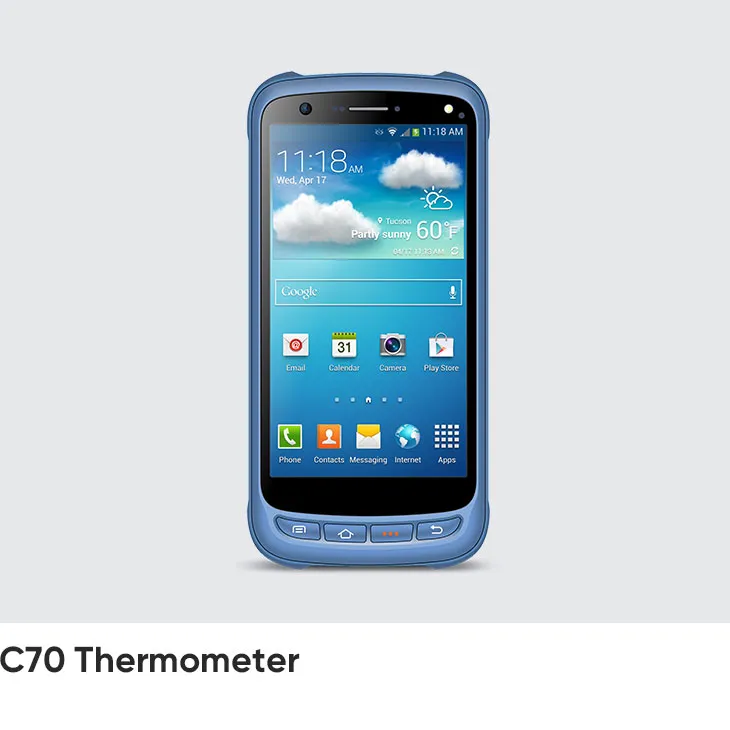

Chainway C70 Mobile Computer with Thermometer
Chainway C70 is a high-performance handheld computer specially developed for temperature measurement. Based on Android 11 OS and Octa-core processor, it features first-class configuration and fast processing. With integrated infrared temperature measurement module, the device supports non-contact temperature measurement of human forehead and object, and can be widely used in various temperature measurement scenarios.
- Operating systemAndroid 11.0; SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14…
- Display5.2'' IPS LTPS 1920 x 1080
- SealingIP65 / IP67 per IEC sealing specifications
- DropMultiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 11.0; SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility Android 11; SafeUEM supported. Committed support for a
- Processor
- Octa-core, 2.3GHz
- RAM / storage options
- 3GB + 32GB / 4GB + 64GB
Display
- Display size
- 5.2'' IPS LTPS 1920 x 1080
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key
Data capture
- NFC
- Frequency 13.56MHz
- Cameras
- 13MP Autofocus with flash, optional 5MP front camera Rear Camera 13MP Autofocus with flash (optional) 5MP camera
Power
- Charging / power
- Main battery: Li-ion, rechargeable, 4000mAh Standby: over 300 hours Continuous use: over 12 hours (depending on user environment) Charging time: 2-3 hours (with standard adaptor and USB cable) Main battery: Li-ion, rechargeable, 4000mAh
Connectivity
- Wi-Fi / WLAN
- IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
- Cellular / WWAN
- 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8        CDMA2000 EVDO: BC0        TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A        B28B/B34/B38/B39/B40/B41 2G: GSM850/GSM900/DCS1800/PCS1900
- Bluetooth
- Bluetooth 5.0
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou; internal antenna
- Ports / interfaces
- USB2.0 Type-C, OTG
Rugged
- IP / sealing
- IP65 / IP67 per IEC sealing specifications
- Drop specification
- Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Operating temperature
- -4°F to 122°F / -20°C to 50°C
- Storage temperature
- -40°F to 158°F / -40°C to 70°C
- Humidity
- 5%RH - 95%RH non condensing
Size
- Weight
- < 242 g / 8.5 oz.
- Dimensions
- 163.8*79.2*13.8 mm / 6.45*3.12*0.54 in.
