Chainway · Handheld computer

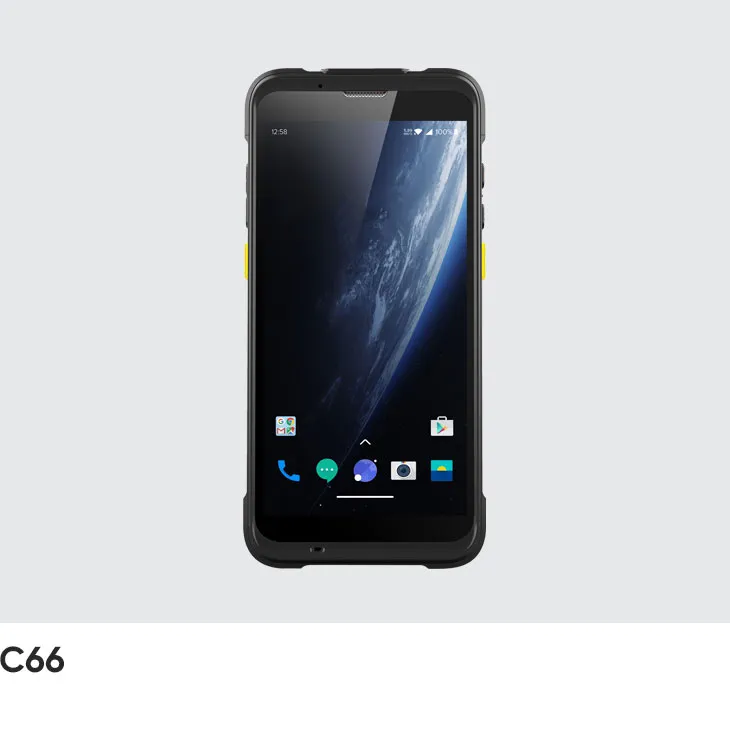

Chainway C66 Wi-Fi Only
A rugged Android 11 Wi-Fi-only mobile computer designed for indoor applications, the C66 features a Qualcomm octa-core 2.0GHz processor, Wi-Fi 6-ready connectivity, a 5.5-inch HD display, a 4420mAh removable battery, optional barcode scanning, a 13MP autofocus camera, and IP65 protection.
- Operating systemAndroid 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti…
- Display5.5-inch high definition display (18:9), IPS IGZO 1440 x 720
- BatteryRemovable main battery 4420 mAh; support RTC Standby: up to 490 hours (only main battery ; WiFi: up to 470h)…
- SealingIP65 per IEC sealing specifications
- DropMultiple 1.8m / 5.91ft. drops (at least 20 times) to the concrete across the operating temperature range…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility Android 11; GMS, 90-day security updates, Android Enterprise
- Processor
- Octa-core, 2.0GHz
- RAM / storage options
- 3GB + 32GB / 4GB + 64GB / 6GB + 64GB
Display
- Display size
- 5.5-inch high definition display (18:9), IPS IGZO 1440 x 720
- Touch panel
- Multi-touch panel, gloves and wet hands supported

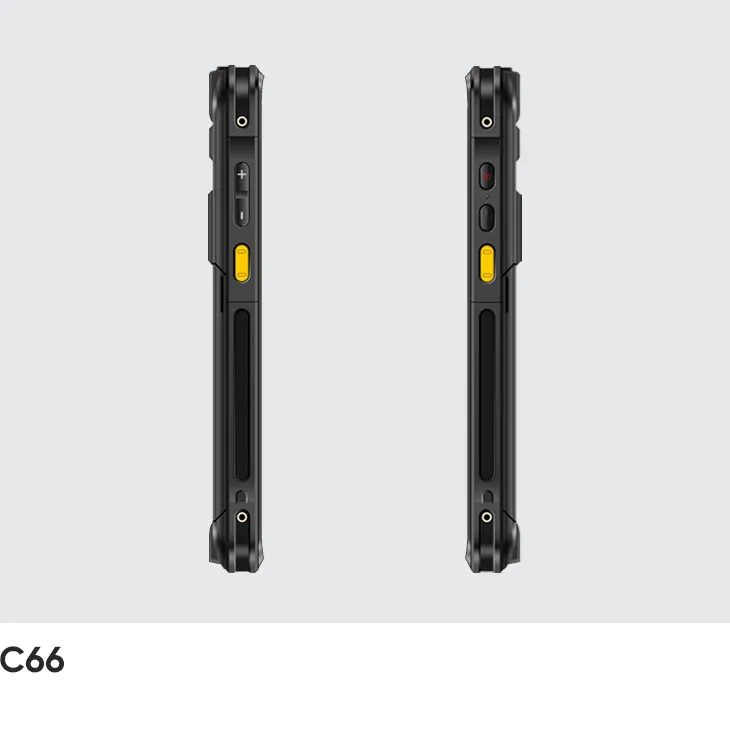

- Keyboard / keys
- 1 power key, 2 scan keys, 2 volume keys
Data capture

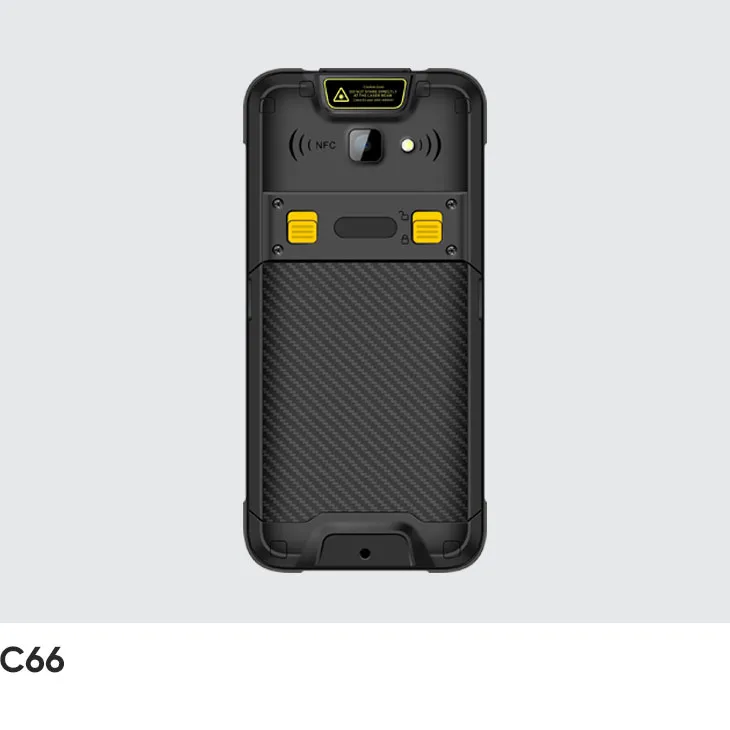

- Cameras
- Rear 13MP Autofocus with flash Facial Recognition lSO19794-5 Compatible Rear Camera Rear 13MP Autofocus with flash
Power
- Battery / runtime
- Removable main battery 4420 mAh; support RTC Standby: up to 490 hours (only main battery ; WiFi: up to 470h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable) Removable main battery 4420 mAh; support RTC
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,
- Bluetooth
- Bluetooth 5.1

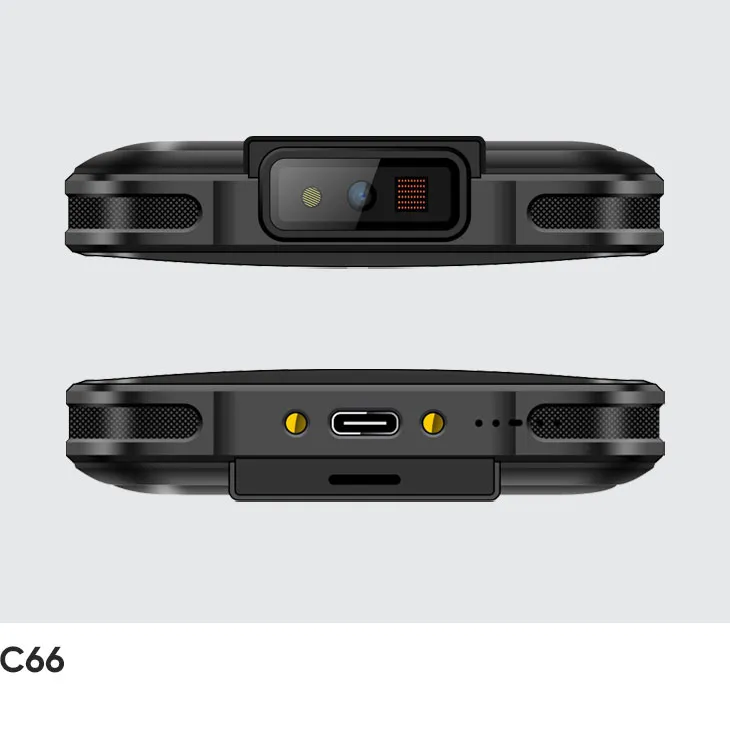

- Ports / interfaces
- USB Type-C, USB 2.0, OTG, extended thimble
Rugged
- IP / sealing
- IP65 per IEC sealing specifications
- Drop specification
- Multiple 1.8m / 5.91ft. drops (at least 20 times) to the concrete across the operating temperature range Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the
- Tumble specification
- 1000 x 0.5m / 1.64ft. falls at room temperature Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Operating temperature
- -4℉ to 122℉ / -20 ℃ to +50 ℃ Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after
- Storage temperature
- -40℉ to 158℉ / -40 ℃ to +70 ℃
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 287g / 10.12oz.(device with battery)
- Dimensions
- 160.0 x 76.0 x 15.5mm / 6.3 x 2.99 x 0.61in.
