Chainway · Handheld computer

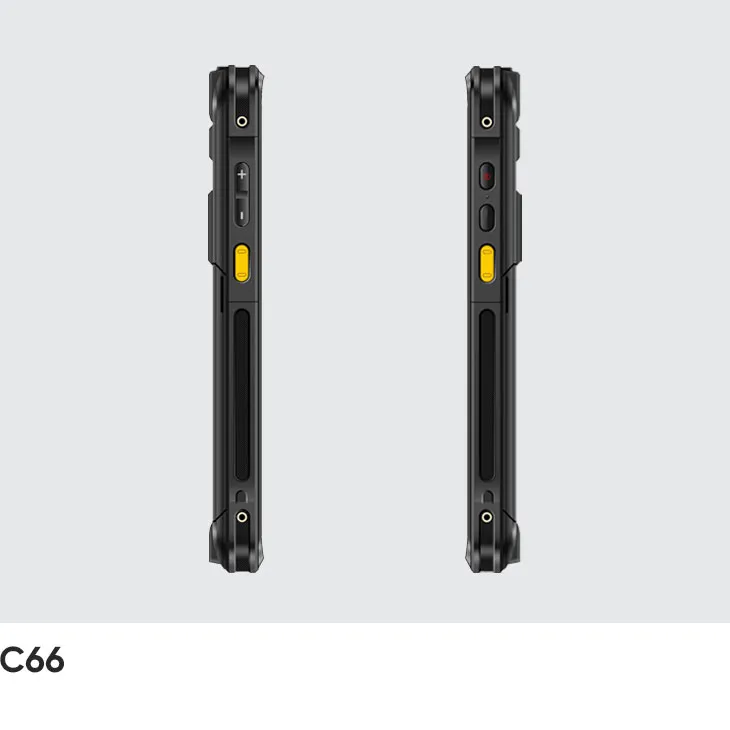

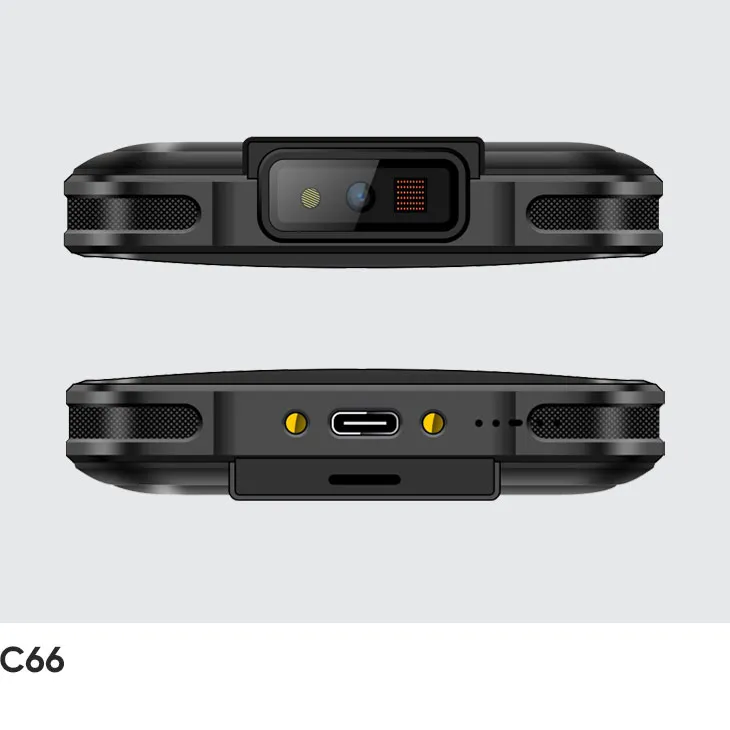

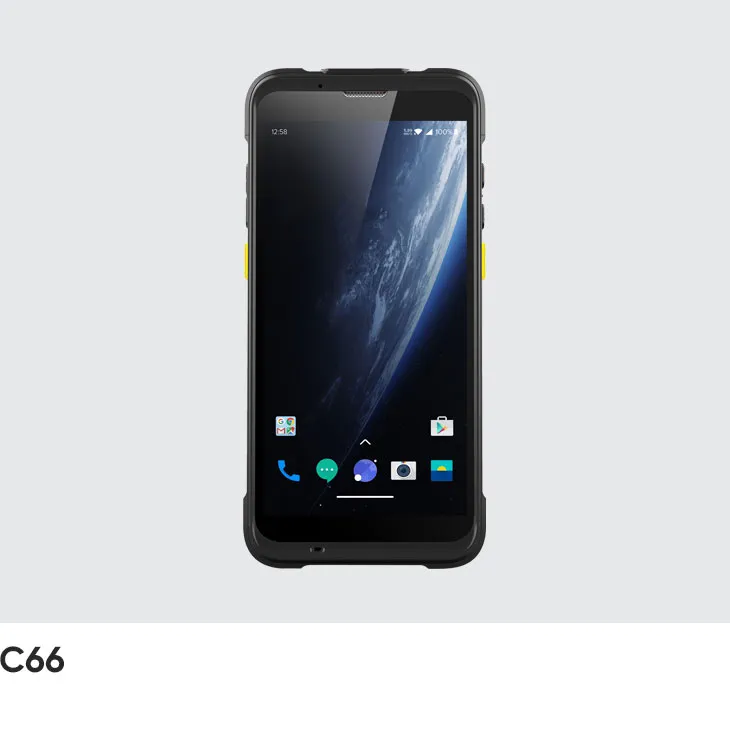

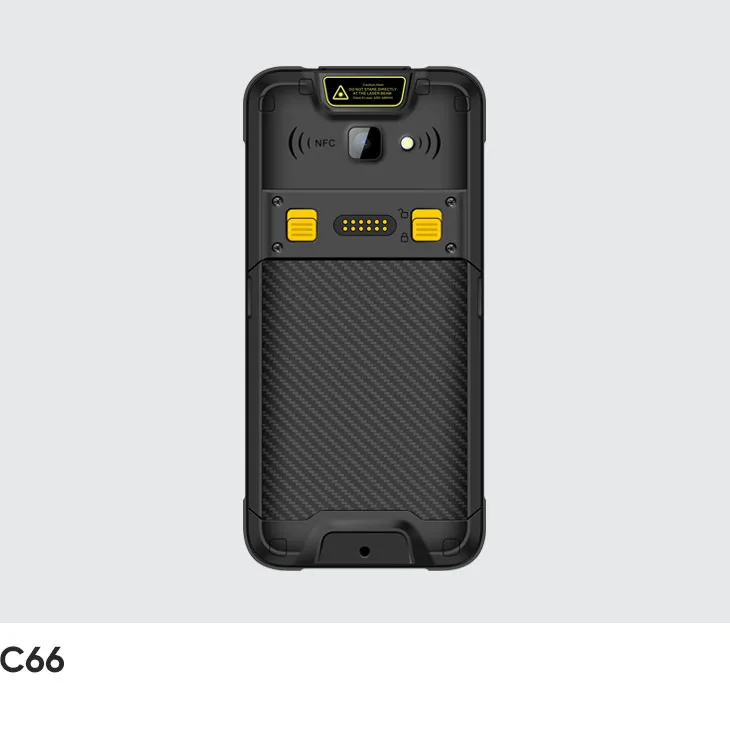

Chainway C66 Mobile Computer
A highly expandable, rugged handheld computer powered by an octa-core processor with Android 13. It features barcode scanning, UHF, NFC, fingerprint recognition, and more. Compatible with the R6 RFID sled, it also offers a built-in UHF version. With Wi-Fi 6 support, the C66 ensures stronger Wi-Fi performance, faster data transfer, and improved security.
- Operating systemAndroid 16/13/11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti…
- Display5.5-inch high definition full display (18:9) , IPS 1440 x 720
- ScanningZebra: SE4710/SE4100; Honeywell: N6603/N6703/6803FR/HS7; IA166S; CM60
- BatteryRemovable main battery (normal version:4420 mAh ; With fingerprint / built-in UHF version: 5200mAh ) 5200…
- SealingIP65 per IEC sealing specifications, IP67 optional
- DropMultiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 16/13/11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility Android 11/13/16; GMS, 90-day security updates, Android Enterprise
- Processor
- Octa-core, 2.0GHz
- RAM / storage options
- 3GB + 32GB / 4GB + 64GB / 6GB + 64GB / 6GB + 128GB
Display
- Display size
- 5.5-inch high definition full display (18:9) , IPS 1440 x 720
- Touch panel
- Multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 1 power key, 2 scan keys, 2 volume keys
Data capture
- Scan engines / capture options
- Zebra: SE4710/SE4100; Honeywell: N6603/N6703/6803FR/HS7; IA166S; CM60
- NFC
- Frequency 13.56MHz
- Cameras
- Rear 13 MP Autofocus with flash Facial Recognition lSO19794-5 Compatible Rear Camera Rear 13MP Autofocus with flash
Power
- Battery / runtime

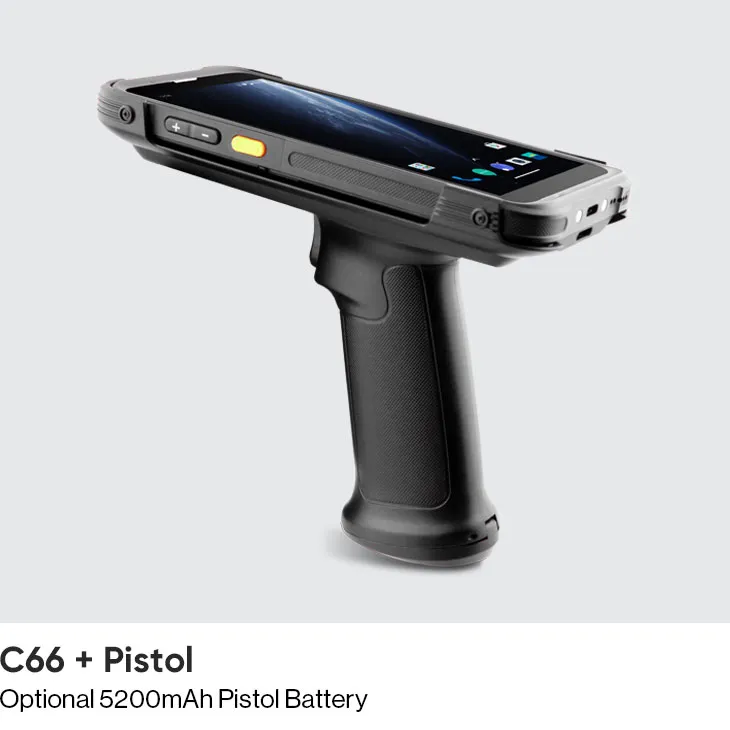

- Removable main battery (normal version:4420 mAh ; With fingerprint / built-in UHF version: 5200mAh ) 5200 mAh optional pistol battery, support QC 3.0 and RTC Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable) Removable main battery (normal version:4420 mAh; Android 11 with
- Charging / power
- 1W (30dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33dBm, for Latin America, etc.) 1 W (+5 dBm to +30 dBm adjustable) 1W (30dBm, +5dBm to +30dBm adjustable)
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4, IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC, WPA3-Enterprise,etc. Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,
- Bluetooth
- Bluetooth 5.1
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
- Ports / interfaces
- USB Type-C, USB 3.1, OTG, extended thimble
Rugged
- IP / sealing
- IP65 per IEC sealing specifications, IP67 optional
- Drop specification
- Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range; Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot MIL-STD-810H(SGS Test): Multiple 1.22 M drops (at least 20 times) to the plate across the operating temperature range Multiple 1.8m / 5.91ft. drops (at least 20 times) to the concrete across the
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification 1000 x 0.5m / 1.64ft. falls at room temperature
- Operating temperature
- -20 ℃~+50 ℃ Multiple 2.4m / 7.87ft. drops (at least 20 times) to the concrete after
- Storage temperature
- -40 ℃~+70 ℃
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 287 g / 10.12 oz. (device with battery); 297 g / 10.47 oz. (device with battery, Fingerprint / Built-in UHF)
- Dimensions
- 160.0 x 76.0 x 15.5 / 17.0mm / 6.3 x 2.99 x 0.61 / 0.67 in.
