Chainway · Handheld computer

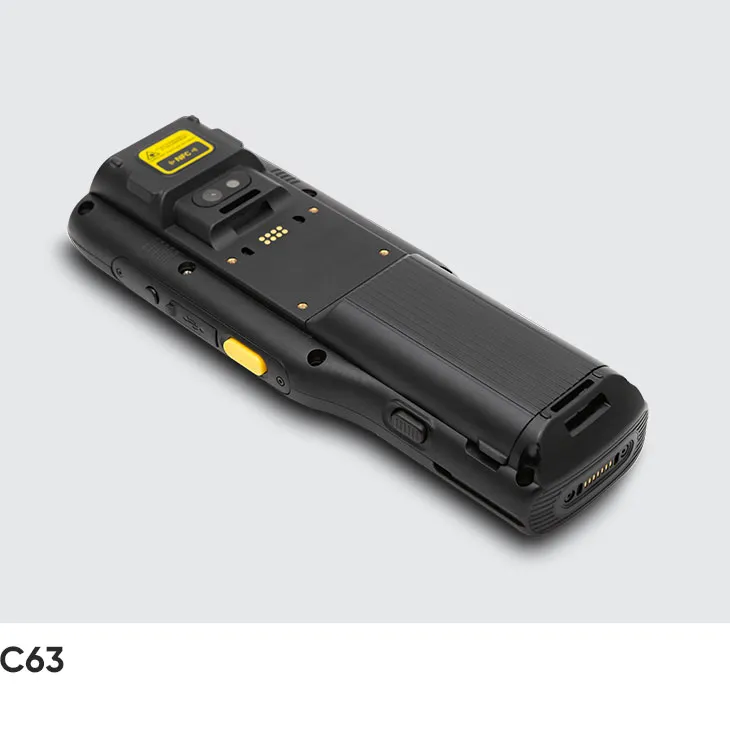

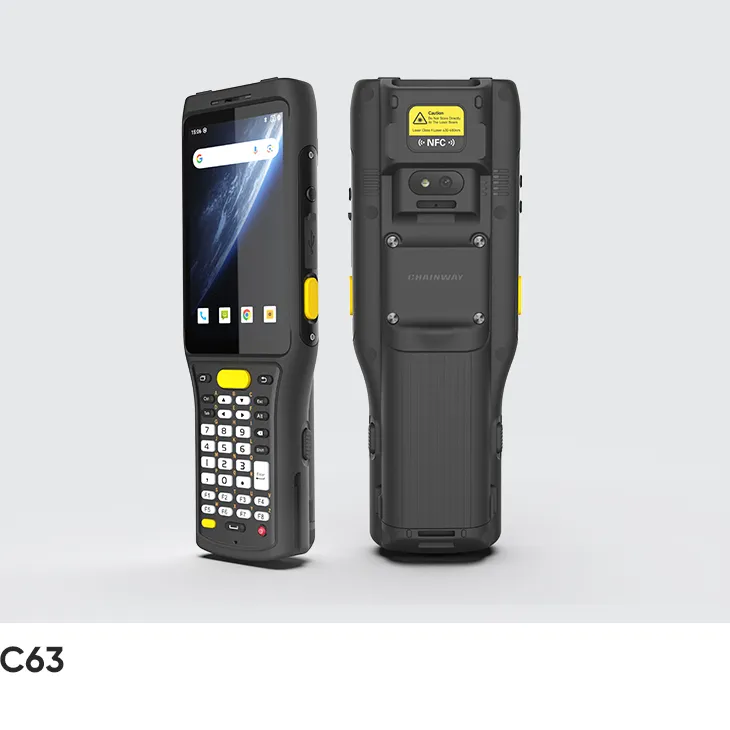

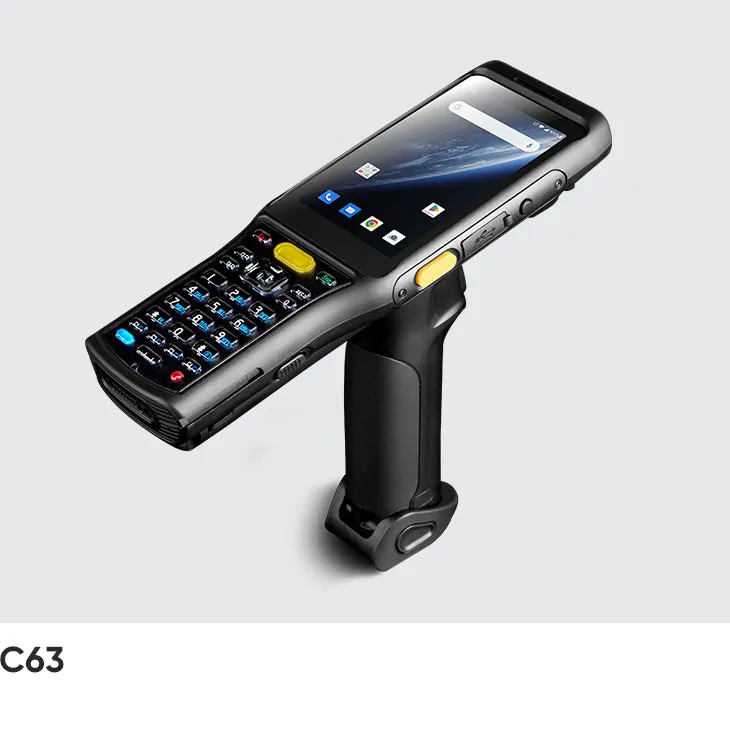

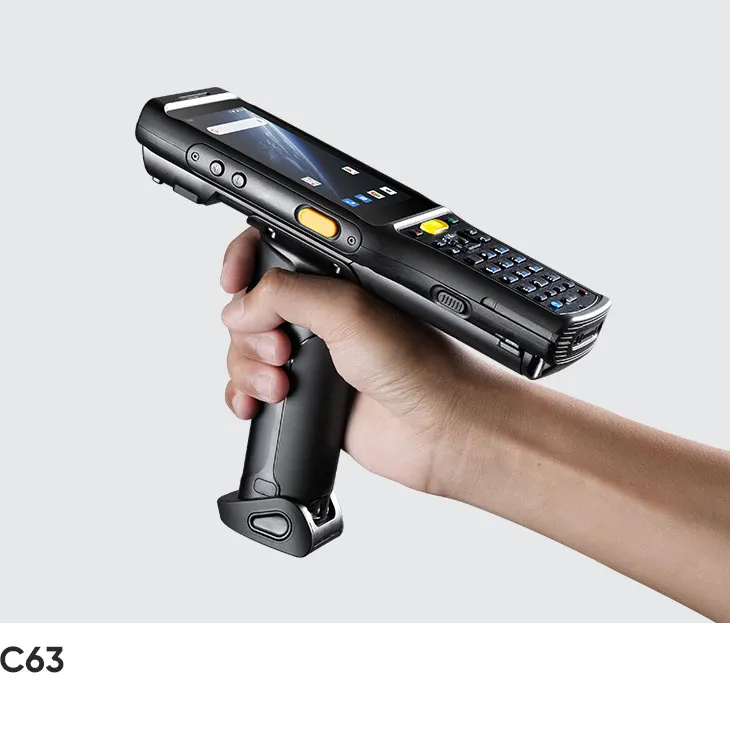

Chainway C63 Cold Storage Mobile Computer
Chainway C63 Cold Storage Mobile Computer is a rugged device featuring active heating for the display and scan window, which ensures responsive touch performance and minimizes condensation caused by sudden temperature shifts. A specialized 5600mAh battery provides extended endurance in sub-zero conditions, while the IP67-rated design withstands the high humidity and frequent handling of cold-chain logistics. Combining a high-performance platform with professional scanning engines, the C63 delivers precise data capture to optimize efficiency across food, medical, and logistics cold chains.
- Operating systemAndroid 13
- Display4-inch high definition display, 800 × 480
- Battery5600mAh removable main battery, 5000mAh optional pistol battery, support QC3.0 and RTC; pistol battery with…
- SealingIP67 per IEC sealing specifications
- DropMultiple 1.5m / 4.92ft. drops to concrete across the operating temperature range MIL-STD-810H (SGS Test)…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 13
- Processor
- Octa-core, 2.0GHz
- RAM / storage options
- UFS, 4GB + 64GB / 6GB + 128GB (optional)
Display
- Display size
- 4-inch high definition display, 800 × 480
- Touch panel
- Multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- Main keyboard (Optional) : 27 keys / 37 keys / 47 keys; Side keys: 2 scan keys + 2 volume keys + 1 user-defined key
Data capture
- Cameras
- Rear Camera: Rear 13MP autofocus with flash
Power
- Battery / runtime
- 5600mAh removable main battery, 5000mAh optional pistol battery, support QC3.0 and RTC; pistol battery with meter
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax-ready, support fast roaming
- Cellular / WWAN
- 2G: GSM850/GSM900/DCS1800/PCS1900 3G: CDMAEVDO: BC0  WCDMA: 850/900/1700/1900/2100MHz  TD-SCDMA: A/F (B34/B39) 4G: B1,B2,B3,B4,B5,B7,B8,B12,B13,B17,B20,B28,B38,B39, B40,B41
- Bluetooth
- Bluetooth 5.0
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
- Ports / interfaces
- USB Type-C, USB 3.1, OTG, extended thimble
Rugged
- IP / sealing
- IP67 per IEC sealing specifications
- Drop specification
- Multiple 1.5m / 4.92ft. drops to concrete across the operating temperature range MIL-STD-810H (SGS Test) : Multiple 1.5m / 4.92ft. drops to concrete across the operating temperature range
- Tumble specification
- 1000 × 0.5m / 1.64 ft. falls at room temperature
- Operating temperature
- -22℉ to 122℉ / -30℃ to 50℃
- Storage temperature
- -40℉ to 158℉ / -40℃ to 70℃
- Humidity
- 5%RH to 95%RH (non condensing)
Size
- Weight
- 385g / 13.58oz. (device with battery) 571g / 20.14oz. (device with pistol and battery)
- Dimensions
- 203.50 × 72.8 × 160mm / 8.01 × 2.87 × 6.30in. (with pistol) 203.50 × 72.8 × 34.8mm / 8.01 × 2.87 × 1.37in. (without pistol)
