Chainway · Handheld computer

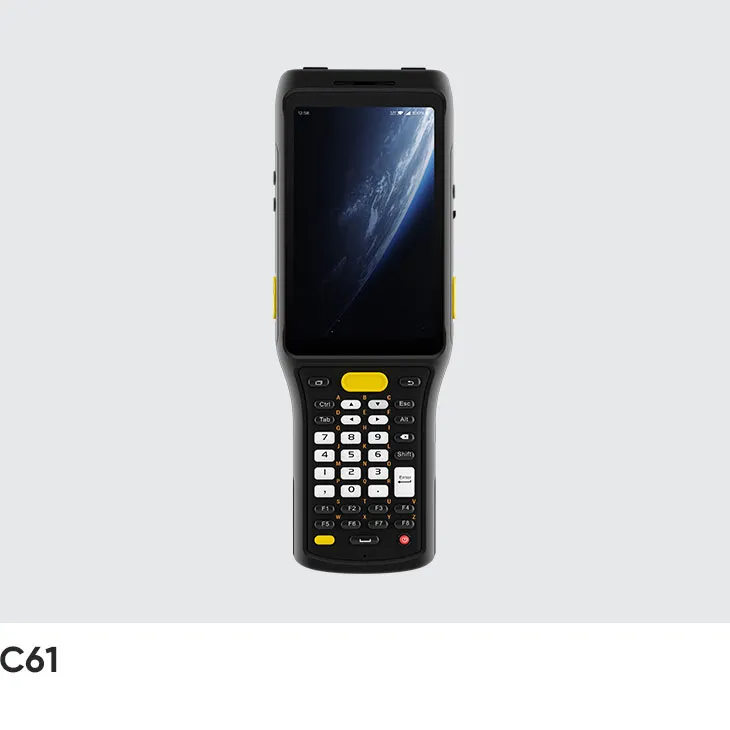

Chainway C61 Cold Storage Mobile Computer
An industrial-grade mobile computer running Android 11 / 13, the C61 Cold is designed for cold-chain warehousing in temperatures as low as -30℃. It features a low-temperature-resistant battery, an anti-condensation screen, Wi-Fi 6-ready connectivity, optional UHF and NFC, and a rugged IP65 design.
- Operating systemAndroid 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti…
- Display4-inch industrial-grade low-temperature-resistant capacitive touch screen, gloves and wet hands supported…

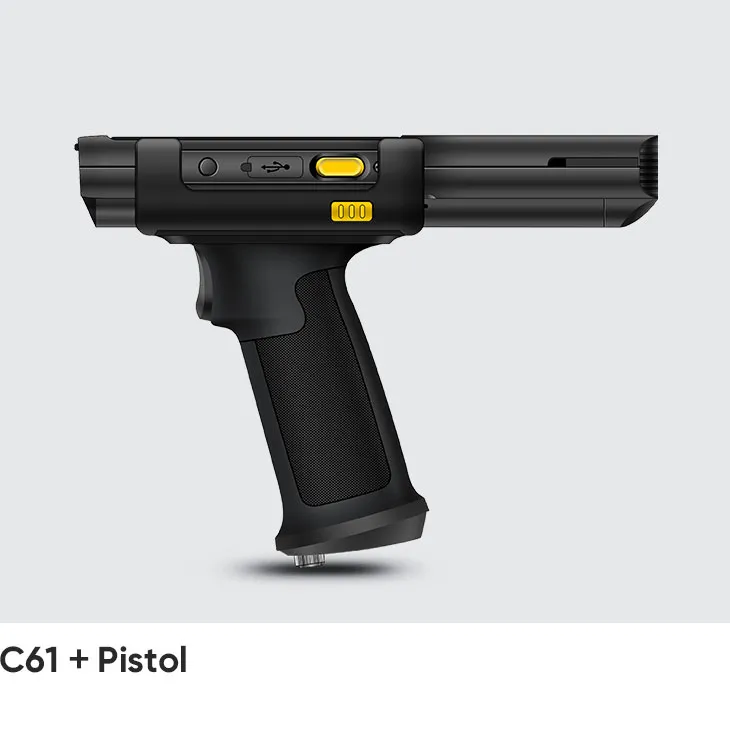

- Battery6400 mAh removable main battery, 5200 mAh optional pistol battery, support QC3.0 and RTC Continuous use: 5.5…
- SealingIP65 per IEC sealing specifications
- DropMultiple 1.8m / 5.9ft. drops (at least 20 times) to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility Android 11/13; GMS, 90-day security updates, Android Enterprise
- Processor
- Octa-core, 2.0 GHz
- RAM / storage options
- 3GB + 32GB / 4GB + 64GB / 6GB + 64GB
Display
- Display size
- 4-inch industrial-grade low-temperature-resistant capacitive touch screen, gloves and wet hands supported 800*480 4-inch industrial-grade low-temperature-resistant capacitive touch
- Touch panel
- Multi-touch panel, gloves and wet hands supported
- Keyboard / keys

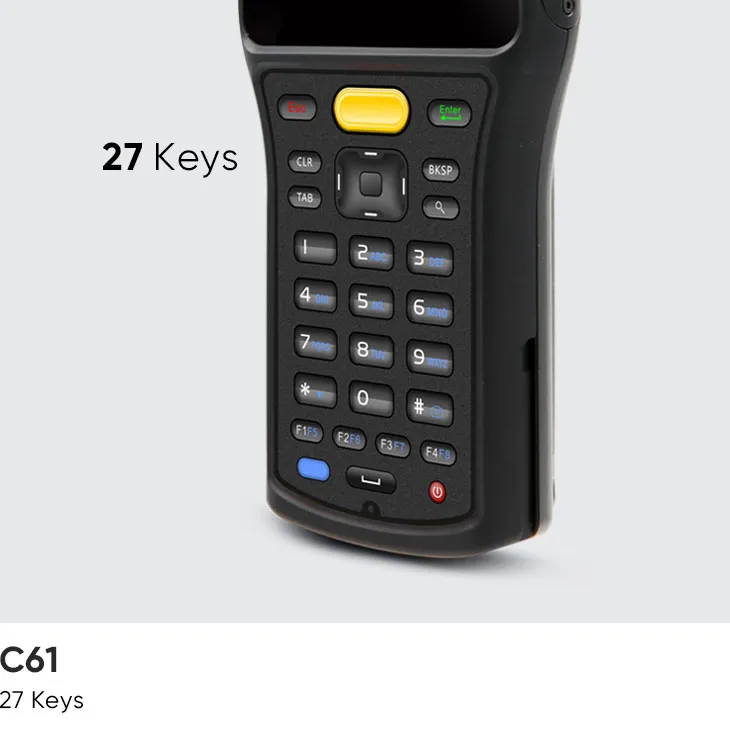

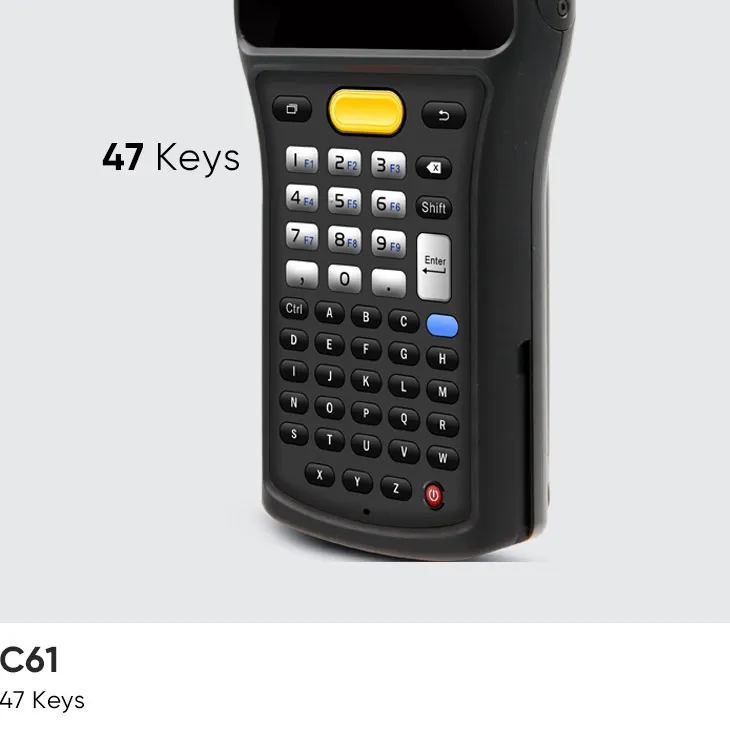

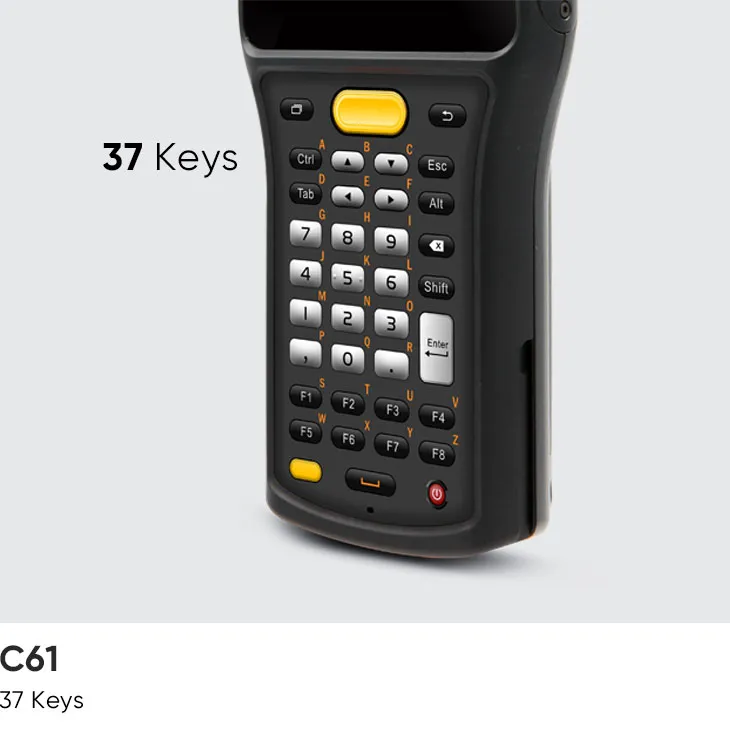

- Main keyboard (optional) : 27 keys / 37 keys / 47 keys; Side keys: 2 scan keys + 2 volume keys + 1 user-defined key
Data capture
- NFC
- Frequency 13.56MHz
- Cameras
- Rear 13 MP Autofocus with flash Rear Camera Rear 13 MP Autofocus with flash
Power
- Battery / runtime
- 6400 mAh removable main battery, 5200 mAh optional pistol battery, support QC3.0 and RTC Continuous use: 5.5 hours (continuous scan at 500ms interval at -30° C / -22° F) 6400 mAh removable main battery, 5200 mAh optional
- Charging / power
- 1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.)
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dualband, IPV4, IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G (channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120, 124,128,132,136,140,144,149,153,157,161,165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC, etc. Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dualband, IPV4, IPV6, 5G PA;
- Bluetooth
- Bluetooth 5.1
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
- Ports / interfaces
- USB Type-C, USB 3.1, OTG, extended thimble
Rugged
- IP / sealing
- IP65 per IEC sealing specifications
- Drop specification
- Multiple 1.8m / 5.9ft. drops (at least 20 times) to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5m / 1.64ft. falls at room temperature Specification 1000 x 0.5m / 1.64ft. falls at room temperature
- Operating temperature
- -22°F to 122°F / -30°C to 50°C
- Storage temperature
- -40°F to 158°F / -40°C to 70°C
- Humidity
- 5%RH - 95%RH non condensing
Size
- Weight
- 370g / 13.05oz. (SE4710) ; 404g / 14.25oz. (SE4850)
- Dimensions
- 202.0 x 72.5 x 32.0mm / 7.95 x 2.85 x 1.26in
