Chainway · Handheld computer

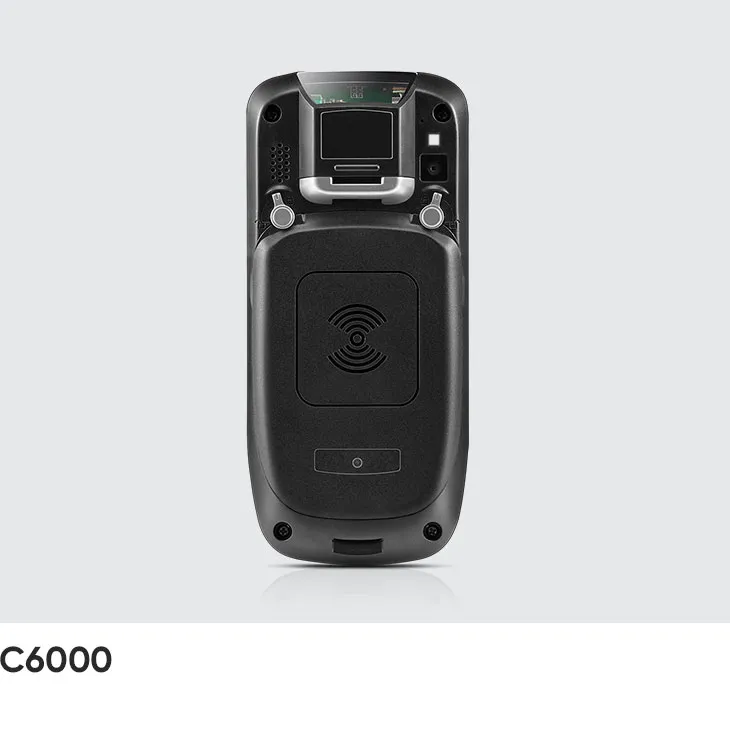

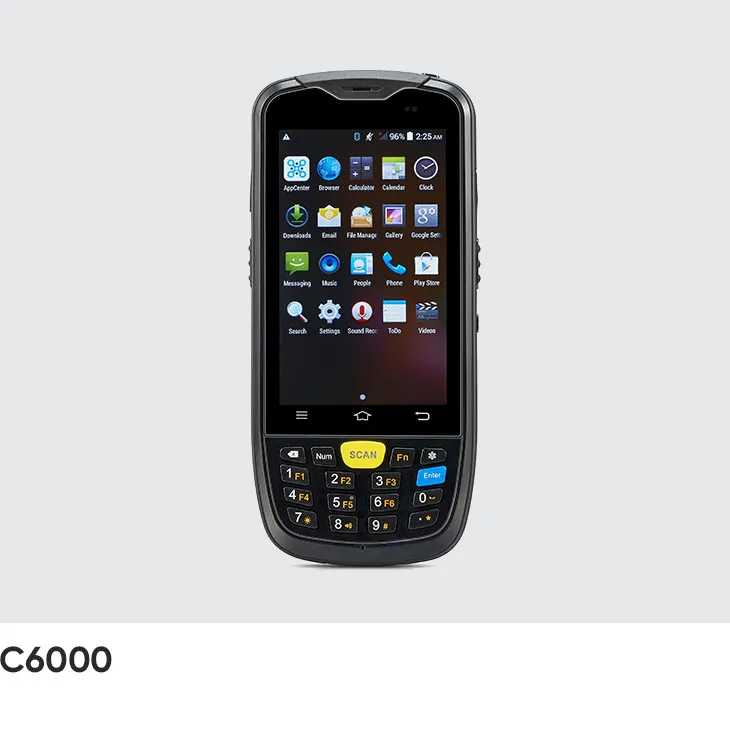

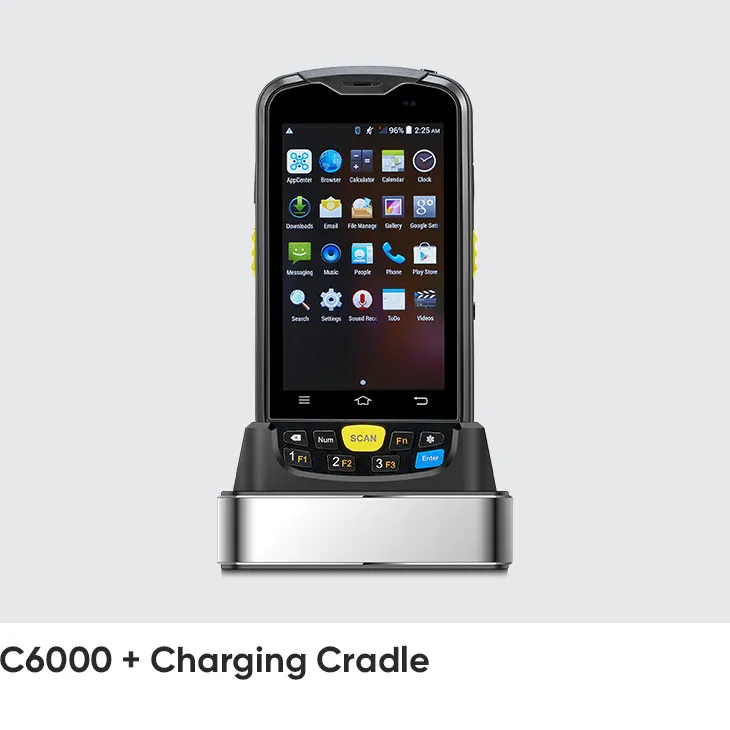

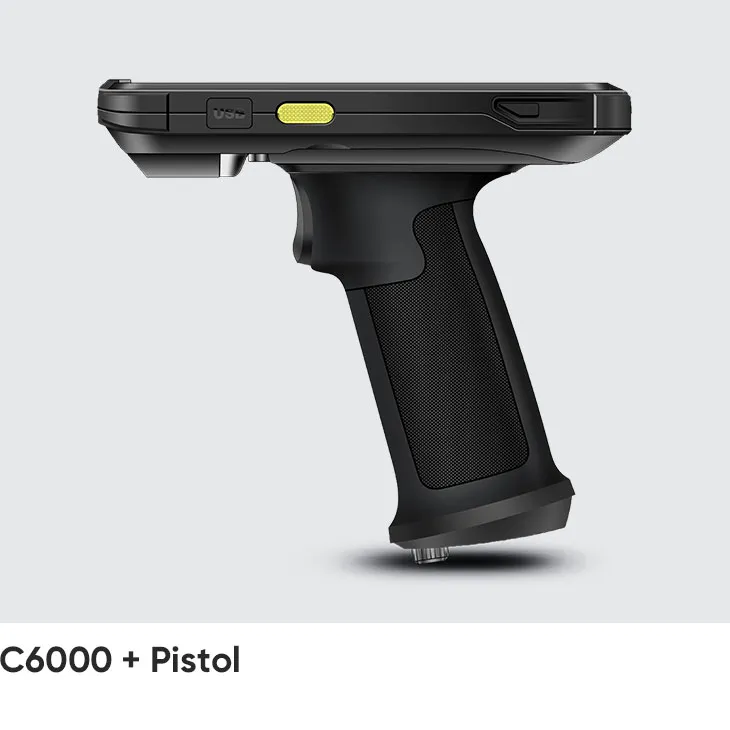

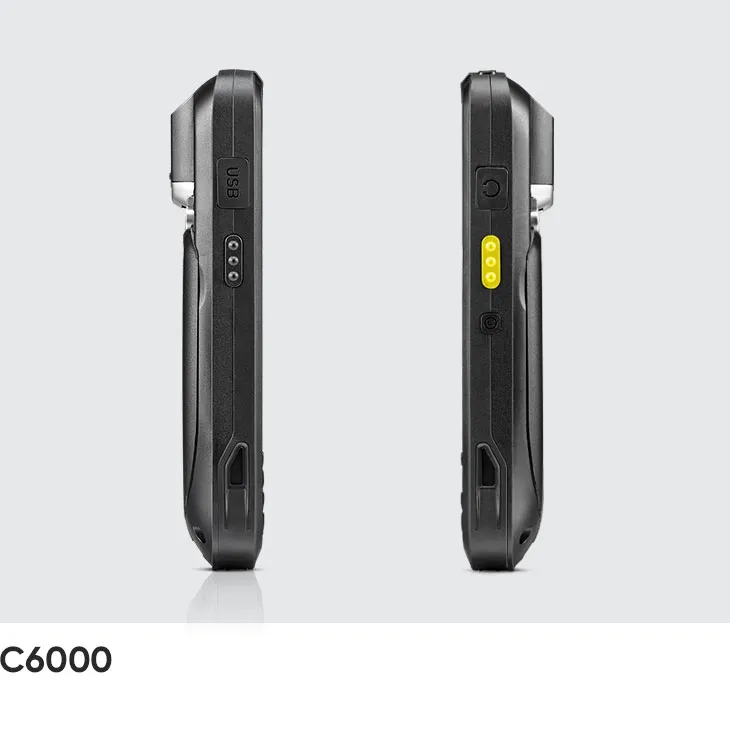

Chainway C6000 Mobile Computer
Chainway C6000 is an Android-based rugged Handheld Computer. With its fast 4G connectivity and powerful quad-core processor as well as the comprehensive data capture options
- Operating systemAndroid 10.0 / 13.0; GMS, Soti MobiControl (Only Android 10.0 support); FOTA, SafeUEM supported.
- Display4'' TN α-Si 480*800, 16.7 M colors
- SealingIP65 per IEC sealing specifications
- DropMultiple 2.0 m / 6.56 ft. drops to concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 10.0 / 13.0; GMS, Soti MobiControl (Only Android 10.0 support); FOTA, SafeUEM supported.
- Processor
- Octa-core, 2.0GHz
- RAM / storage options
- 3GB + 32GB
Display
- Display size
- 4'' TN α-Si 480*800, 16.7 M colors
- Touch panel
- Rugged dual touch capacitive touch panel
- Keyboard / keys
- 3 TP soft keys, 3 side keys, numeric keyboard (Optional : 20 keys)
Data capture
- Cameras
- 13MP Autofocus with Flash Rear Camera 13 MP Autofocus with Flash
Power
- Charging / power
- Main battery: Li-ion, rechargeable, 4200 mAh Standby: over 300 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) Main battery: Li-ion, removable, 4200mAh
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108, 112,116,120,124,128,132,136,140,149,153,157,161,165, depends on local regulations Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6,
- Cellular / WWAN
- 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA: B1/B2/B4/B5/B8        TD-SCDMA: A/F(B34/B39) 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/ B28B/B34/B38/B39/B40/B41 2G: GSM850/GSM900/DCS1800/PCS1900
- Bluetooth
- V2.1+EDR, 3.0+HS and V4.1+HS, BT5.0
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, internal antenna
- Ports / interfaces
- USB 2.0, Type-C, OTG
Rugged
- IP / sealing
- IP65 per IEC sealing specifications
- Drop specification
- Multiple 2.0 m / 6.56 ft. drops to concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Operating temperature
- -4°F to 122°F / -20°C to 50°C
- Storage temperature
- -40°F to 158°F / -40°C to 70°C
- Humidity
- 5%RH - 95%RH non condensing
Size
- Weight
- 292 g / 10.3 oz.
- Dimensions
- 157.6 x 73.7 x 29 mm / 6.2 x 2.9 x 1.1 in.
