CAB · Label printer
CAB XC Q

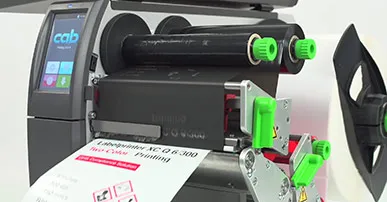

The XC Q have two thermal transfer printing units arranged in series for simultaneously printing with two colors on a label.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Label printer
- XC Q4
- Print resolution
- 300
- Print speed mm/s max.
- 150
- Print width mm max.
- 105.7
- Width of a material mm max.
- 114
- Label printer
- XC Q6.3
- Print width mm max.
- 162.6
- Width of a material mm max.
- 180
- Guidance of materials
- aligned to the left
- Finishing Roll diameter mm max.
- 300
- Finishing Core diameter mm
- 76
- Finishing Winding
- outside or inside
- Label Height mm at least
- 10
- Label Thickness mm max.
- 0.1
- Liner Thickness mm
- 0.03 - 0.16
- Continuous Thickness mm
- 0.03 - 0.5
- Continuous Weight (cardboard) g/m 2 max.
- 300
- Ribbon 2) Color side
- outside or inside
- Ribbon Roll diameter mm max.
- 80
- Ribbon Core diameter mm
- 25.4
- Ribbon Length m max.
- 450
- Transmissive sensor detecting
- labels, punch marks, materials ending, print marks on translucent materials
- Reflective sensor from below or top detecting
- labels, materials ending, print marks on non-translucent materials
- Sensor distance to locating edge mm
- 5 - 60
- Material passage mm max.
- 2
- Ethernet 10/100 Mbit/s
- IPv4 / IPv6 static IP / DHCP · IEEE 802.1X
- Voltage
- 100 - 240 VAC, 50/60 Hz, PFC
- Consumption of power
- < 15 W in standby / 100 W in typical operation / max. 200 W
- Temperature / humidity Operation
- +5 - 40°C / 10 - 85 %, not condensing
- Temperature / humidity Stock
- 0 - 60°C / 20 - 85 %, not condensing
- Temperature / humidity Transport
- –25 - 60°C / 20 - 85 %, not condensing
- Approvals
- CE, UKCA, FCC Class A, ICES-3, cULus, CB, CCC, BSMI, Mexico Reg.
- Approvals in preparation
- BIS, KC-Mark
- Color LCD touchscreen Diagonal "
- 4.3
- Color LCD touchscreen Resolution Width x Height px
- 272 x 480
- Controls
- no final cutter position
- Roll diameter mm max.
- 300
- Core diameter mm
- 40 if a winder axle or a cardboard core are in use 76 if a cardboard core is in use with an adapter
- Winding
- outside or inside
