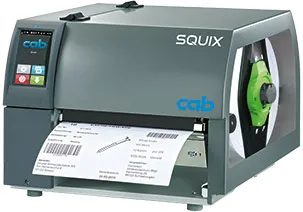

CAB SQUIX
The focus of SQUIX development was on an easy, intuitive operation, reliability and speed when printing and high printing accuracy.
- ScanningCC200-SQ
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Label printer
- SQUIX 2
- Label printer
- SQUIX 6.3
- Label printer
- SQUIX 8.3
- Print resolution
- 300
- Print speed mm/s max.
- 150
- Print width mm max.
- 216
- Finishing Roll diameter mm max.
- 205
- Finishing Core diameter mm
- 38.1 - 76
- Finishing Winding
- outside or inside
- Continuous Thickness mm
- 0.03 - 0.5
- Continuous Weight (cardboard) g/m 2 max.
- 300
- Ribbon 3) Color layer
- outside or inside
- Ribbon Roll diameter mm max.
- 80
- Ribbon Core diameter mm
- 25,4
- Outside diameter mm max.
- 142
- Core diameter mm
- 40
- Winding
- outside
- Transmissive sensor detecting
- labels, punch marks, materials ending, print marks on translucent materials
- Reflective sensor from below or top detecting
- labels, materials ending, print marks on non-translucent materials
- Material passage mm max.
- 2 (5 are an option)
- Ethernet 10/100 Mbit/s
- IPv4 / IPv6 static IP / DHCP · IEEE 802.1X
- Voltage
- 100 - 240 VAC ~ 50/60 Hz, PFC
- Power consumption
- <10 W in standby / 100 W in typical operation / max. 200 W
- Temperature / humidity: Operation
- +5 - 40°C / 10 - 85 %, not condensing
- Temperature / humidity: Stock
- 0 - 60°C / 20 - 85 %, not condensing
- Temperature / humidity: Transport
- –25 - 60°C / 20 - 85 %, not condensing
- Approvals
- CE, UKCA, FCC Class A, ICES-3, cULus, CB, CCC, BIS, BSMI, KC-Mark, Mexico Reg. → BIS, KC-Mark not provided for SQUIX 8.3
- Color LCD touchscreen Diagonal ″
- 4.3
- Color LCD touchscreen Resolution Width x Height px
- 272 x 480
- Operated with basic and peel-off units
- SQUIX 4.3, SQUIX 4 SQUIX 4.3P, SQUIX 4P SQUIX 4.3 M, SQUIX 4 M SQUIX 4.3 MP, SQUIX 4 MP SQUIX 4.3 MT, SQUIX 4 MT
- Controls
- no final cutter position, cover off cutter
- Label height mm max.
- 100
- Material Weight (cardboard) gr/m 2
- 60-300
- Cutting length mm at least
- 5
- Material passage mm max.
- 2.5
- Performance* cuts/min
- 100
- Printing stops if
- no final cutter position
- Perforation : Width of off-cuts mm
- 0.5
- Material: Width mm max.
- 85
- Material: Weight (cardboard) gr/m 2
- 60 - 300
- Material: Thickness mm
- 0.05 - 1.1
- Scan engines / capture options
- CC200-SQ
- Operated with
- all SQUIX units
- Scan distance mm
- 45 - 150
- Scan angle °
- -15 to +15
- Number of codes on a label
- 1
- Controls GOODBAD
- check of legibility
- Controls VERIFY
- check of legibility and results compared with initial data
- Roll diameter mm max.
- 142
- Clamping axle provided for core diameters of mm
- 38.1 - 40
- Roll diameter mm max.
- 205
- Core diameter mm
- 40 if a winder axle or a cardboard core are in use 76 if a cardboard core is in use with an adapter
- Winding
- outside or inside
- Roll diameter mm max.
- 300
- Core diameter mm
- 38.1
- Core diameter mm if an adapter is in use
- 76
- Operated with
- SQUIX 2, SQUIX 4.3, SQUIX 4, SQUIX 4.3 M, SQUIX 4 M, SQUIX 6.3
- Consumption of power W max.
- 15
- Compressed air bar
- 4.5
- Cycle rate labels/min approx. 1)
- 25
