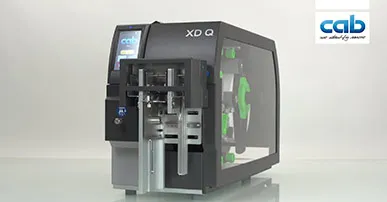

CAB XD Q
The XD Q printer provides two print heads assembled head to head on the device.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Finishing Roll diameter mm max.
- 300
- Finishing Core diameter mm
- 38.1 - 76
- Finishing Winding
- outside or inside
- Label Width mm
- 10 - 110
- Label Height mm at least
- 20
- Label Thickness mm max.
- 0.1
- Liner Width mm
- 14 - 114
- Liner Thickness mm
- 0.03 - 0.16
- Continuous Width mm
- 4 - 114
- Continuous Thickness mm
- 0.03 - 0.5
- Continuous Weight (cardboard) g/m 2 max.
- 300
- Shrink tube Width ready for use mm max.
- 114
- Shrink tube Width continuous, pressed mm
- 4 - 85
- Shrink tube Thickness mm max.
- 1.1
- Ribbon 2) Color layer
- outside or inside
- Ribbon Roll diameter mm max.
- 80
- Ribbon Core diameter mm
- 25.4
- Ribbon Length m max.
- 450
- Ribbon Width mm max.
- 114
- Width x height x depth mm
- 248 x 395 x 594
- Weight kg
- 21
- Transmissive sensor detecting
- labels, punch marks, materials ending, print marks on translucent materials
- Reflective sensor from below or top detecting
- labels, materials ending, print marks on non-translucent materials
- Sensor distance centre to locating edge centered mm
- 0 - 55
- Material passage mm max.
- 2
- Processor, 32 bit clock rate MHz
- 800
- RAM MB
- 256
- IFFS MB
- 50
- Port for plugging a SD memory card (SDHC, SDXC) GB max.
- 512
- Ethernet 10/100 Mbit/s
- IPv4 / IPv6 static IP / DHCP · IEEE 802.1X
- Voltage
- 100 - 240 VAC, 50/60 Hz, PFC
- Consumption of power
- < 15 W in standby / 100 W in typical operation / max. 200 W
- Temperature / humidity Operation
- +5 - 40°C / 10 - 85 %, not condensing
- Temperature / humidity Stock
- 0 - 60°C / 20 - 85 %, not condensing
- Temperature / humidity Transport
- –25 - 60°C / 20 - 85 %, not condensing
- Approvals
- CE, UKCA, FCC Class A, ICES-3, cULus, CB, CCC, BIS, BSMI, KC-Mark, Mexico Reg.
- Color LCD touchscreen Diagonal "
- 4.3
- Color LCD touchscreen Resolution Width x Height px
- 272 x 480
- Controls
- no final cutter position
- Stacker providing a cutter
- ST400 M
- Material Passage width mm
- 20 - 100
- Material Passage height mm max.
- 1.2
- Material Weight (cardboard) gr/m 2
- 60 - 300
- Material Thickness mm
- 0.05 - 0.8
- Cutting length mm
- 20 - 150
- Performance cuts/min at use of material 1 mm high, no backfeed
- 100
- Limit of collecting mm max.
- 100
- Controls
- no final cutter position, paper jam, stacker cover open, limit of collecting
- Width of a material mm max.
- 120
- Tightening axle core diameter in mm
- 76
- Winding
- outside or inside
- Voltage
- 100 - 240 V, 50/60 Hz
