CAB · Label printer

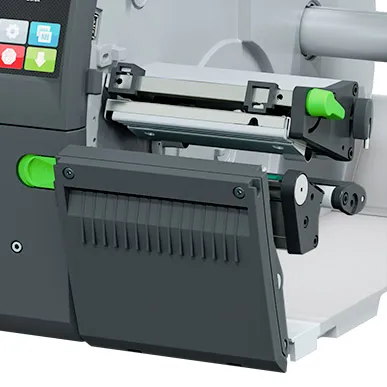

CAB SQUIX Linerless
For printing linerless labels using direct thermal printing.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Label printer
- Direct thermal
- Continuous linerless material wound onto a roll
- Direct thermal paper
- Label Height mm at least
- 30
- Label Thickness μm max.
- 110
- Unwinder Roll outside diameter mm max.
- 205
- Unwinder Roll Core diameter mm
- 38.1 - 76
- Unwinder Roll Winding
- outside
- Sensor
- Material provided, material ending
- Processor, 32 bit clock rate MHz
- 800
- RAM MB
- 256
- IFFS MB
- 50
- Ethernet 10/100 Mbit/s
- IPv4 / IPv6 static IP / DHCP · IEEE 802.1X
- Voltage
- 100 - 240 VAC ~ 50/60 Hz, PFC
- Consumption of power
- <10 W in standby / 100 W in typical operation / max. 200 W
- Temperature / humidity: Operation
- +5 - 40°C / 10 - 85%, not condensing
- Temperature / humidity: Stock
- 0 - 60°C / 20 - 85%, not condensing
- Temperature / humidity: Transport
- –25 - 60°C / 20 - 85%, not condensing
- Approvals
- CE, UKCA, FCC Class A, ICES-3, cULus, CB, CCC, CoC, BIS, BSMI, KC-Mark, Mexico Reg.
- Color LCD touchscreen Diagonal ″
- 4.3
- Color LCD touchscreen Resolution Width x Height px
- 272 x 480
