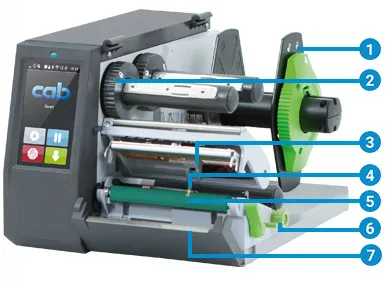

CAB EOS2/EOS5
The EOS series combines all functions of a solid label printer with highest operating comfort.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1.1 Label printer
- EOS2
- Charging / power
- 100 - 240 VAC, 50/60 Hz
- 1.2 Label printer
- EOS5
- 1.3 Label printer
- EOS2 mobile
- Printable resolution dpi
- 300*
- Print speed up to mm/s
- 150
- Print width up to mm
- 105.7
- Label roll diameter up to mm
- 152
- Charging / power
- 16.5 - 25 VDC
- 1.4 Label printer
- EOS5 mobile
- Label roll diameter up to mm
- 203
- Material feed
- centered
- Start of printing Distance to locating edge mm
- centered
- Packing Core diameter mm
- 38.1 - 76
- Packing Winding
- outside or inside
- Labels Width single-lane mm
- 10 - 116
- Labels Width multi-lane mm
- 5 - 116
- Labels Height excl. label backfeed from mm
- 5
- LabelsHeight incl. label backfeed from mm
- 12
- Labels Thickness mm
- 0.05 - 0.6
- Liner material Width mm
- 25 - 120
- Liner material Thickness mm
- 0.03 - 0.16
- Continuous material Width mm
- 5 - 120
- Continuous material Thickness mm
- 0.03 - 0.5
- Continuous material Weight (cardboard) up to g/m 2
- 180
- Shrink tubes Width ready-for-use up to mm
- 120
- Shrink tubes Width continuous, pressed mm
- 5 - 85
- Shrink tubes Thickness up to mm
- 1.1
- Ribbon 2) Ink side
- outside or inside
- Ribbon Roll diameter up to mm
- 72
- Ribbon Core diameter mm
- 25.4
- Ribbon Variable length up to m
- 360
- Ribbon Width mm
- 25 –114
- Gap sensor for
- labels or punch marks and end of material, print marks on transparant materials
- Reflective sensor from below or top for
- labels and end of material, print marks on non-transparent materials
- Distance from center to locating edge centered mm
- 0 - 58
- Material passage up to mm
- 4
- Processor 32 bit clock rate MHz
- 800
- Main storage (RAM) MB
- 256
- Data storage (IFFS) MB
- 50
- Slot for SD memory card (SDHC, SDXC) up to GB
- 512
- Ethernet 10/100 Mbit/s
- IPv4 / IPv6 static IP / DHCP · IEEE 802.1X
- Power consumption
- Standby <5 W / typical 45 W / max. 100 W
- Temperature / humidity Operation
- +5 - 40°C / 10 - 85 %, not condensing
- Temperature / humidity Storage
- 0-60°C / 20 - 85 %, not condensing
- Temperature / humidity Transport
- –25 - 60°C / 20 - 85 %, not condensing
- Technical data
- for EOS2, EOS5
- Material Width mm
- 120
- Material Weight cardboard gr/m 2
- 60 - 240
- Material Thickness mm
- 0.05 - 1.1
- Cutting length from mm
- 10
- Gap height up to mm
- 2.5
- Cuts/min up to
- 200
- Label winding
- preferably outside
- Monitoring
- Cutter pivoted, final cutter position has not been reached
- Perforating Web distance mm
- 2.5
- Perforating Web width mm
- 0.8
- Material Width mm
- 45
- Roll diameter up to mm
- 390
- Core diameter from mm
- 38
