Apple iPad mini

Specifications

Year introduced

Late 2012

Capacity

16 GB, 32 GB, 64 GB

Model numbers

A1432 on the iPad mini Wi-Fi A1454 on the iPad mini Wi-Fi + Cellular A1455 on the iPad mini Wi-Fi + Cellular (MM)

Color

Black & Slate White & Silver

Models

Wi-Fi Wi-Fi + Cellular

Dimensions / weight

Wi-Fi Height: 7.87 inches (200 mm) Width: 5.3 inches (134.7 mm) Depth: 0.28 inch (7.2 mm) Weight: 0.68 pound (308 g) Wi-Fi + Cellular Height: 7.87 inches (200 mm) Width: 5.3 inches (134.7 mm) Depth: 0.28 inch (7.2 mm) Weight: 0.69 pound (312 g)

Storage

16GB 32GB 64GB

Wireless and Cellular

Wi-Fi 802.11a/b/g/n Wi-Fi (802.11n 2.4GHz and 5GHz) Bluetooth 4.0 wireless technology Wi-Fi + Cellular Model A1454* GSM/EDGE (850, 900, 1800, 1900 MHz) UMTS/HSPA+/DC-HSDPA (850, 900, 1900, 2100 MHz) LTE (Bands 4 and 17) Model A1455* CDMA EV-DO Rev. A and Rev. B (800, 1900, 2100 MHz) GSM/EDGE (850, 900, 1800, 1900 MHz) UMTS/HSPA+/DC-HSDPA (850, 900, 1900, 2100 MHz) LTE (Bands 1, 3, 5, 13, 25) Data only3 802.11a/b/g/n Wi-Fi (802.11n 2.4GHz and 5GHz) Bluetooth 4.0 wireless technology

Display

7.9-inch (diagonal) LED-backlit Multi-Touch display with IPS technology 1024-by-768 resolution at 163 pixels per inch (ppi) Fingerprint-resistant oleophobic coating

Processor

Dual-core A5

Cameras, Photos, and Video Recording

FaceTime HD Camera 1.2MP photos 720p HD video FaceTime video calling over Wi-Fi or cellular4 Face detection Backside illumination Tap to control exposure for video or still images Photo and video geotagging iSight Camera 5MP photos Autofocus Face detection Backside illumination Five-element lens Hybrid IR filter ƒ/2.4 aperture Tap to focus video or still images Tap to control exposure for video or still images Photo and video geotagging Video Recording 1080p HD video recording Video stabilizatio

External Buttons and Connectors

External Buttons and Controls Home On/Off; Sleep/Wake Silent/Screen rotation lock Volume up/down Connectors and Input/Output Microphone 3.5-mm stereo headphone minijack Lightning connector Built-in speaker

Battery / runtime

Wi-Fi Built-in 16.3-watt-hour rechargeable lithium-polymer battery Up to 10 hours of surfing the web on Wi-Fi, watching video, or listening to music Charging via power adapter or USB to computer system Wi-Fi + Cellular Built-in 16.3-watt-hour rechargeable lithium-polymer battery Up to 10 hours of surfing the web on Wi-Fi, watching video, or listening to music Up to 9 hours of surfing the web using cellular data network Charging via power adapter or USB to computer system

Input/Output

Wi-Fi Lightning connector 3.5-mm stereo headphone minijack Built-in speaker Microphone Wi-Fi + Cellular Lightning connector 3.5-mm stereo headphone minijack Built-in speaker Microphone Nano-SIM card tray

Sensors

Three-axis gyro Accelerometer Ambient light sensor

Location

Wi-Fi Wi-Fi Digital compass Wi-Fi + Cellular Wi-Fi Digital compass Assisted GPS and GLONASS Cellular

Audio Playback

Frequency response: 20Hz to 20,000Hz Audio formats supported: AAC (8 to 320 Kbps), Protected AAC (from iTunes Store), HE-AAC, MP3 (8 to 320 Kbps), MP3 VBR, Audible (formats 2, 3, 4, Audible Enhanced Audio, AAX, and AAX+), Apple Lossless, AIFF, and WAV User-configurable maximum volume limit

TV and Video

AirPlay Mirroring to Apple TV (2nd and 3rd generation) at 720p AirPlay video streaming to Apple TV (3rd generation) at up to 1080p and Apple TV (2nd generation) at up to 720p Video mirroring and video out support: Up to 720p through Lightning Digital AV Adapter and Lightning to VGA Adapter; video playback up to 1080p (sold separately) Video formats supported: H.264 video up to 1080p, 30 frames per second, High Profile level 4.1 with AAC-LC audio up to 160 Kbps, 48kHz, stereo audio in .m4v, .mp4,

Mail Attachment Support

Viewable document types: .jpg, .tiff, .gif (images); .doc and .docx (Microsoft Word); .htm and .html (web pages); .key (Keynote); .numbers (Numbers); .pages (Pages); .pdf (Preview and Adobe Acrobat); .ppt and .pptx (Microsoft PowerPoint); .txt (text); .rtf (rich text format); .vcf (contact information); .xls and .xlsx (Microsoft Excel)

Languages

Language support for English (U.S.), English (UK), Chinese (Simplified), Chinese (Traditional), French, German, Italian, Japanese, Korean, Spanish, Arabic, Catalan, Croatian, Czech, Danish, Dutch, Finnish, Greek, Hebrew, Hungarian, Indonesian, Malay, Norwegian, Polish, Portuguese, Portuguese (Brazil), Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese Keyboard support for English (U.S.), English (Australian), English (Canadian), English (UK), Chinese - Simplified (Handwriti

Accessibility

VoiceOver screen reader Guided Access Support for playback of closed-captioned content AssistiveTouch interface for adaptive accessories Full-screen zoom magnification Large text Option to invert colors Left/right volume adjustment

Environmental Requirements

Operating ambient temperature: 32° to 95° F (0° to 35° C) Nonoperating temperature: -4° to 113° F (-20° to 45° C) Relative humidity: 5% to 95% noncondensing Maximum operating altitude: 10,000 feet (3000 m)

System Requirements

Apple ID (required for some features) Internet access 6 Syncing with iTunes on a Mac or PC requires: Mac: OS X v10.6.8 or later PC: Windows 7; Windows Vista; or Windows XP Home or Professional with Service Pack 2 or later Download iTunes at www.itunes.com/download

In the Box

iPad mini Lightning to USB Cable USB Power Adapter

Built-in Apps

Safari Photos App Store Maps Photo Booth Reminders Camera Mail FaceTime iTunes Music Clock Calendar Messages Newsstand Videos Game Center Contacts Notes

iPad mini and the Environment

Apple takes a complete product life cycle approach to determining our environmental impact. Learn more about iPad mini and the Environment iPad mini embodies Apple’s continuing environmental progress. It is designed with the following features to reduce environmental impact: Mercury-free LCD display Arsenic-free display glass BFR-free PVC-free Recyclable aluminum enclosure Apple and the Environment Learn more about Apple’s dedication to reducing the environmental impact of our products and proce

Published identification feature

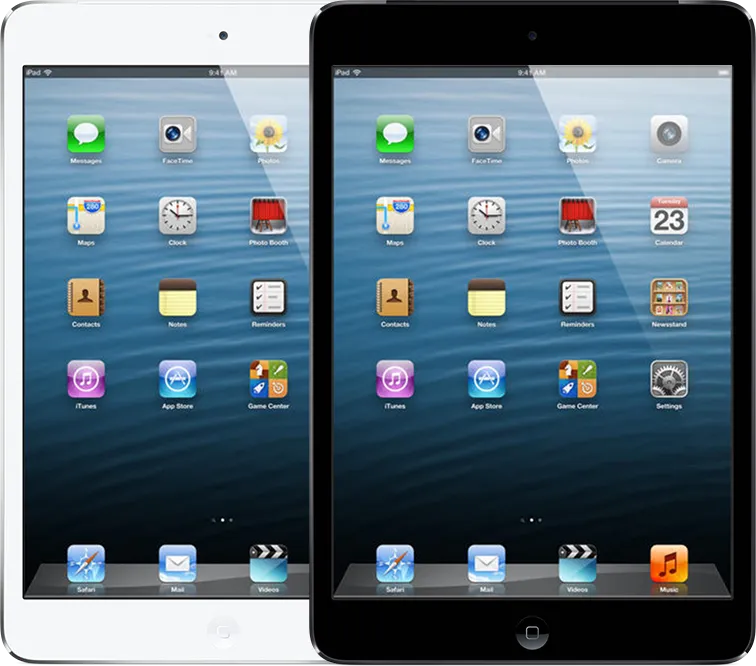

White or black front bezel

Published identification feature

The nano-SIM tray is on the left side on iPad mini Wi-Fi + Cellular

Published identification feature

FaceTime HD and iSight cameras*
