Unitech · Wearable computer

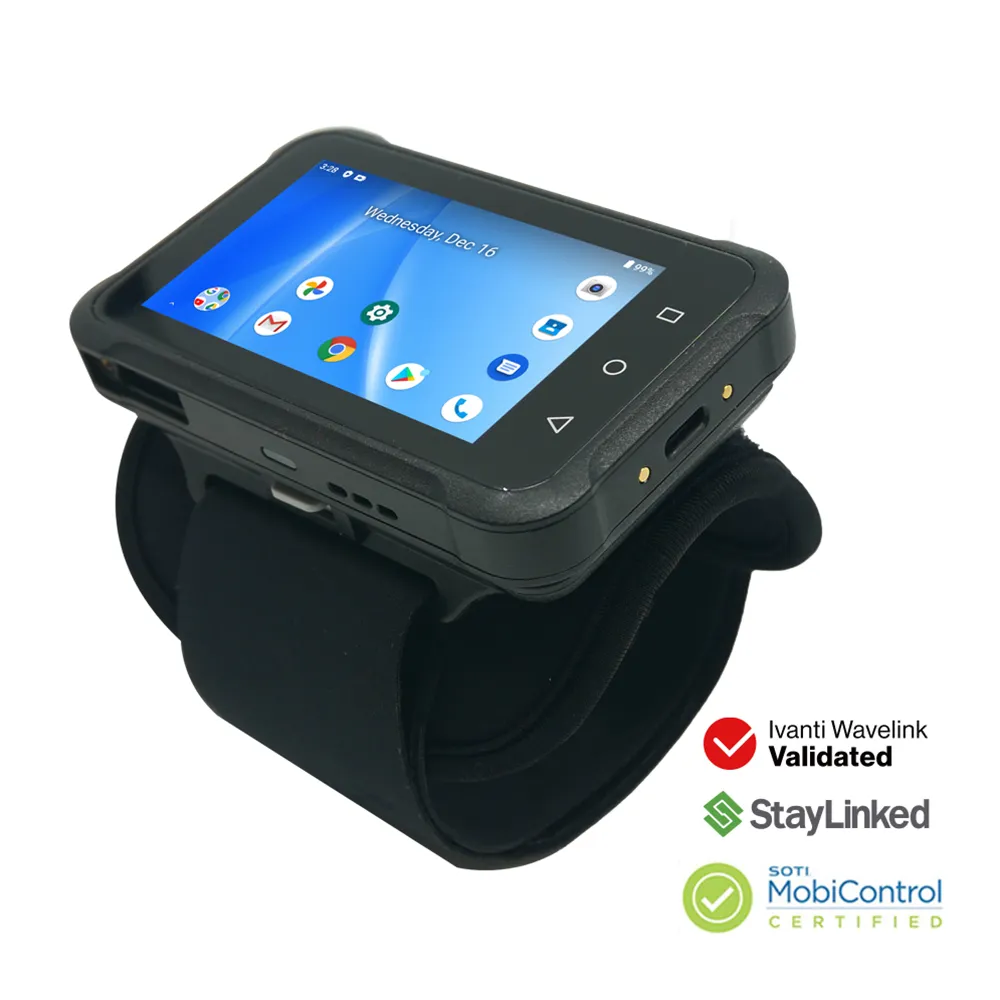

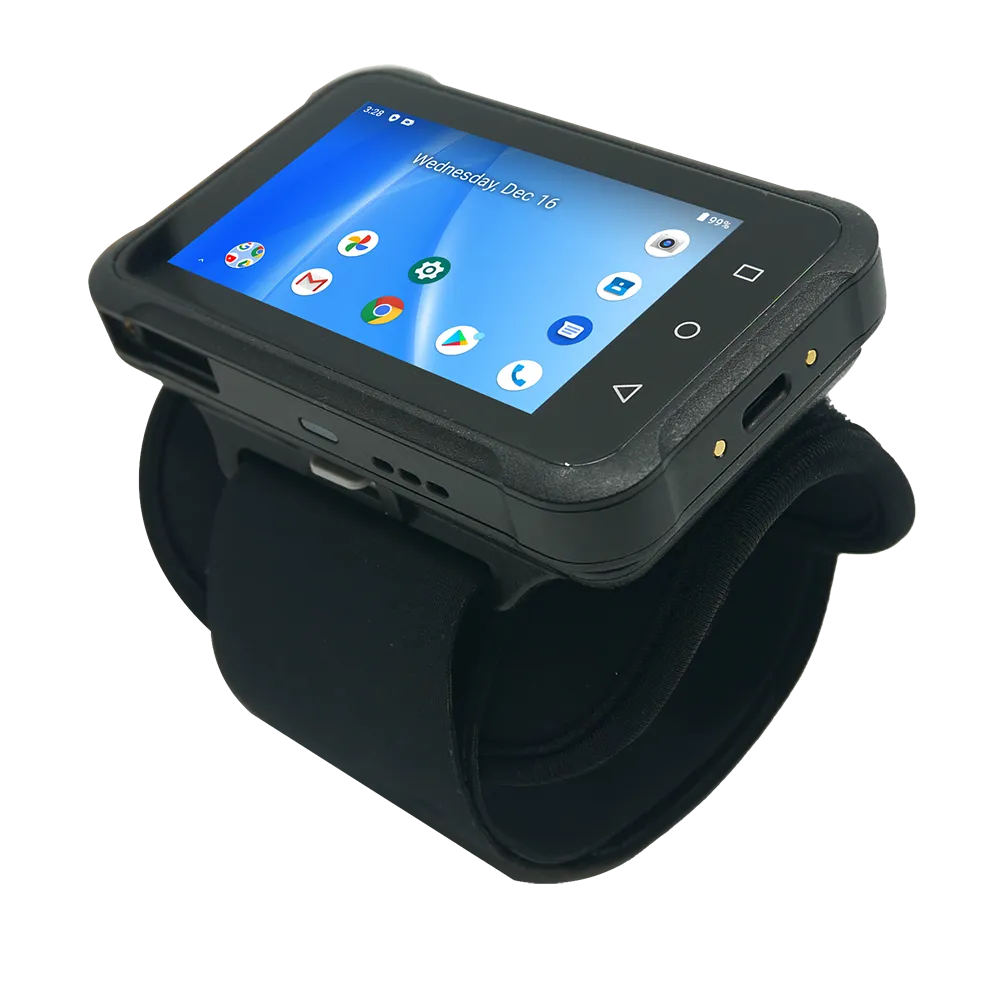

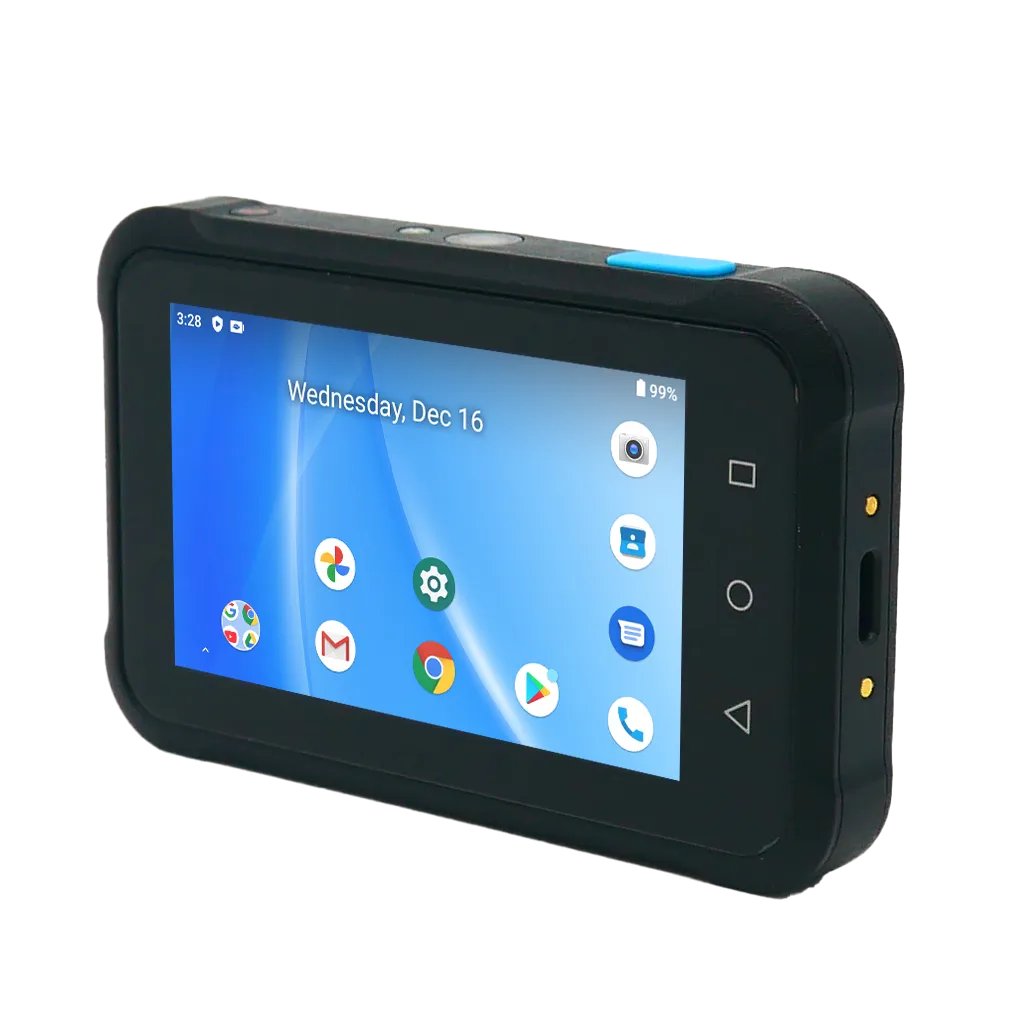

Unitech WD200 (2nd Gen)
Qualcomm® 660 platform | 110g with 2050mAh battery | 2X2 MU-MIMO Wi-Fi
- Operating systemAndroid 10
- Display3.1” Color TFT-LCD (800 X 480) High Resolution Display (450 nits)
- Battery3.85V, 2050mAh Li-polymer battery (embedded, can be repaired)
- SealingIP67
- Drop1.5 meter, MIL-STD 810G
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 10
- Processor
- Qualcomm Snapdragon™ 660 Octa Core, 2.2 GHz , 64bits
- RAM / storage options
- RAM 3GB Flash 32GB
Display
- Display size
- 3.1” Color TFT-LCD (800 X 480) High Resolution Display (450 nits)
- Touch panel
- Ultra sensitive capacitive touch screen, compatible with gloves and support wet resistance
Data capture
- Cameras
- 13 MP Rear and Flash Light
Power
- Battery / runtime
- 3.85V, 2050mAh Li-polymer battery (embedded, can be repaired)
Connectivity
- Wi-Fi / WLAN
- IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v, IPv4, IPv6 Security of Wi-Fi : WEP, WPA/WPA2 PSK, 802.1x EAP,OWE, SAE Fast Roaming : PMKID caching, 802.11r, OKC 2x2 MU-MIMO, Dual-Band Simultaneous (DBS)
- Cellular / WWAN
- LTE: FDD-LTE (B1/B3/B4/B7/B20) TDD-LTE (B38/B39/B40/B41)
- Bluetooth
- Bluetooth® 5
- Location / GPS
- GPS/GLONASS/Gallileo/Beidou
Rugged
- IP / sealing
- IP67
- Drop specification
- 1.5 meter, MIL-STD 810G
- Tumble specification
- 1,000 tumbles @ 1.6 ft./0.5 m
- Operating temperature
- -4°F to 122°F (-20°C to 50°C)
- Storage temperature
- -4°F to 158°F (-20°C to 70°C)
- Humidity
- 5% ~ 95% (non-condensing)
Size
- Weight
- 110g (with battery)
- Dimensions
- 96.7mm x 60.7mm x 14.43 mm
