Unitech · Tablet

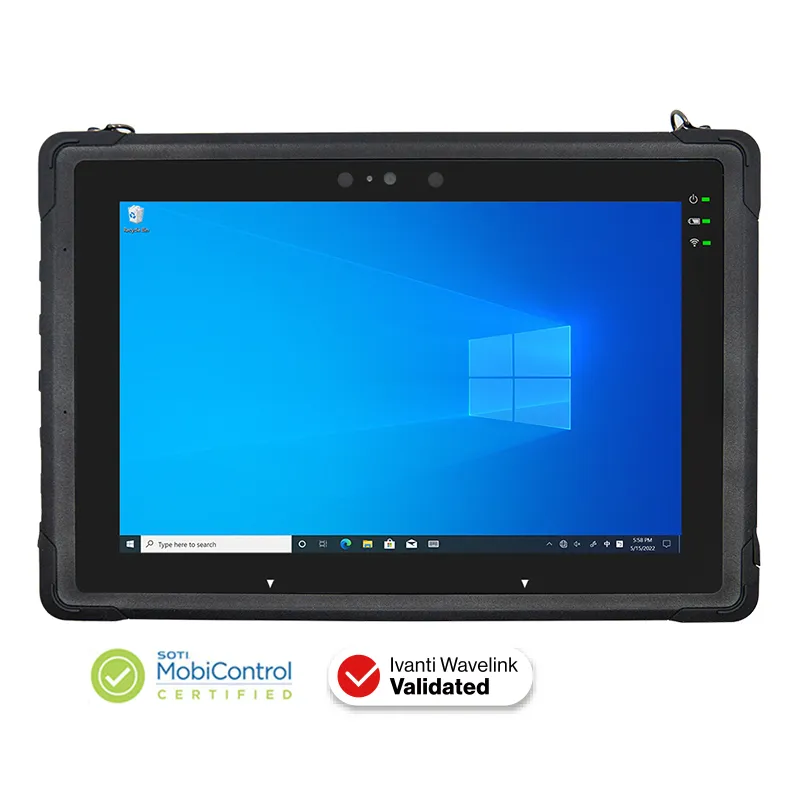

Unitech TB170
Wi-Fi 6 Technology｜800 nits Sunlight Readable ｜Sensitive Digitizer Support
- Operating systemWindows 11
- Display10.1" (1920 x 1200) IPS 800nits brightness sunlight readable display
- BatteryBattery:7.68V, 4300mAh/32Wh Backup Battery: 7.4V, 142mAh / 1.05Wh Hot-swappable Battery Operation: up to 9…
- SealingIP65
- Drop1.5m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Windows 11
- Processor
- 2.6Ghz, Intel® Gemini Lake-R Celeron N4120
- RAM / storage options
- RAM 8GB Flash 128GB
Display
- Display size
- 10.1" (1920 x 1200) IPS 800nits brightness sunlight readable display
- Touch panel
- 10-point multi-touch, support glove mode and wet-touch mode (Support MPP2.0 Digitizer Pen)
Data capture
- Cameras
- 2MP front camera 8MP rear camera, Auto Focus, Flash
Power
- Battery / runtime
- Battery:7.68V, 4300mAh/32Wh Backup Battery: 7.4V, 142mAh / 1.05Wh Hot-swappable Battery Operation: up to 9 hours (depends on usage function and environment)
Connectivity
- Wi-Fi / WLAN
- Wi-Fi 6 802.11a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax (2X2 MIMO) Intel Wi-Fi Module: AX200
- Cellular / WWAN
- Optional: Quectel EM06-E (EMEA/APAC) Optional: Quectel EM06-A (North America)
- Bluetooth
- Bluetooth® 5.2
- Location / GPS
- GPS/ GLONASSS/ GALILEO
Rugged
- IP / sealing
- IP65
- Drop specification
- 1.5m
- Tumble specification
- MIL-STD 810G, shock & vibration
- Operating temperature
- -10~50°C
- Storage temperature
- -20~60°C
- Humidity
- 5%-95%
Size
- Weight
- 990g
- Dimensions
- 283 x 192 x 15 mm
