Unitech · Accessory

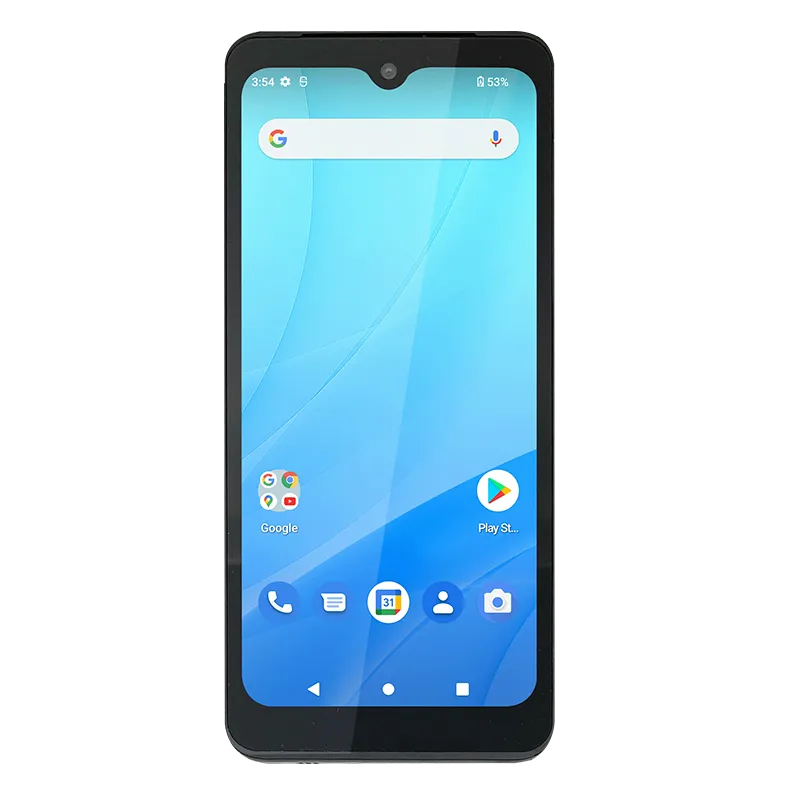

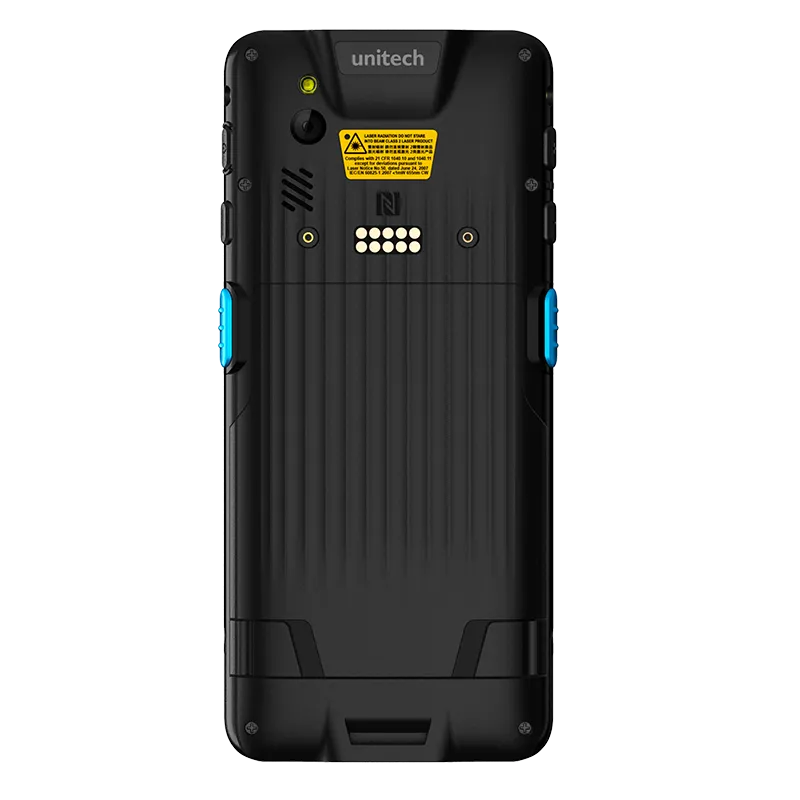

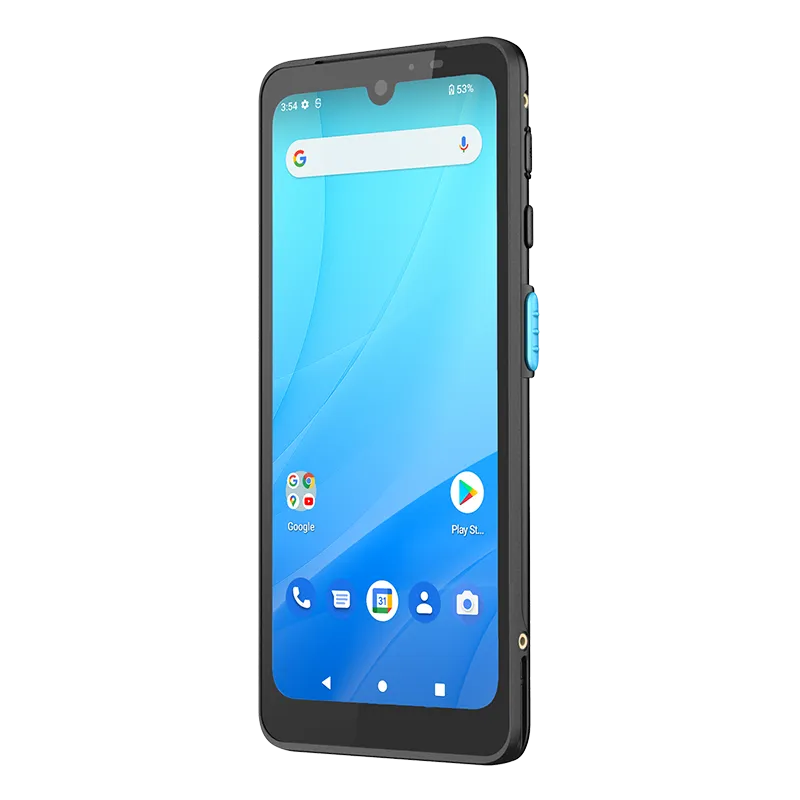

Unitech PA768e UHF
4G eSIM & Wi-Fi 6E｜5100mAh hot-swappable battery｜ Built-in RFID (Impinj E310) up to 1.8M
- Operating systemAndroid 14, upgradeable to Android 16
- Display6.3” Color LCD 2340 X 1080 (FHD+) High Resolution Display
- BatteryHot Swappable 5100mAh Li-Polymer battery / battery with cover in one piece
- SealingIP65 & IP68
- Drop1.5 m, 1.8 m w/ optional bumper
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 14, upgradeable to Android 16
- Processor
- Qualcomm Snapdragon™ 6225 Processor, 8 Cores, up to 2.4GHz
- RAM / storage options
- 6 GB RAM / 64GB Flash, UFS6 GB RAM / 128GB Flash, UFS (Optional)
Display
- Display size
- 6.3” Color LCD 2340 X 1080 (FHD+) High Resolution Display
- Keyboard / keys
- Programmable key, Volume up/down key, Left/right scan key, Power key
Data capture
- Cameras
- 5 MP Front camera 16 MP Rear Camera with LED flash and auto-focus function
Power
- Battery / runtime
- Hot Swappable 5100mAh Li-Polymer battery / battery with cover in one piece
Connectivity
- Wi-Fi / WLAN
- 2.4GHz & 5GHz & 6GHz IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v/ax, support Wi-Fi 6E Support Wi-Fi 6E, MU-MIMO (2x2), Wi-Fi Direct and Hotspot Security WPA3, WPA2, WPA & WEP
- Cellular / WWAN
- 4G LTE(FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 14, 17, 20, 28 (TDD) – Bands 38, 39, 40, 41 3G UMTS/HSPA+ – Bands 1, 2, 5, 8 2G GSM/GPRS/EDGE (850/900/1800/1900 MHz)
- Bluetooth
- Bluetooth® 5.1
- Location / GPS
- GPS/ GLONASS/ Gallileo/ Beidou
Rugged
- IP / sealing
- IP65 & IP68
- Drop specification
- 1.5 m, 1.8 m w/ optional bumper
- Operating temperature
- -20°C to 55°C (-4°F to 131°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F), w/ battery
- Humidity
- 5% ~ 95% (Non-Condensing)
Size
- Weight
- 270g (w/o bumper & hand strap)
- Dimensions
- 167 x 75.5 x 17 mm
