Unitech · Handheld computer

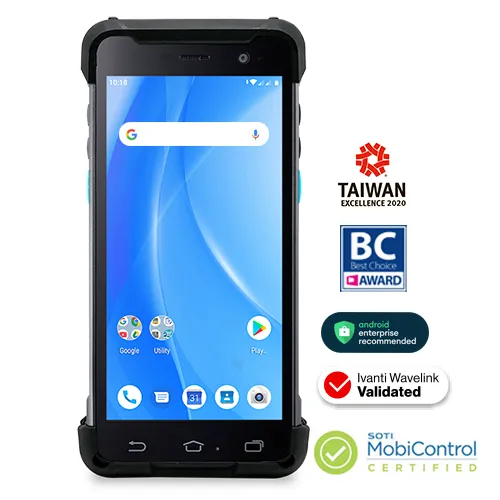

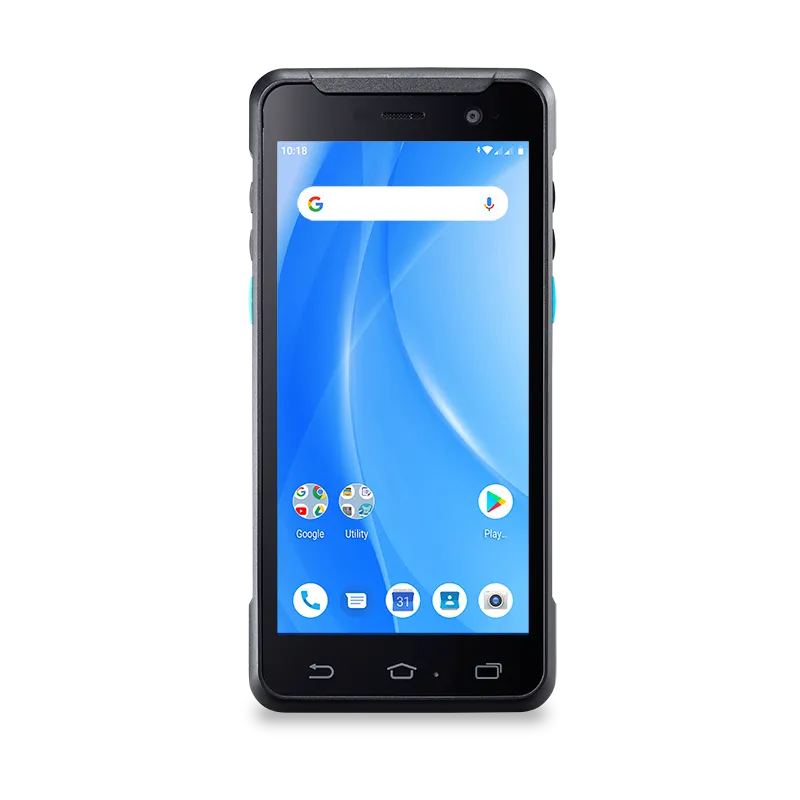

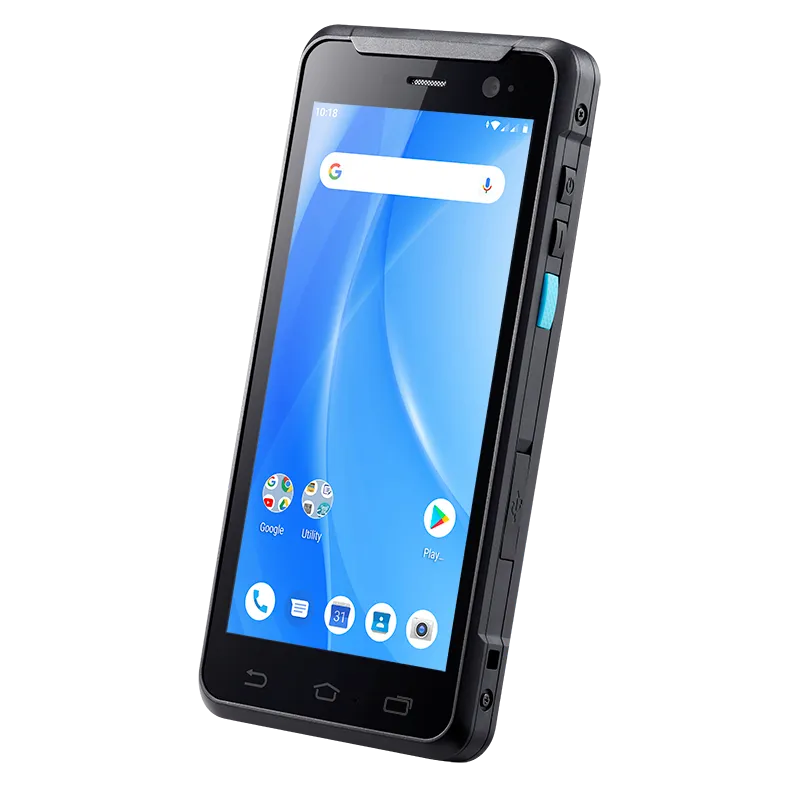

Unitech PA760
Powered by Android 10 OS with GMS & AER Certified, it is a 5.45” rugged PDA with barcode function.
- Operating systemAndroid 10
- Display5.45” Color LCD 1440x720 High Resolution Display
- BatteryRechargable Li-Polymer 3.8V 4000mAh / battery with cover in one piece
- SealingIP65 & IP67
- Drop1.8 meter with bumper(default)/ 1.5 meter without bumper/ MIL-STD-810G, 516.7 Procedure IV
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 10
- Processor
- 2.2 GHz, Qualcomm Snapdragon™ 660 Octa Core Processor, 64bits
- RAM / storage options
- 4 GB RAM / 64GB Flash
Display
- Display size
- 5.45” Color LCD 1440x720 High Resolution Display
- Touch panel
- Gorilla Glass 3 with 5-point Capacitive Touch Panel, High sunlight visibility- LCD backlight up to 500nits with optical direct bounding
Data capture
- Cameras
- 5 MP Front camera 16 MP Rear with LED flash and auto-focus function
Power
- Battery / runtime
- Rechargable Li-Polymer 3.8V 4000mAh / battery with cover in one piece
Connectivity
- Wi-Fi / WLAN
- IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v, IPv4, IPv6 Security of WLAN : WEP, WPA/WPA2 PSK, 802.1x EAP, OWE, SAE Fast Roaming : PMKID caching, 802.11r, OKC MIMO(2x2), Dual-Band Simultaneous (DBS)
- Cellular / WWAN
- 4G LTE FDD: Band 1(2100), Band 2(1900), Band 3(1800), Band 4(1700), Band 5(850), Band 7(2600), Band 8(900), Band 17(700bc), Band 20(800), Band 28(700) TDD: Band 38(2600), Band 39(1900), Band 41(2500) *Support Dual Sim Dual 4G VoLTE (Nano-SIM Slot*2)
- Bluetooth
- Bluetooth® 5
- Location / GPS
- GPS/GLONASS/Gallileo/Beidou
Rugged
- IP / sealing
- IP65 & IP67
- Drop specification
- 1.8 meter with bumper(default)/ 1.5 meter without bumper/ MIL-STD-810G, 516.7 Procedure IV
- Tumble specification
- 600 tumbles @ 0.5 m
- Operating temperature
- -20°C to 50°C
- Storage temperature
- - 30°C to 70°C (without battery)
- Humidity
- 5% ~ 95% (Non-Condensing)
Size
- Weight
- 300g (with standard battery)
- Dimensions
- 163mm x 75mm x 17.4mm
