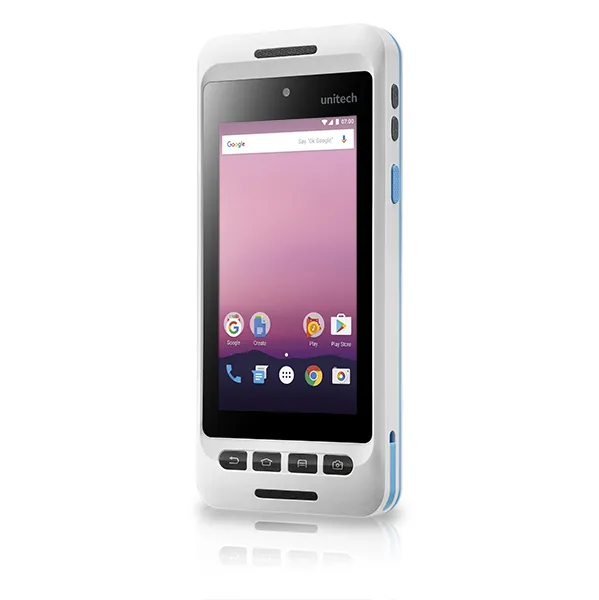

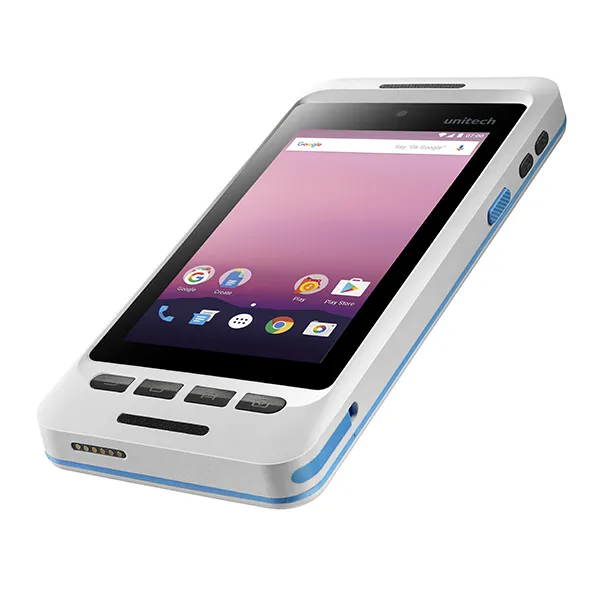

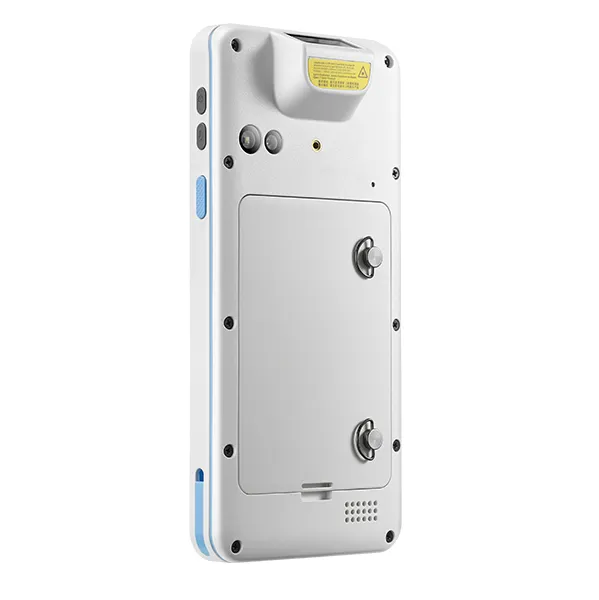

Unitech PA726MCA
The PA726MCA is an ideal Mobile Clinical Assistant for nursing care.
- Operating systemAndroid 7.1.2
- Display4.7” Color LCD 1280X720 High Resolution Display
- BatteryRechargable Li-ion Battery 3.6V 3220mAh
- SealingIP65 ( IP67 Optional )
- Drop1.5 meter without bumper 1.8 meter with bumper
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Operating system
- Android 7.1.2
- Processor
- 2GHz, Qualcomm MSM8953 Octa Core Processor, 64bits
- RAM / storage options
- 3 GB RAM / 32 GB Flash
- Languages support
- English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
- Others
- Input Chinese/ English Supports handwriting and soft keyboard
- Display size
- 4.7” Color LCD 1280X720 High Resolution Display
- Touch panel
- Gorilla Glass 3 with 5-point Capacitive Touch Panel, 450 cd/m2 Brightness
- Buttons / Keypad
- 4 Function Keys, Programmable key, Volume up/down key, Left/right scan key, Power key
- Cameras
- 5 MP Front camera 16 MP Rear with LED flash and auto-focus function
- Type
- LEDs, Vibrator
- 1D Barcodes
- 1D CCD (Optional) : UPC-A/E, EAN-8/13, Codabar, Code 39, Code 39 Full ASCI, Code 93, Code 32, Interleaved & Std. 2 of 5, EAN 128, Code 11, MSI/Plessey, Code 128, RSS Expended, RSS Limited, RSS14
- 2D Barcodes
- 2D : PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR Code, Micro QR Code, Aztec, MaxiCode, Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX), and all 1D barcodes DPM (Optional) : Direct-Part-Marked barcodes
- HF RFID
- Support HF/NFC Frequency 13.56Mhz Support: ISO/IEC15693, ISO/IEC14443A , ISO/IEC14443B
- USB
- Micro USB
- OTG
- Yes, over Micro USB
- POGO PIN
- POGO PIN connector for Cradle
- SIM Slot
- Micro SIM slot x 2
- Expansion Slot
- MicroSD x 1,, up to 128 GB
- Audio
- Speaker 85 dB at 10cm, 3.5mm Audio Jack, Receiver, Microphone*2
- Battery / runtime

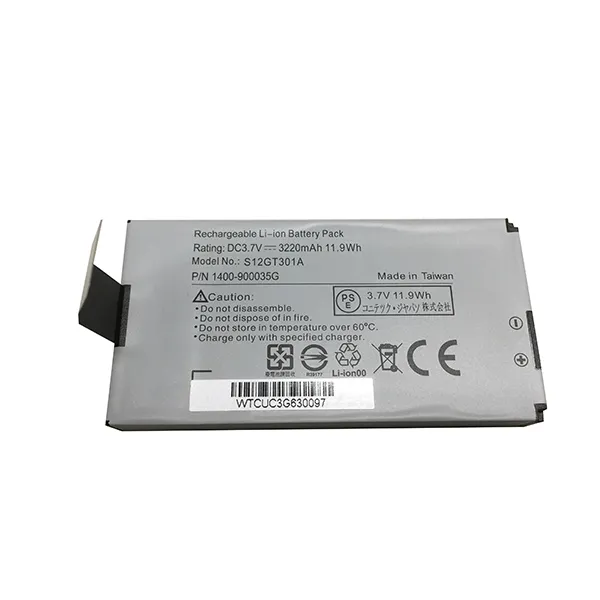

- Rechargable Li-ion Battery 3.6V 3220mAh
- Extended battery
- 3.6V 4800mAh (optional)
- Hot Swap
- Yes
- Bluetooth
- Bluetooth® 4.2
- Wi-Fi / WLAN
- IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v, support fast roaming
- Cellular / WWAN
- 2G – GSM: GSM850, EGSM900, DCS1800,PCS1900 3G – UMTS: Band 1, Band 2, Band 5, Band 8 4G –LTE: FDD Band 1(2100), Band 2(1900), Band 3(1800), Band 4(1700), Band 5(850), Band 7(2600), Band 8(900), Band 20(800) TDD: Band 38(2600), Band 39(1900), Band 40(2300), Band 41(2500), Micro SIM slot *2
- Location / GPS
- GPS/ GLONASS
- MDM Software
- SOTI, AirWatch, 42Gears, 12Manage, and MoboLink
- Housing
- Anti-microbial Housing
- Dimensions
- 171.3mm x 80mm x 29.3mm
- Weight
- 287g (with standard battery)
- Drop specification
- 1.5 meter without bumper 1.8 meter with bumper
- IP / sealing
- IP65 ( IP67 Optional )
- Tumble specification
- MIL-STD-810G, 514.4 Process II
- Operating temperature
- 4°F to 122°F (-20°C to 50°C)
- Storage temperature
- -22°F to 140°F (-30°C to 60°C)
- Humidity
- 5% ~ 95% (Non-Condensing)
- Accessories
- ■ 4-slot Ethernet Cradle ■ 4-slot Terminal Charging Cradle ■ 1-slot USB Cradle ■ 1-slot Ethernet Cradle ■ 4-slot Battery Charger ■ Vehicle Charger ■ Tempered Glass Screen ■ USB Holder Cable ■ Hand Strap w/ or w/o stylus loop ■ Stylus & Coiled Strap ■ Bumper ■ Gun Grip ■ Wrist-arm Mount ■ Holster with Belt Strap
- The standard package contents
- ■ PA726MCA Terminal ■ Battery ■ Hand Strap ■ USB cable ■ Adaptor with plugs
- The basic package contents
- ■ PA726MCA Terminal ■ Battery ■ Hand Strap
- Regulatory Approvals
- CE, FCC, NBTC, NCC, BSMI, VCCI, CCC, RoHS
- Hardware Warranty
- 15 months
