Unitech · Handheld computer

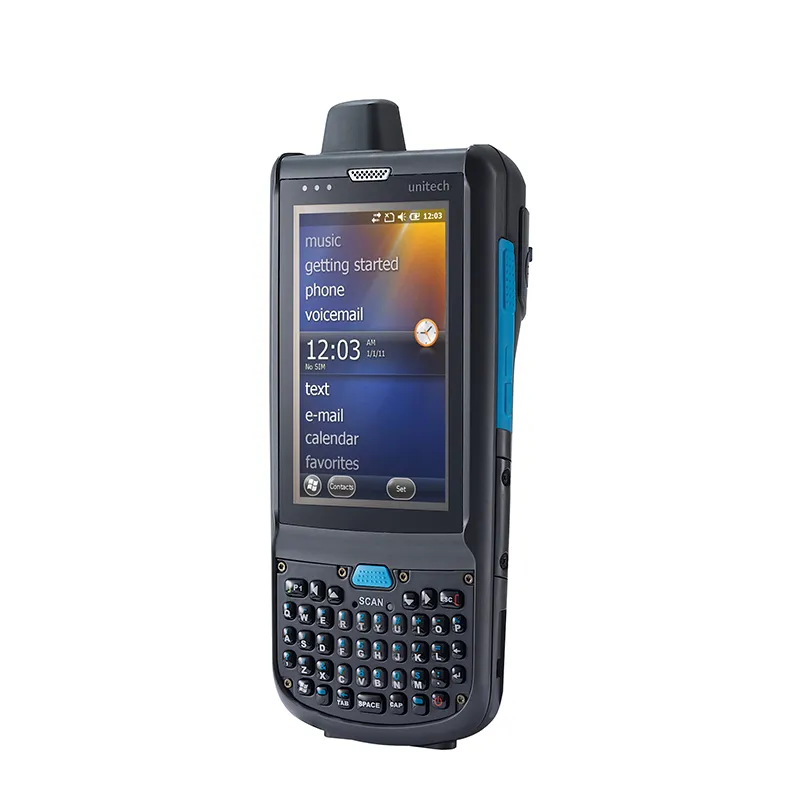

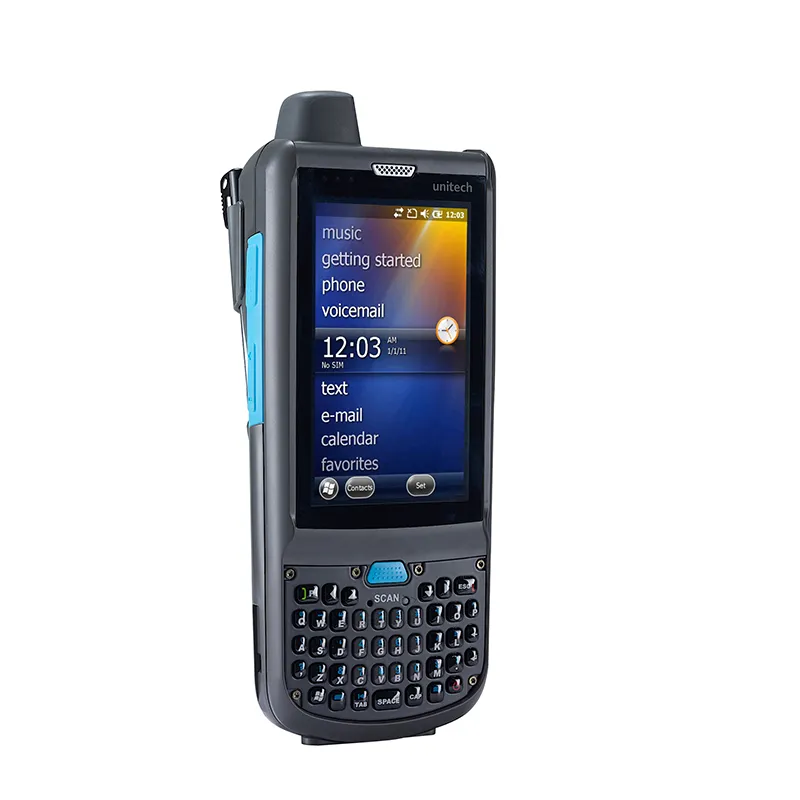

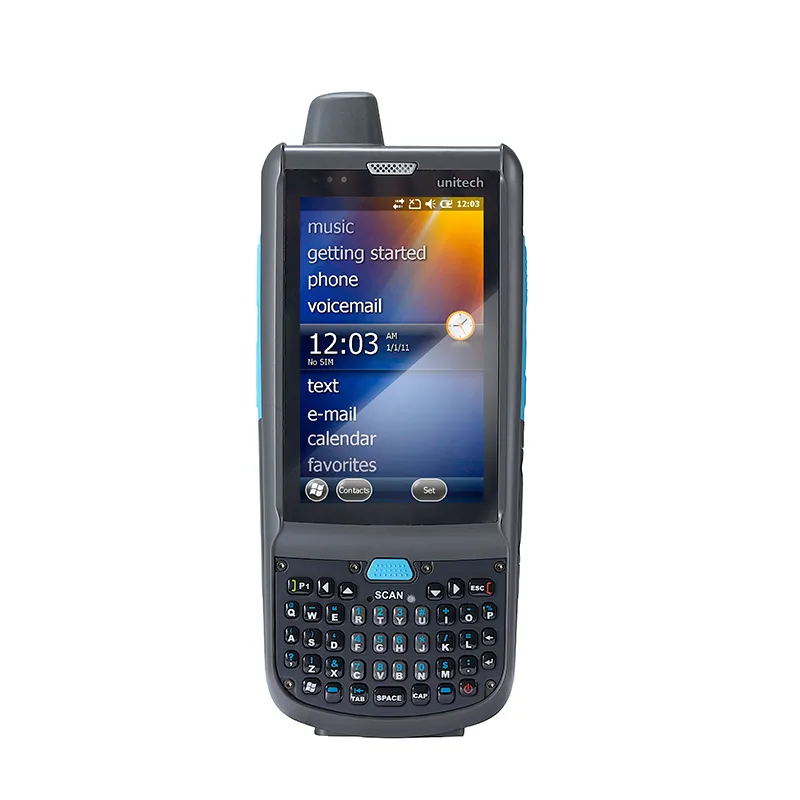

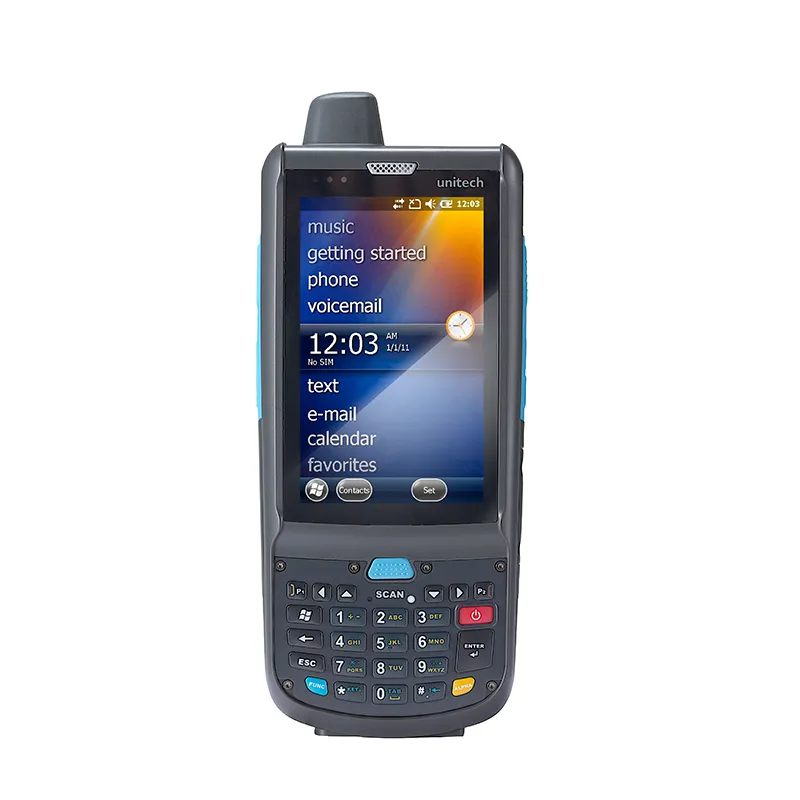

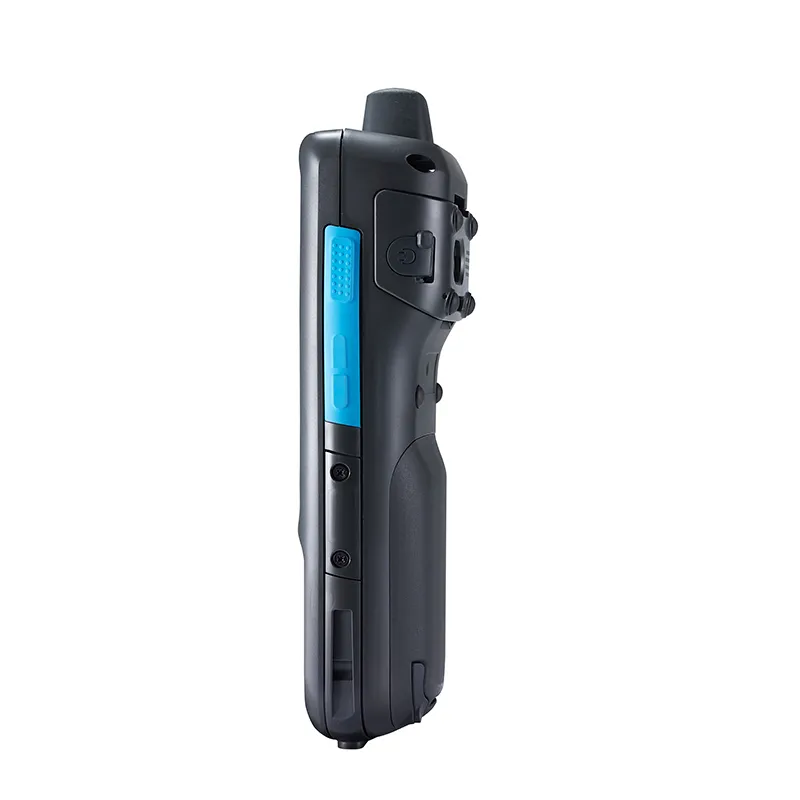

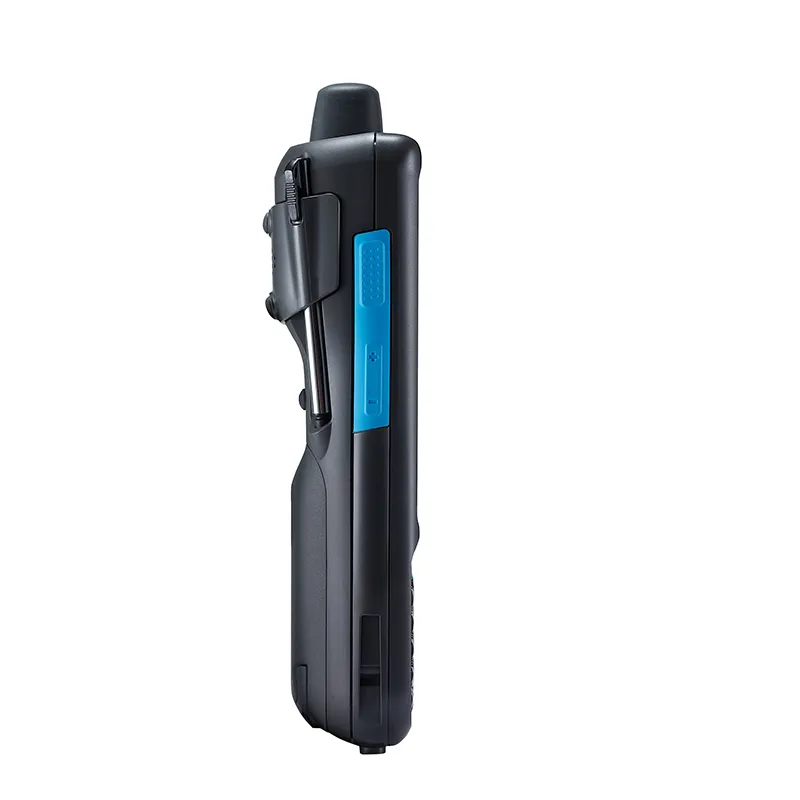

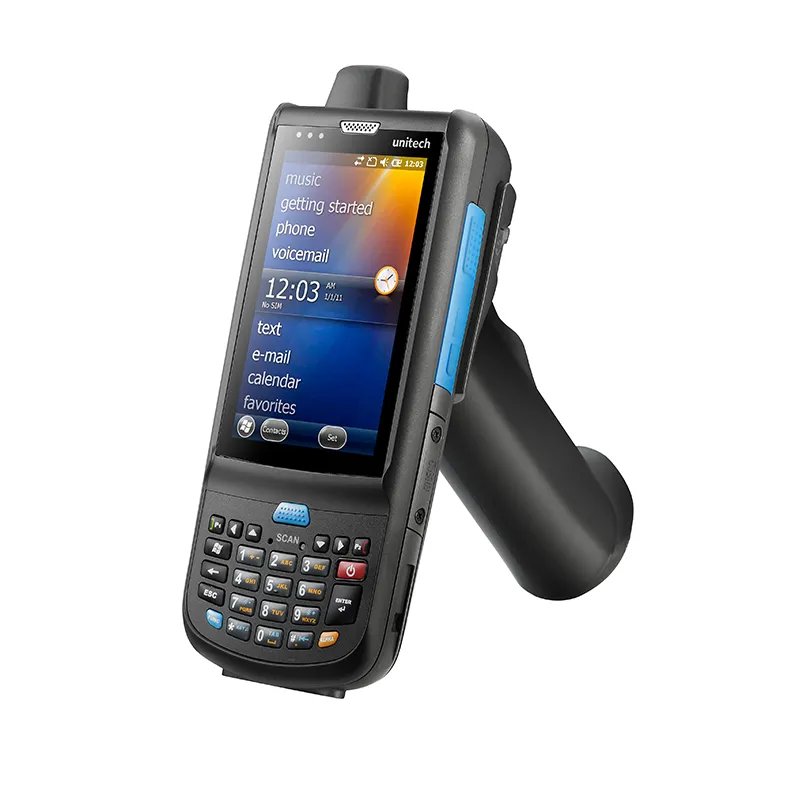

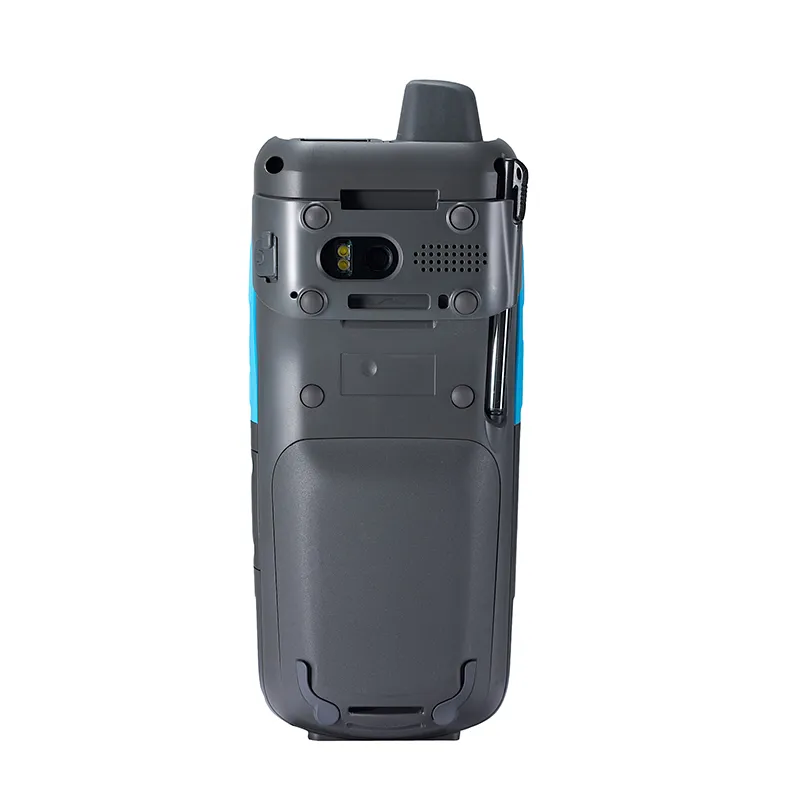

Unitech PA692
The PA692 is a Windows-based rugged handheld computer with keypad design.
- Operating systemWindows Embedded Handheld 6.5 Professional/Classic or Windows Embedded Compact Pro 6.0
- Display3.7 inch full WVGA WVGA (480 x 800) color screen Windows embedded CE**: 3.7” full WVGA WVGA (400 x 220)…
- Battery8.14 Watt-Hour 3.7V @2200 mAh 14.8 Watt- Hour 3.7V @4000 mAh
- SealingIP65
- Drop1.5m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Windows Embedded Handheld 6.5 Professional/Classic or Windows Embedded Compact Pro 6.0
- Processor
- 1GHz, TI AM3715
- RAM / storage options
- 512 MB RAM / 512 MB Flash
Display
- Display size
- 3.7 inch full WVGA WVGA (480 x 800) color screen Windows embedded CE**: 3.7” full WVGA WVGA (400 x 220) color screen
- Touch panel
- Resistive touch pannel
Data capture
- Cameras
- 5MP rear camera with LED flash and auto-focus function
Power

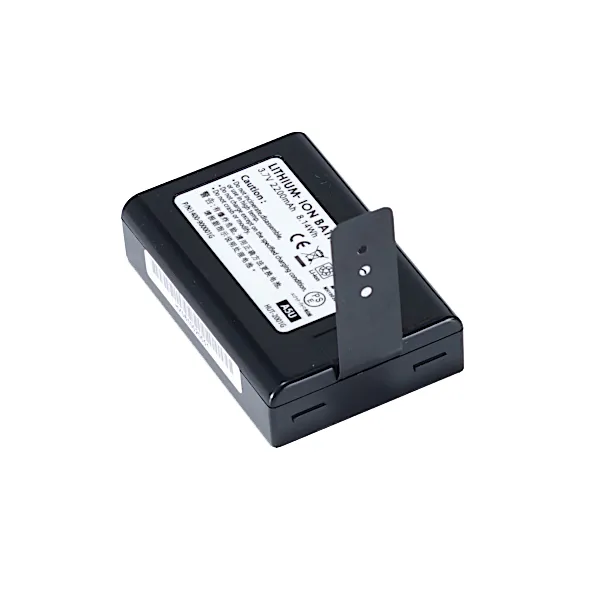

- Battery / runtime
- 8.14 Watt-Hour 3.7V @2200 mAh 14.8 Watt- Hour 3.7V @4000 mAh
Connectivity
- Wi-Fi / WLAN
- IEEE 802.11 a/b/g/n CCX4
- Cellular / WWAN
- 3.5G five-bands, GSM/GPRS 850MHz, 900MHz, 1800MHz and 1900MHz, UMTS WCDMA/HSDPA 950MHz, 1900MHz, 2100 MHz / GPRS EDGE
- Bluetooth
- Bluetooth® 2.1 + EDR
- Location / GPS
- GPS/ GALILEO/AGPS
Rugged
- IP / sealing
- IP65
- Drop specification
- 1.5m
- Operating temperature
- 14°F to 122°F (-10°C to 50°C)
- Storage temperature
- -4°F to 140°F (-20°C to 60°C)
- Humidity
- 5% ~ 95% (non-condensing)
Size
- Weight
- 390g with 2200mAh Battery 430g with 4000mAh Battery
- Dimensions
- 177 mm x 74 mmx 40 mm
