Unitech · Handheld computer

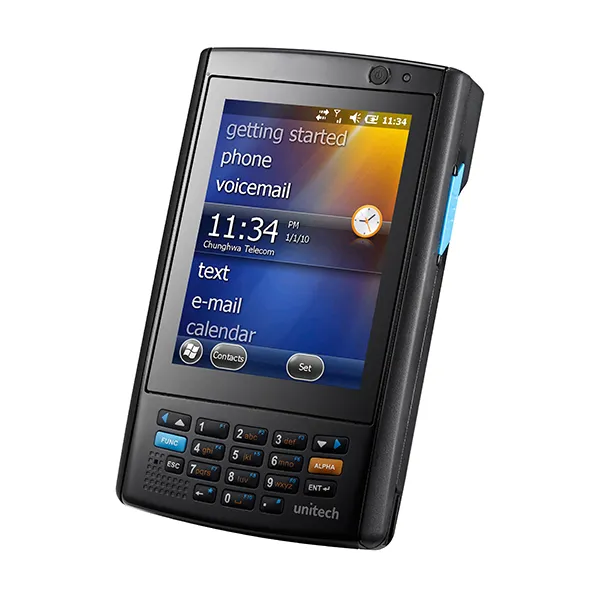

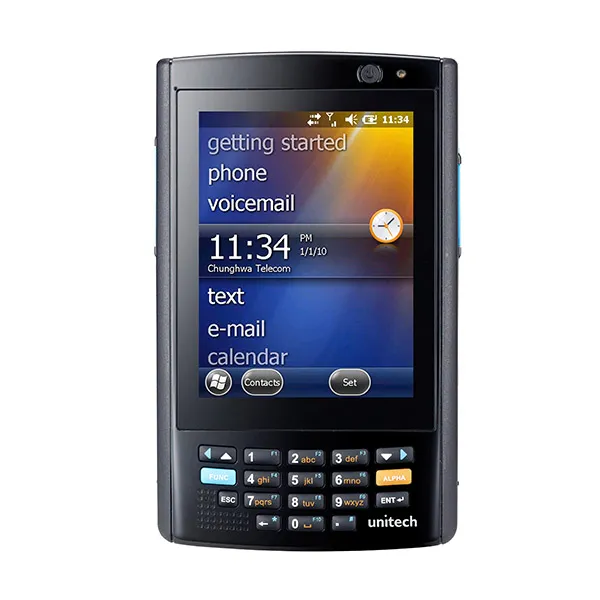

Unitech PA520
Powered by Windows OS, the PA520 is a compact sized enterprise PDA.
- Operating systemMicrosoft Windows Handheld 6.5 Classic
- Display3.5 inch TFT LCD QVGA (240x 320) / VGA (480x640) color screen
- Battery8.9 Watt-Hour 3.7V @ 2400mAh battery pack
- SealingIP42
- Drop1.0m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Microsoft Windows Handheld 6.5 Classic
- Processor
- 800MHz, TI AM3703
- RAM / storage options
- 512 MB RAM / 512 MB Flash
Display
- Display size
- 3.5 inch TFT LCD QVGA (240x 320) / VGA (480x640) color screen
- Touch panel
- Capacitive touch pannel
Data capture
- Cameras
- -
Power
- Battery / runtime
- 8.9 Watt-Hour 3.7V @ 2400mAh battery pack
Connectivity
- Wi-Fi / WLAN
- IEEE 802.11 a/b/g/n, CCX4
- Cellular / WWAN
- -
- Bluetooth
- -
- Location / GPS
- -
Rugged
- IP / sealing
- IP42
- Drop specification
- 1.0m
- Tumble specification
- Tumble 600 times (1.6 ft./0.5 m)
- Operating temperature
- 32°F to 122°F (0°C to 50°C)
- Storage temperature
- -4°F to 140°F (-20°C to 60°C)
- Humidity
- 5% ~ 95% ( non-condensing )
Size
- Weight
- 220g (with battery)
- Dimensions
- 125.9mm x 25.0mm x 76.0mm
