Unitech · Accessory

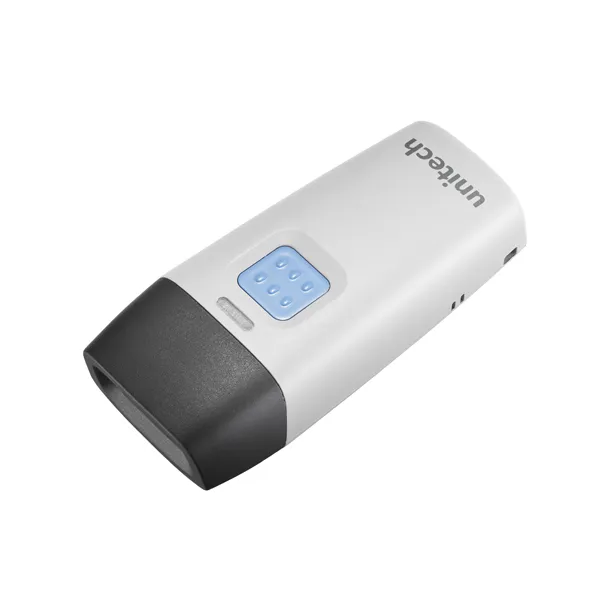

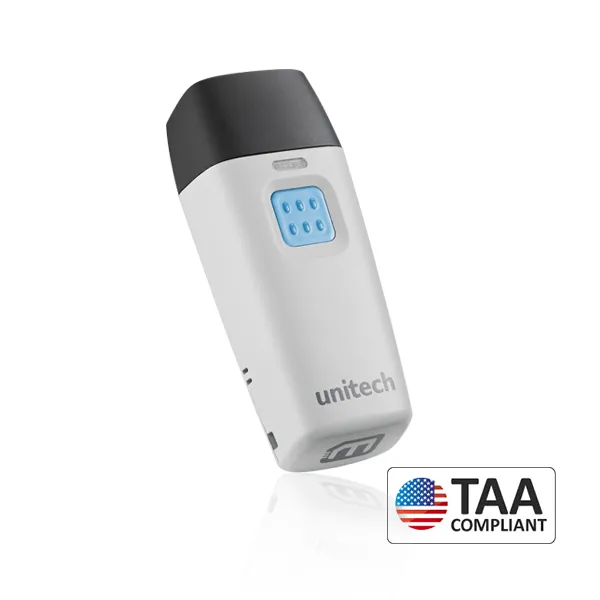

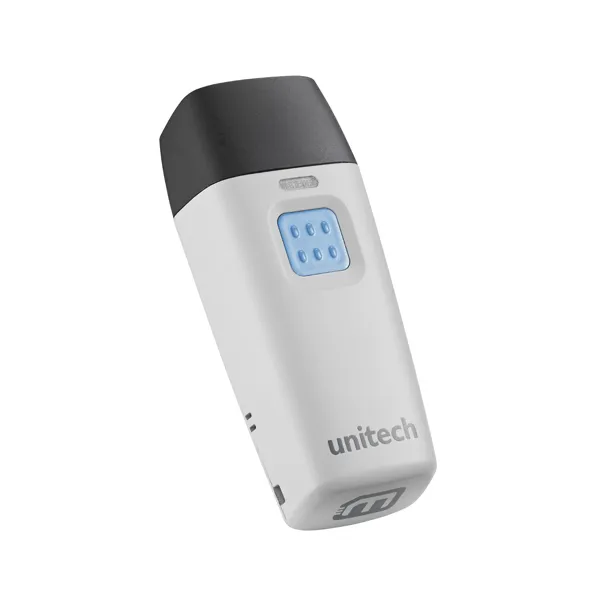

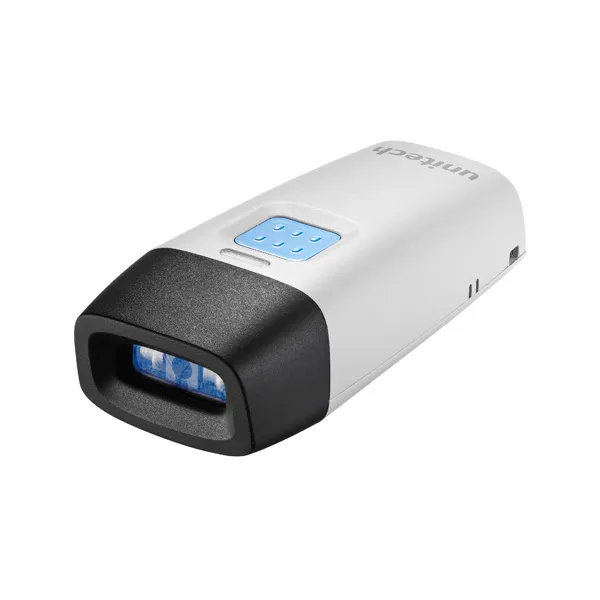

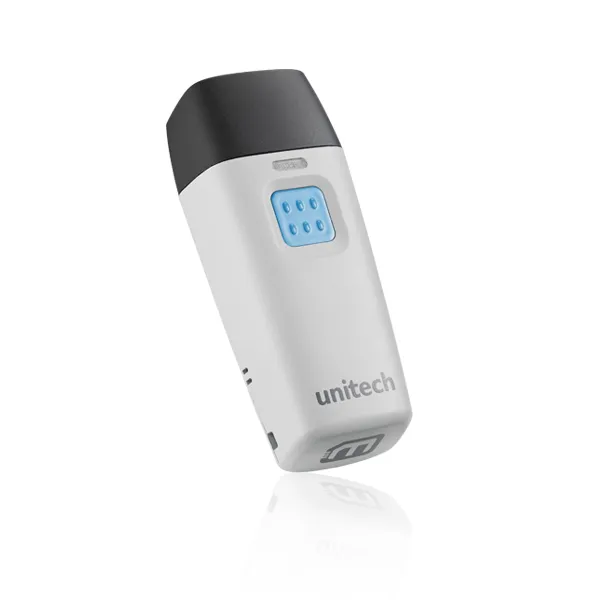

Unitech MS912 Plus 2D

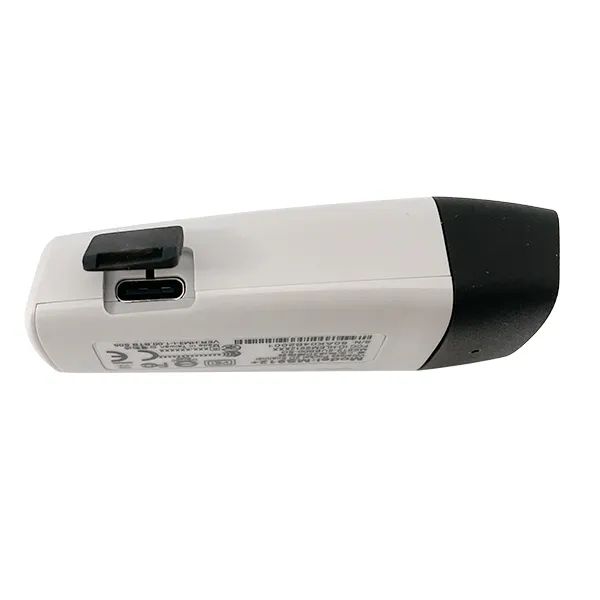

Small and Compact Design | Bluetooth® 5.0 | Mobility in Wireless Communications | With USB Type-C Support
- BatteryLi-Polymer Battery 3.7V, 350mAh
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- RAM / storage options
- 2MB
- Sensor
- 640 x 480
- Aiming Element
- White LED Visible red LED
- Ambient Light
- 70,000 Lux (Sunlight)
- Skew Angle
- ±60°
- Pitch Angle Sensor
- ±60°
- Roll Angle
- 360°
- Optical Resolution
- 5mil / 0.125mm (1D) 10mil / 0.25mm (2D)
- Printing Contrast Scale
- 25%
- Scan range / decode distances
- 5 Mil Code 39: 55 ~ 100mm 13 Mil UPC/EAN: 55 ~ 270mm 15 Mil QR Code: 40 ~ 190mm 6.7 Mil PDF417: 45 ~ 120mm 10 Mil Data Matrix: 40 ~ 90mm (Environment: 800 lux)
- Radio
- Bluetooth 5.0 dual mode (Class 2)
- Wireless Coverage
- 66 ft/ 20m (line of sight)
- Protocol
- BT HID BT SPP USB HID USB VCP Memory
- Dimensions
- H20*W30*L72mm
- Weight
- 30.7g
- 1D Barcodes
- UPC-A/ UPC-E0/ UPC-E1, EAN-8/ EAN-13, Code128, Code39, Code93, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Standard 2 of 5 (IATA), China Post 25, Code11, MSI Plessey, Plessey, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded
- 2D Barcodes
- QR Code, Micro QR Code, PDF417, MicroPDF417, Data Matrix, Aztec, MaxiCode, Han Xin, Code 16K
- Operation Voltage
- 3.7VDC ± 5%
- Current Consumption
- Working Current < 230mA Standby Current < 25mA
- Battery / runtime
- Li-Polymer Battery
- Battery / runtime
- 3.7V, 350mAh
- Battery Charging time
- 2 hours
- Operating Time
- > 5,000 scans (1 scan/ 5 secs, Bluetooth connected)
- ESD Protection
- Functional after 4KV contact, 8KV air discharge
- Mechanical Shock
- 1.5M
- Operating temperature
- -10 ~ 50˚C
- Storage temperature
- -20 ~ 60˚C
- Humidity
- 0%~95%RH (Non-condensing)
- Regulatory Approvals
- CE, FCC, BSMI, NCC, VCCI, TELEC, DOE, CEC, TAA Compliant
- The standard package contents
- ■ MS912 Plus 2D Scanner ■ USB cable (Type C USB) ■ Wrist Lanyard
- Hardware Warranty
- 15 months
- Statement
- This product is warranted against defects in workmanship and materials for a period of fifteen months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
